Fuse Assignment E-Box, Fuse Carrier Radiator Tank

Fuse Assignment E-Box, Fuse Carrier Radiator Tank

NOTE:
- The E-box is located in the plenum chamber, on left side in direction of travel.

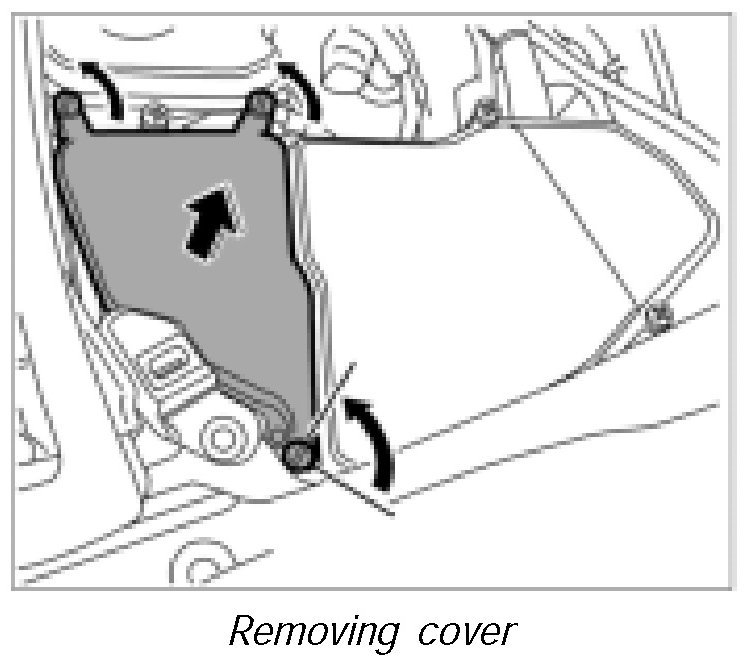

- Remove the left cover of the plenum chamber.

Unscrew the 3 locking mechanisms -arrow- and remove the cover.

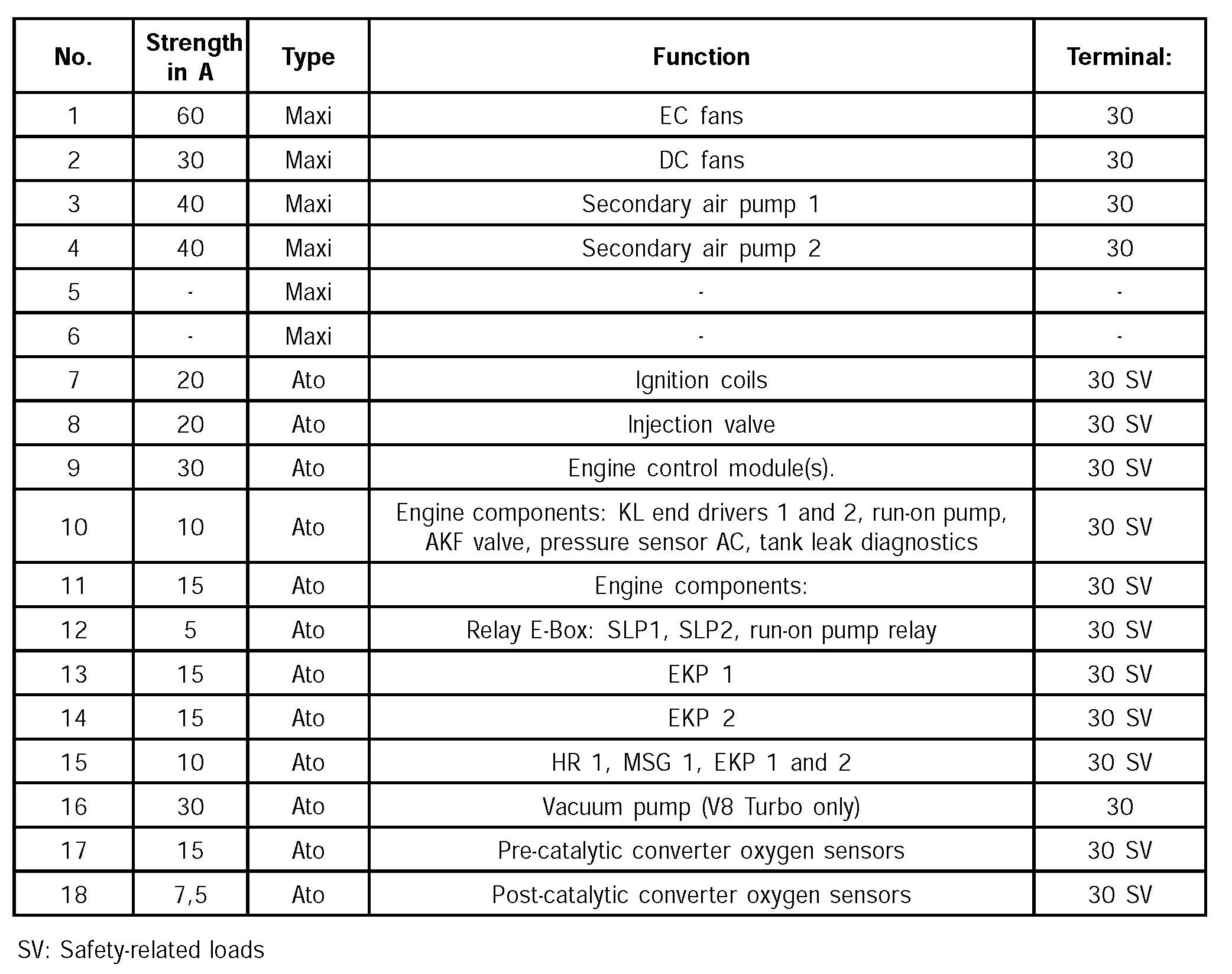

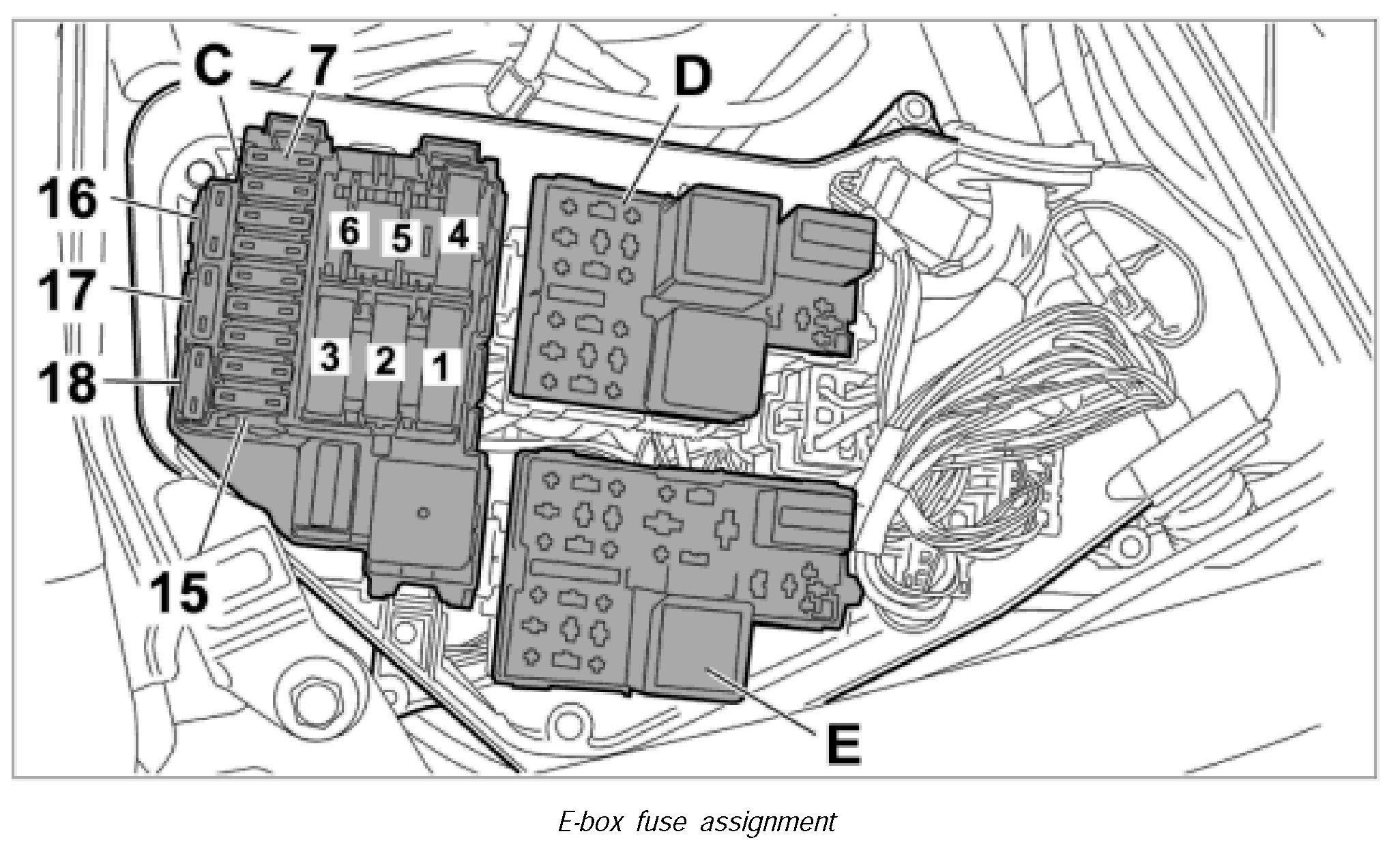

E-box fuse assignment

Abbreviation Explanation
KL Radiator fans
AKF Active carbon filter
GSLP Secondary air pump
EKP Electric fuel pump
MSG Engine control module
