Fuse Assignment, Fuse Carrier, Dashboard, Left



Fuse Assignment, Fuse Carrier, Dashboard, Left

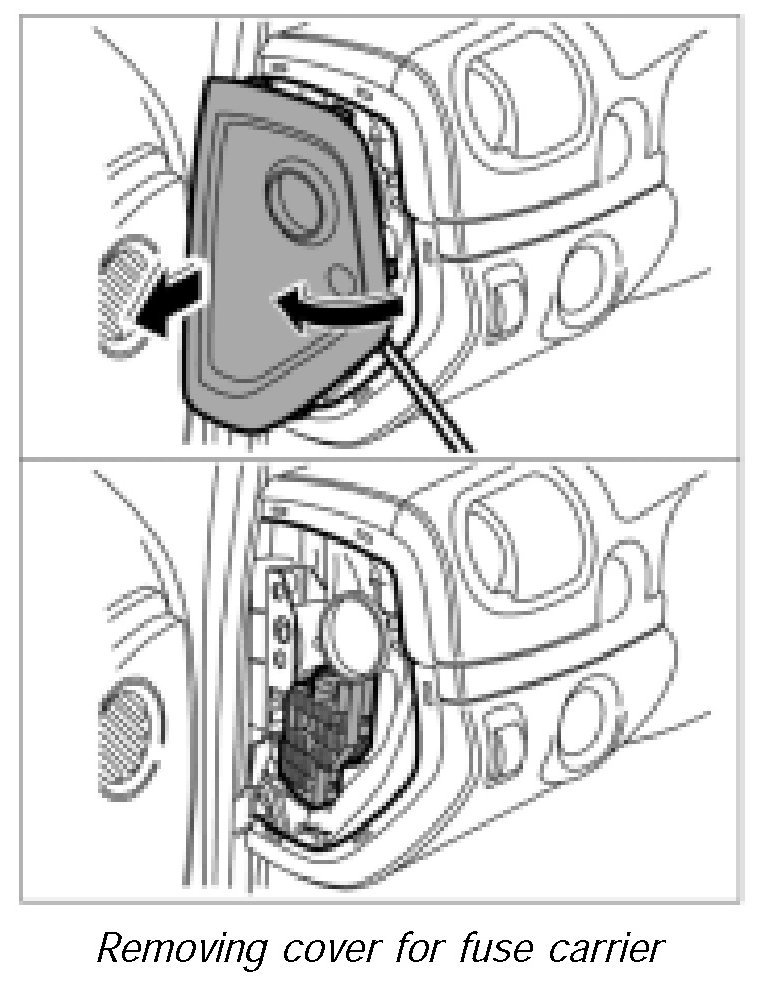

Remove the fuse carrier covers on the left and right:







- Open the doors and run a plastic spatula between the cover and dashboard and remove the cover.
- Remove the defective fuse and replace with a new one.

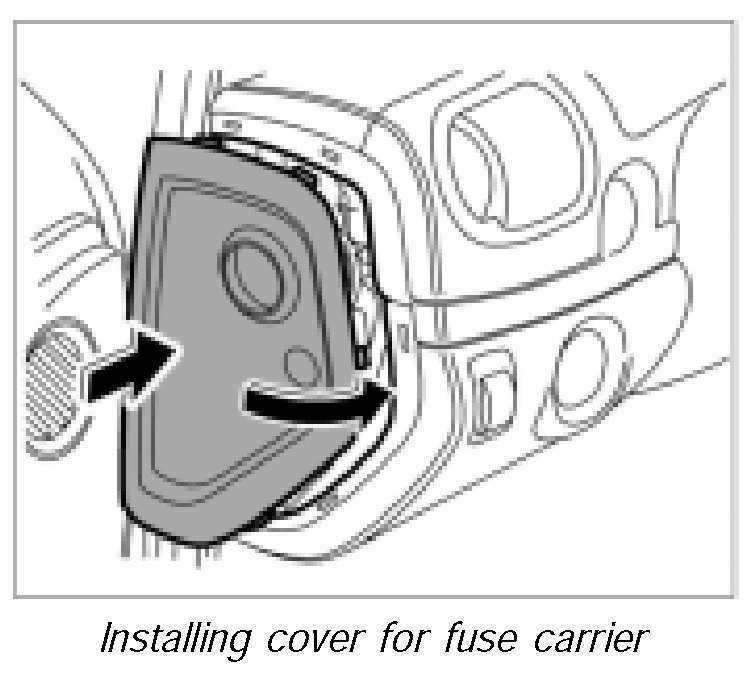

Replace the fuse carrier covers on the left and right:







- Position the cover and press on until the cover clips engage.

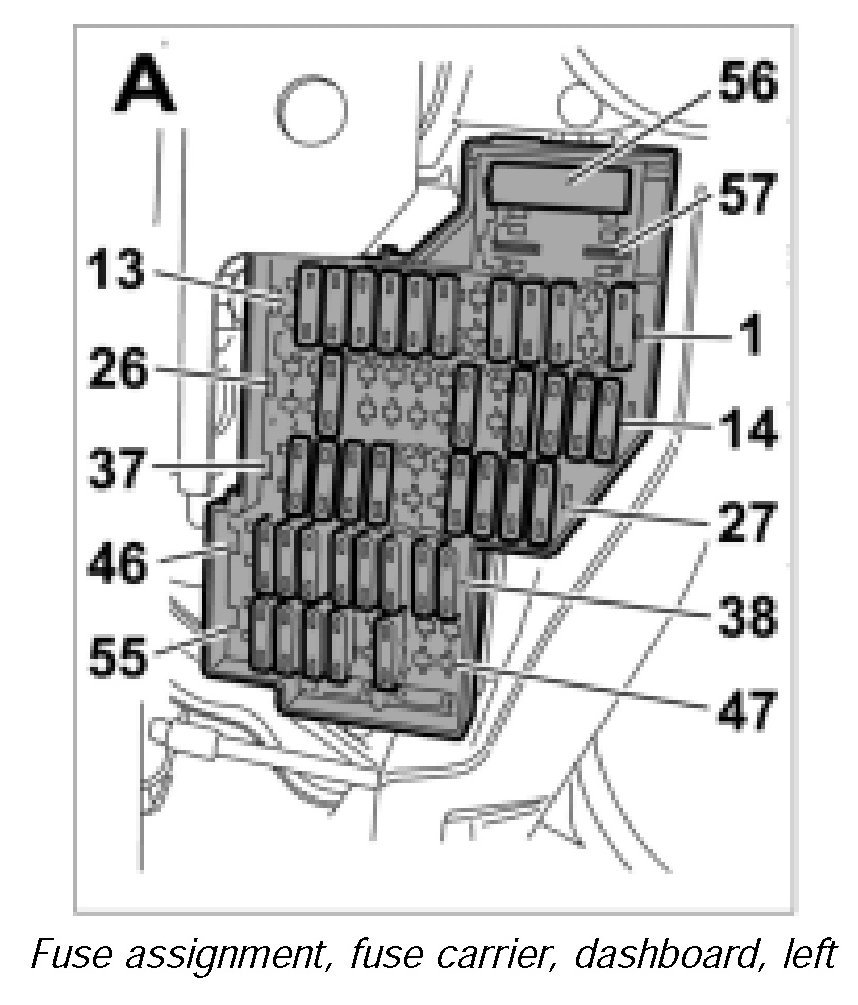

Fuse assignment, fuse carrier, dashboard, left:







Abbreviation Explanation
BNSG Vehicle electrical system control unit
SG Control module
KSH Control unit for comfort system rear
SRA Headlight washer
RDK (tire pressure monitoring system) Tire pressure control
HBA Headlight beam adjustment
BPS Brake pedal switch

NOTE: For fuse assignments please refer to the current issue of the wiring diagram.
