Fuse: Description and Operation



Fuse Carrier

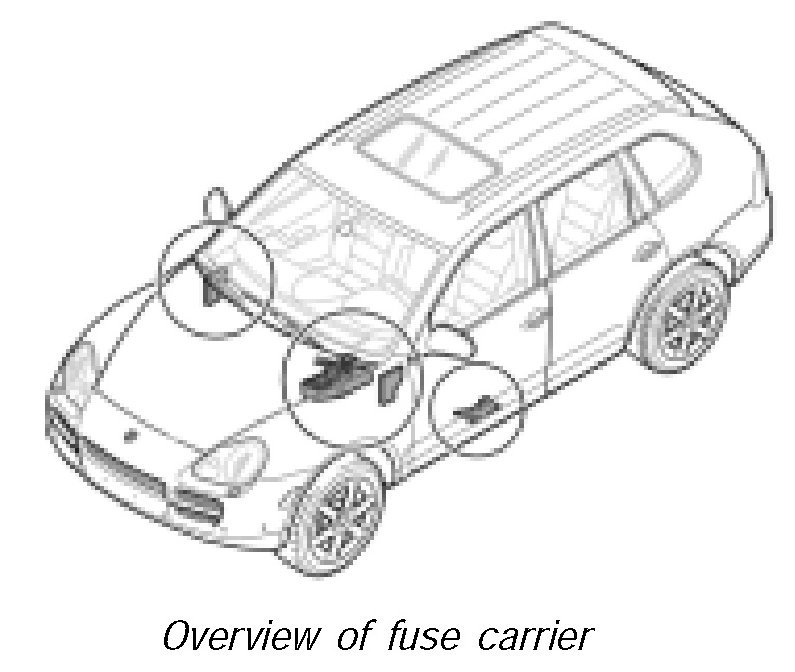

The Cayenne has fuse boxes at the right and left sides of the dashboard, in the water tank, the E-box and power distributor.

Fuses







WARNING: Risk of destruction of electrical and electronic components.

- Before a Maxi -A- and A to -B- fuse is removed, switch off the ignition and remove the ignition key.

There are 4 different types of fuse deployed in the Cayenne.

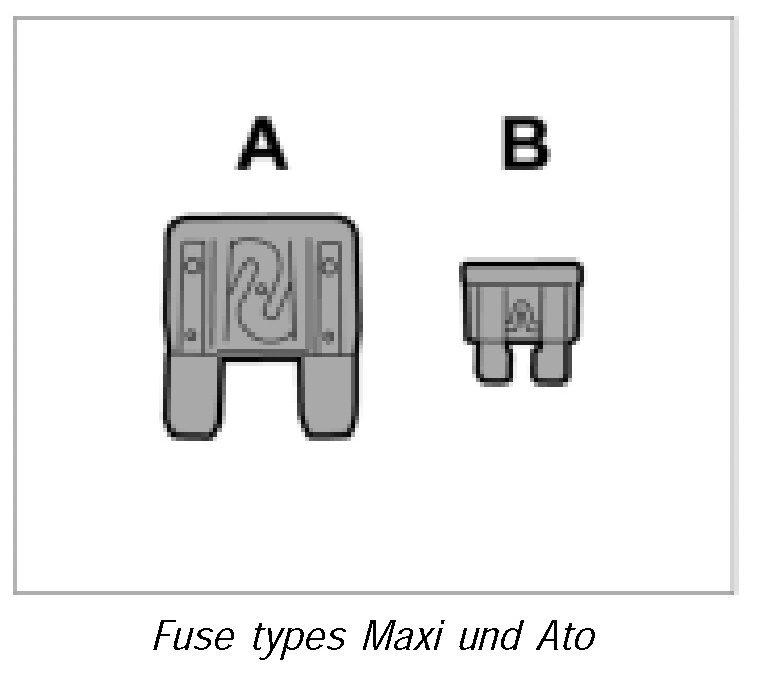

The fuse carriers in the right and left of the dashboard, in the water tank and E-box contain fuses of the type Maxi -A- and A to -B-.

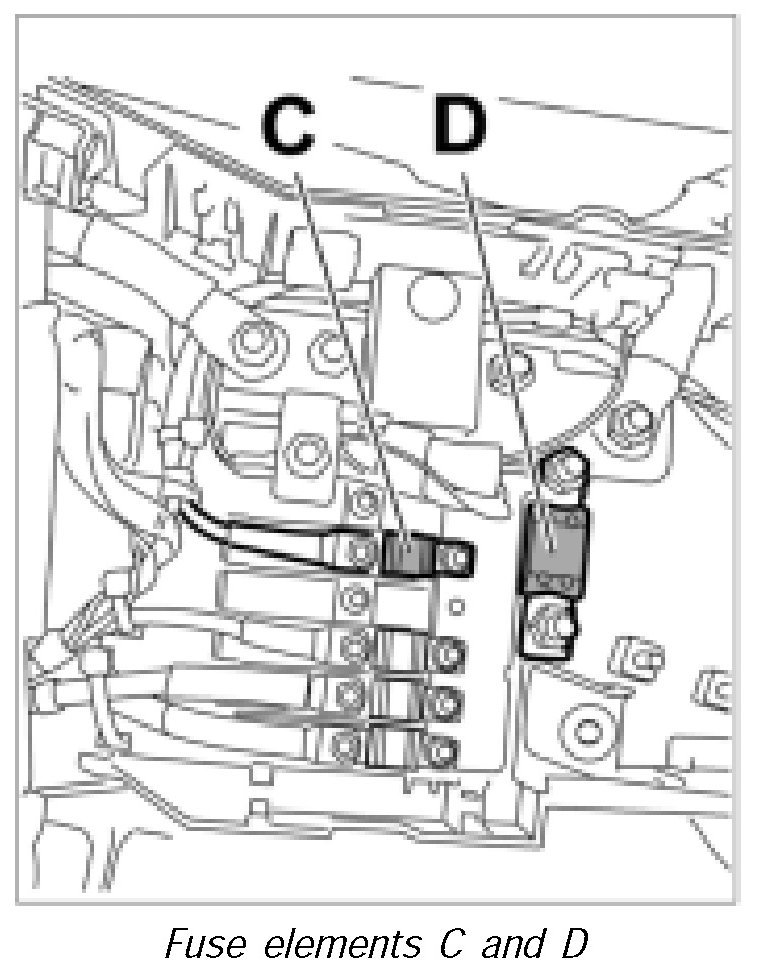

The power distributor mainly contains fuses (fuse elements) of the type -C- Midi and -D- Mega.
