Sunroof / Moonroof Module: Service and Repair

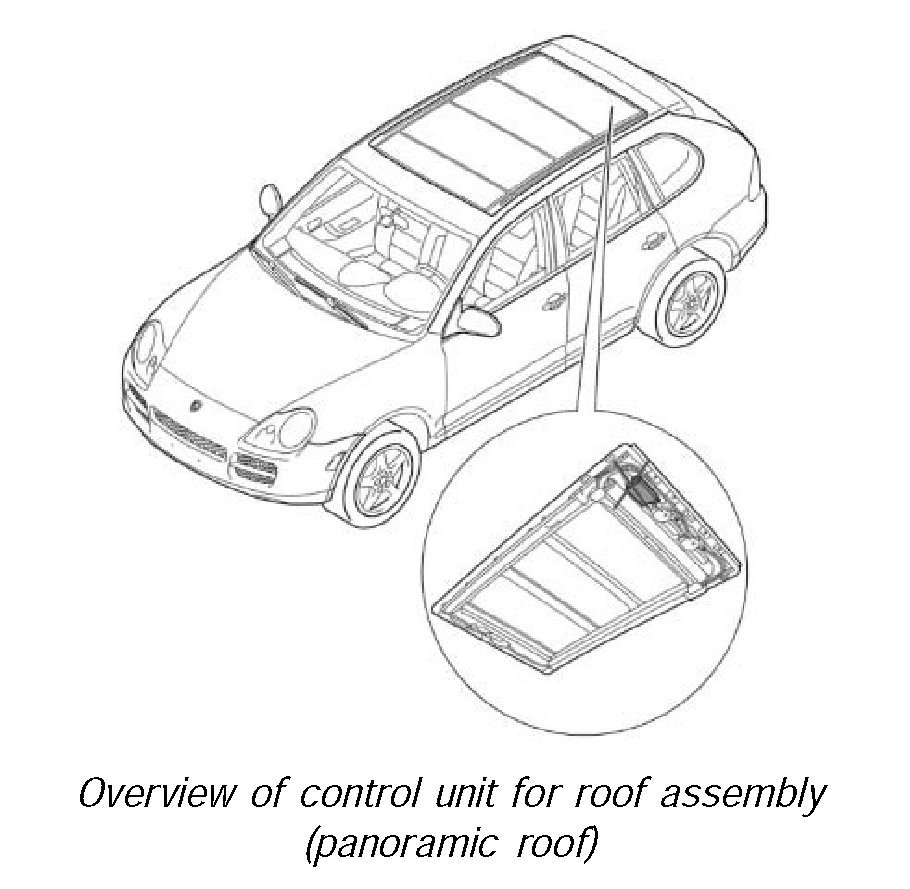

Removing And Installing Control Unit For Roof Assembly (Panoramic Roof)

Preliminary work

1. Removing headliner.
2. Remove ignition key.

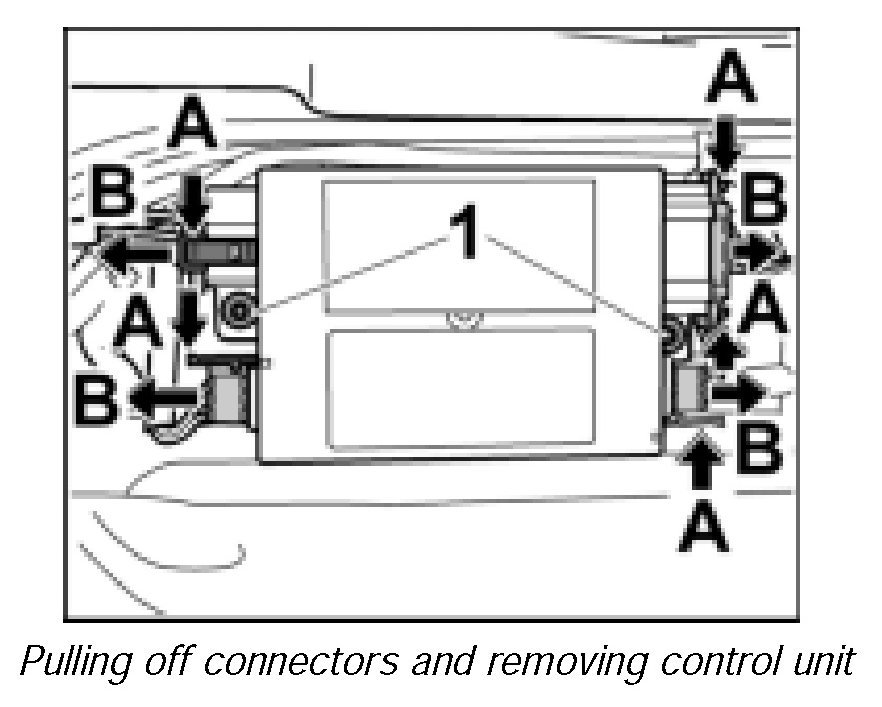

Removing control unit for roof assembly (panoramic roof)












1. Release the connectors -Arrows A- and pull them off -Arrows B-.
2. Unscrew fastening screws -1- and remove control unit.

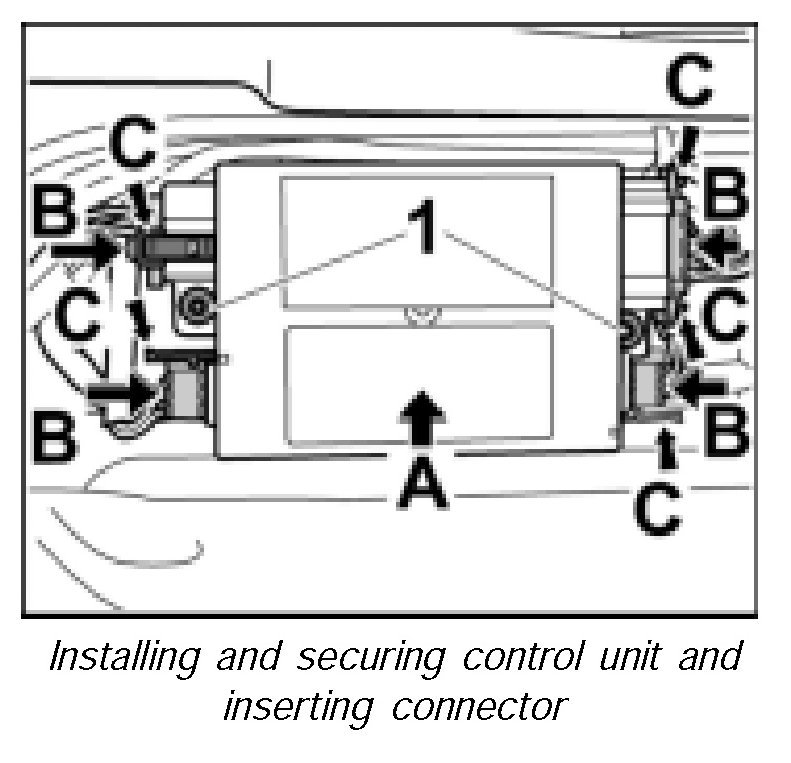

Installing control unit for roof assembly (panoramic roof)

NOTE: After installation of the control unit, the limit stops for the motors must be re-initialized.







1. Position control unit in installation position -Arrows A- and secure with the fastening screws -1-. Tightening torque 3 ftlb.
2. Push in the connectors -Arrows B- until the locking tabs -C- are felt to engage.
3. Initialize limit stop of both motors.

Subsequent work

1. Install headliner.
