Refrigerant Temperature Sensor: Service and Repair

875819 Removing And Installing Temperature Sensor

Removing temperature sensor

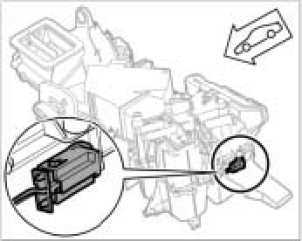

Installation position:

1. Switch off ignition and remove ignition key.

Releasing electrical connector:

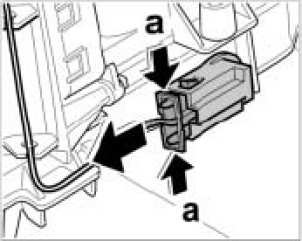

2. From the driver's side, reach around to the "driver's footwell" air vent to release and disconnect the electrical connector -a-.

Removing temperature sensor:

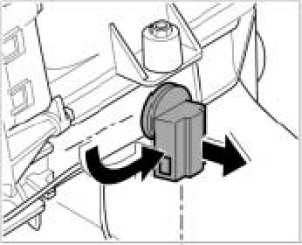

3. Turn temperature sensor through 90° and pull it out of the heating/air conditioner unit.

Installing temperature sensor
1. Switch off ignition and remove ignition key.

Installing temperature sensor:

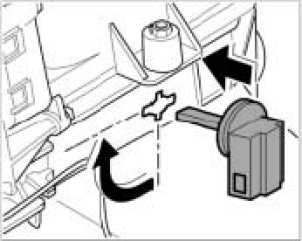

2. From the driver's side, reach around the "driver's footwell" air vent to insert the temperature sensor into the heater/air-conditioning unit and turn it through 90°.

Plugging in connector:

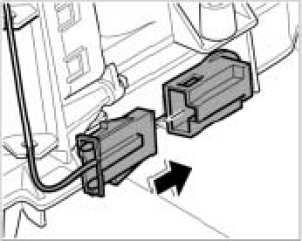

3. Plug in the electric connector until it clicks into place.
