Access Cover: Service and Repair

Removing and installing engine cover (design cover).

Removing and installing engine cover

Note:
^ A special paint is applied to the covers for reasons of appearance.
^ When the engine is washed, a minimum clearance of 50 cm must be maintained between the cleaning apparatus lance and the covers.
^ The covers are sensitive to scratching.

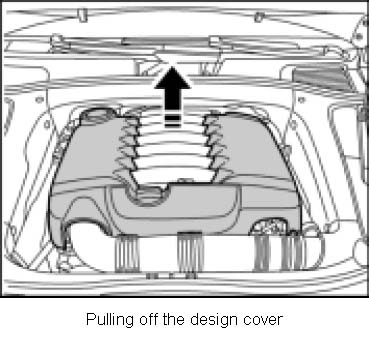

1. To remove the engine cover, detach it at the left and right and pull it straight up.

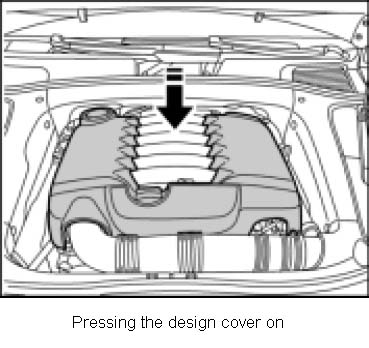

2. To re-attach the engine cover, place it on the engine and press the four rubber sleeves on firmly. Now check that the cover is seated securely.
