Headlamp

Connector Assignment

Connector assignment for headlight beam adjustment, HBA (Xenon)

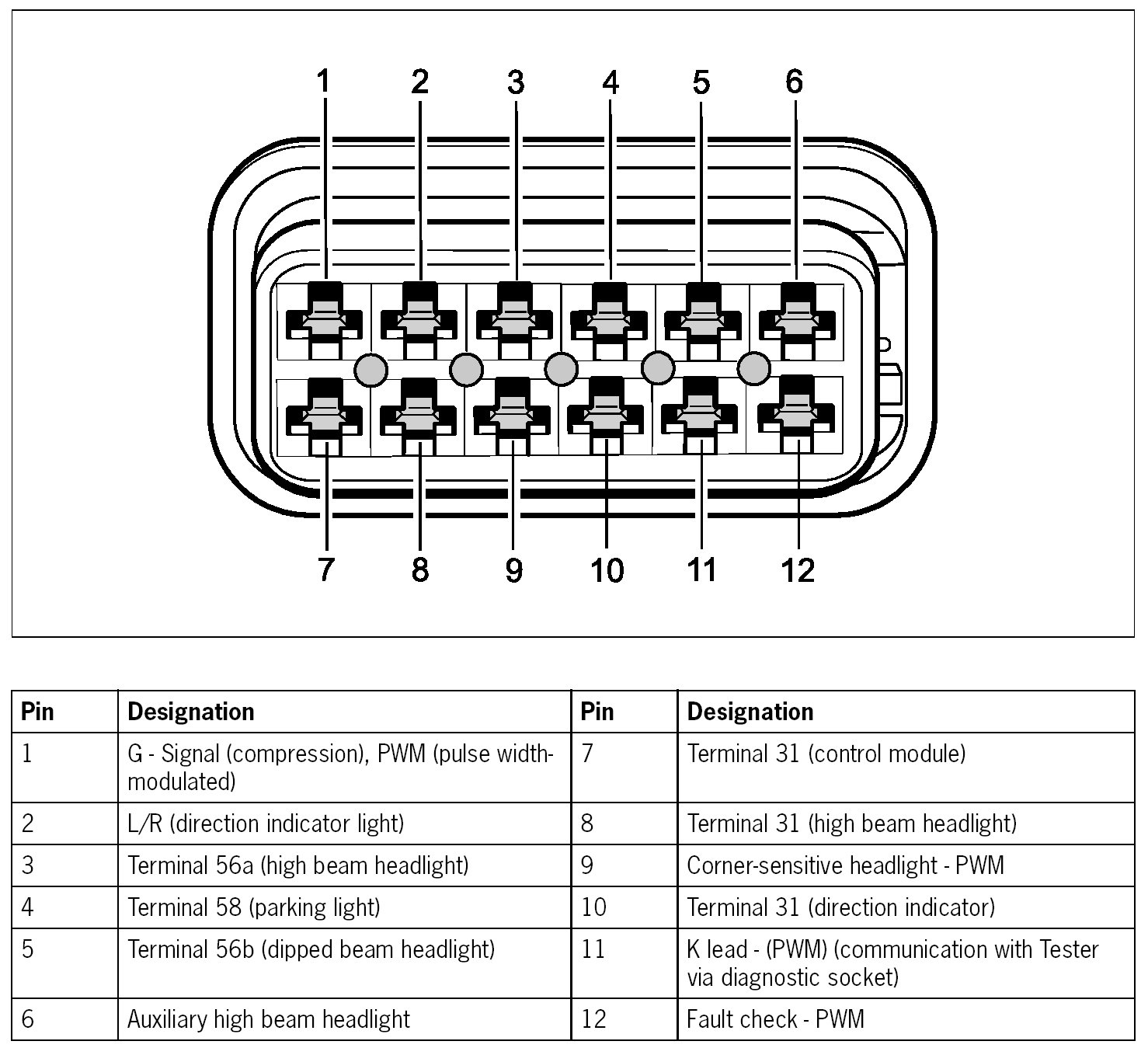

Headlight mounting plate plug, 12-pin

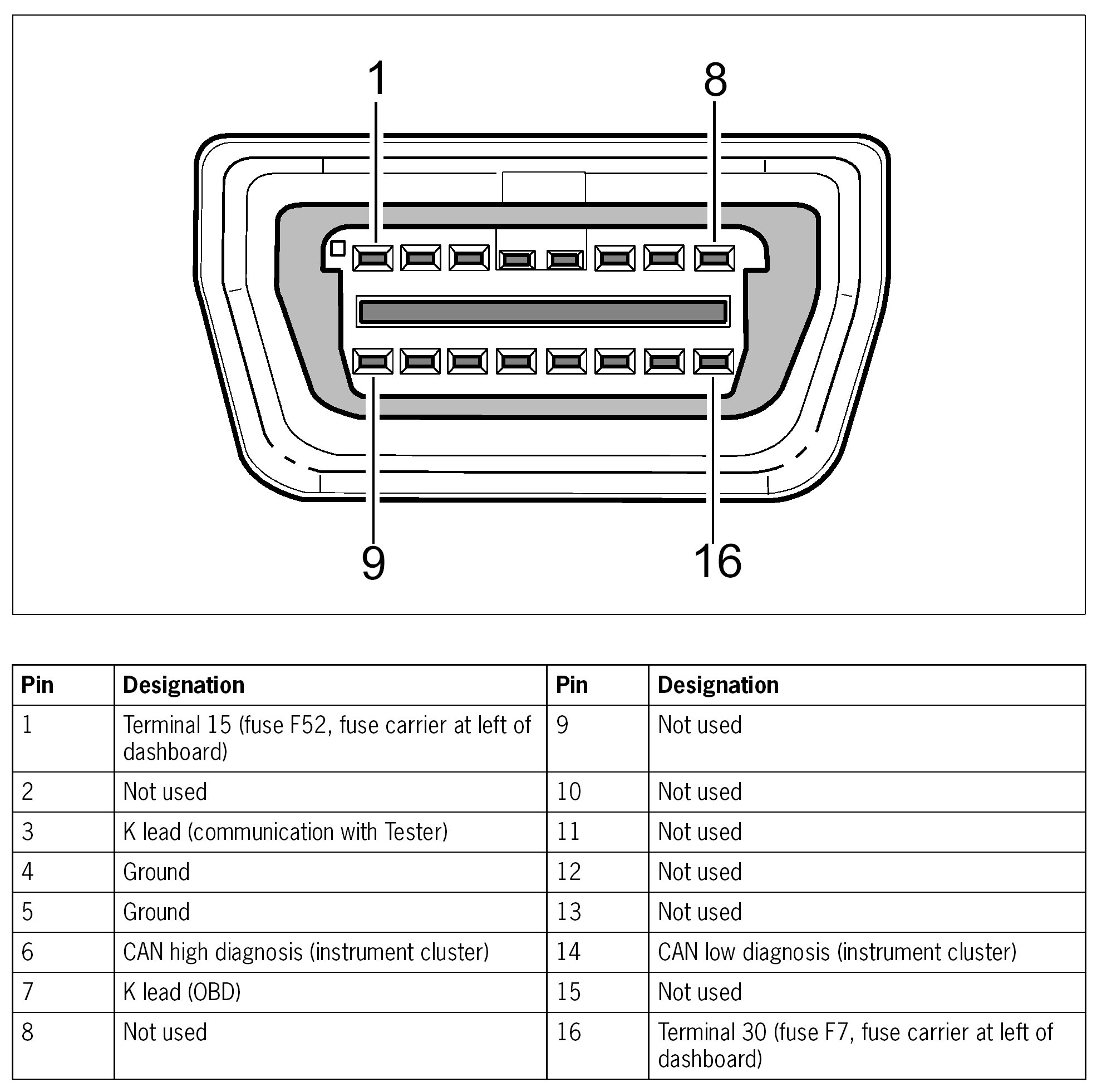

Diagnostic socket, 16-pin

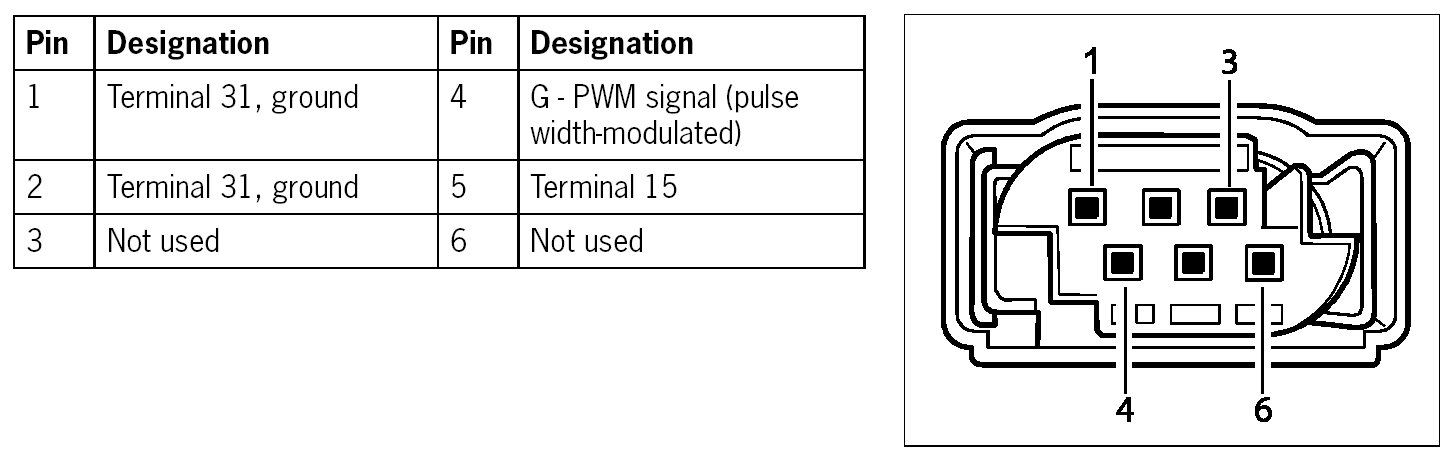

Front HBA angle sensor plug (front compression), 6-pin

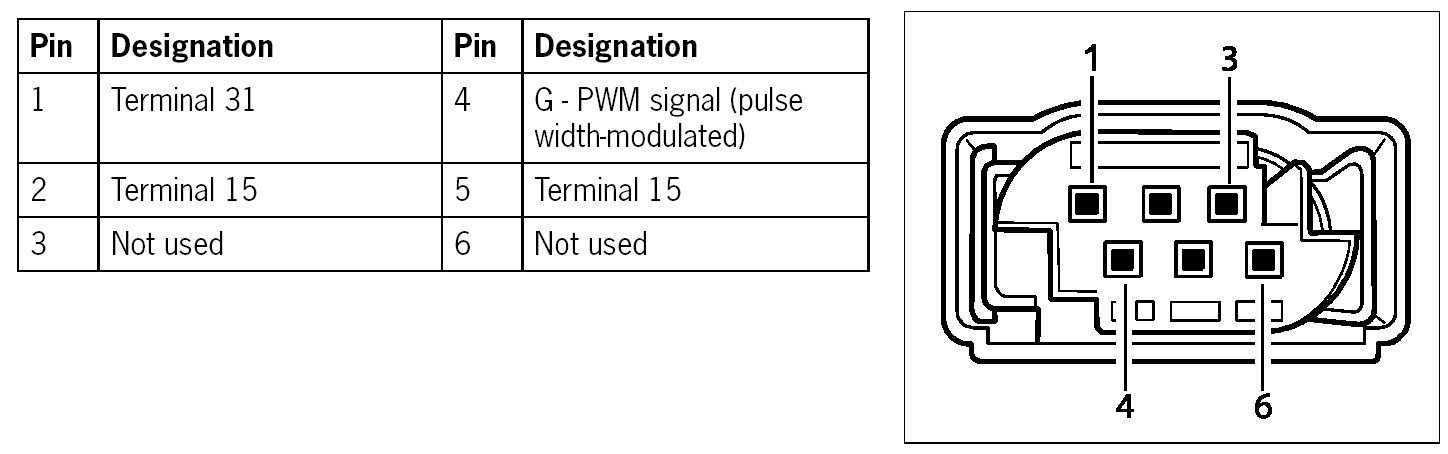

Rear HBA angle sensor plug (rear compression), 6-pin

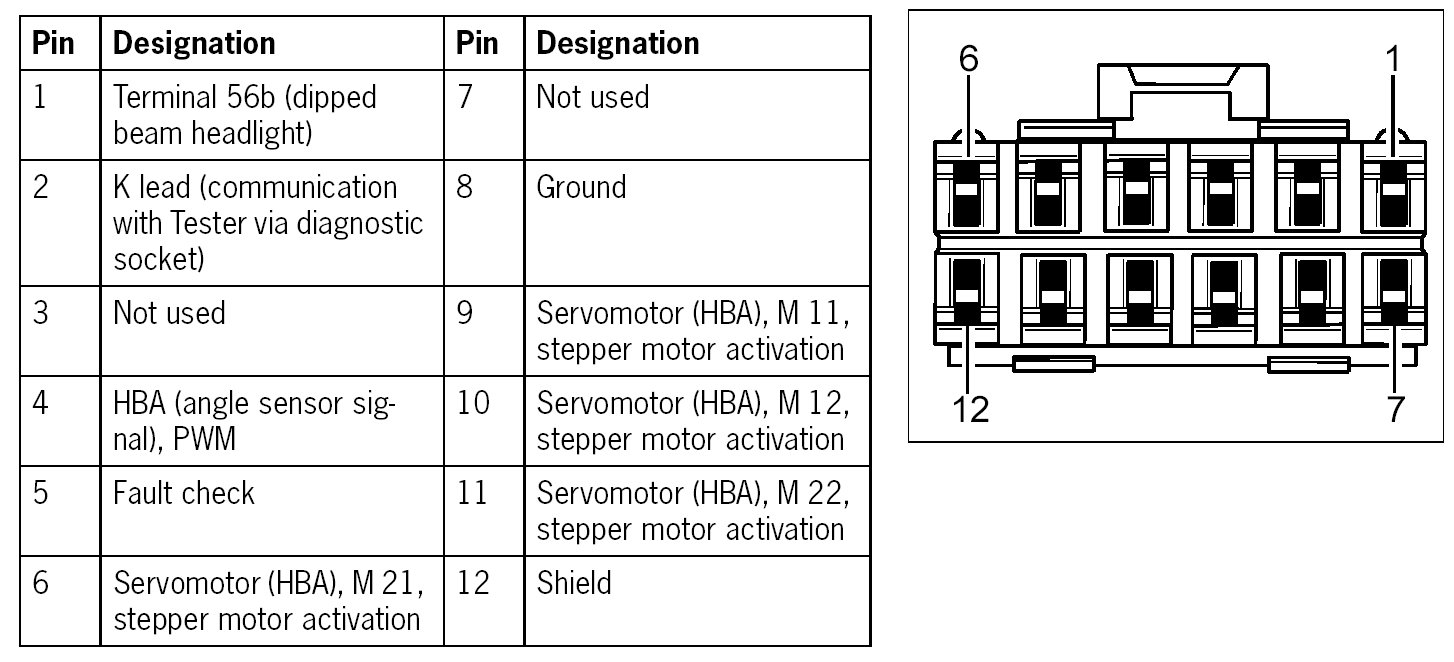

HBA (Xenon) control module plug on the wiring in headlight, 12-pin

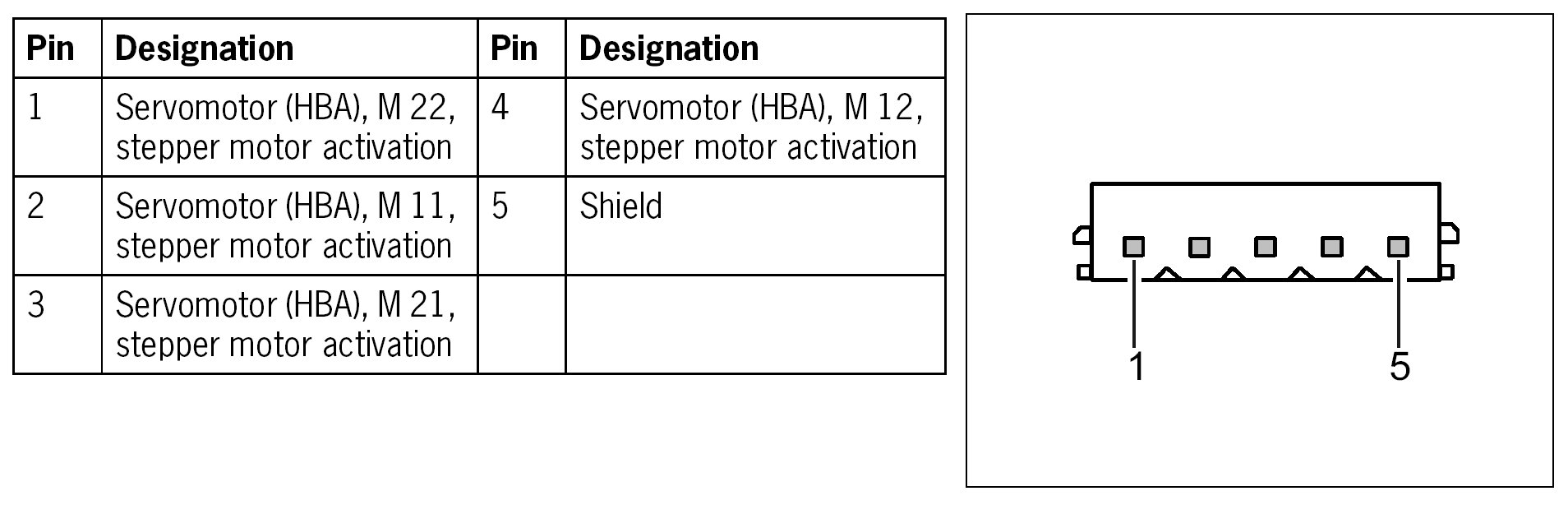

HBA (Xenon) servomotor plug (stepper motor), 5-pin
