Trailer Hitch




Trailer Hitch Connector Assignment


Control unit connection

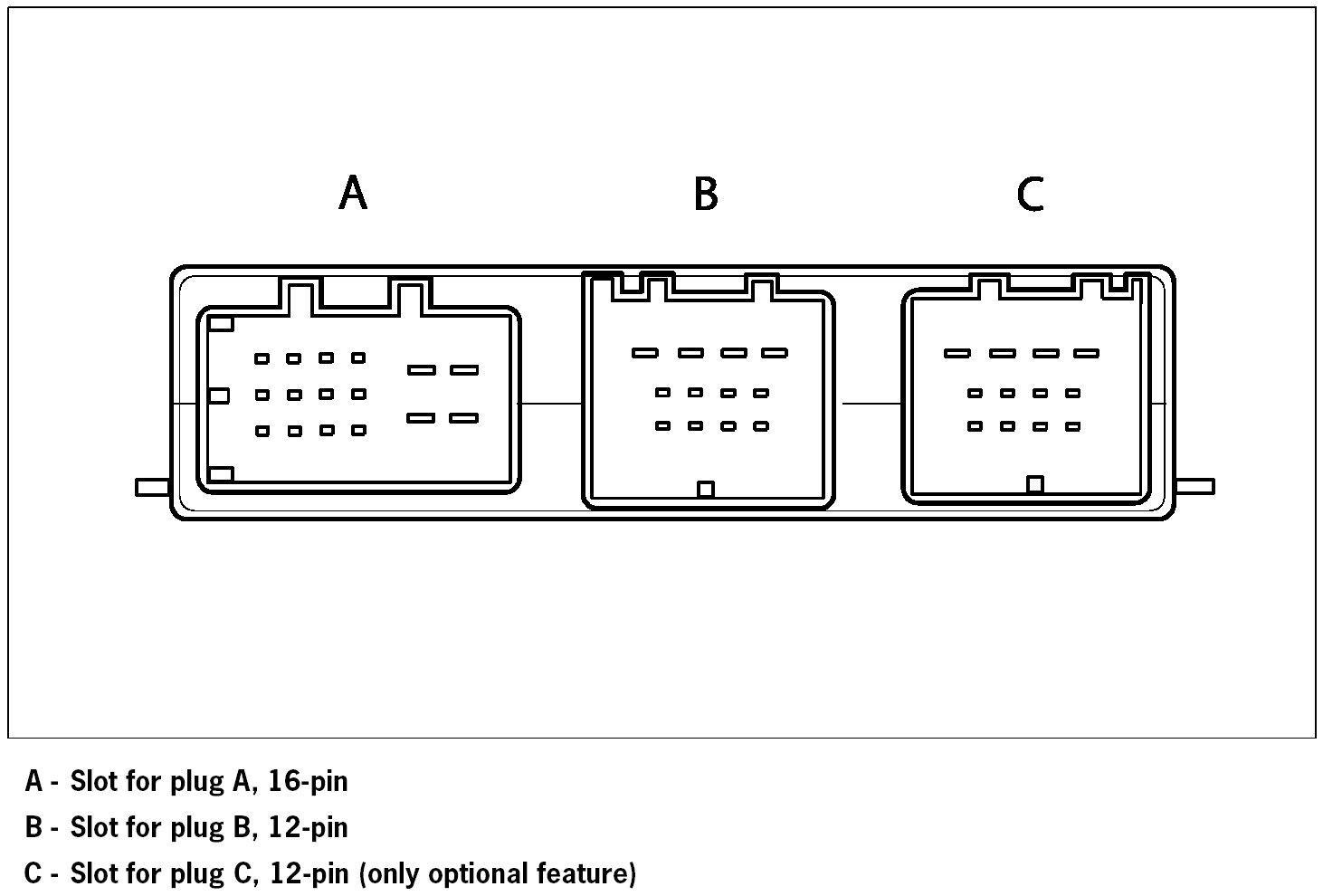

Trailer hitch control unit

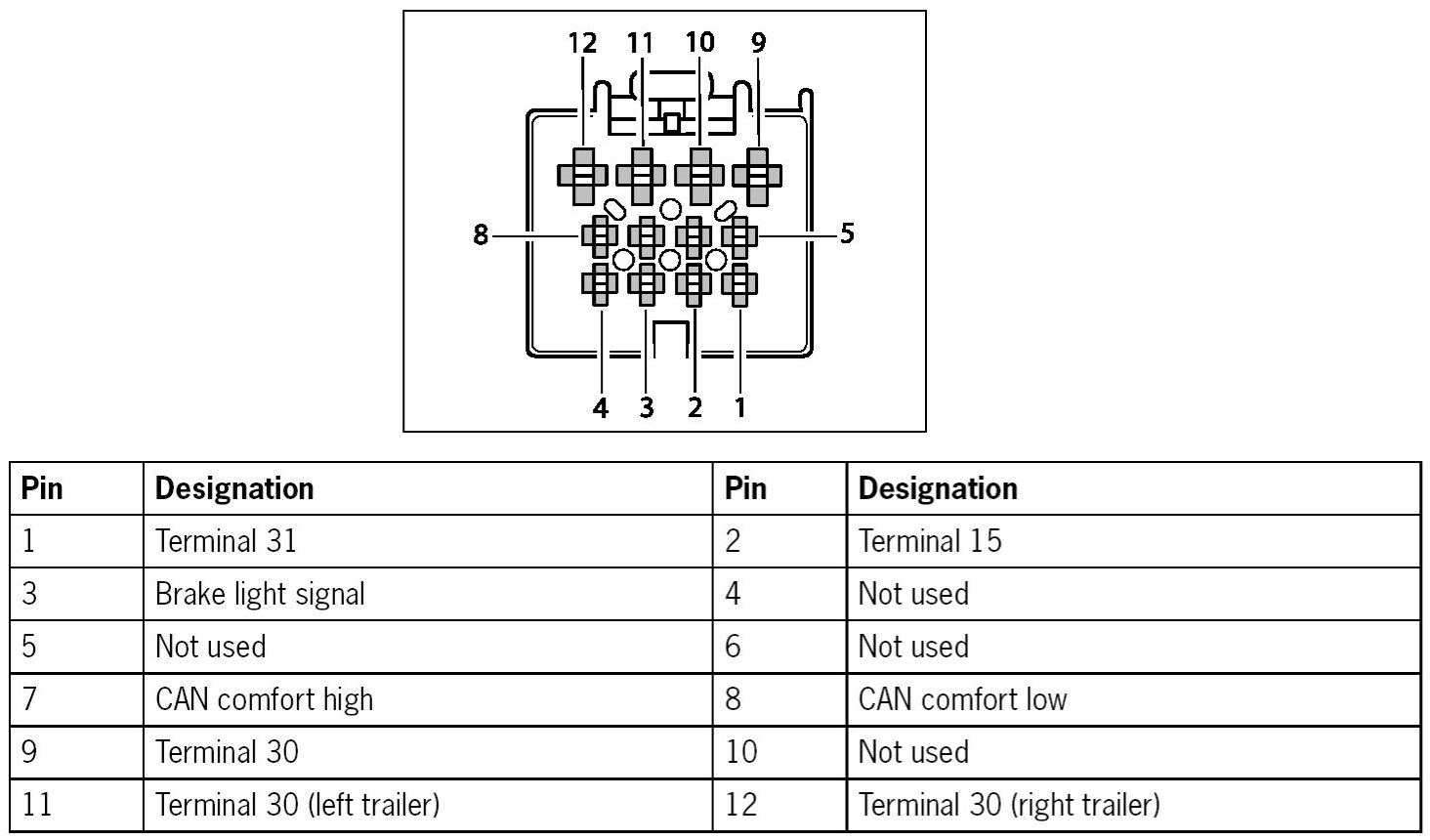

Plug A, wiring harness of trailer hitch control unit







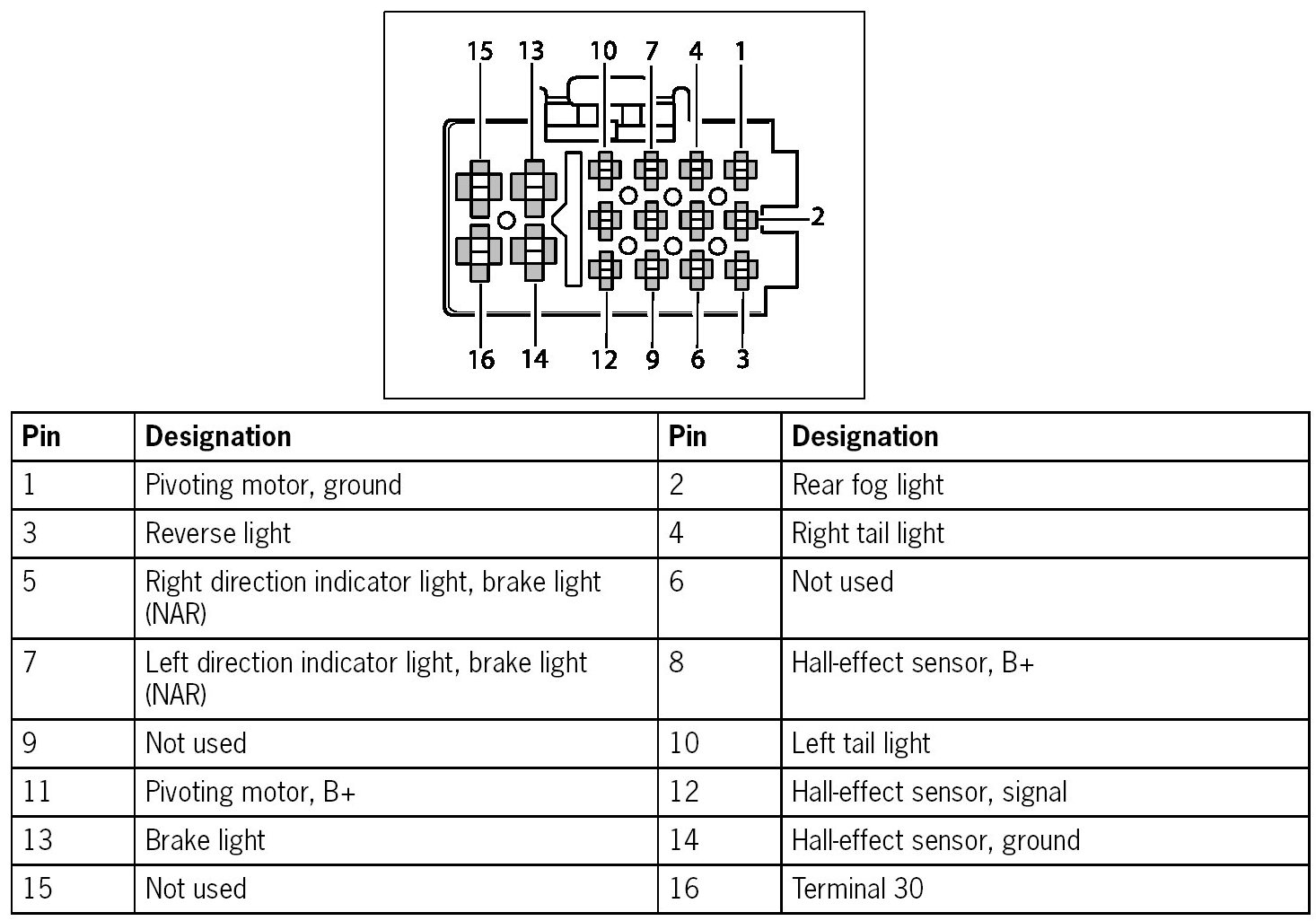

Plug B, wiring harness of trailer hitch control unit

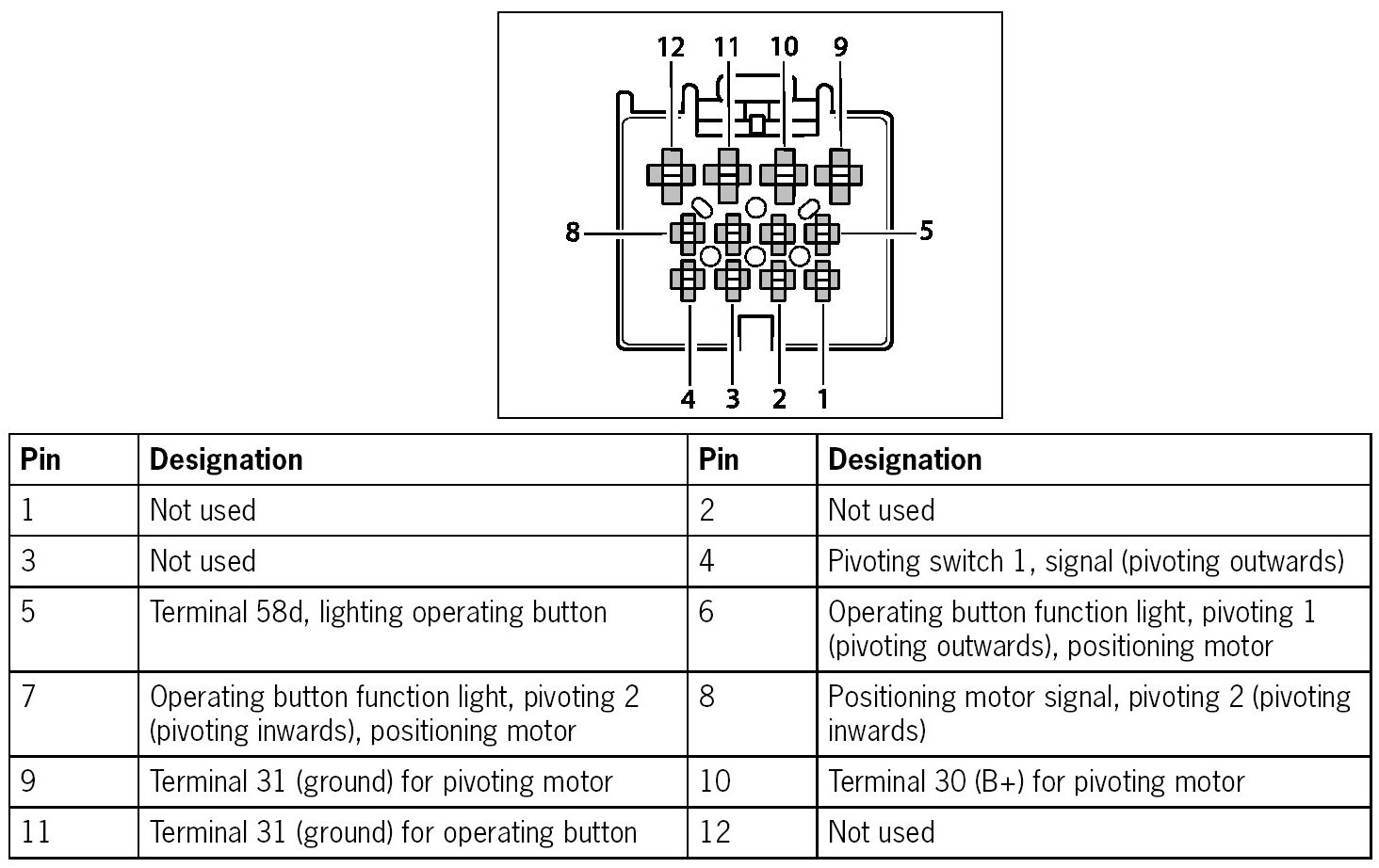

Plug C, wiring harness of trailer hitch control unit (only for optional feature: Electrical folding/outwardly pivoting trailer hitch

Hitch connection

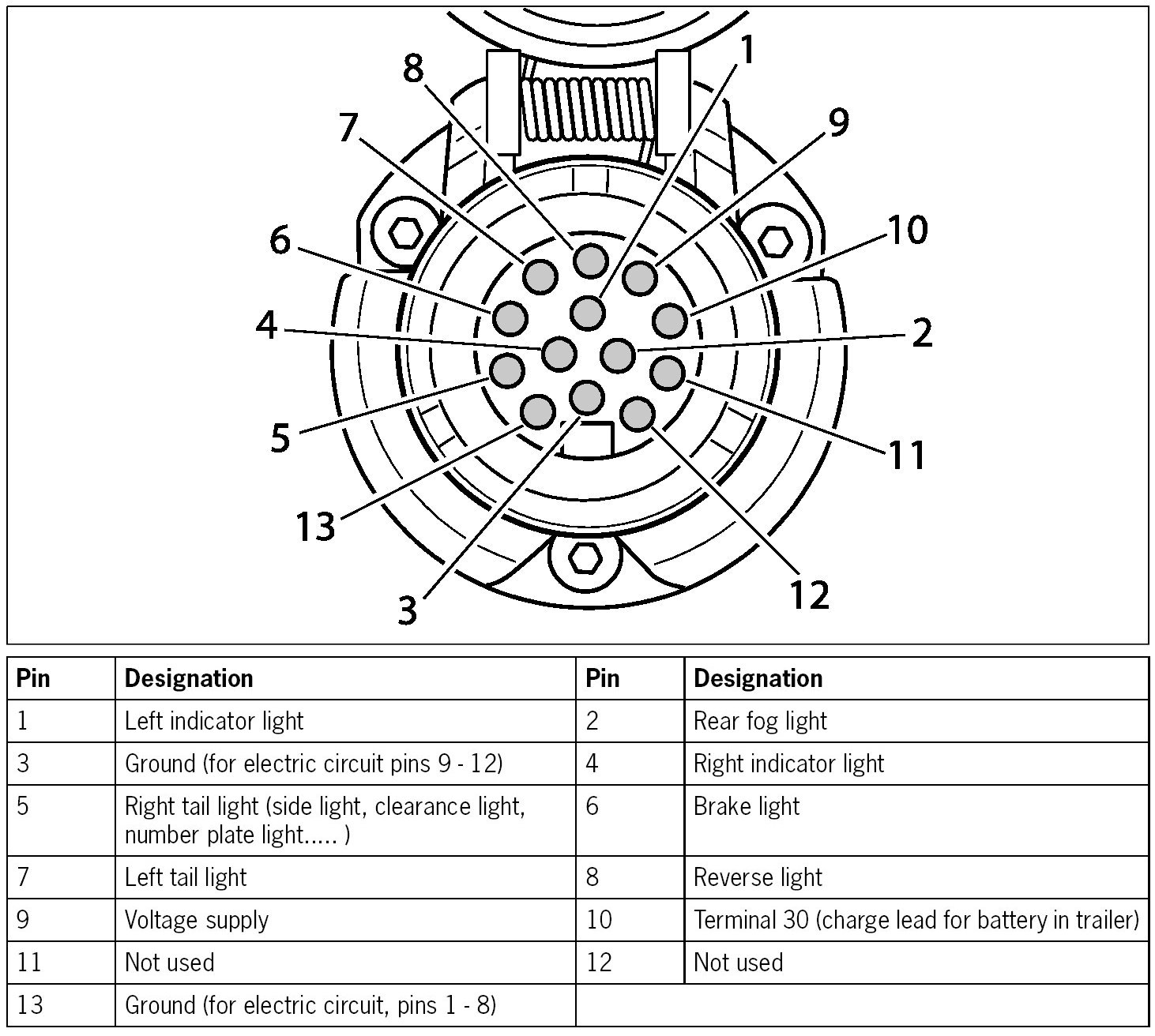

Trailer socket, 13-pin

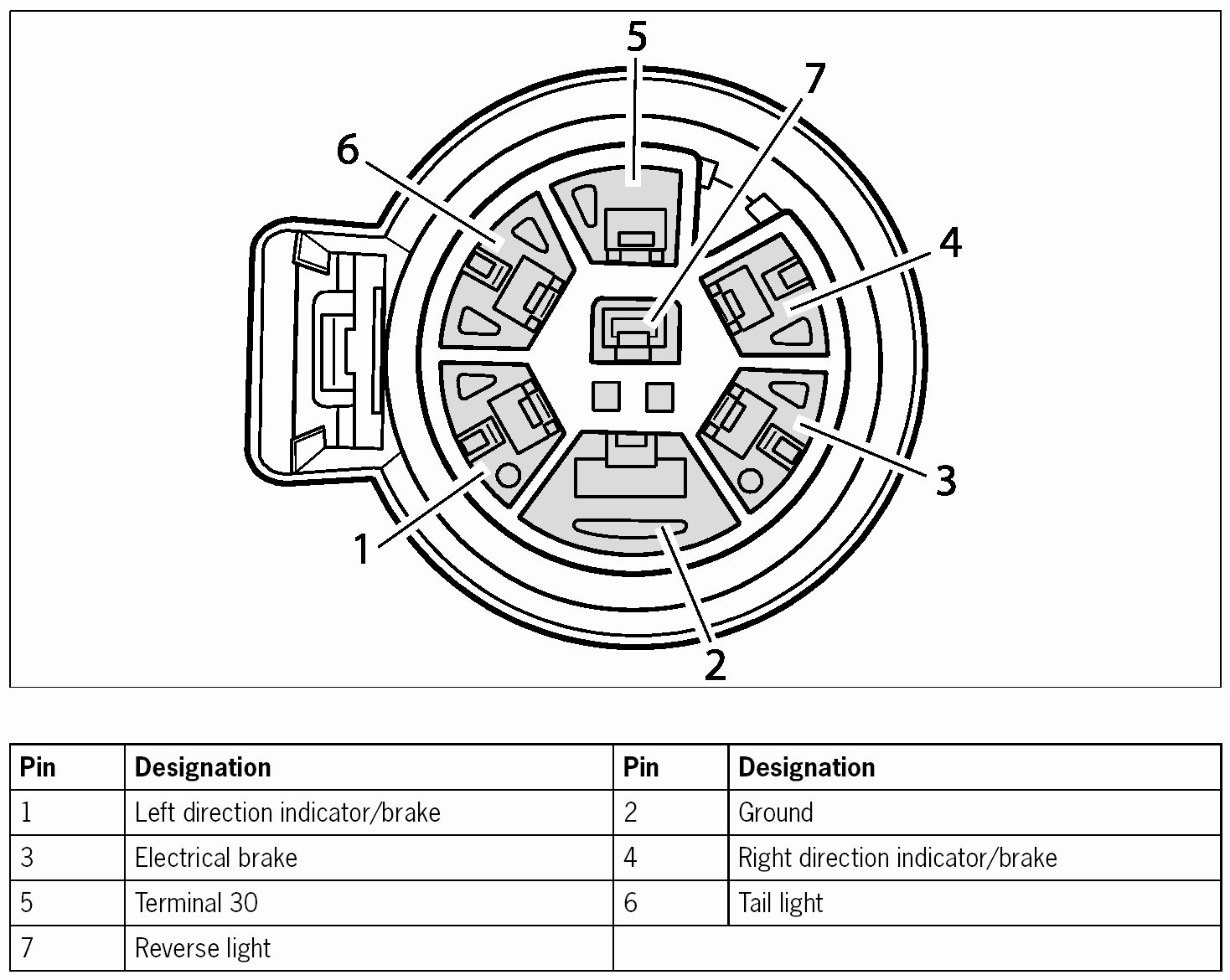

Plug on wiring harness for (trailer) socket, 7-pin (North America only)

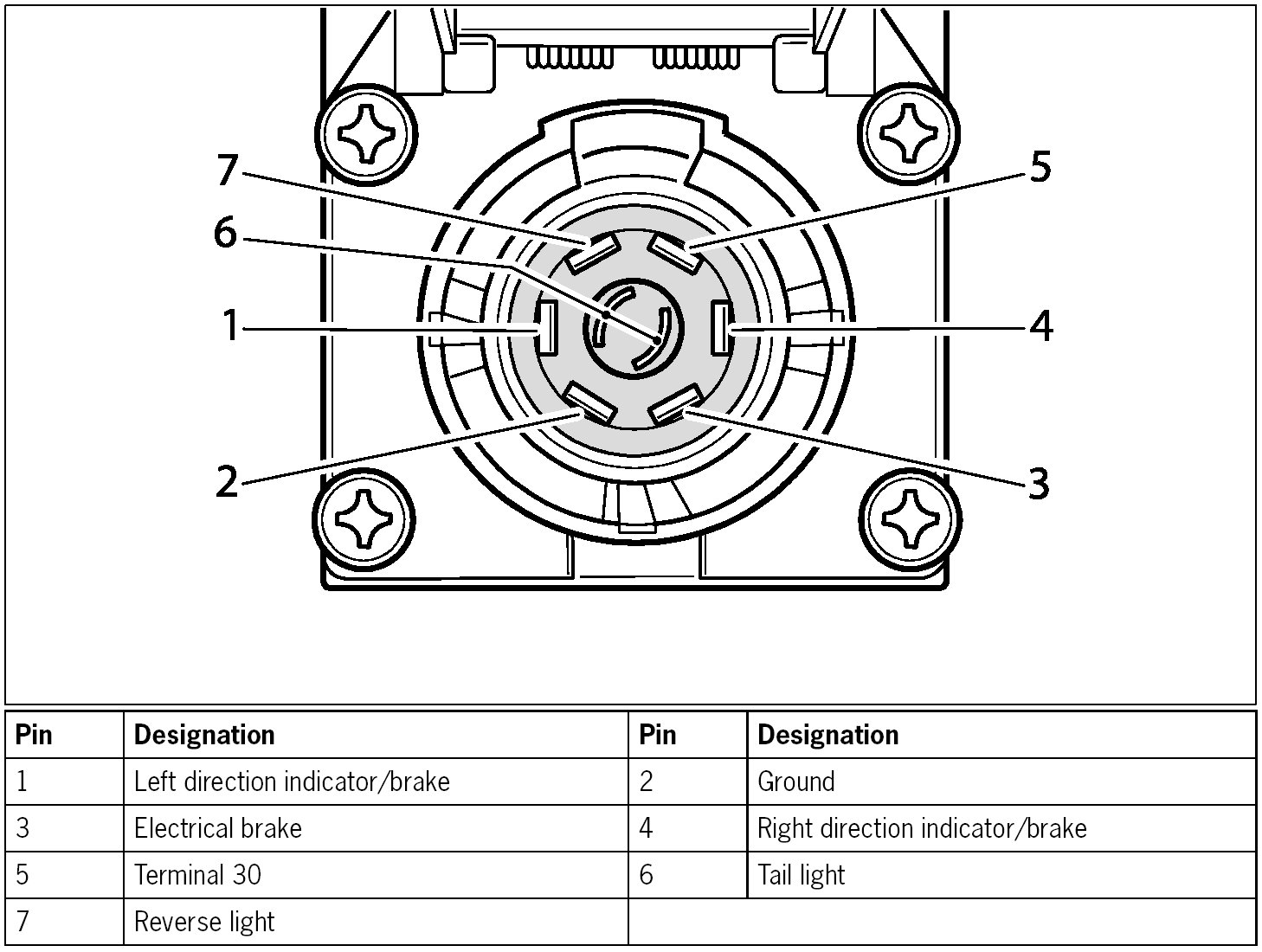

Trailer socket, 7-pin (only in parts of North America)

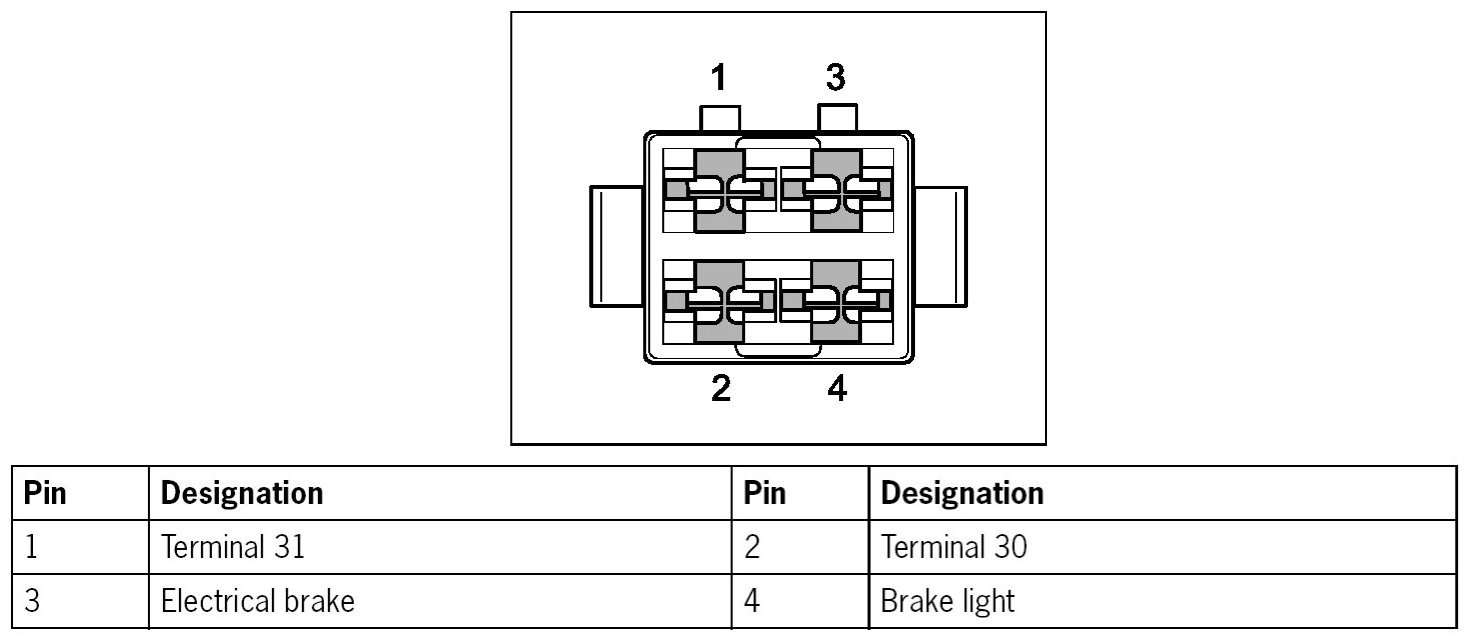

Plug on instrument panel wiring harness for trailer electrical brakes control unit (retrofit, only NAR, North America)
