Blower Motor Resistor: Service and Repair



Removing And Installing Blower Regulator

Preliminary work
Remove glove compartment.

Removing blower regulator

ATTENTION:
Danger of damage and injury.
- Remove ignition key.
- First pull off the plug contacts on the switch before the fan control is removed.

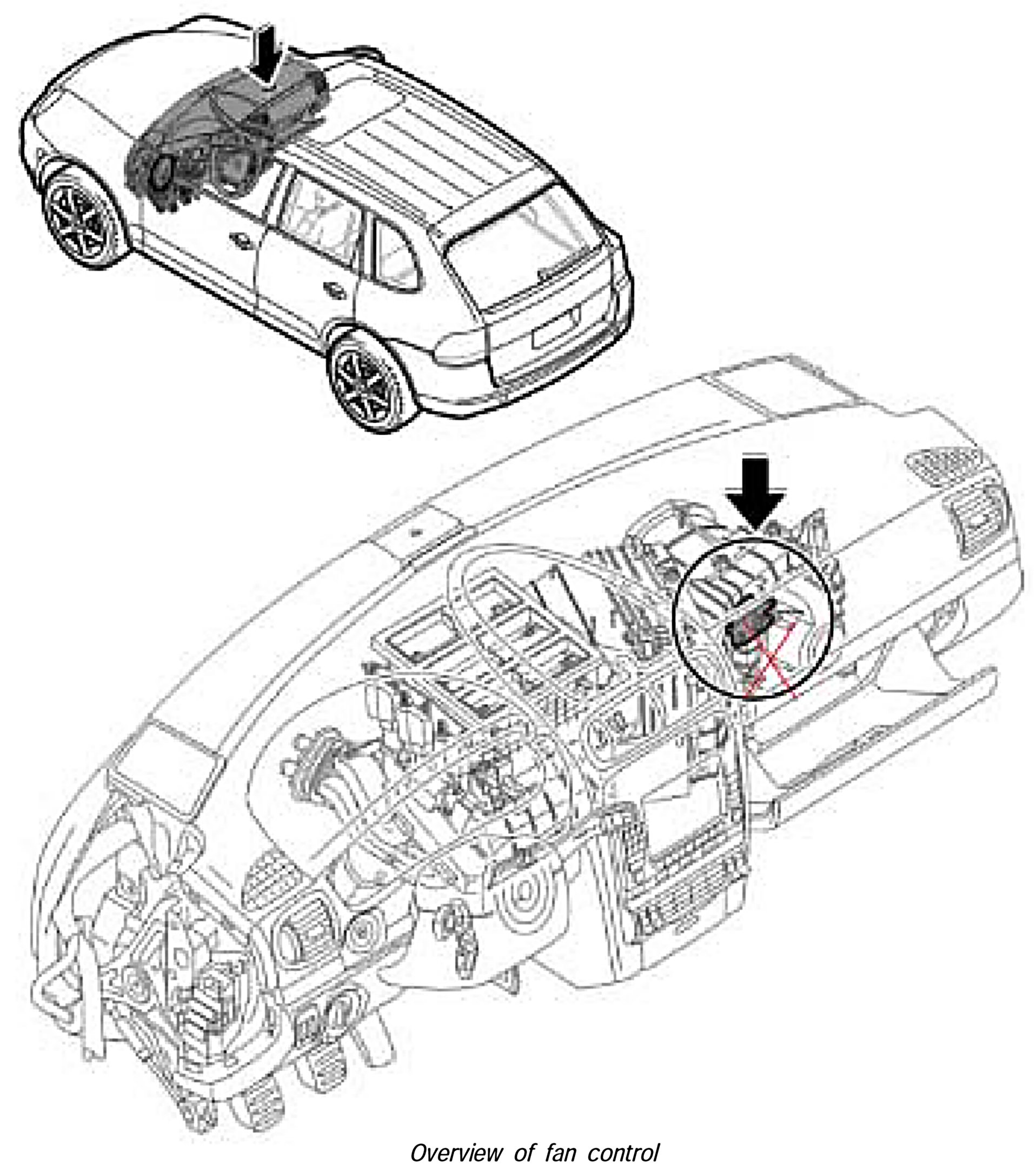

NOTE: The fan control is located in the air-conditioning unit beside the fan.

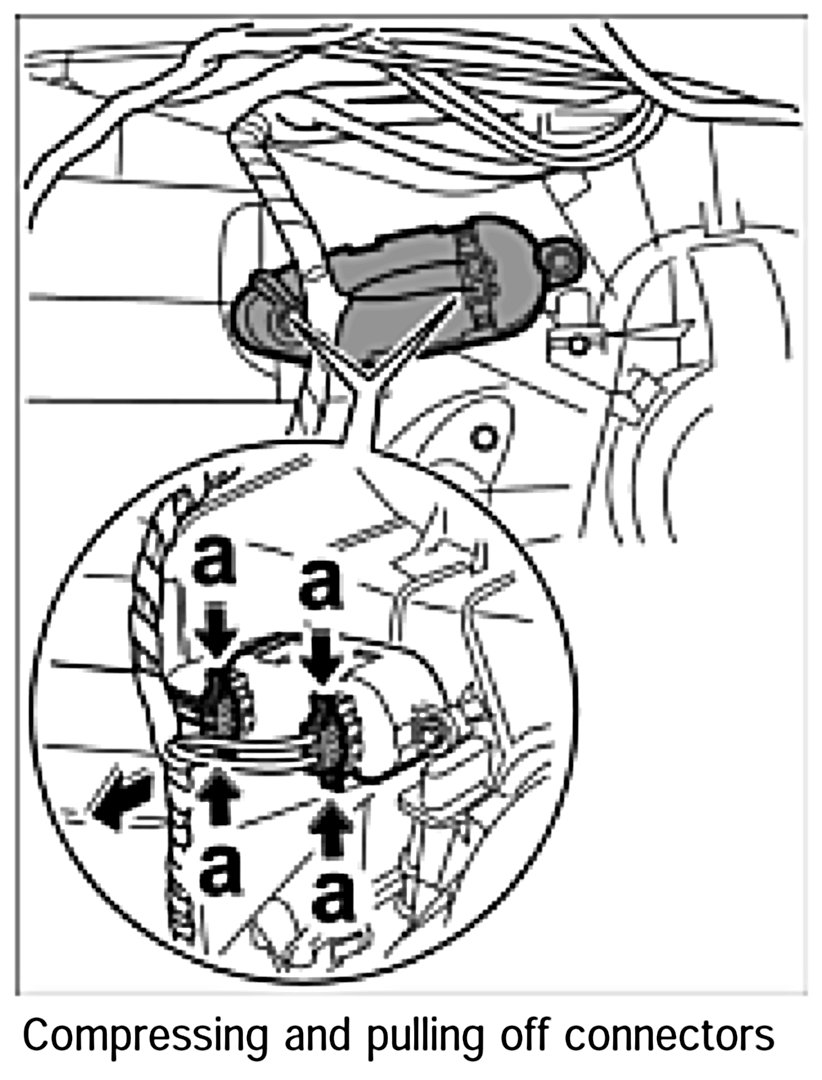

1. Press the latch of both connectors -Arrows a- and remove the connectors from fan control.

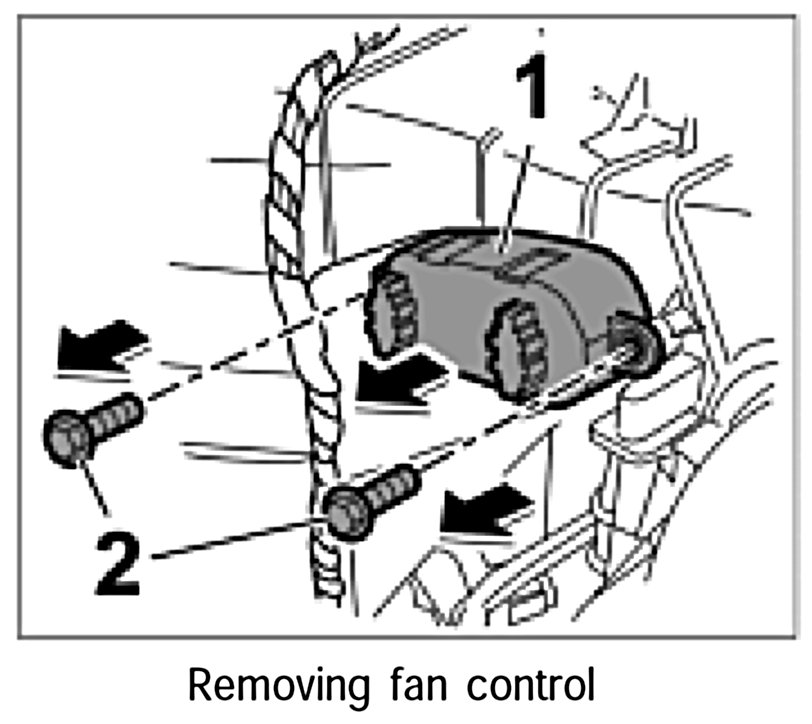

2. Unscrew the two fastening screws -2- and remove the fan control -1-.







Installing blower regulator

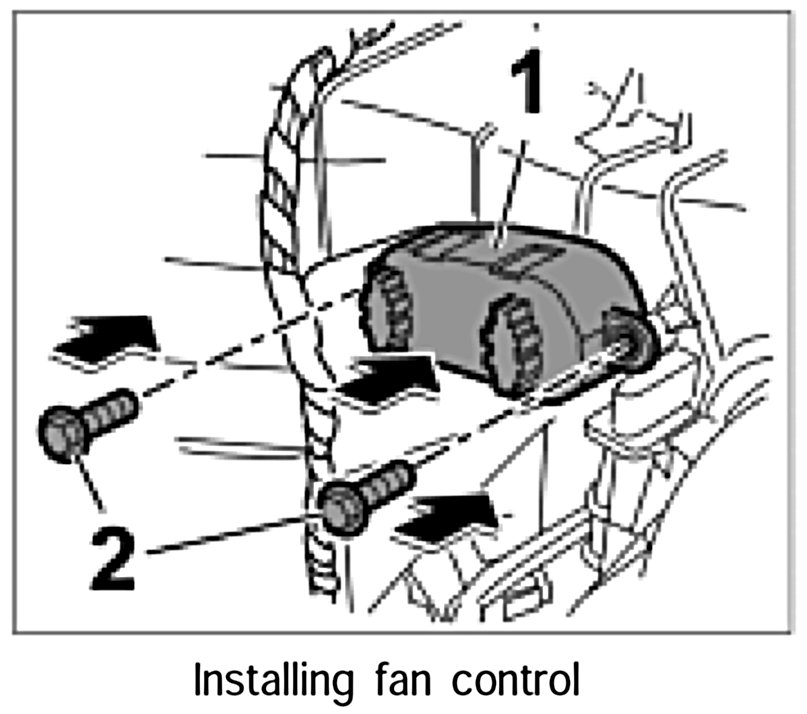

1. Insert fan control -1- into the air-conditioning unit and screw down with the two fastening screw -2-.

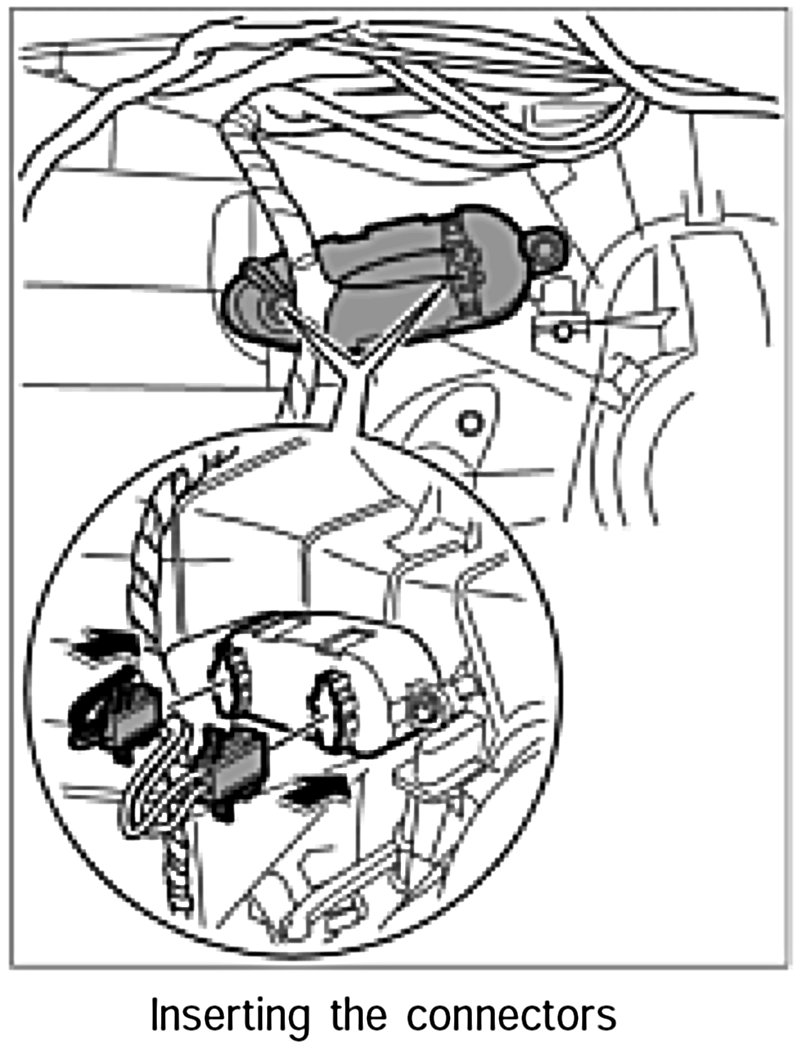

2. Insert both electrical connectors into the fan control until they are felt to engage.







3. Switch on ignition and check fan control.

Subsequent work
Install glove compartment.
