Climate Control Exhaust Gas Sensor: Service and Repair

Removing And Installing Air-quality Sensor

Preliminary work
Partially detach the cowl panel cover. Loosen fastening screws and lift the cover.

Removing air-quality sensor

NOTE: The air quality sensor is located in the direction of travel tucked under the cowl panel cover on the left side.

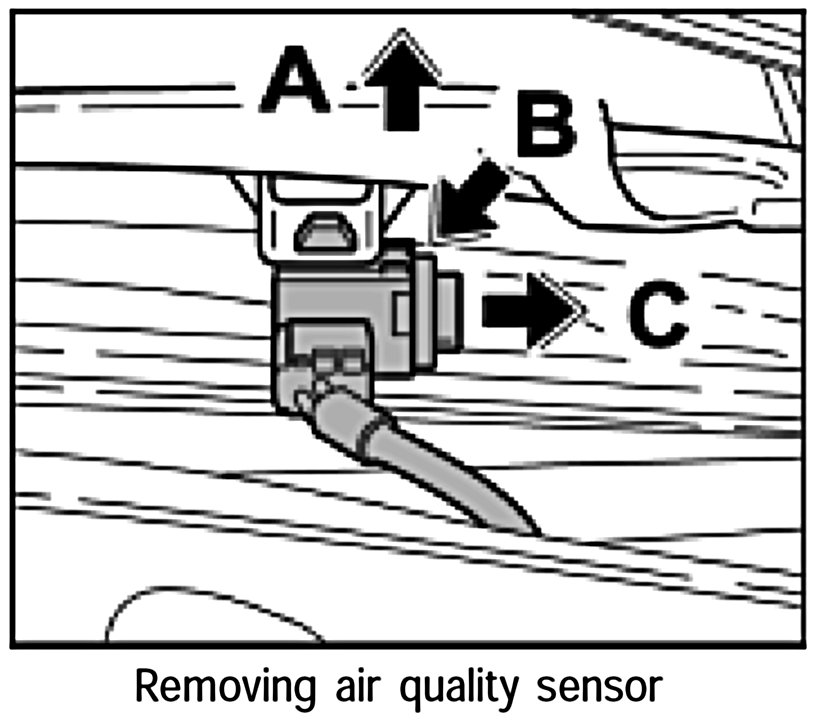

1. Lift cover -arrow A-, release the sensor -arrow B- and pull down from the mount - cowl panel cover -arrow C-.

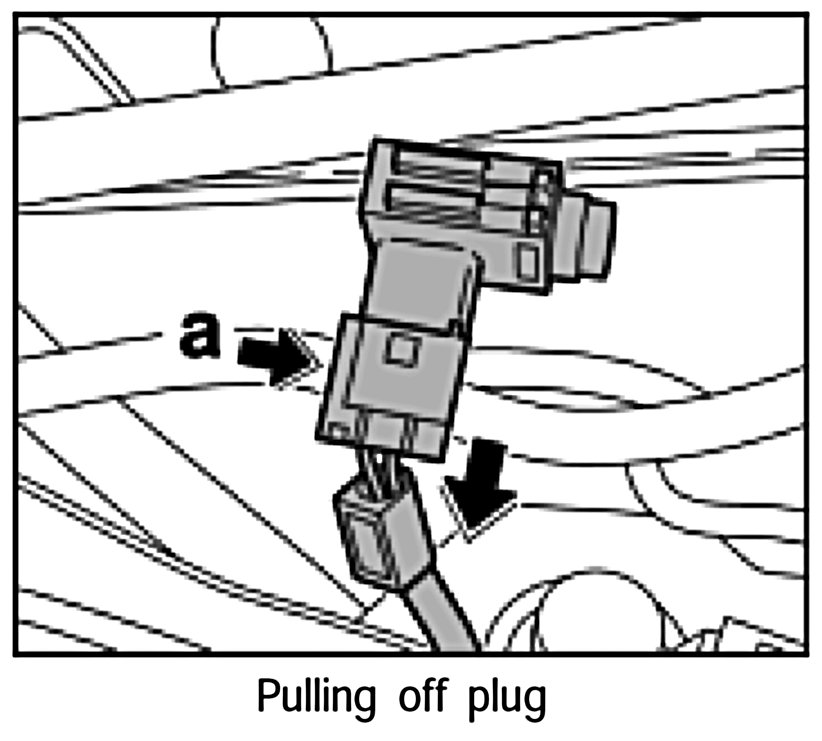

2. Release plug -a- and remove from sensor.







3. Remove air quality sensor.

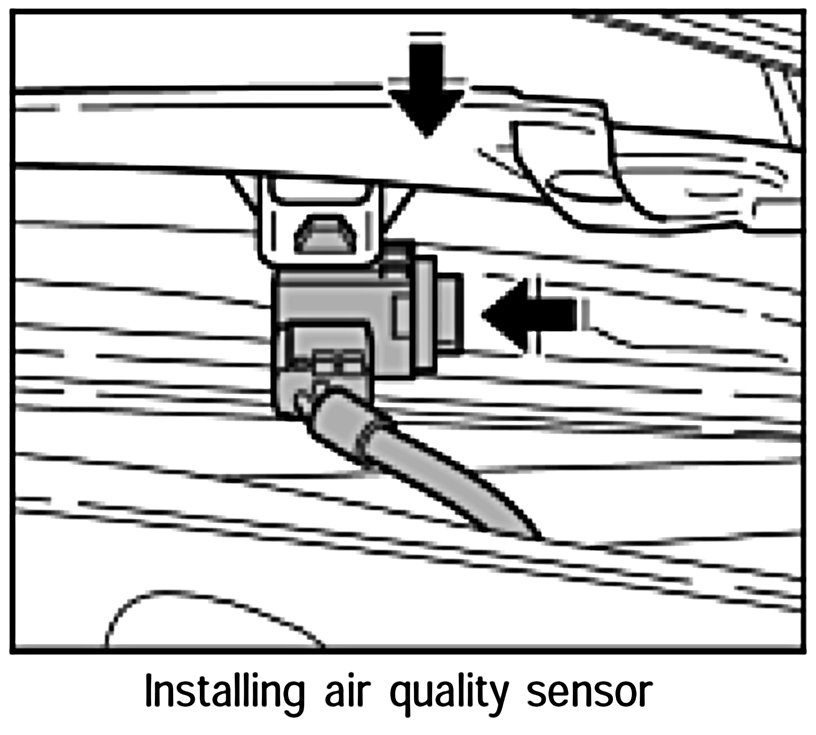

Installing air-quality sensor

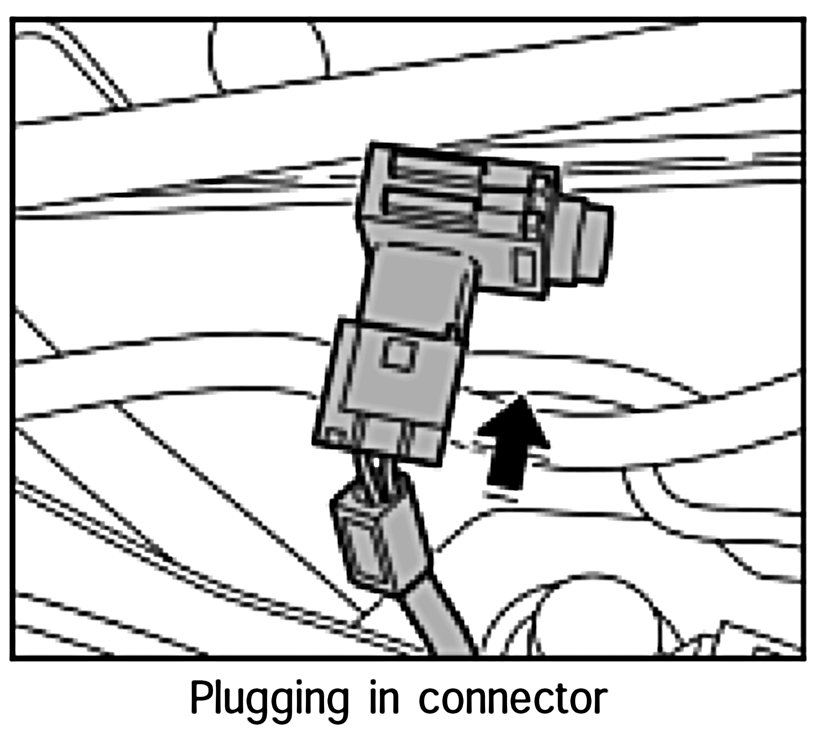

1. Push plug onto air quality sensor until it is felt to engage.







2. Push sensor onto mount - cowl panel cover - until the sensor clicks into place. Check it is secure.







Subsequent work
Position cowl panel cover and screw down with the fastening screws.
