Component Arrangement, Air Conditioning
Component arrangement, air conditioningManual air conditioning

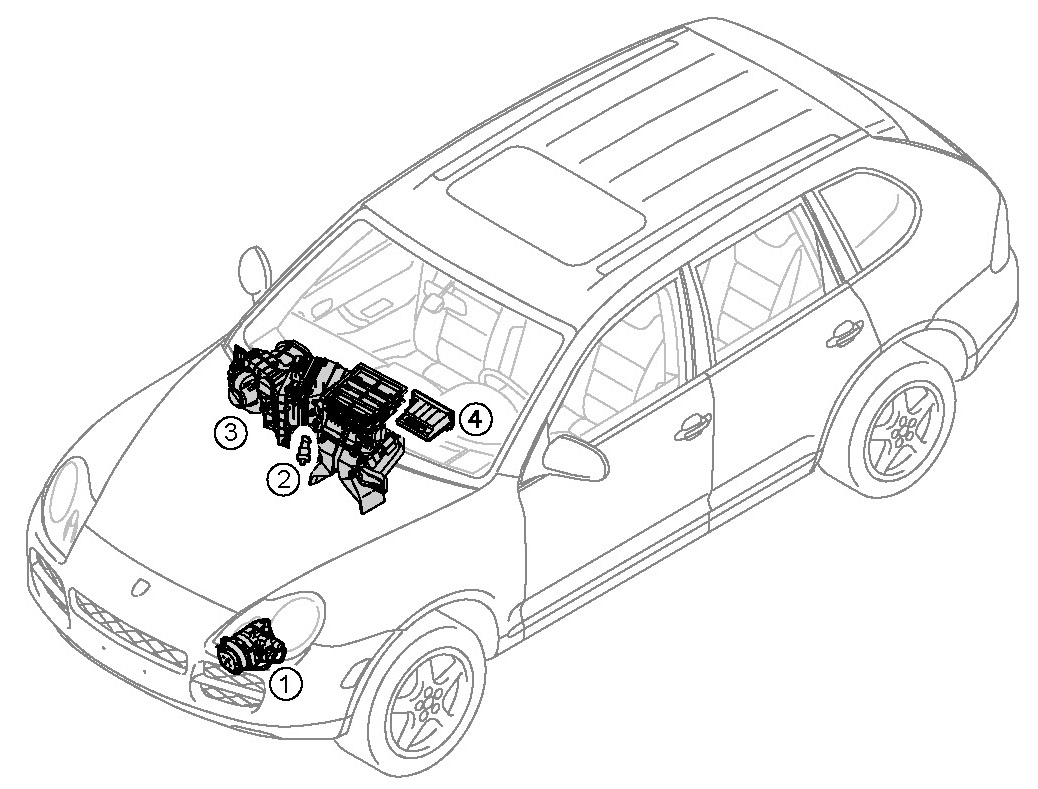

1 - Air-conditioning compressor
2 - Pressure sensor
3 - Air conditioning unit
4 - Air-conditioning system regulator control module
2-zone air conditioning system

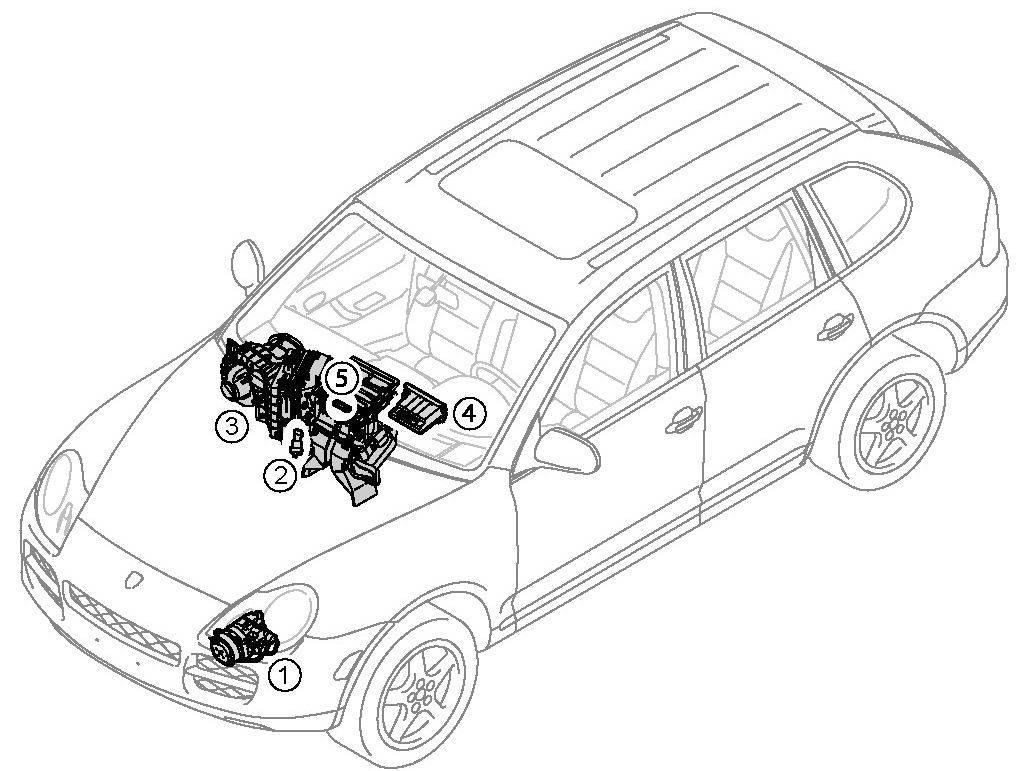

1 - Air-conditioning compressor
2 - Pressure sensor
3 - Air conditioning unit
4 - Air-conditioning system regulator control module
5 - Sun sensor
4-zone air conditioning system

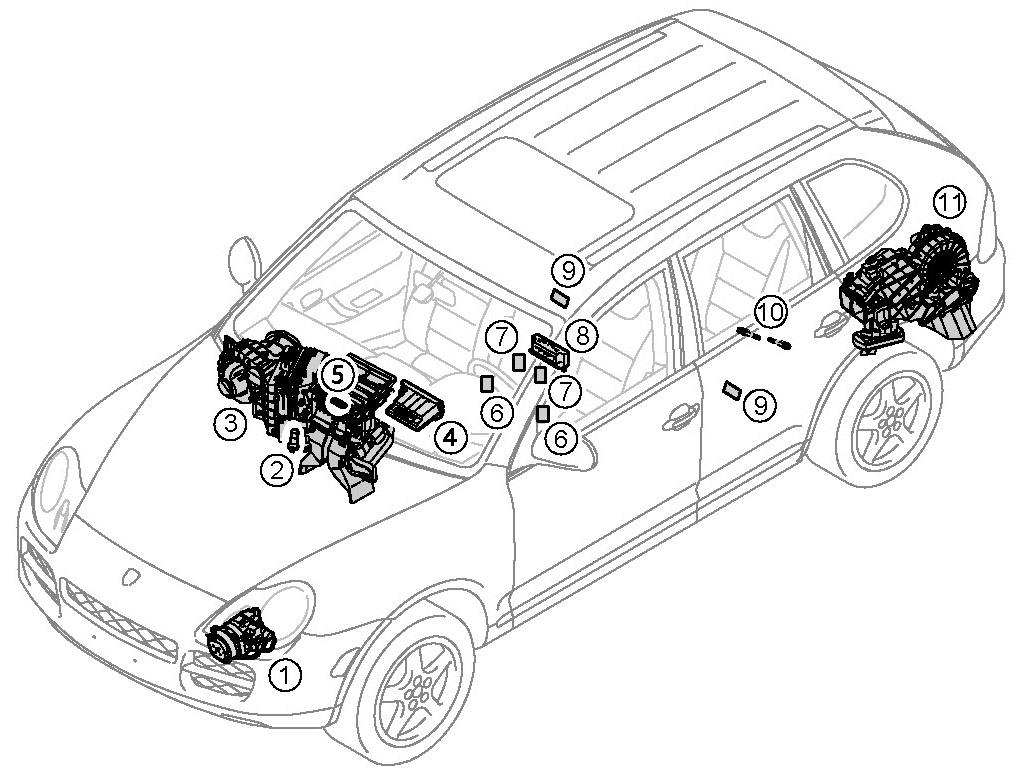

1 - Air-conditioning compressor
2 - Pressure sensor
3 - Front air conditioning unit
4 - Front air-conditioning system regulator control module
5 - Sun sensor
6 - B-pillar servo motors, left and right
7 - Servo motors for passenger blower, rear left and right tunnel
8 - Air-conditioning system regulator control module, rear
9 - Control module for rear seat heating
10 - Rear left and right blower outlet sensor
11 - Rear air conditioning unit
