Fuses




Fuse Assignments

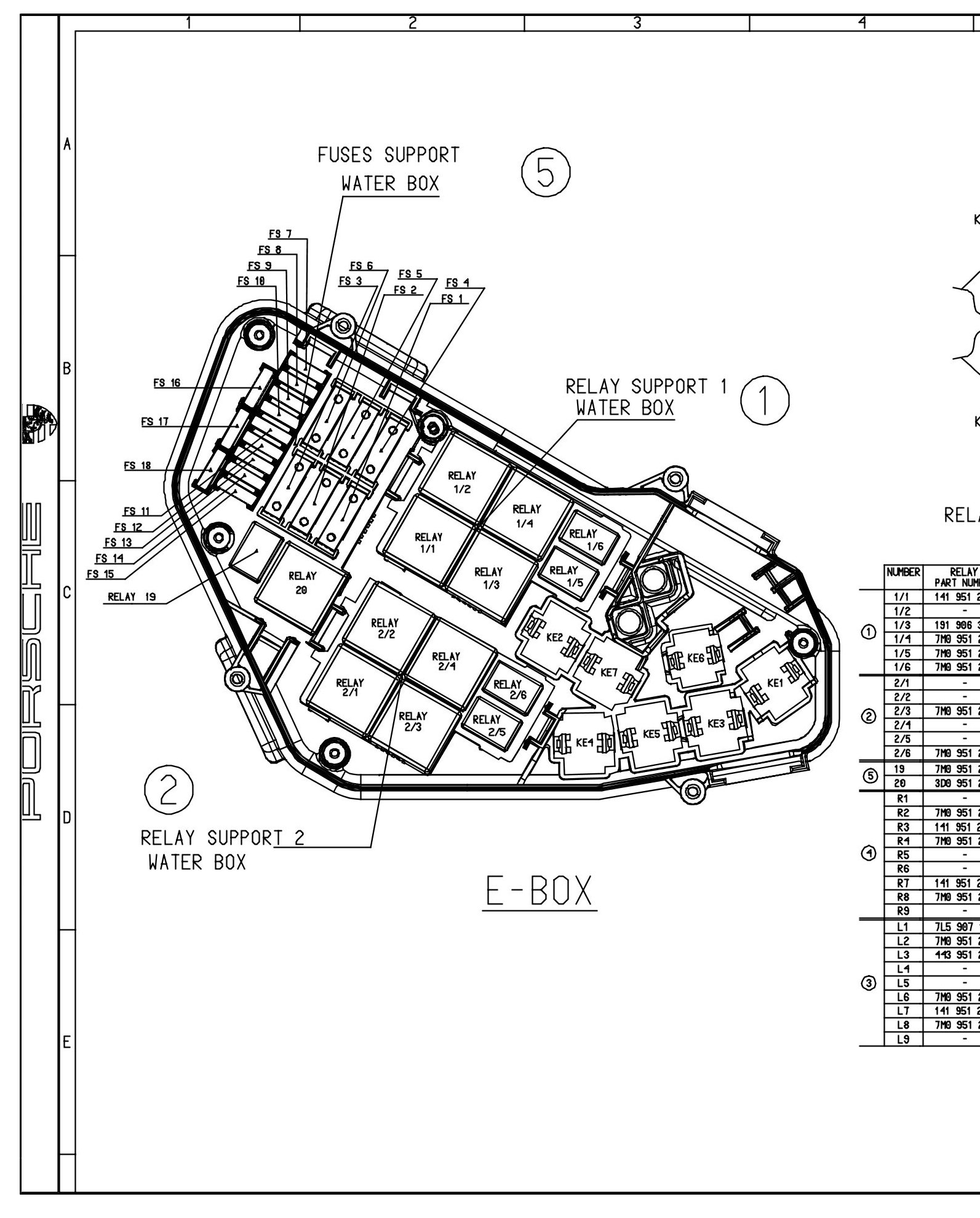

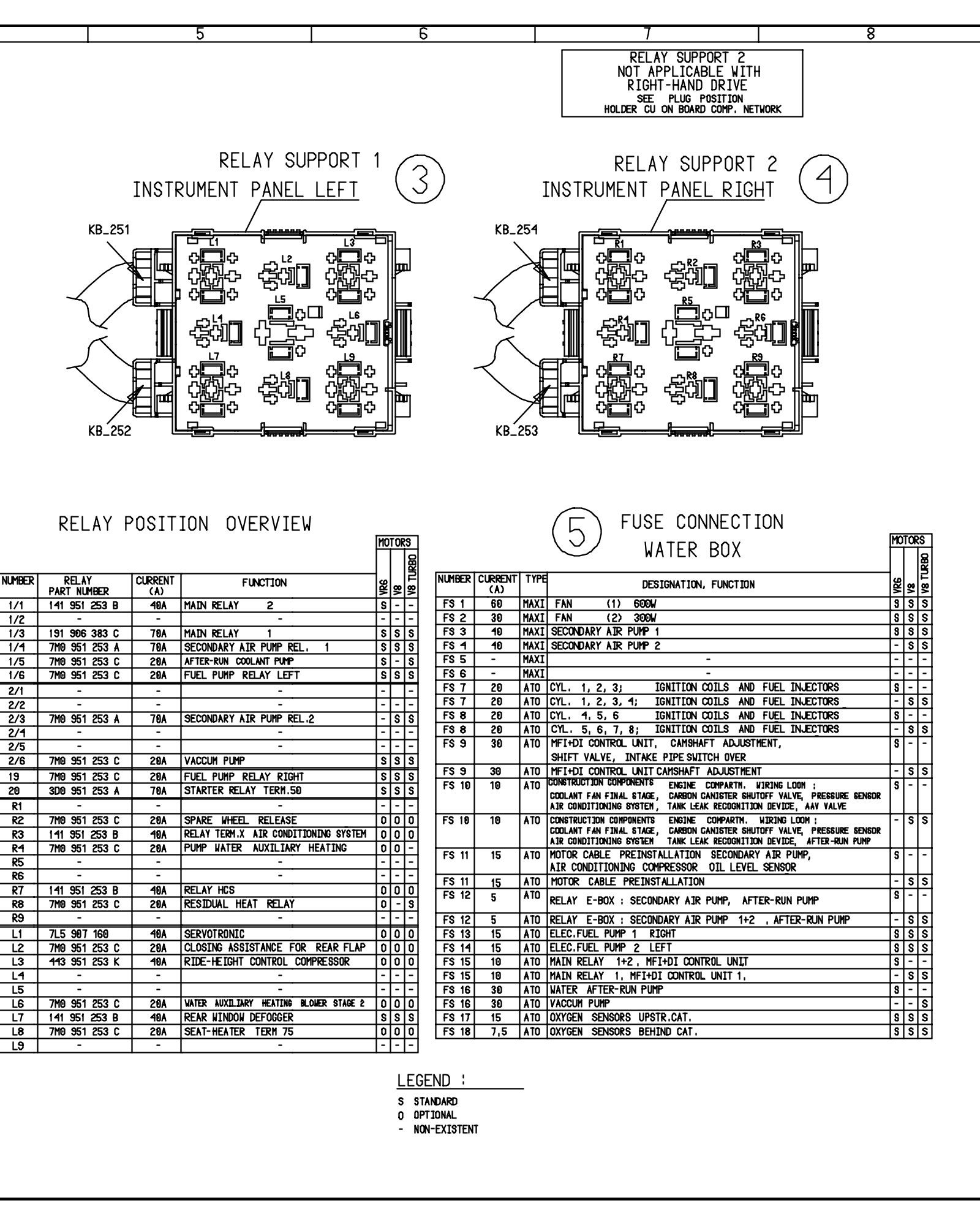

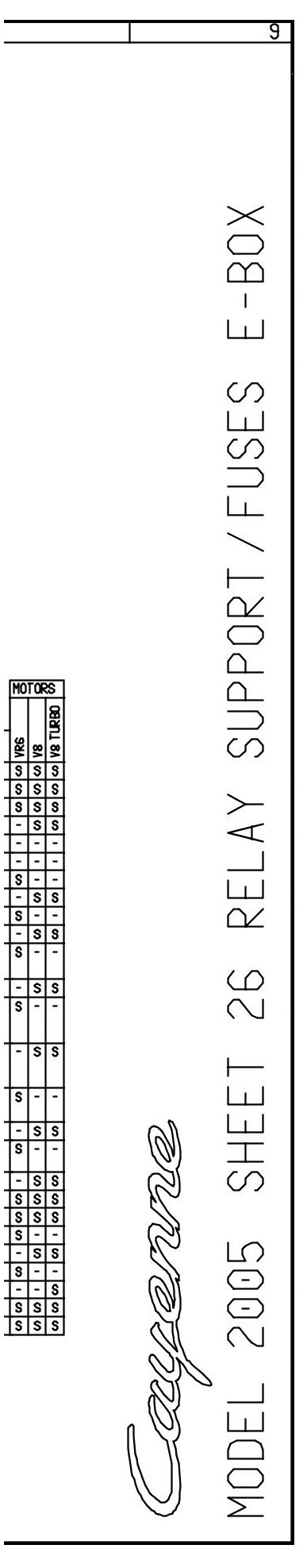

Relay Support / Fuses E-Box - Sheet 26

Relay Support / Fuses E-Box - Sheet 26 (Part 1):




Relay Support / Fuses E-Box - Sheet 26 (Part 2):




Relay Support / Fuses E-Box - Sheet 26 (Part 3):

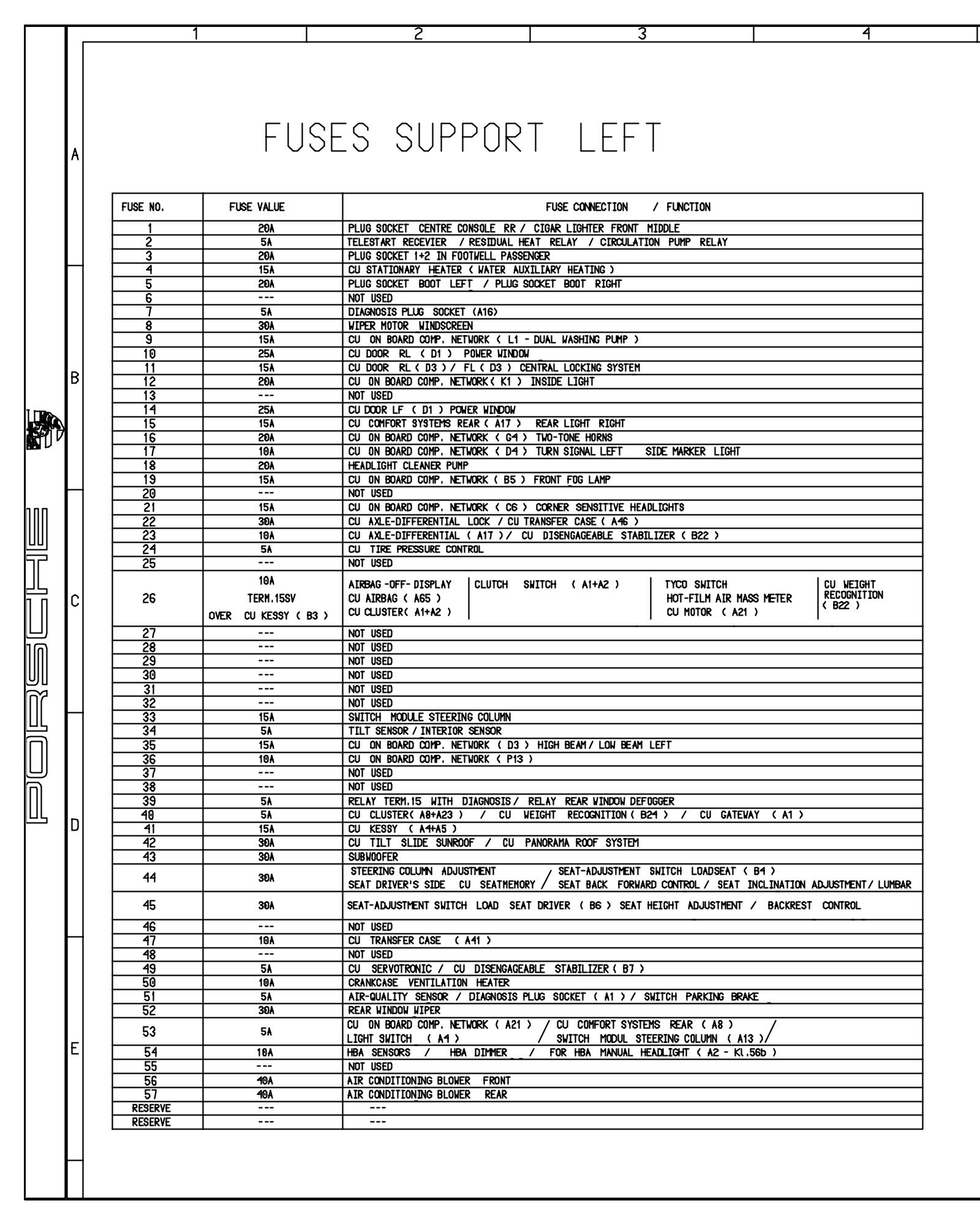

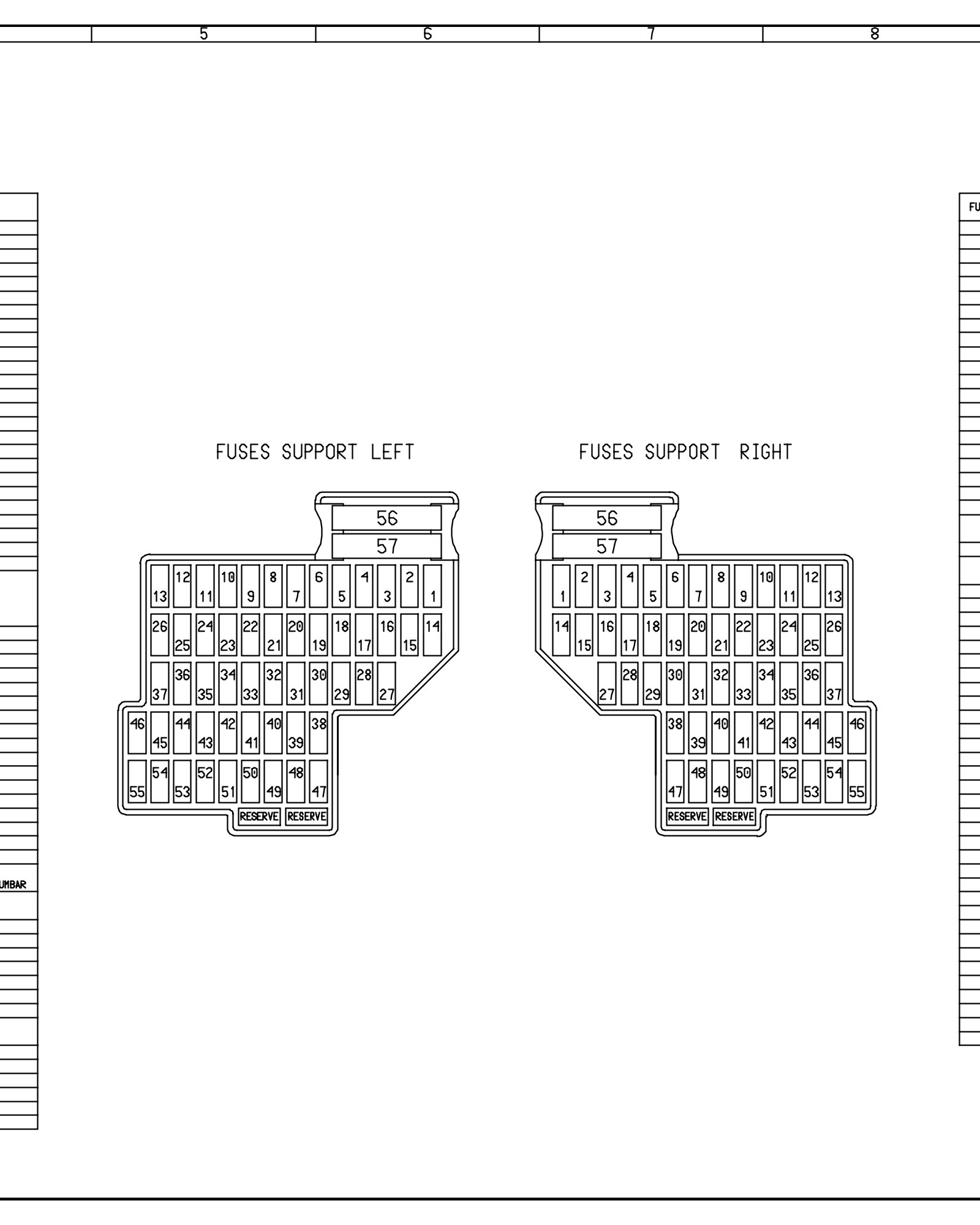

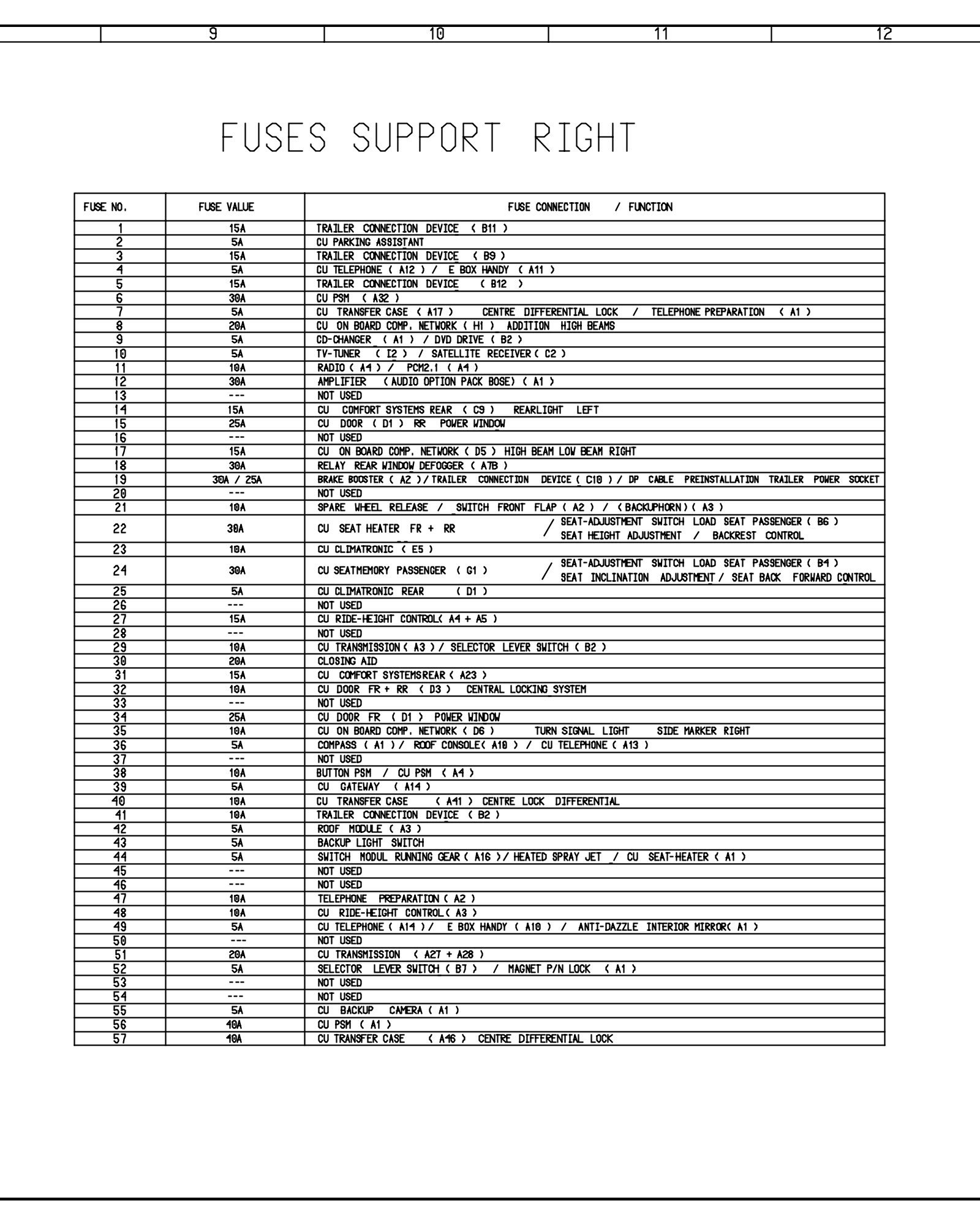

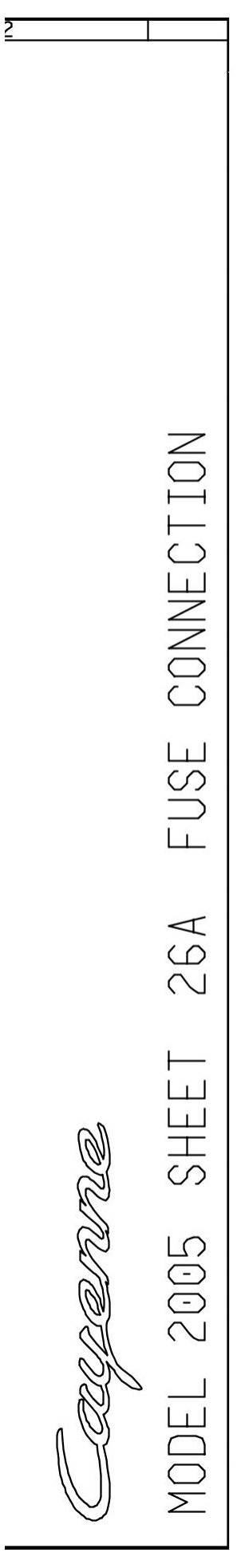

Fuse Connection - Sheet 26A

Fuse Connection - Sheet 26A (Part 1):




Fuse Connection - Sheet 26A (Part 2):




Fuse Connection - Sheet 26A (Part 3):




Fuse Connection - Sheet 26A (Part 4):






Diagrams: Other diagrams referred to by name and sheet number/coordinate (i.e. "Instrument Cluster 3/C5") within these diagrams can be found at the vehicle level under Diagrams By Name. Diagrams By Name
