Cayenne V6 AT (ECU+Transmission)

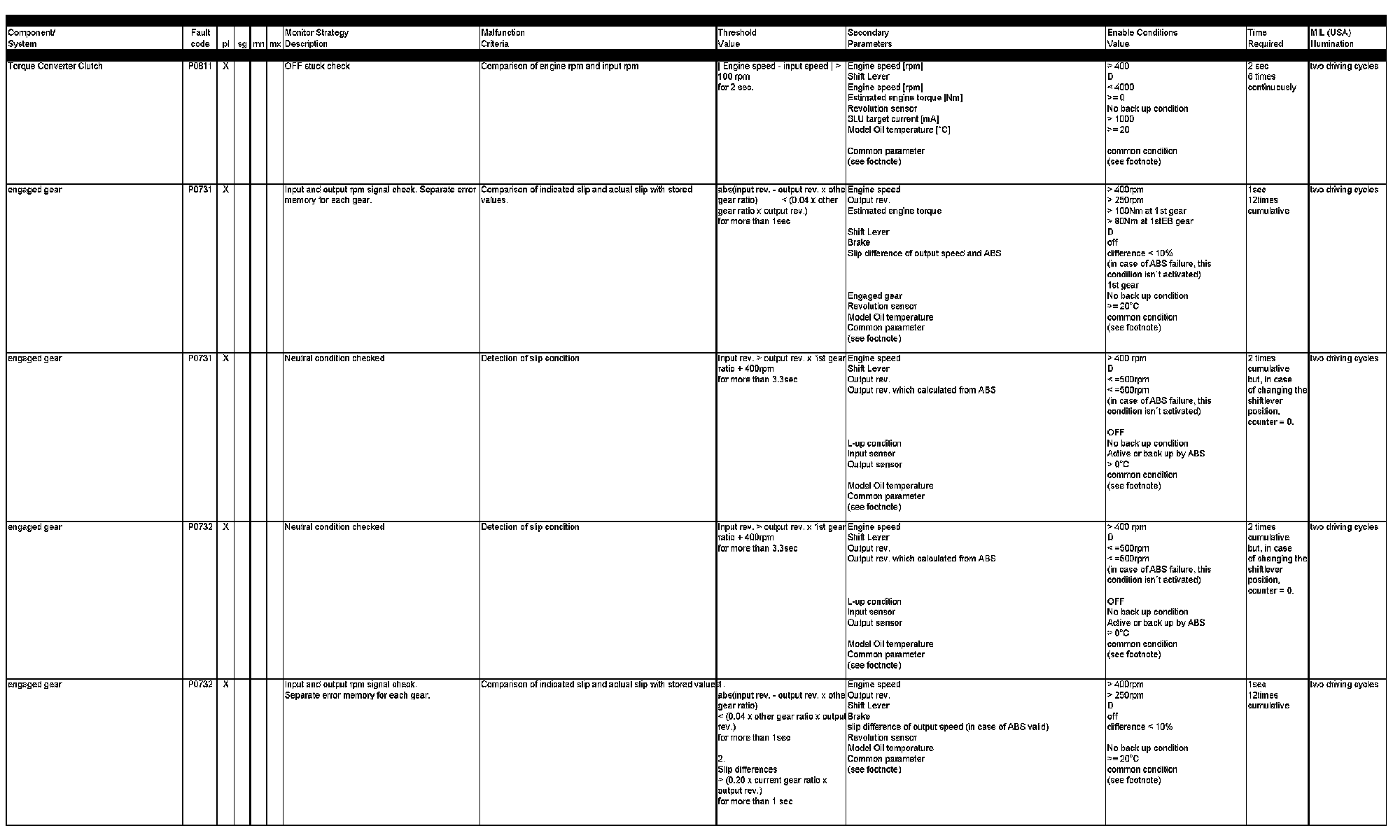

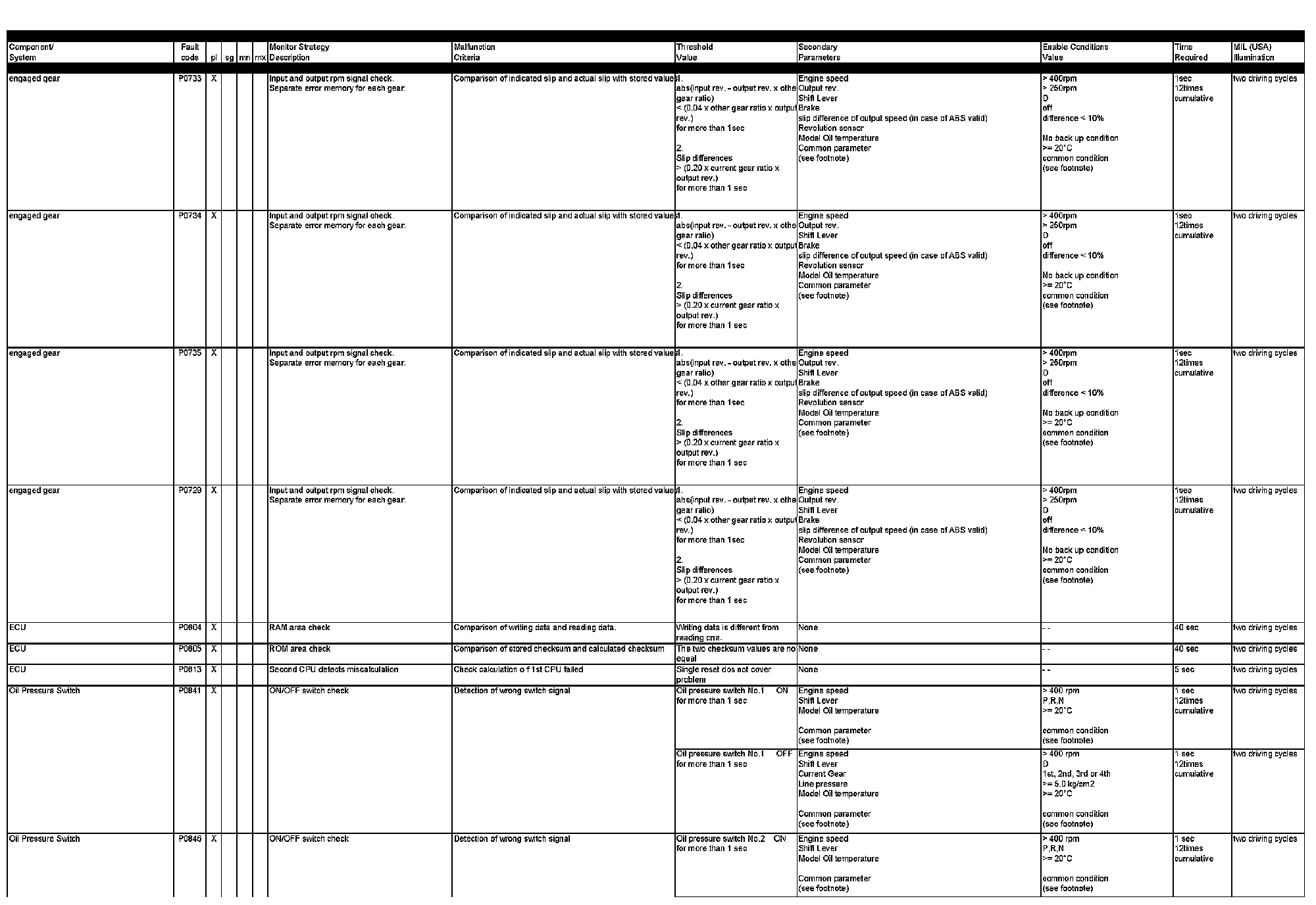

Cayenne V6 AT (ECU+Transmission)Common parameter for enabling gear ratio or Lock up errors:
Main
solenoid switch
ON
Gear condition
Engaged
S1
solenoid No fault
Linear
solenoid No fault
Inhibitor switch
No fault
CAN communication
No fault
ECU data update
No fault
Estimated engine trq
No fault
T/M coding and MDI max info.
No fault
ROM
No fault
RAM
No fault
Safety processor
No fault
