Ignition Coil: Service and Repair

Removing And Installing Ignition Coils

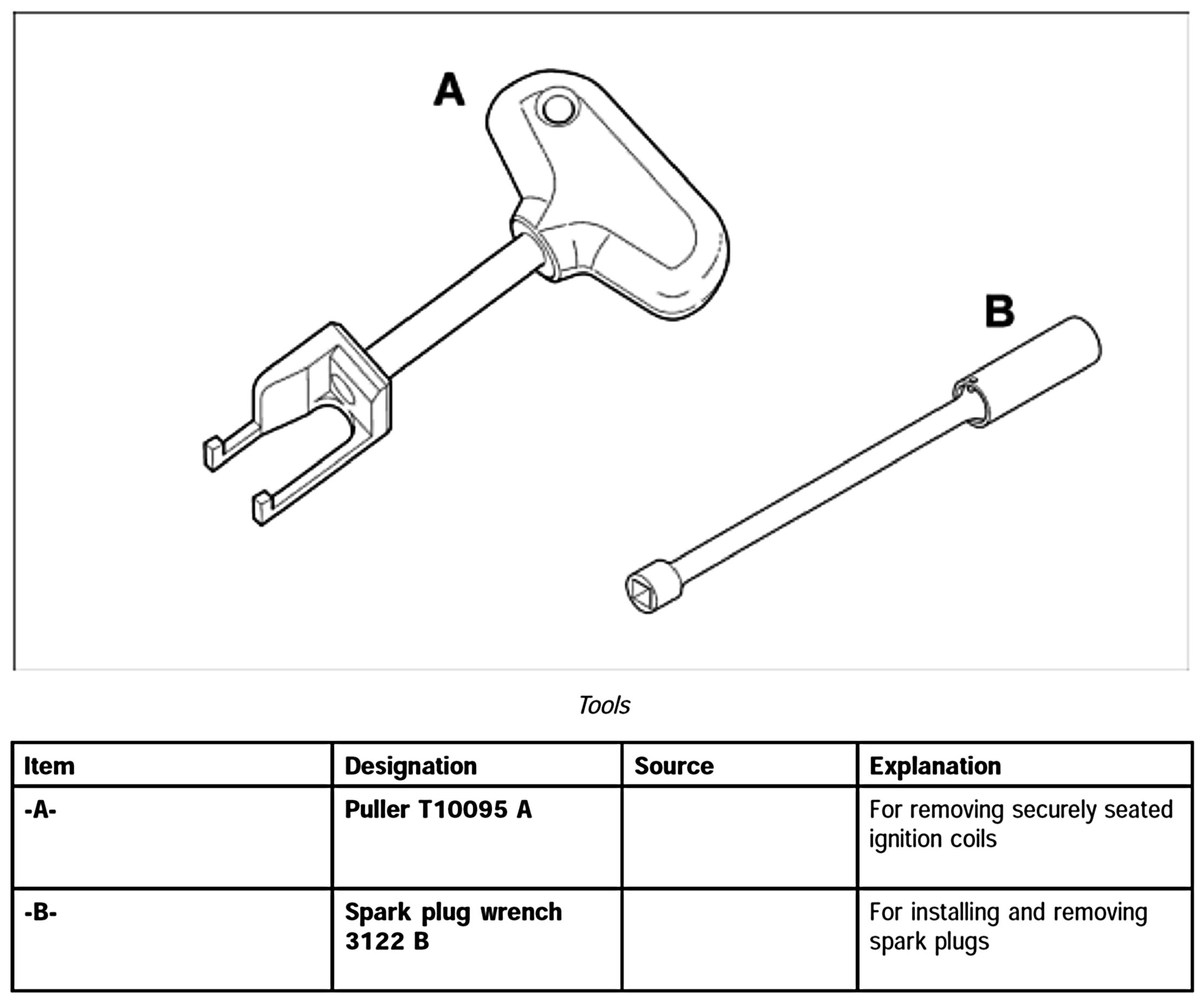

Tools







Preliminary work

Preliminary work for removing ignition coils

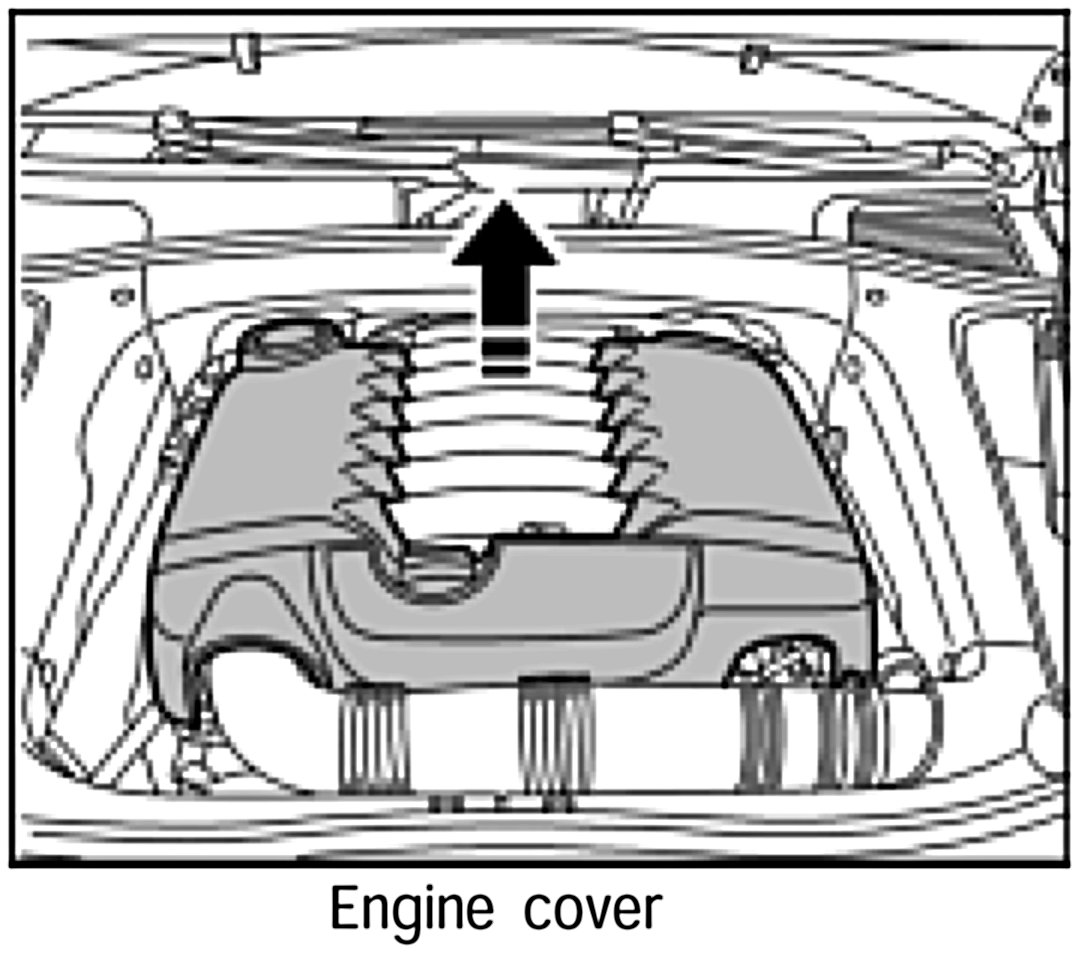

1. Pull engine cover vertically upwards and off.







Tools and materials







Removing ignition coils

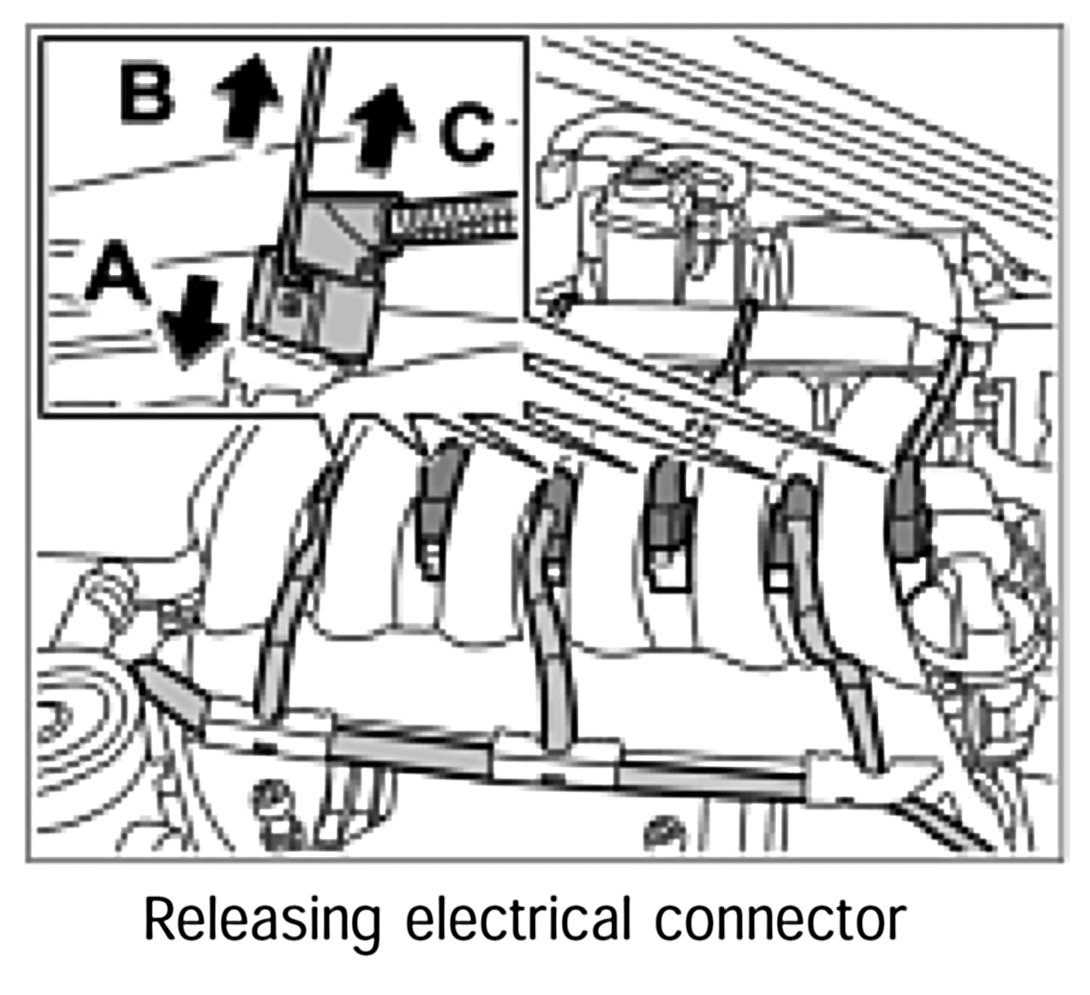

1. Separate the six ignition coils from the wiring harness. To do this, press connector gently downwards -arrow A-, release using a suitable aid (e. g. angled piece of wiring) -arrow B- and pull off -arrow C-.

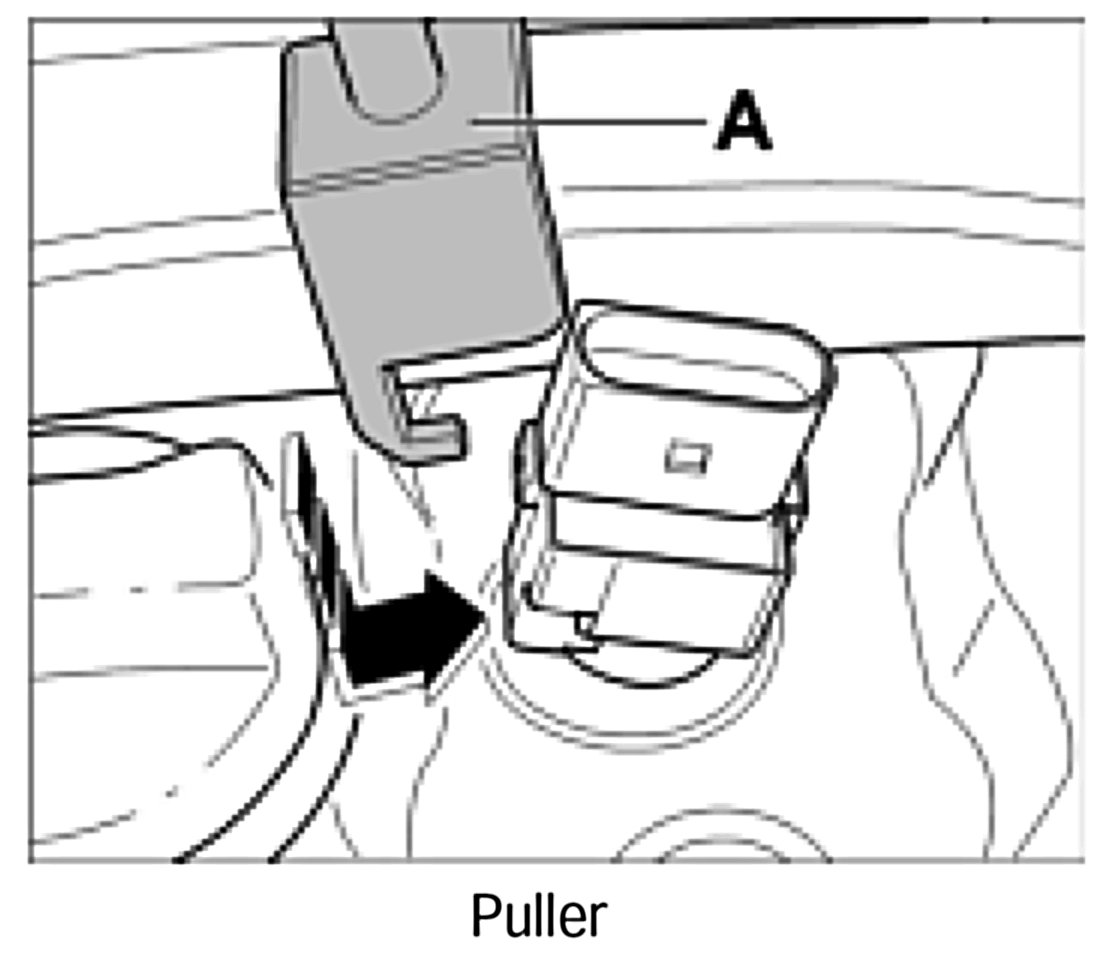

2. Remove ignition coils. For securely seated ignition coils, use the special tool puller T10095 A-A- to do this.







Installing ignition coils

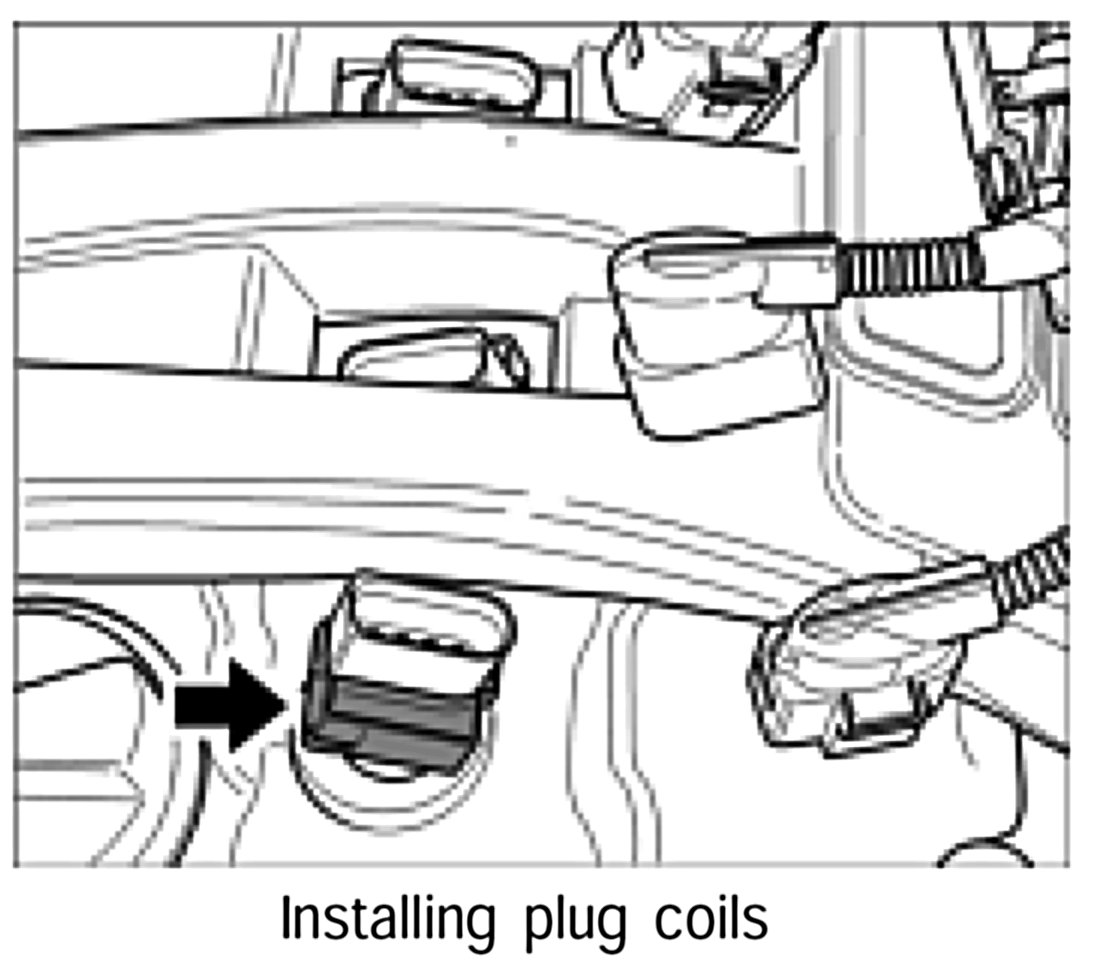

1. Install the plug coils. When doing so, make sure that the straight surface is pointing to the intake pipes.

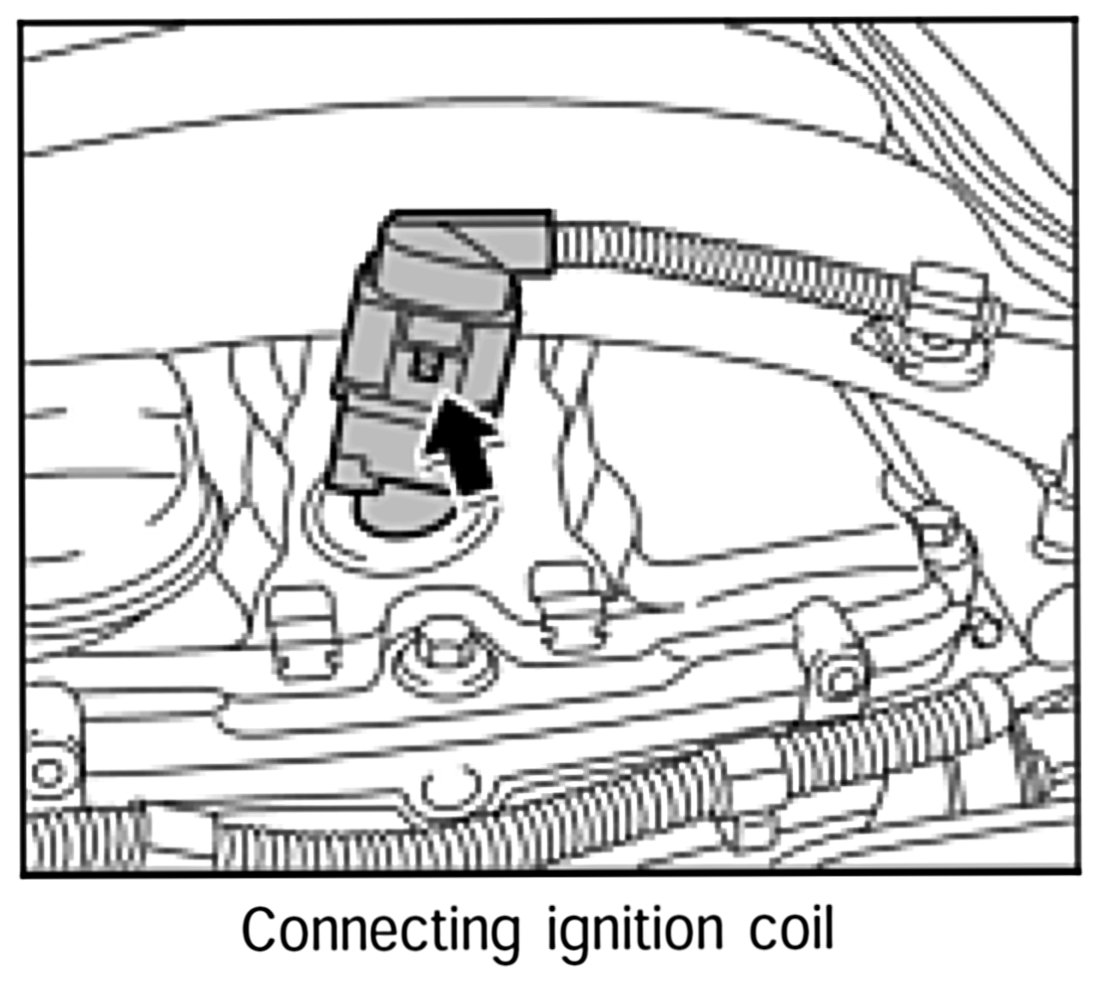

2. Reconnect ignition coil. The plugs must engage audibly.







Subsequent work

Subsequent work for installing ignition coils

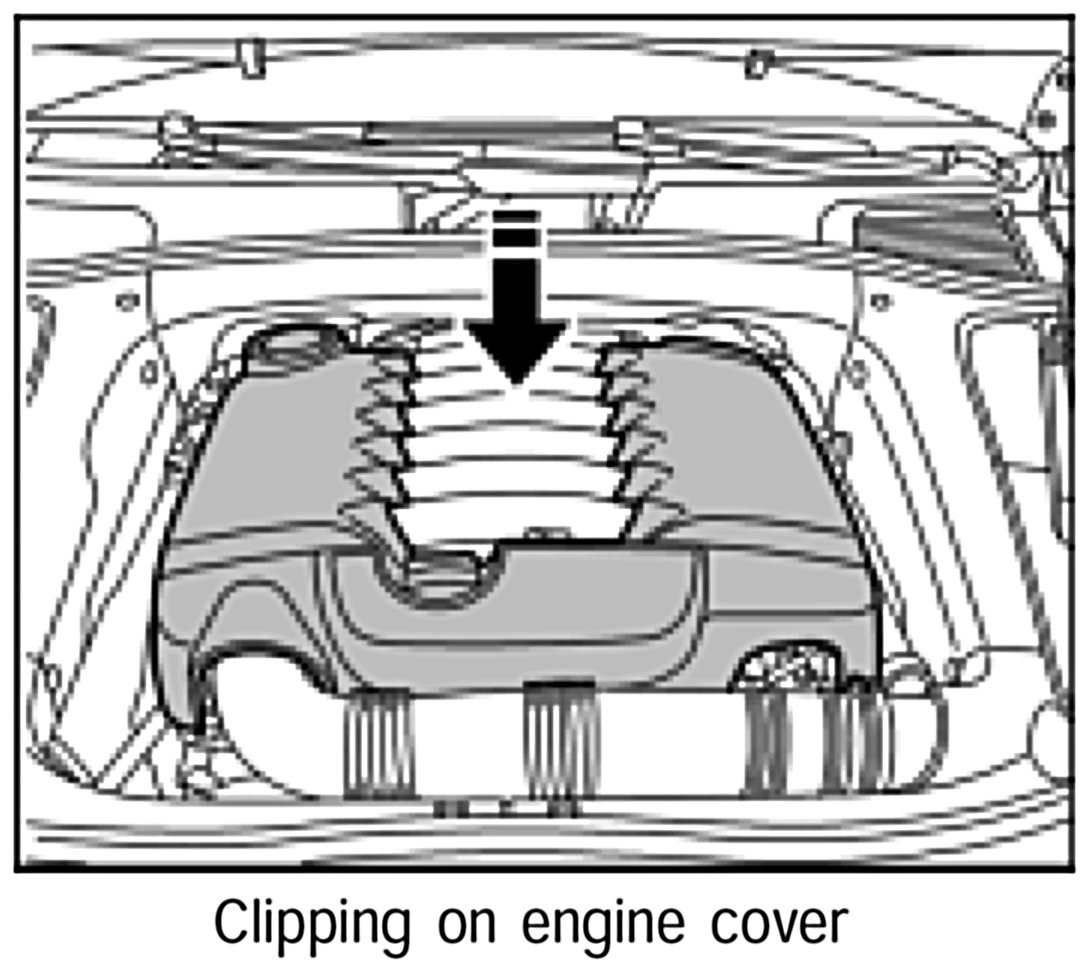

1. Clip on design cover and check that it is seated correctly.
