System Specifications
Intake distributor
20 Nm
Intake distributor to support
20 Nm
Intake distributor support on cylinder head
20 Nm
Exhaust manifolds on cylinder head M8
24 Nm

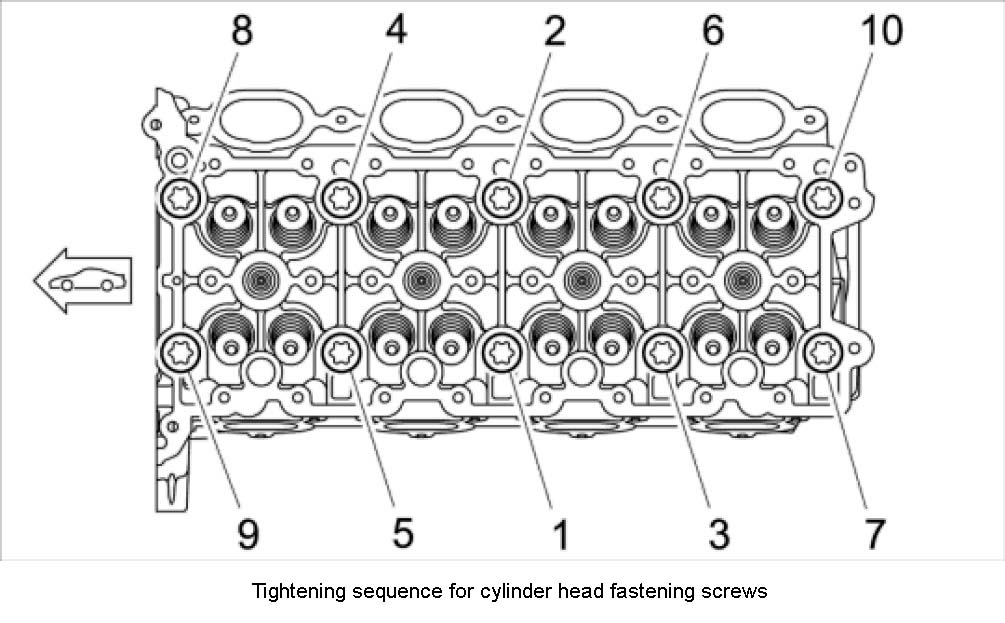

Cylinder head on crankcase
Initial tightening
30 Nm (22 ft-lb.)
Final tightening
50 Nm (37 ft-lb.)
Torque angle
2 X 90° (180°)

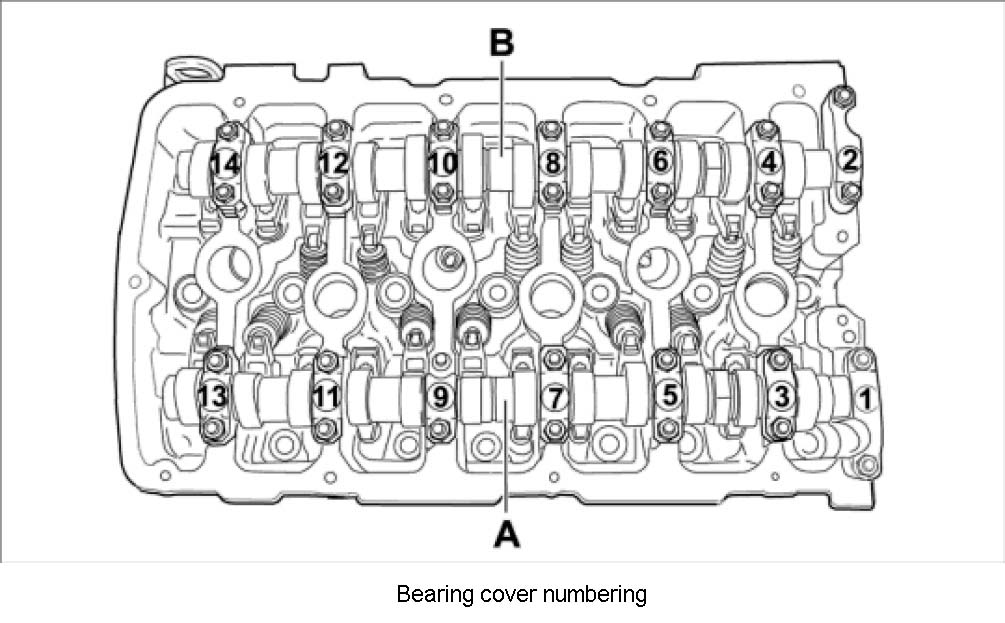

Bearing cap on cylinder head M7 X 45
10 Nm
Bearing cap on cylinder head M 7
(3.5 ft-lb.) + 90°
