Tightening Torques

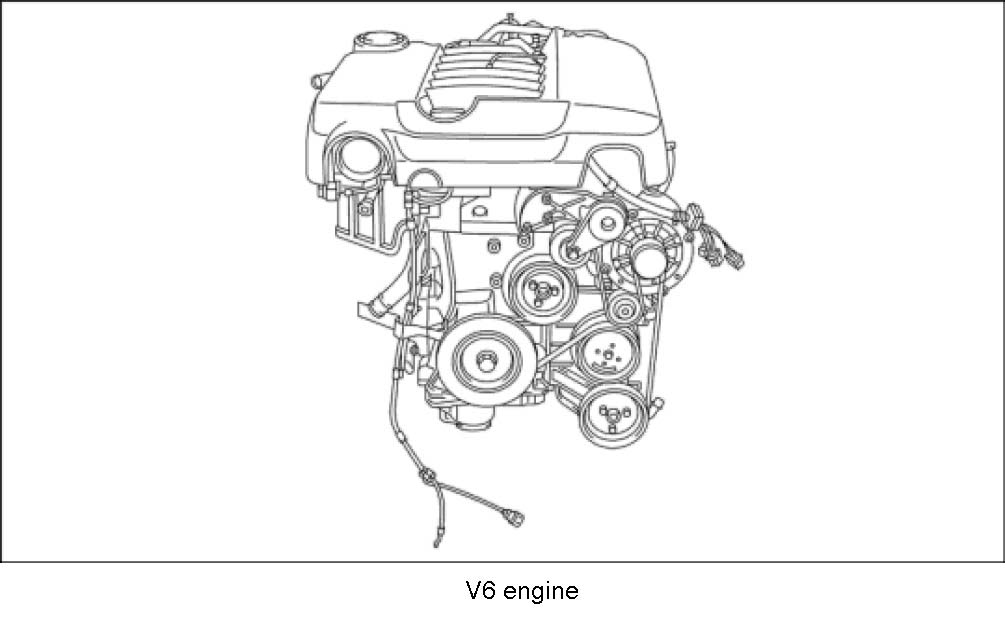

Tightening torques for Cayenne (engine type BFD)

Information





Note:
^ This torque list is organized according to component groups in the same way as service numbering.
^ The torque for the coolant pump is provided in Chapter 19.
^ Screws which are tightened with a torque angle must always be replaced with new ones.
^ The tightening sequences are indicated in the figures in the corresponding chapters, and it is essential to observe them.
^ The most important torques are specified at the end of the respective chapters.

The torques in the table below generally apply to screws which are not specifically listed.

Engine - Crankcase, suspension:

Crankcase, suspension

Crankcase, Suspension:

Crank drive, pistons

Crank Drive, Pistons (Part 1):

Crank Drive, Pistons (Part 2):

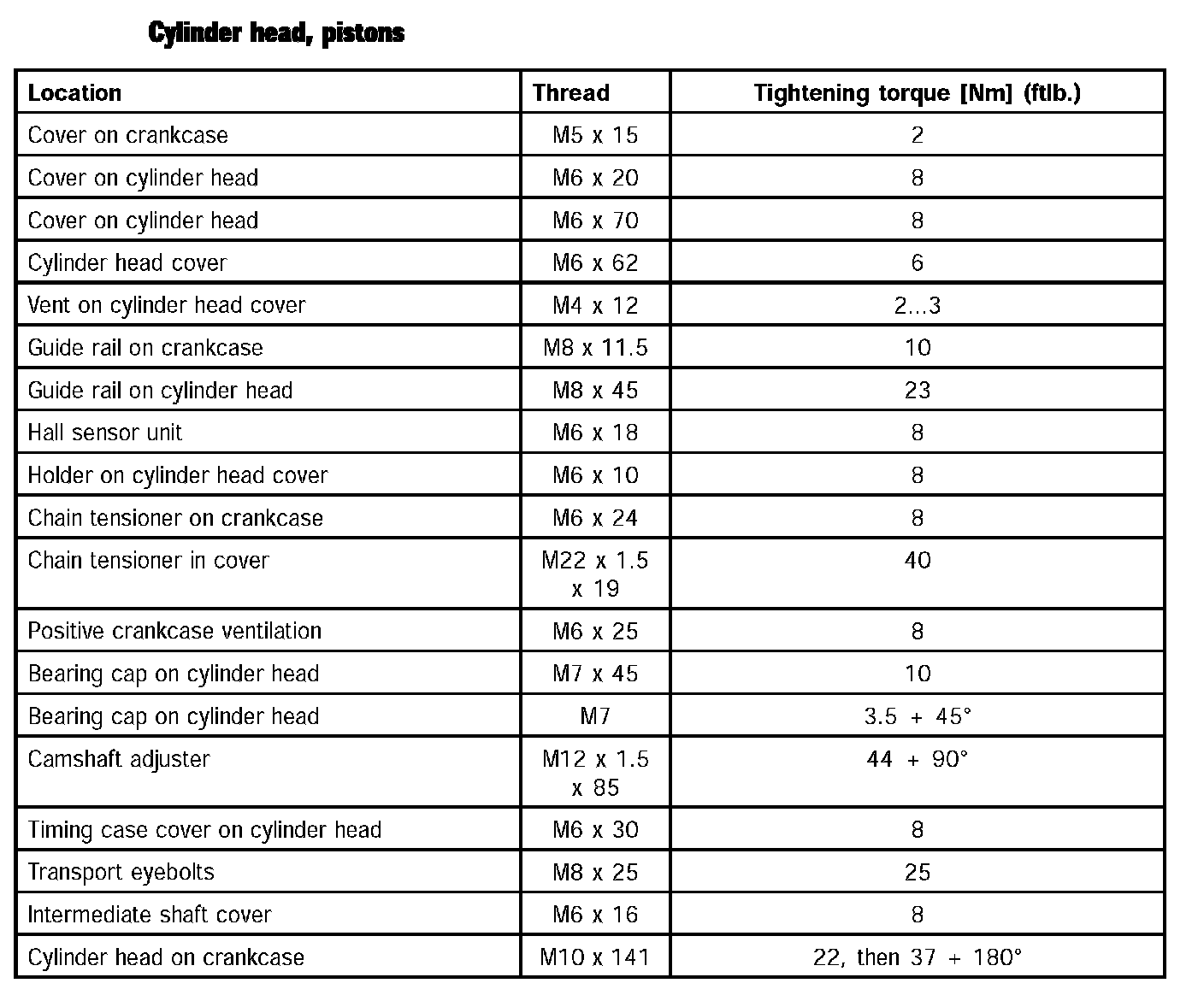

Cylinder head, pistons

Cylinder Head, Pistons (Part 1):

Cylinder Head, Pistons (Part 2):

Lubrication

Lubrication:

Cooling

Cooling:

Fuel supply, control

Fuel Supply, Control:

Fuel system, electronic injection

Fuel System, Electronic Injection:

Exhaust system

Exhaust System:

Starter, power supply

Starter, Power Supply (Part 1):

Starter, Power Supply (Part 2):

Ignition system

Ignition System:
