Front Suspension/Tightening Torques For Front Axle

Tightening torques for front axle
Tightening torques
Suspension subframe

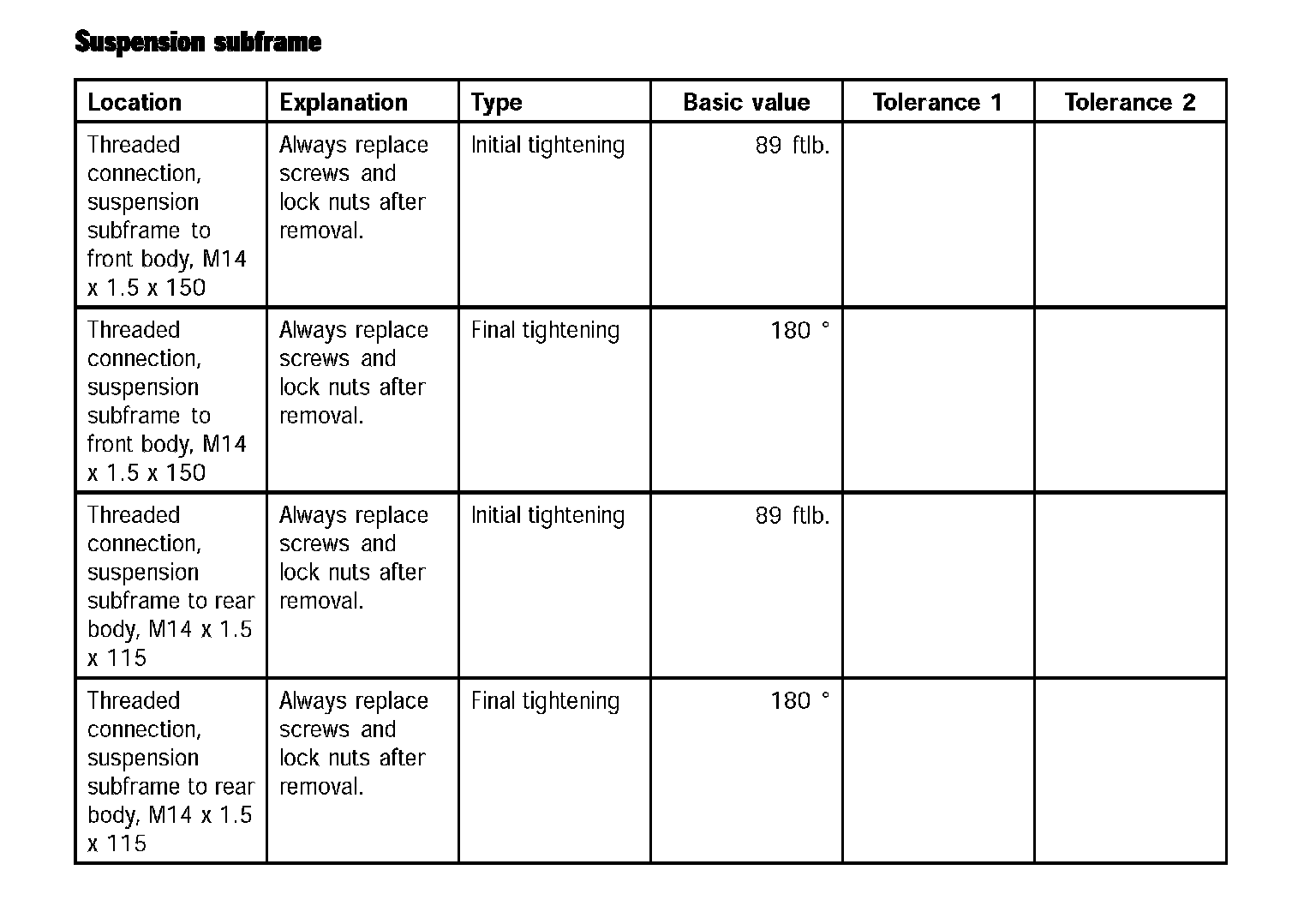

Suspension Subframe:

Axle strut

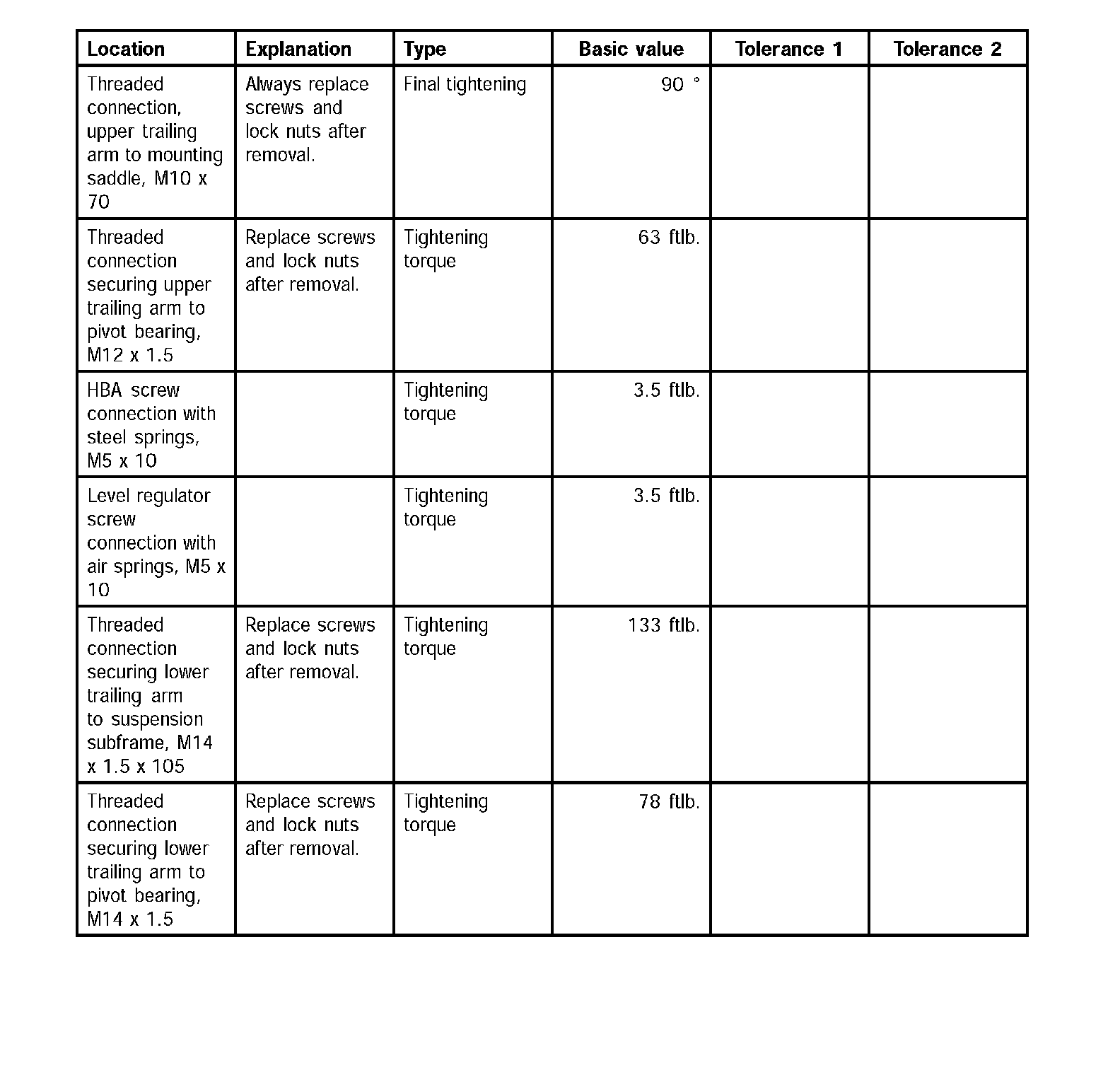

Axle Strut (Part 1):

Axle Strut (Part 2):

Steering gear

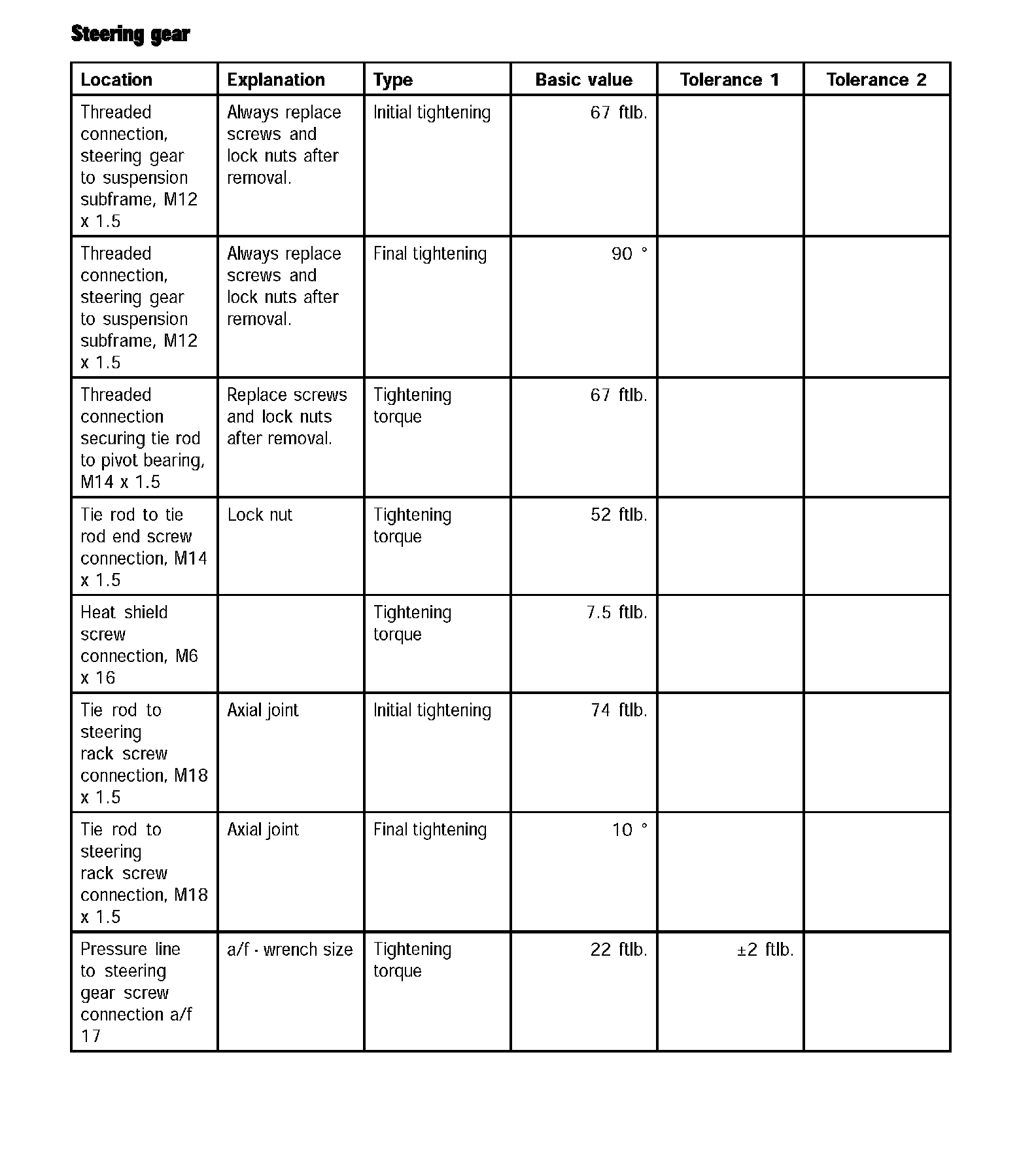

Steering Gear (Part 1):

Steering Gear (Part 2):

Steering wiring

Steering Wiring (Part 1):

Steering Wiring (Part 2):

Wheel carrier (pivot bearing)

Wheel Carrier (Pivot Bearing) (Part 1):

Wheel Carrier (Pivot Bearing) (Part 2):

Spring strut

Spring Strut (Part 1):

Spring Strut (Part 2):

Anti-roll bar/suspension/stabilizer (connecting link)

Anti-roll Bar/suspension/ Stabiliser (Connecting Link):

Off-road stabilizer (ORS)

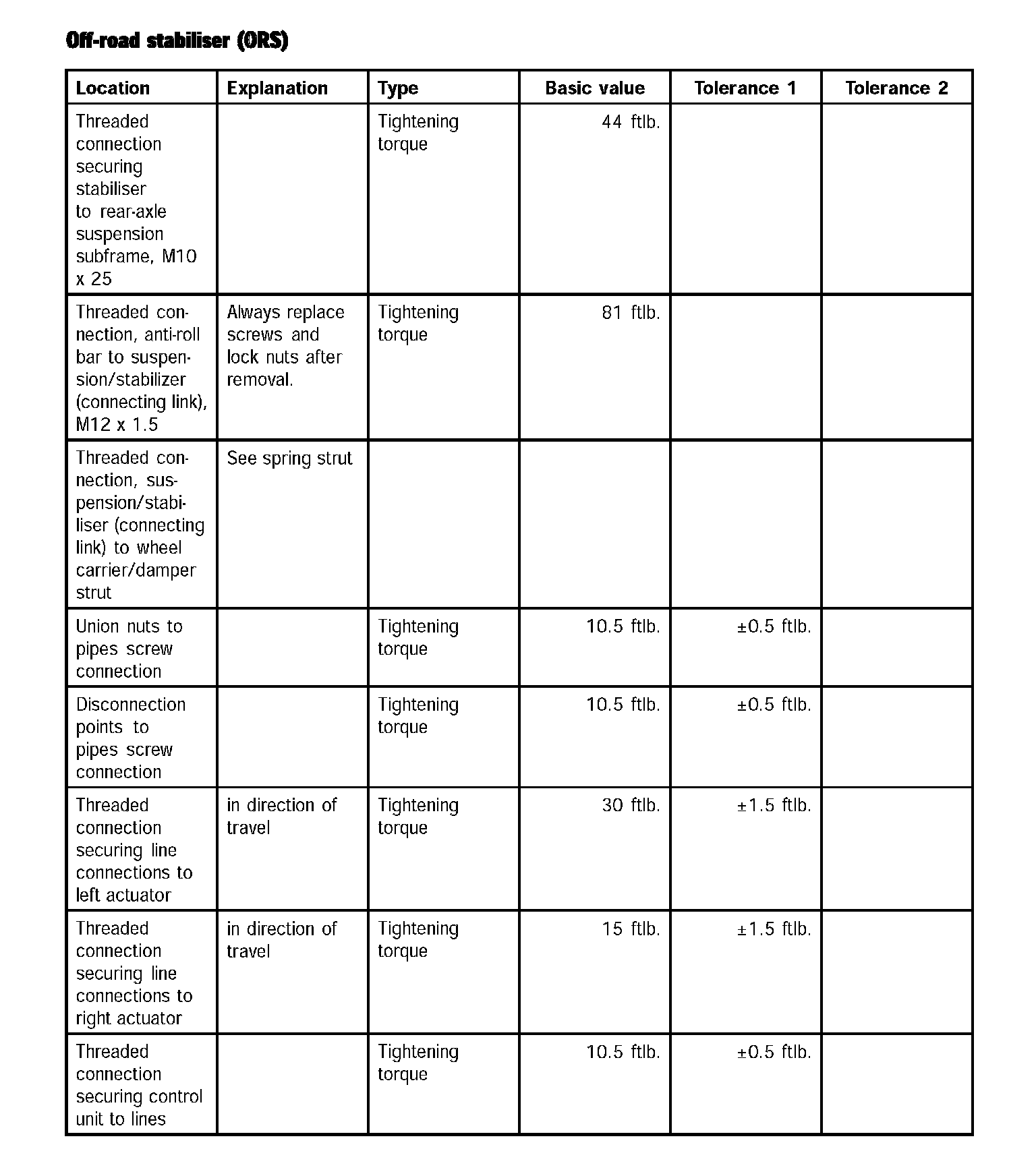

Off-road Stabiliser (ORS) (Part 1):

Off-road Stabiliser (ORS) (Part 2):

Drive shaft

Drive Shaft (Part 1):

Drive Shaft (Part 2):

Differential

Differential:

Wheel

Wheel:
