Battery: Locations

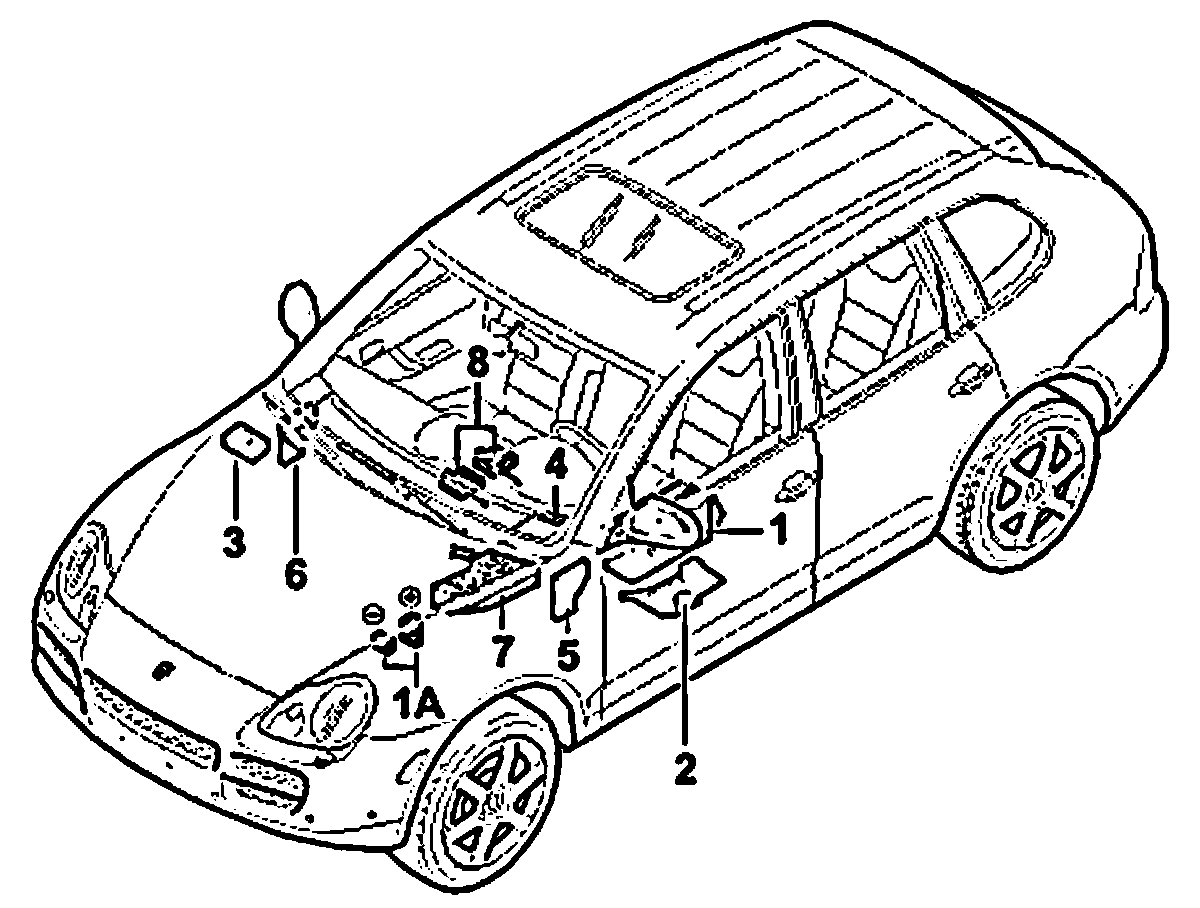

Voltage Supply







1 Battery under driver's seat
1 A Connections for external power supply/jump-lead starting in engine compartment
2 Current distributor with cutoff relay under driver's seat
3 DME control module in radiator tank, right
4 Data link connector below dashboard in left footwell
5 Fuse carrier, dashboard, left
6 Fuse carrier, dashboard, right
7 E-box in radiator tank with fuse carrier, relay carrier 1 and relay carrier 2
8 Relay carrier 1 and relay carrier 2 below dashboard (varies according to equipment)
