Removal and Replacement
Removing and installing oil pressure switchPreliminary work oil pressure switch
1. Remove ATF filter.
Removing oil pressure switch
1. Pull off cable plugs from the two oil pressure switches.
2. Remove oil pressure switch.
Installing oil pressure switch

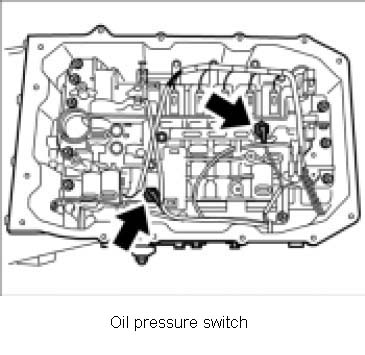

1. Install oil pressure switch -arrows-. Tightening torque: 3.25 ftlb.
2. Connect and engage cable plugs on the oil pressure switches.
Touching up the oil pressure switch
Reworking oil pressure switch
1. Install ATF filter.

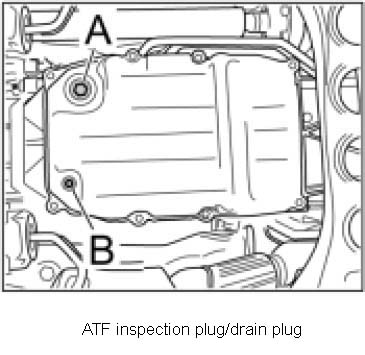

2. Unscrew ATF control screw -A- and fill in ATF until a constant discharge is visible at the lifting tube.
3. Screw in ATF control screw -A- with new sealing ring. Tightening torque: 51.8 ftlb.
Note:
^ Observe test conditions after opening cooler lines.
4. Check and top up the ATF.
