Changing Oil For Rear Final Drive

Changing oil for rear final drive

Tools





Changing oil for rear final drive
1. Place oil collecting container underneath the vehicle.





WARNING: Risk of scalding from hot oil
^ Let the oil cool down
^ Wear personal protective gear (goggles, gloves)

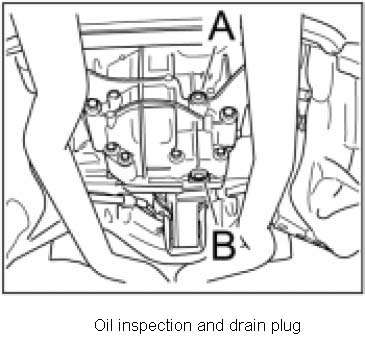

2. Unscrew oil drain plug -B- and drain oil.
3. Screw in oil drain plug -B- with new sealing ring. Tightening torque: 26 ftlb.

WARNING: Risk of scalding from hot oil
^ Let the oil cool down
^ Wear personal protective gear (goggles, gloves)

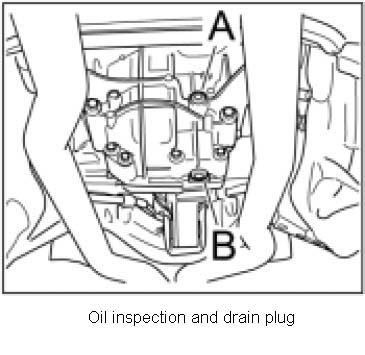

4. Unscrew oil inspection plug -A-.

Note:
^ Vehicle must be horizontal in order to fill rear final drive.

5. Fill with oil using the ATF filling device for filling transmission 161 to the lower edge of inspection plug opening-A-. Tightening torque: 1.25 l +0.35 l





6. Screw in oil inspection plug -A- with new sealing ring. Tightening torque: 26 ftlb.
7. Check oil for rear final drive.
