Washer Fluid Level Indicator: Service and Repair

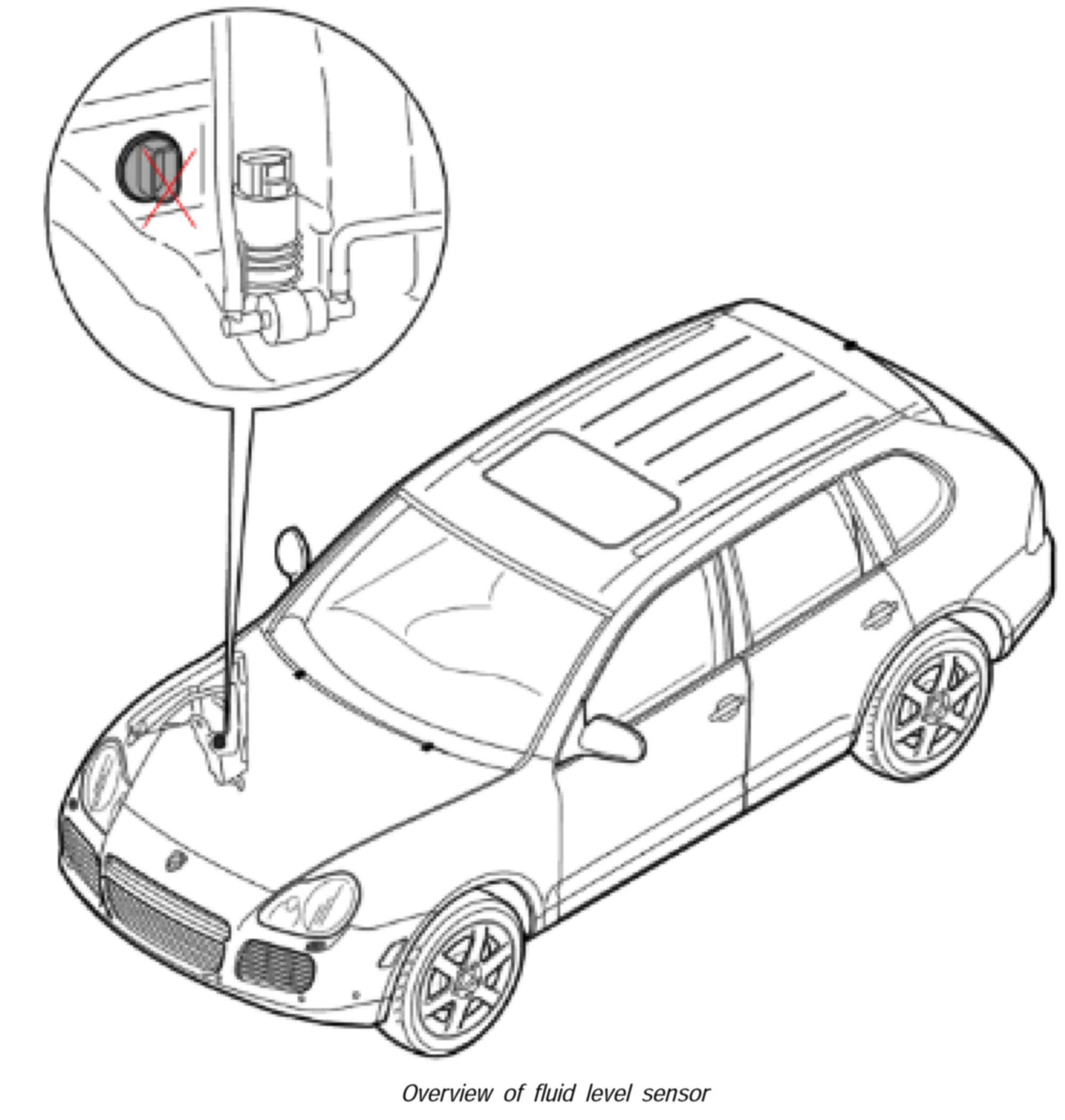

Removing And Installing Fluid Level Sensor

Preliminary work
1. Remove front right wheel.
2. Remove front right wheel housing liner.

Removing fluid level sensor

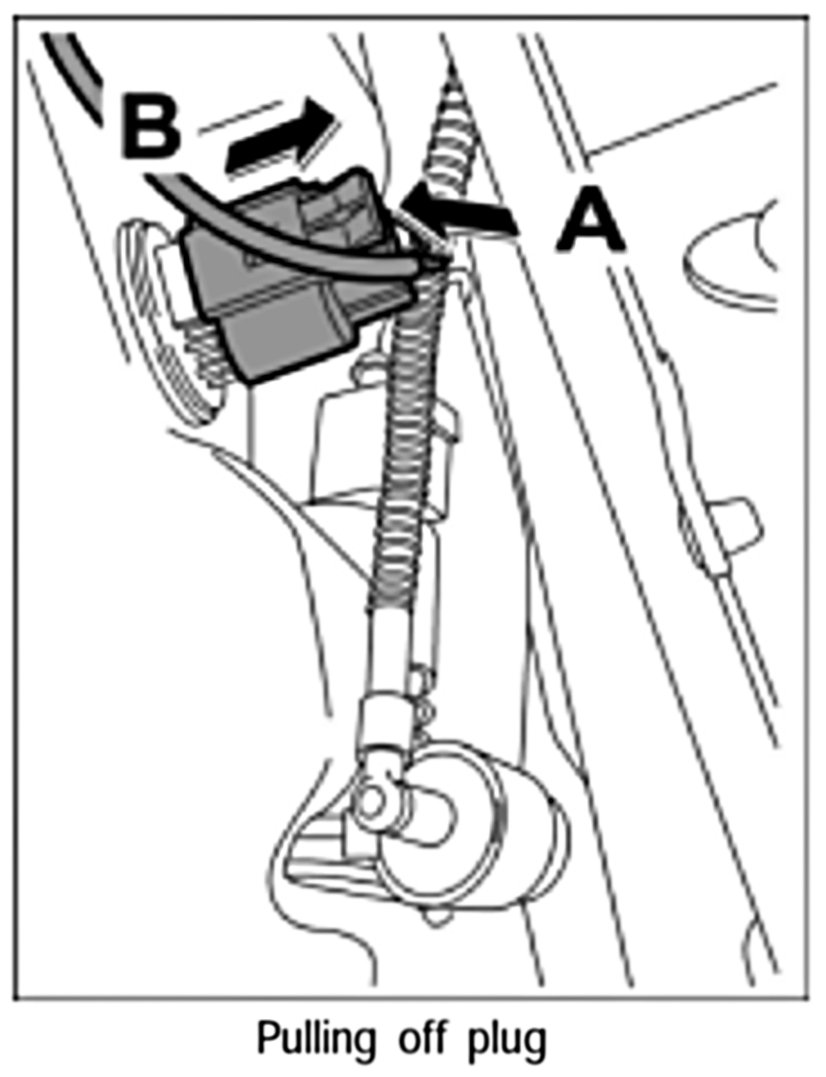

1. Release -arrow A- and pull off -arrow B- plug.

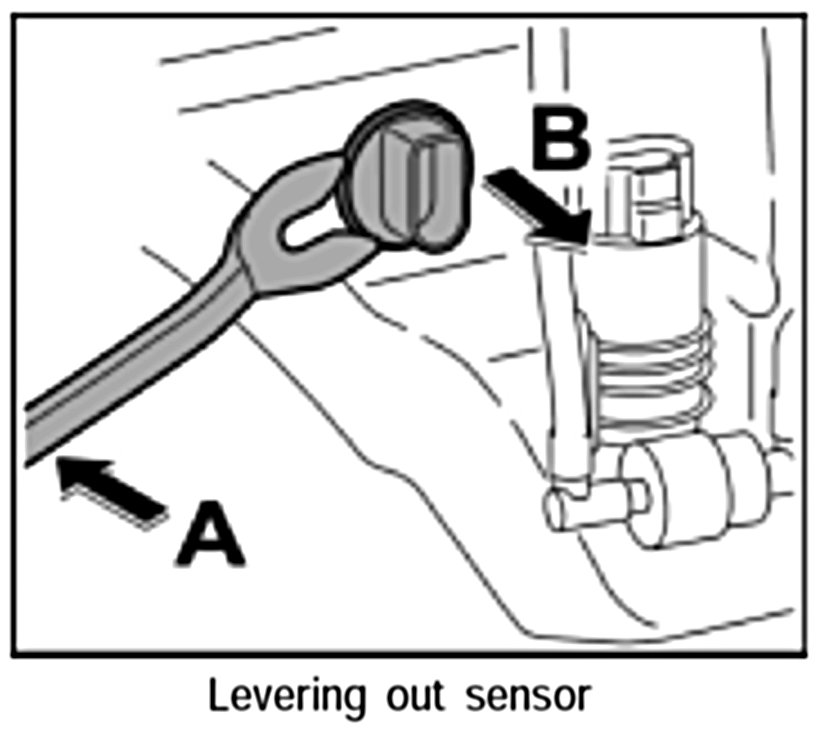

2. Lever sensor out of rubber seal -arrow B-. Collect any emerging fluid with a suitable container.

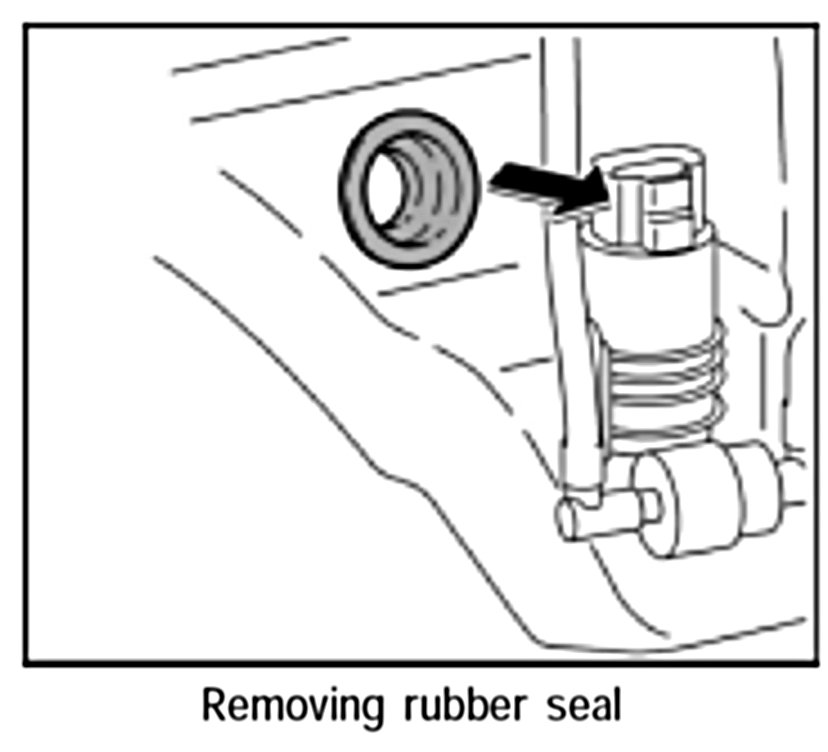

3. Remove rubber seal -arrow-.







Installing fluid level indicator

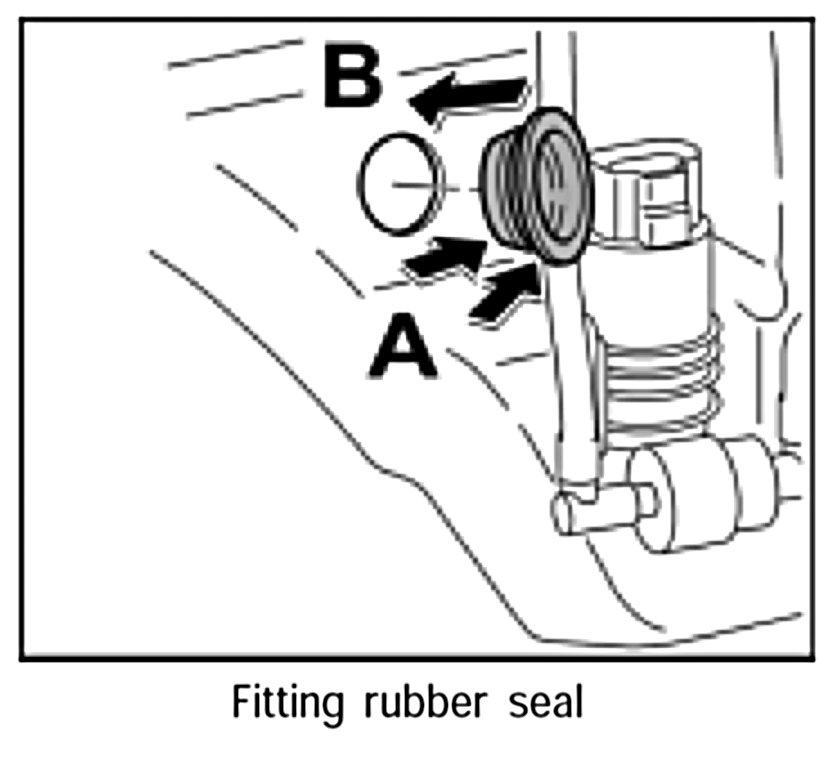

1. Apply a suitable rubber lubricant (tyre mounting paste) to the sealing surface -arrows A- and press rubber seal into tank -arrow B- until it is felt to engage.

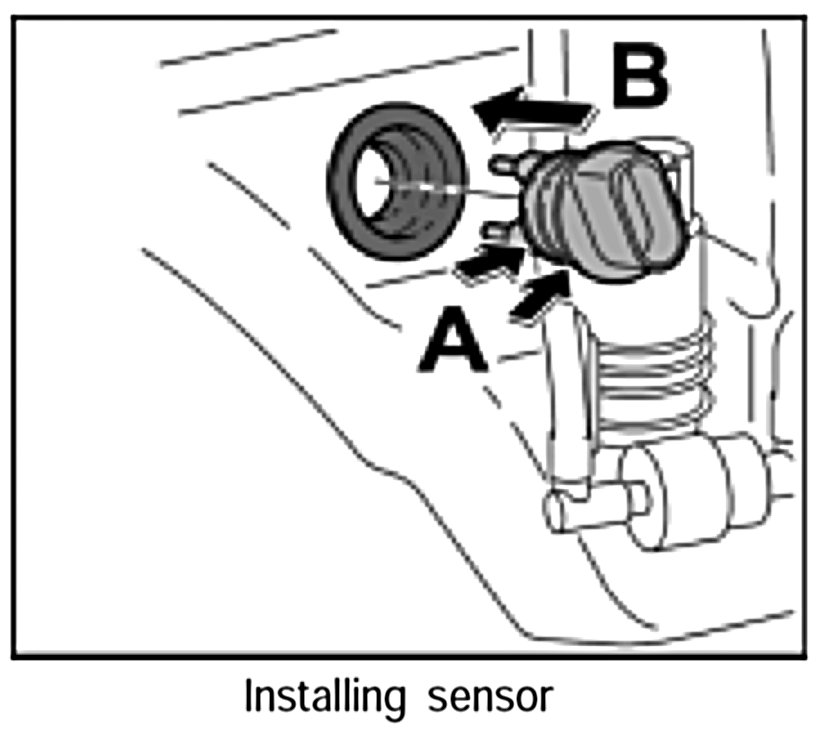

2. Apply a suitable rubber lubricant (tyre mounting paste) to sealing surface -arrows A- and press sensor into rubber seal -arrow B-until it is felt to engage.

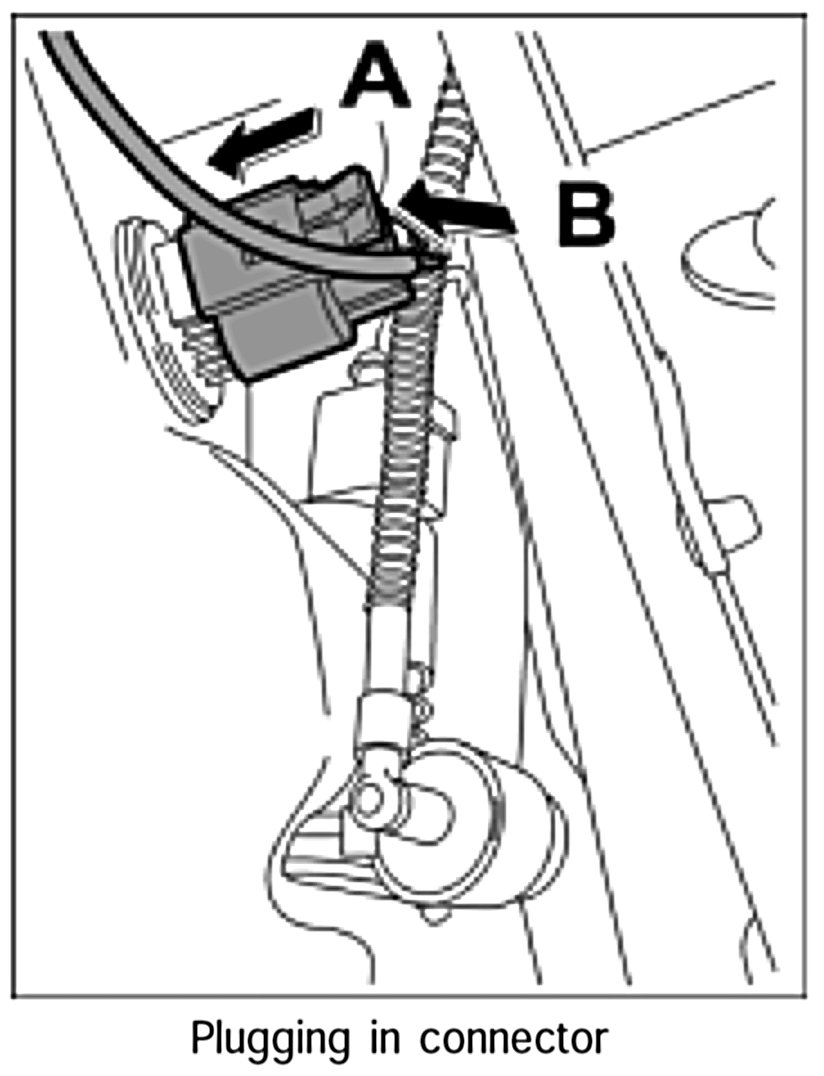

3. Connect plug to sensor -arrow A- until the lock -arrow B- is felt to engage.







Subsequent work
1. Install front right wheel housing liner.
2. Fit front right wheel.
