Wiper Blade: Service and Repair



Removing And Installing Wiper Blade

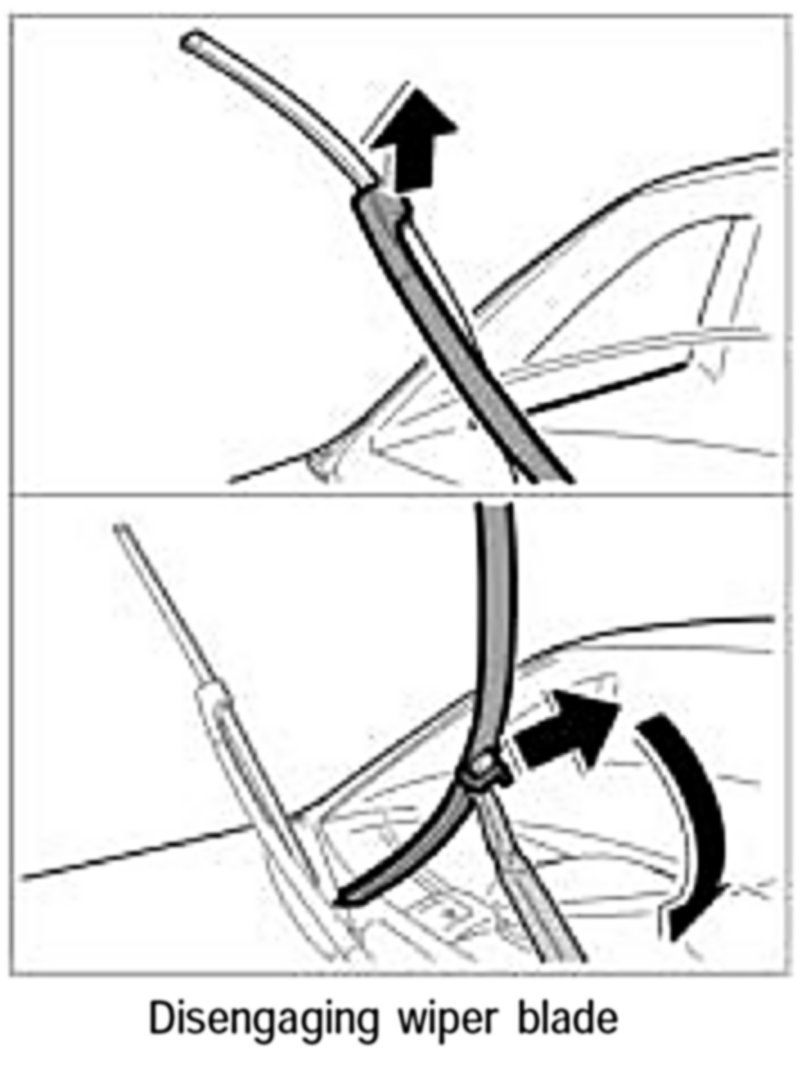

Removing wiper blade

WARNING:
Unexpected switching on of wiper system while working on the
wiper arms.
- Danger of trapping from wiper arms.
- Switch off ignition and remove ignition key.

1. Raise wiper arm and unclip cover on wiper arm.







2. Turn wiper blade by 90 degrees and pull it off the wiper arm.

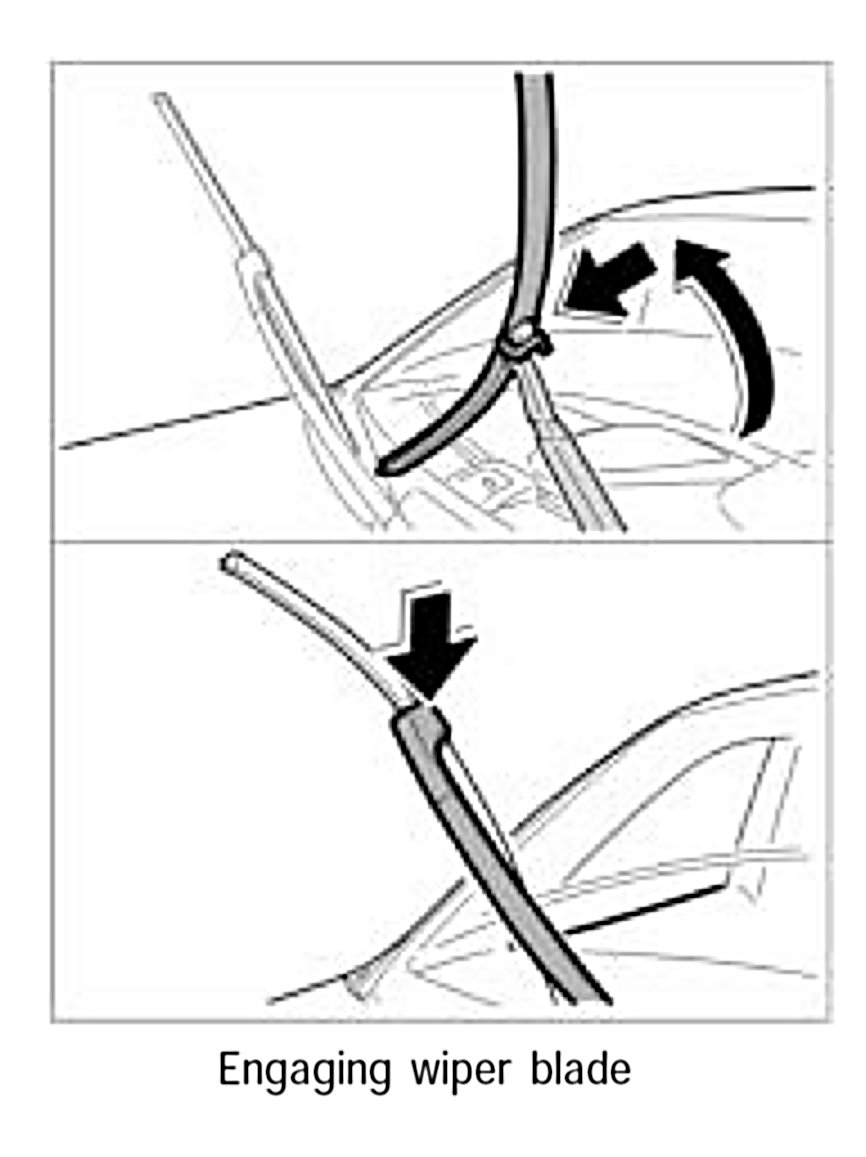

Installing wiper blade

WARNING:
Unexpected switching on of wiper system while working on the wiper arms.
- Danger of trapping from wiper arms.
- Switch off ignition and remove ignition key.

1. Slide wiper blade onto the wiper arm. Swivel wiper blade by 90 degrees.







2. Position cover on wiper arm and clip into position. Ensure cover is fitted properly.
3. Spray windscreen with spray nozzles and check function of wiper blades.
