Ignition Coil Pack: Locations

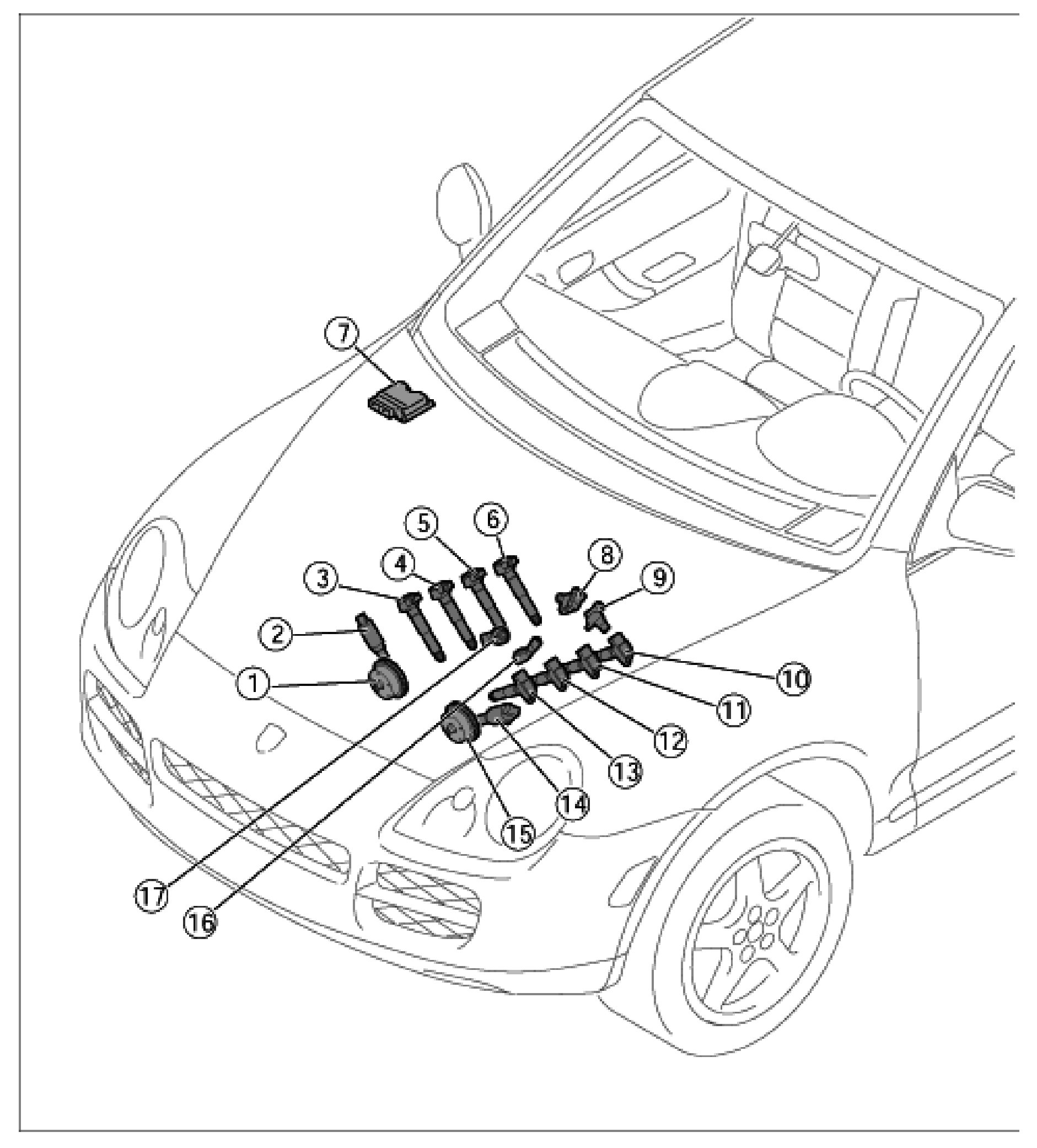

Camshaft Adjustment and Ignition With Sensors







1 Inlet camshaft vane-type adjuster, bank 1
2 VarioCam solenoid valve, bank 1
3 Bar ignition module, cylinder 1 (bank 1)
4 Bar ignition module, cylinder 2 (bank 1)
5 Bar ignition module, cylinder 3 (bank 1)
6 Bar ignition module, cylinder 4 (bank 1)
7 DME control module 8 Camshaft position sensor, bank 1
9 Camshaft position sensor, bank 2
10 Bar ignition module, cylinder 8 (bank 2)
11 Bar ignition module, cylinder 7 (bank 2)
12 Bar ignition module, cylinder 6 (bank 2)
13 Bar ignition module, cylinder 5 (bank 2)
14 VarioCam solenoid valve, bank 2
15 Inlet camshaft vane-type adjuster, bank 2
16 Knock sensor, bank 2
17 Knock sensor, bank 1
