Transmission Control Systems: Diagrams

Connector assignment

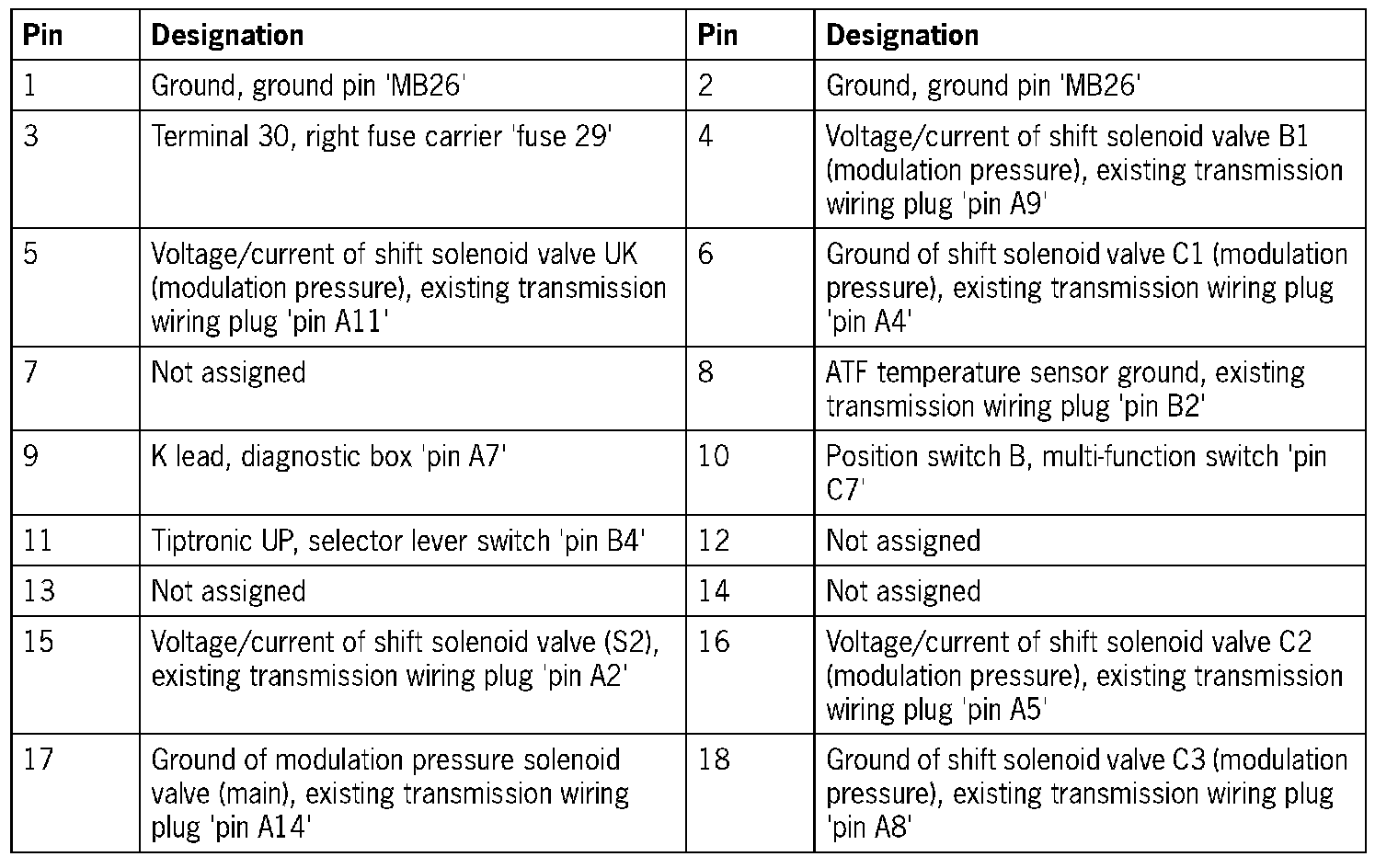

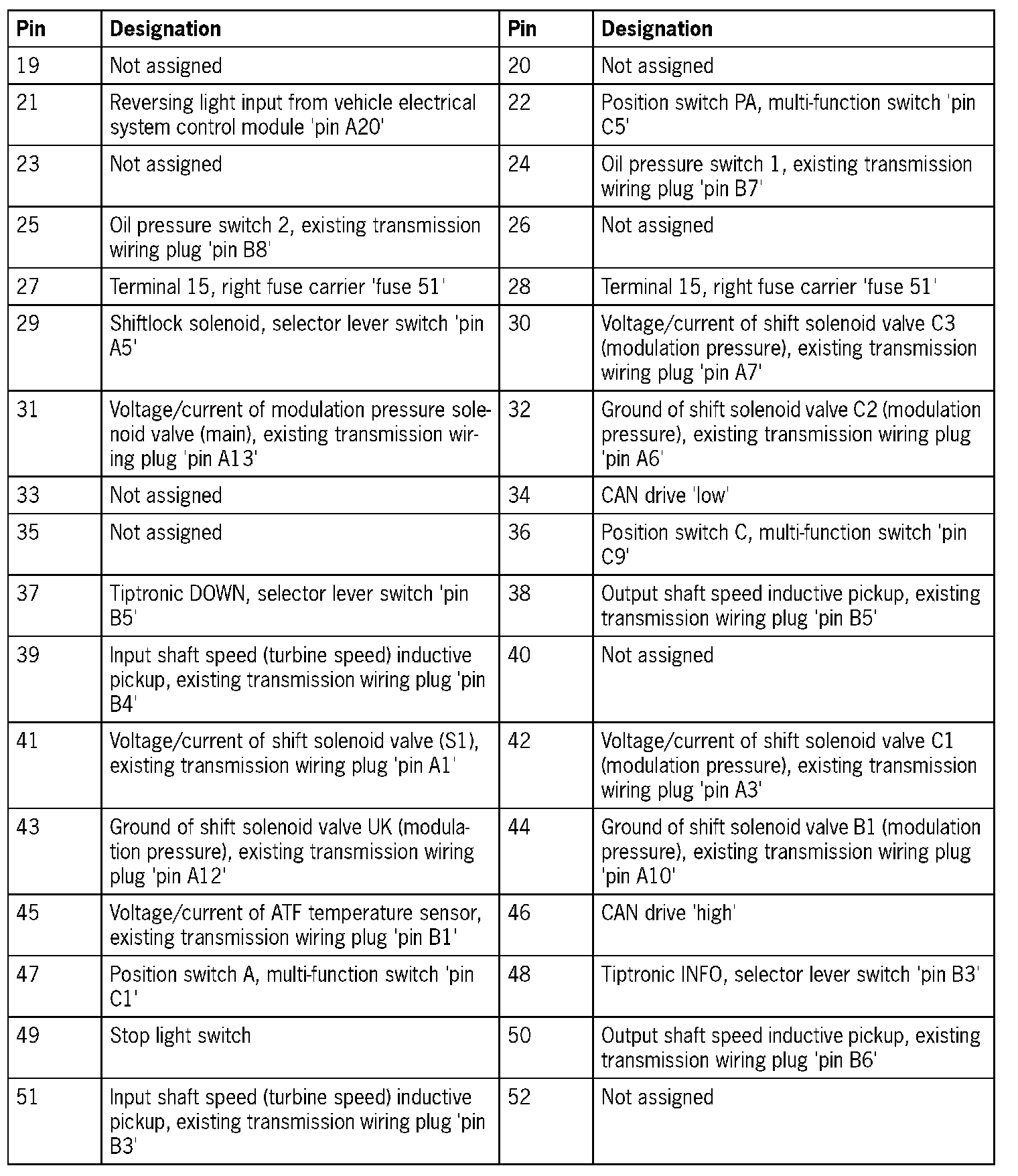

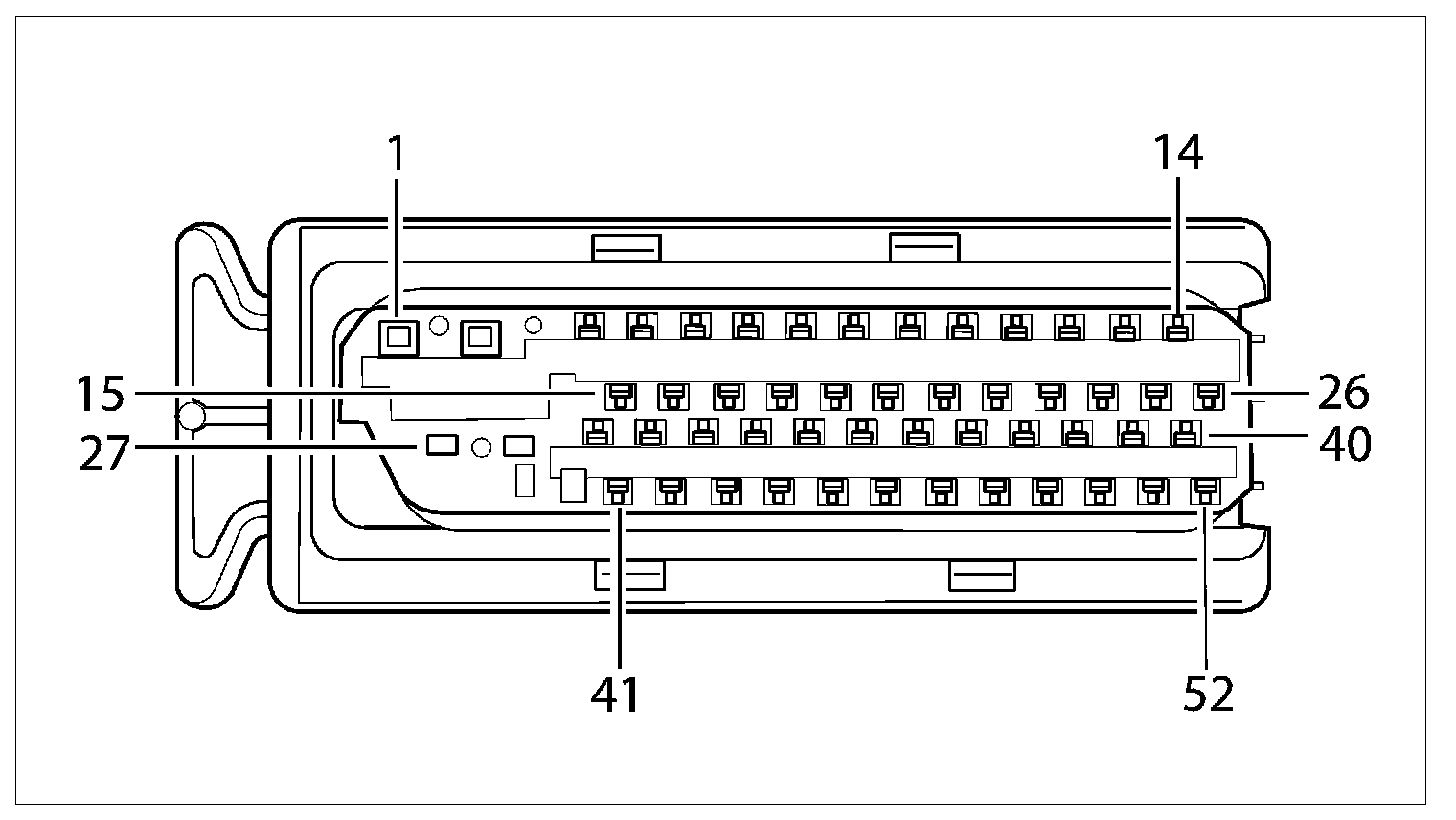

Tiptronic control module plug, '52-pin'

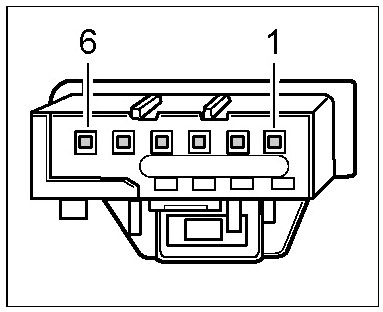

Plug 'A', selector lever switch, '6-pin'

Corresponding socket 'A', selector lever switch, '6-pin'

Socket for solenoids (transmission side) 'A', '14-pin' and sensors (transmission side) 'B', '8-pin'

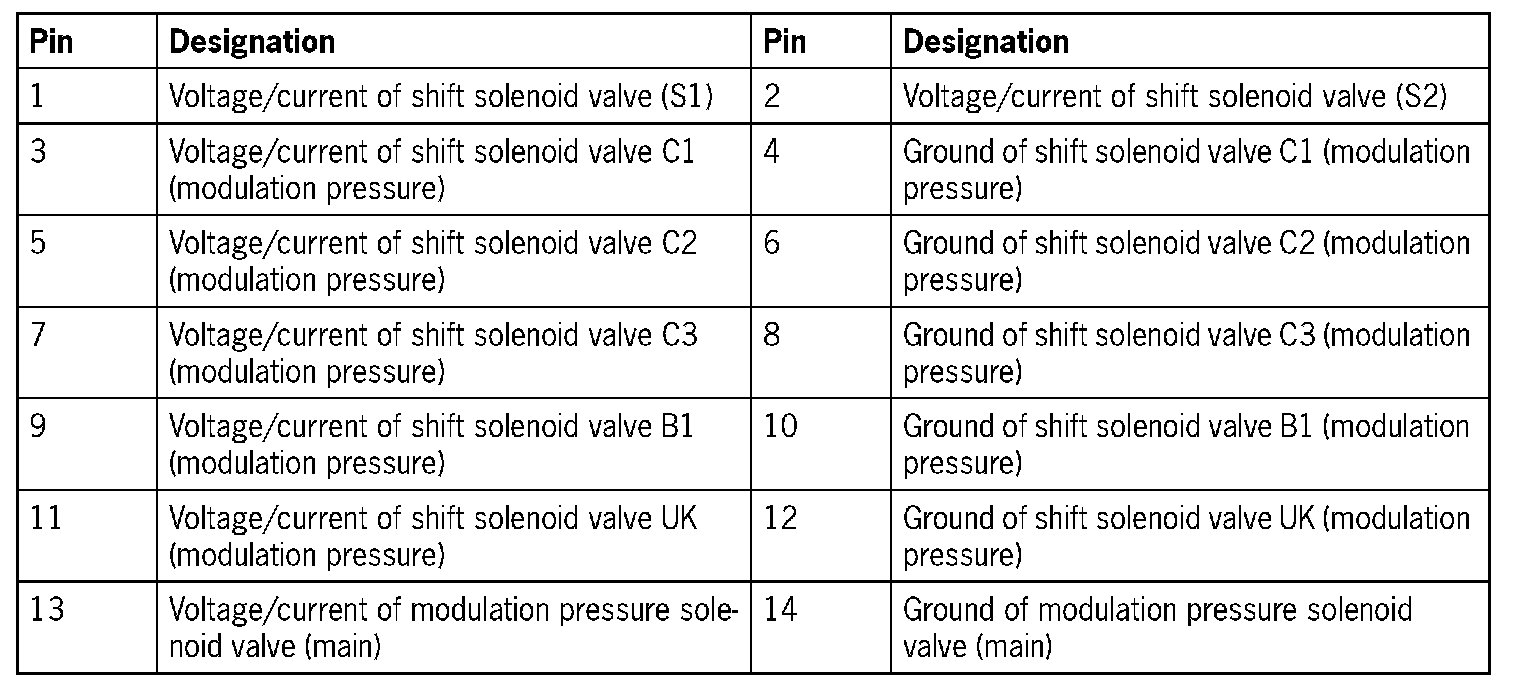

Connector 'A'

Connector 'B'

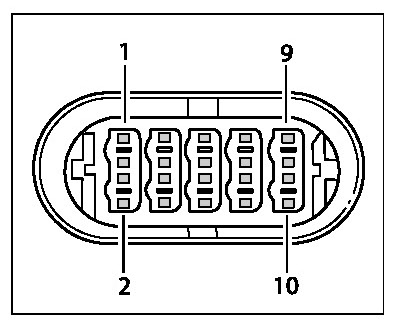

Plug 'C', multi-function switch, '10-pin' (existing transmission wiring)

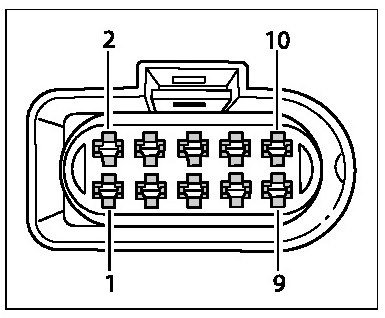

Corresponding socket 'C', multi-function switch, '10-pin' (existing transmission wiring)
