Power Window Switch: Service and Repair



Removing And Installing Switch For Front Power Windows

Removing switch for front power windows

INFORMATION: Prior to starting with the removal, switch off the ignition and remove the ignition key.

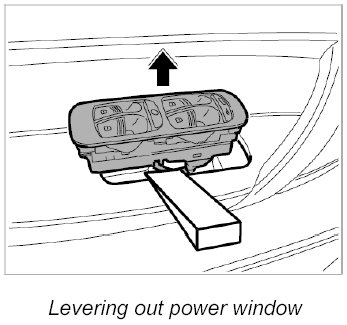

1. Lever out the entire power window switch using a plastic spatula.

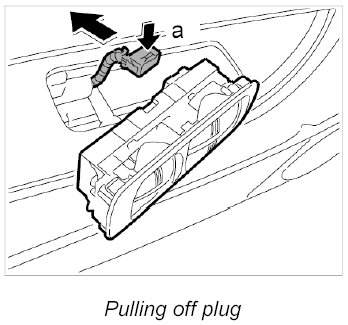

2. Push in the electric plug -arrow a- and remove plug from power window switch.

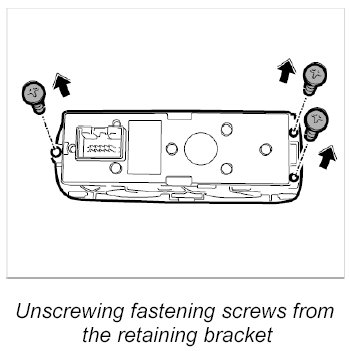

3. Unscrew the fastening screws from the retaining bracket.







4. Remove power window switch from retaining bracket.

Installing switch for front power windows

1. Place power window switch in retaining bracket.

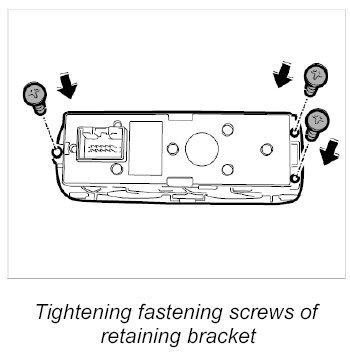

2. Screw in and tighten fastening screws.

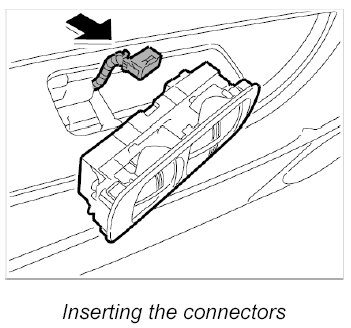

3. Insert the electrical plug connection in the power window switch until it clicks into place.







4. Position the power window switch in the door trim panel and press it in.







5. Make sure that the power window switch is positioned evenly on the gap.
