Window Shade: Service and Repair

Removing And Installing Sun Blind On Door Window

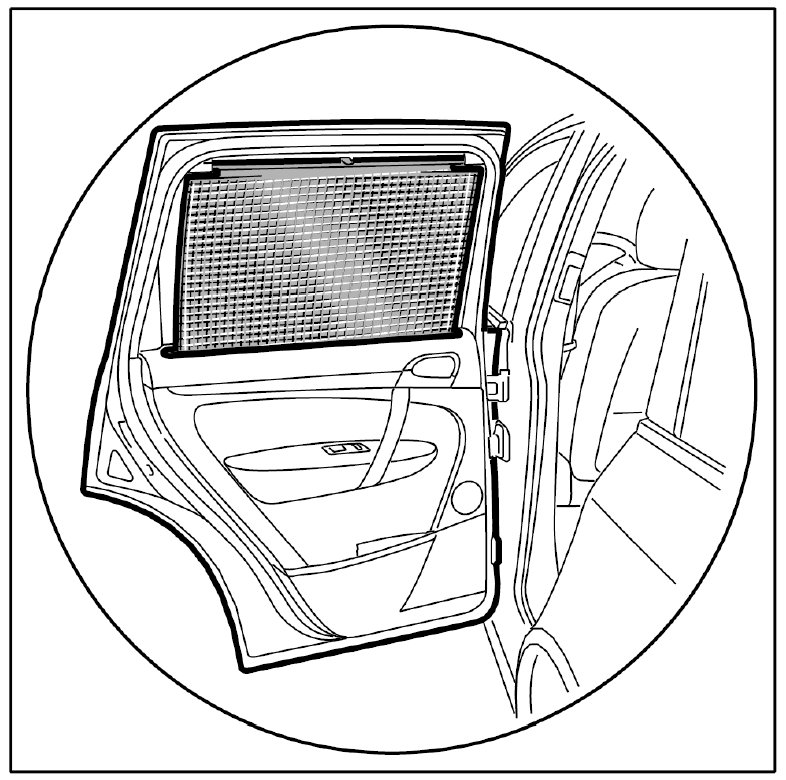

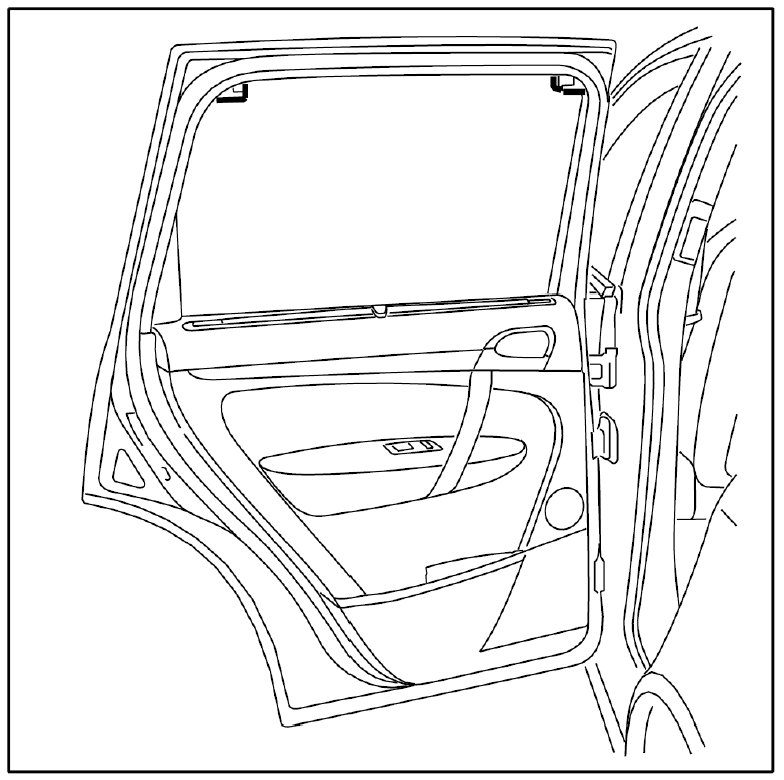

Removing sun blind and holder for sun blind on door window

Removing sun blind and holder for door window sun blind







1. Remove rear door trim panel. Refer to Removing and installing rear door trim panel.
2. Remove cover.

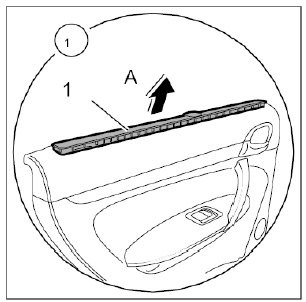

2.1. Unclip cover -1- ( -Arrow A- ).

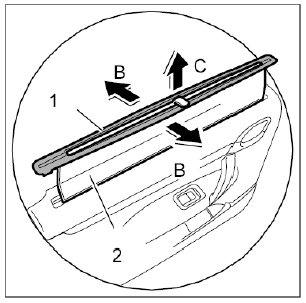

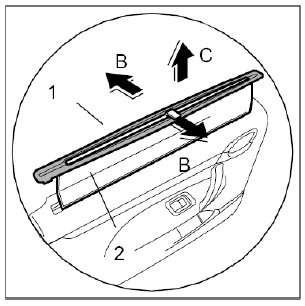

2.2. Open up cover -1- ( -Arrows B- ) and remove above door window sun blind -2- ( -Arrow C- ) by pulling the sun blind -2- out slightly.







3. Remove door window sun blind.
3.1. Undo fastening screws -3-.

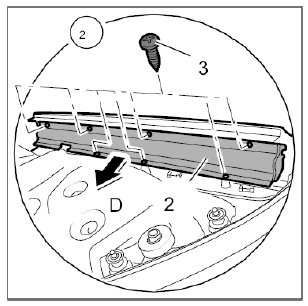

3.2. Remove door window sun blind -2- ( -Arrow D- ).

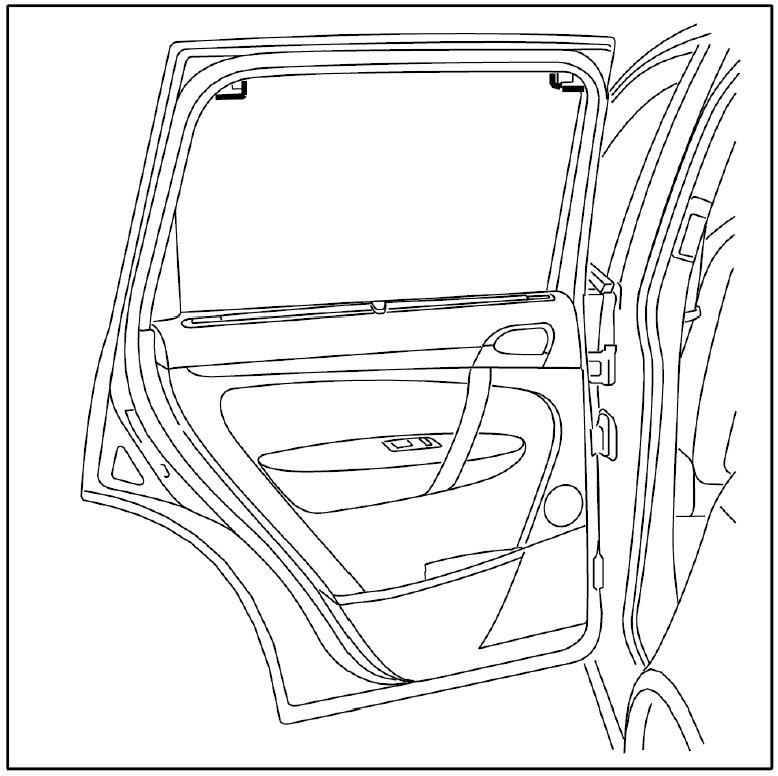

Removing holder for door window sun blind







1. Remove cover.

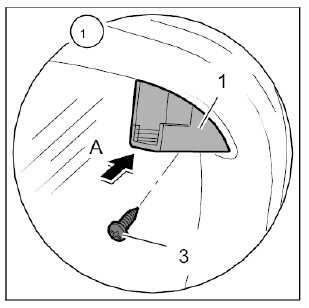

1.1. Remove cover -2- from holder for door window sun blind -1- ( -Arrow A- ).







2. Remove holder for door window sun blind.
2.1. Undo fastening screws -3-.

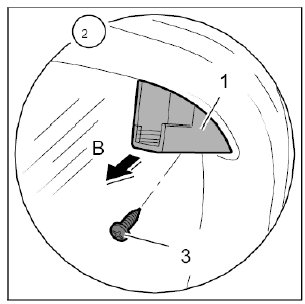

2.2. Remove holder for door window sun blind -1- ( -Arrow B- ).

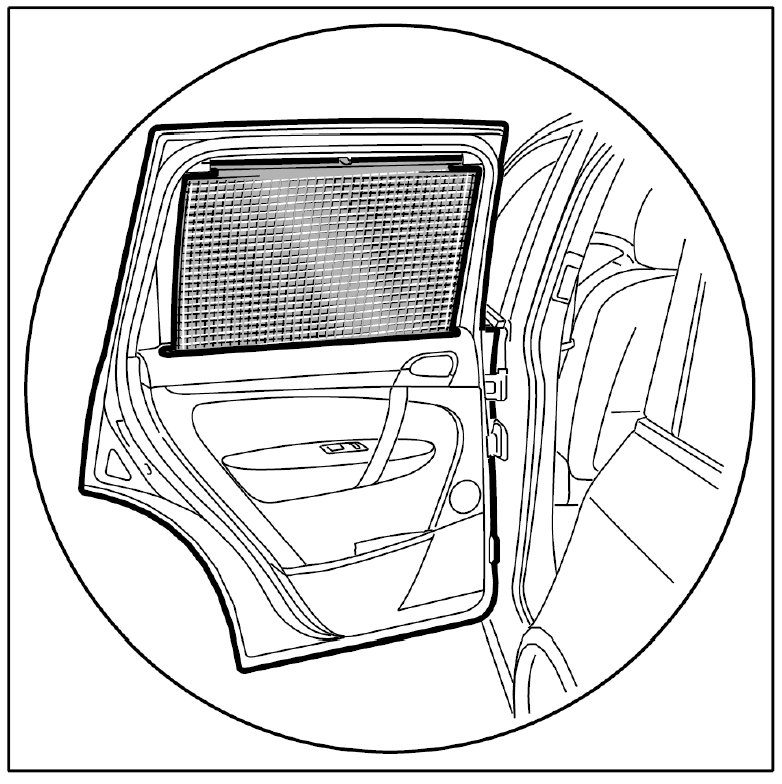

Installing sun blind and holder for sun blind on door window

Installing holder for door window sun blind







1. Install holder for door window sun blind.
1.1. Insert holder for door window sun blind -1- ( -Arrow A- ).
1.2. Screw in -3- fastening screws.







2. Push on cover.
2.1. Push cover -2- onto holder for door window sun blind -1- ( -Arrow B- ).







Installing door window sun blind







1. Install door window sun blind.

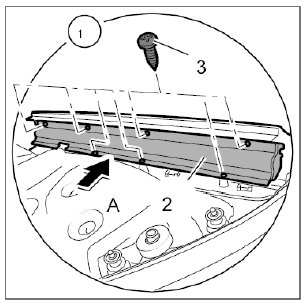

1.1. Position door window sun blind -2- ( -Arrow A- ).
1.2. Screw in -3- fastening screws.







2. Install cover.
2.1. Open up cover -1- ( -Arrows B- ) and insert above the door window sun blind -2- ( -Arrow C- ) by pulling the sun blind -2- out slightly.

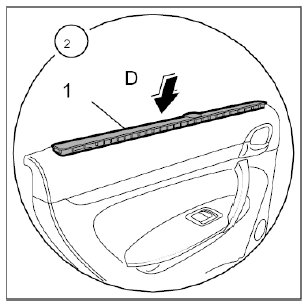

2.2. Clip in cover -1- ( -Arrow D- ).







3. Install rear door trim panel. Refer to Removing and installing rear door trim panel.
