System Specifications

WM 3X00IN Technical data, automatic transmission





Technical values

Technical data
Transmission type: A87/21
Equipment: 6-gear
Installed in: Cayman S
Model year: 2006

Transmission ratios
1st gear: 3.66
2nd gear: 2.00
3rd gear: 1.41
4th gear: 1.00
5th gear: 0.74
Reverse gear: 4.10
Final drive ratio: 4.161

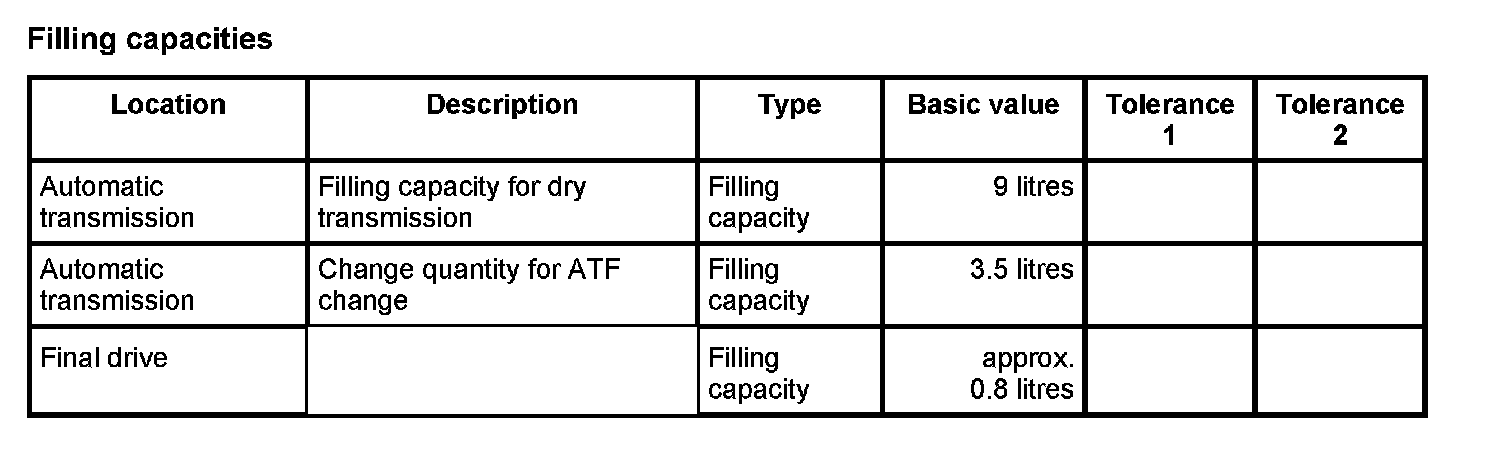

Filling capacities

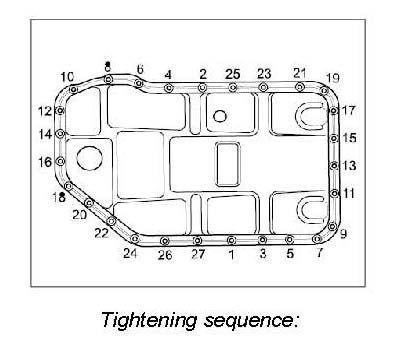

ATF pan





Tightening torque 8 ftlb.
