System Specifications

Cylinder Bore 100 mm

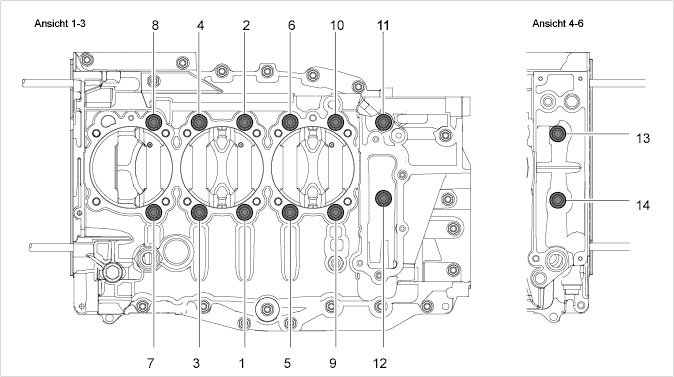

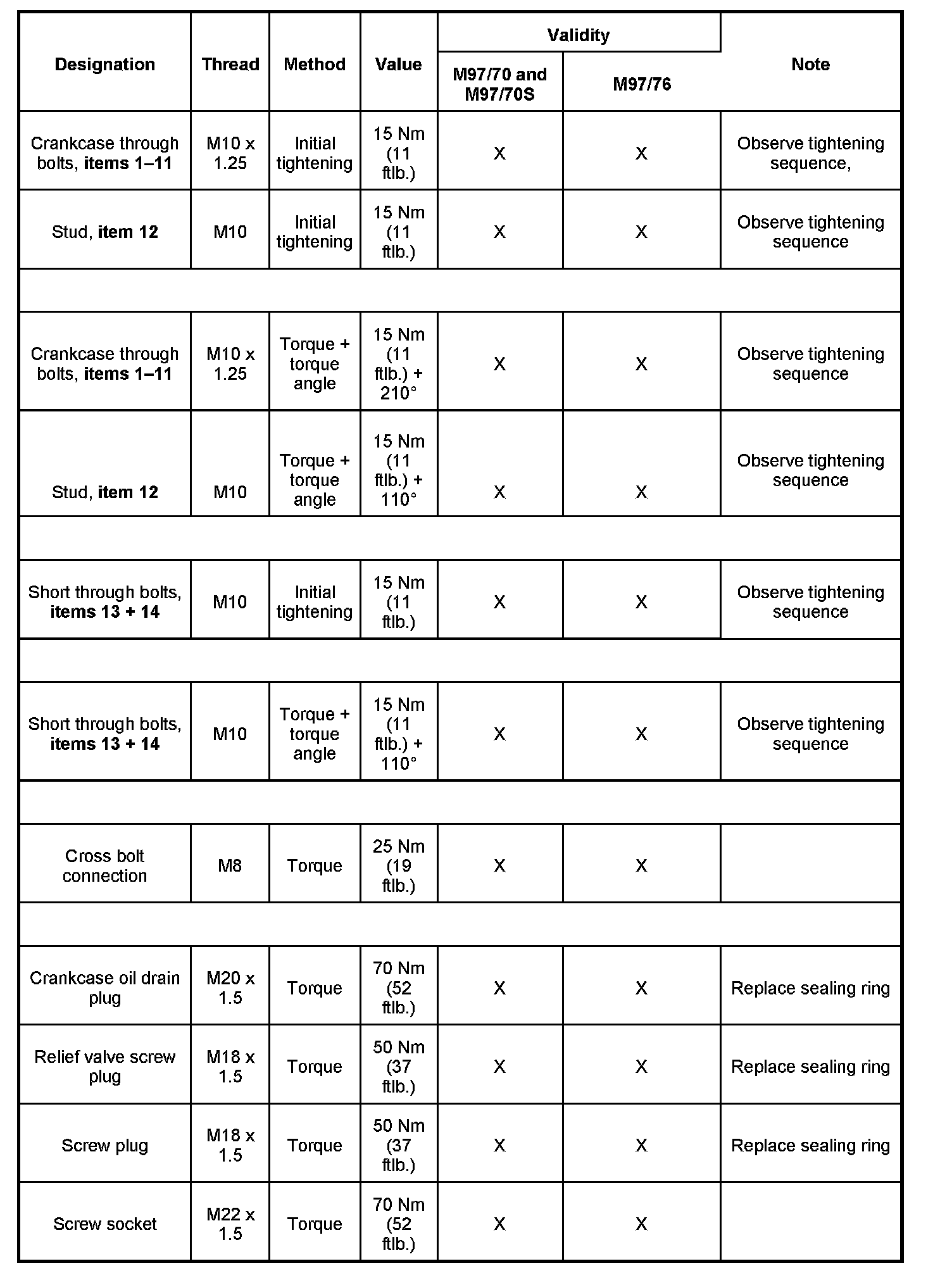

Bolts for crankcase halves

Connecting Rod Nuts
Replace bolts and nuts
Initial tightening 30 Nm (22 ftlb.)
Torque angle 90° ± 2°

Crankshaft Pulley M14 x 1.5 170 Nm (126 ftlb.)
Replace screw
