Manual Transmission/Transaxle

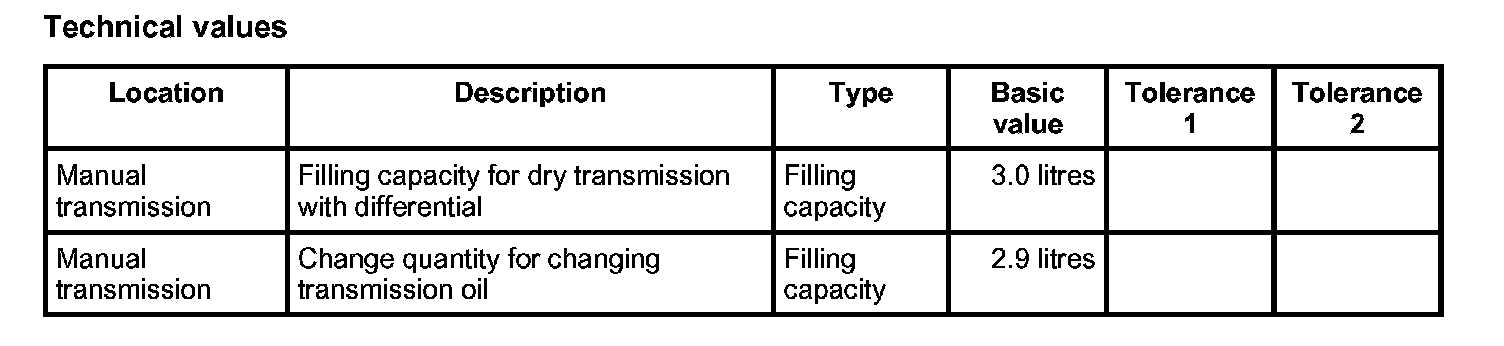

Technical data, transmissionTechnical values Technical data Transmission type: G97/31
Equipment: 6-speed
Installed in: Carrera 4 S (997)
Model year: 2006
Transmission ratios 1st gear: 43/11 = 3.91
2nd gear: 44/19 = 2.32
3rd gear: 45/28 = 1.61
4th gear: 41/32 = 1.28
5th gear: 40/37 = 1.08
6th gear: 38/43 = 0.88
Reverse: 27/11 x 41/28 = 3.59
Final-drive ratio: 31/9 = 3.44
