Washer Fluid Level Indicator: Service and Repair

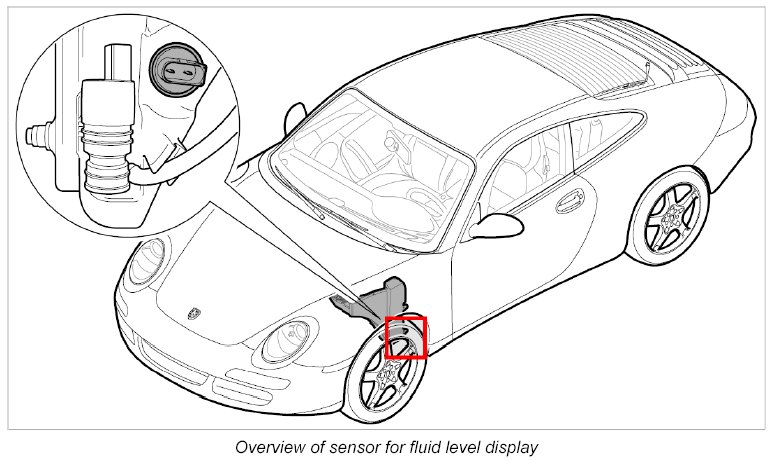

Removing And Installing Sensor For Fluid Level Display

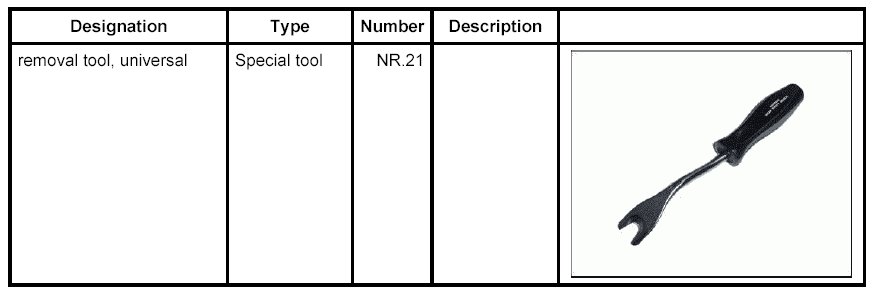

Tools







Preliminary work
Remove tank for windscreen washer system.

Removing sensor for fluid level display












1. Use the removal tool, universal NR.21 to lever the sensor out of the rubber seal -arrow A- and remove it -arrow B-.







2. Remove rubber seal.

Installing sensor for fluid level display







1. Apply a suitable rubber lubricant (tyre mounting paste) to the sealing surface -arrows A- and press the rubber seal into the tank -arrow B- until it is felt to engage.







2. Apply a suitable rubber lubricant (tyre mounting paste) to the sealing surface -arrows A- and press the sensor for fluid level display into the rubber seal -arrow B- until the sensor is felt to engage.

Subsequent work
Install tank for windscreen washer system.
