Removing and Installing Control Unit For Direction Indicator Light



Removing And Installing Control Unit For Direction Indicator Light

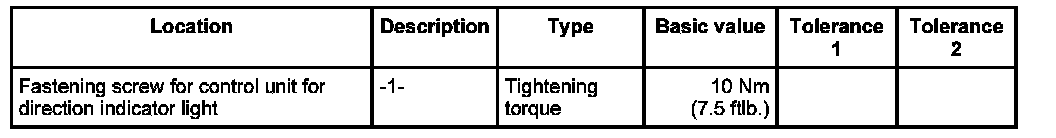

Technical values







Preliminary work

Preliminary work for direction indicator light control unit
Remove main headlight

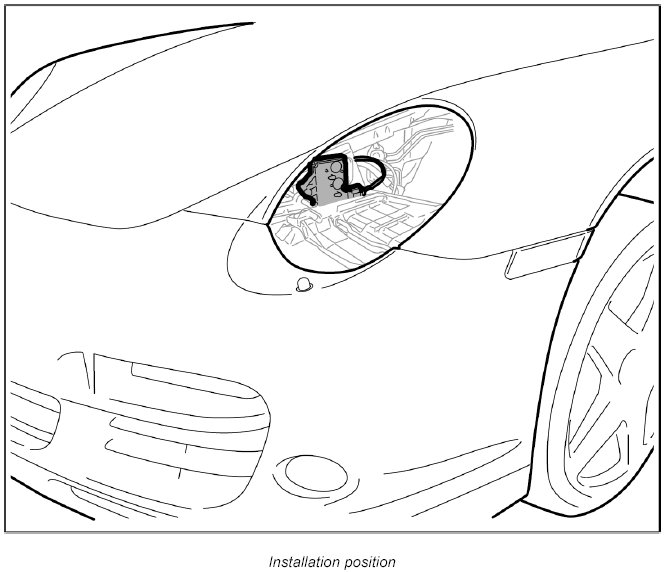

Removing control unit for direction indicator light












1. Unscrew fastening screw -1-.
2. Release electric connector -a- and pull it off the control unit.
3. Disengage control unit for direction indicator light on the body.

Installing control unit for direction indicator light







1. Engage control unit for direction indicator light on the body.
2. Push electric connector onto the control unit -a- until it is felt to engage.
3. Screw in fastening screw -1-. - Tightening torque: 10 Nm (7.5 ftlb.)

Subsequent work

Subsequent work for control unit for direction indicator light
Install main headlight.

Switch on ignition, turn on the indicator and check that the direction indicator light is working.
