Clutch Disc, M/T

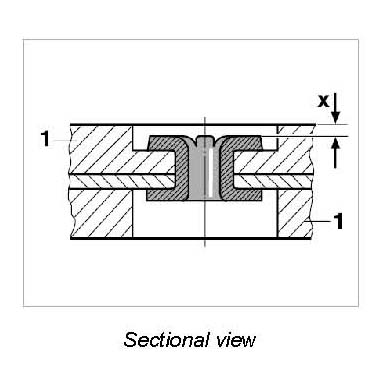

Checking clutch plate for wear

The wear dimension -X- measures 0.3 mm. If a smaller value is measured, the clutch drive plate must be replaced. When new the measured value is more than 1 mm.
