Differential Assembly



Technical data on front final drive

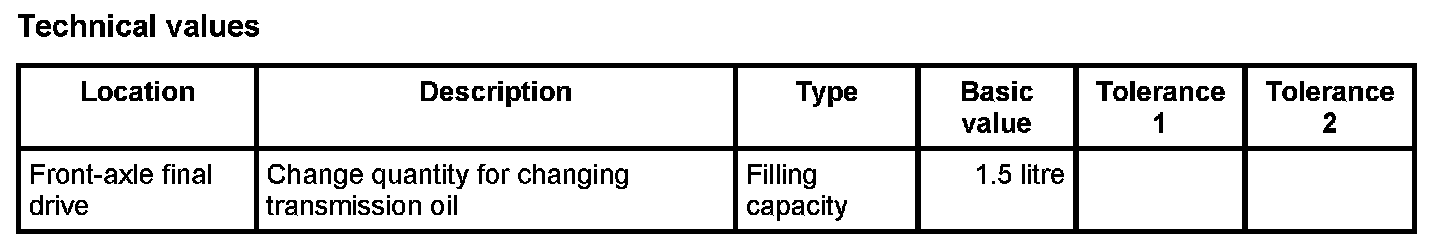

Technical values

Transmission type: Z97/00

Equipment: Bevel-gear drive without hypoid offset

Equipment: Visco multi-plate clutch

Installed in: Carrera 4 (997) and Carrera 4 S (997)

Model year: 2006

Transmission ratio

Final-drive ratio: 3.33
