Lateral Accelerometer: Service and Repair



Removing and installing rotation-rate sensor for PSM

Information

The lateral-acceleration sensor is integrated in the rotation-rate sensor.

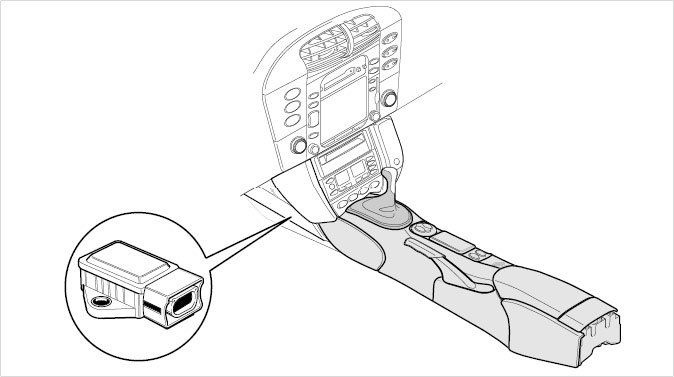

Rotation-rate sensor

Removing rotation-rate sensor

1. Move the left seat back and adjust the steering wheel upwards.
2. Remove left cover on the center console.

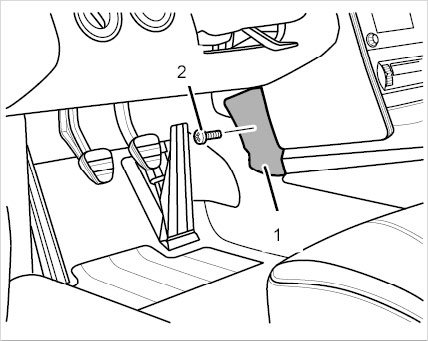

Cover in left footwell

Unscrew screw -2- and take off cover -1-.

3. Remove rotation-rate sensor.

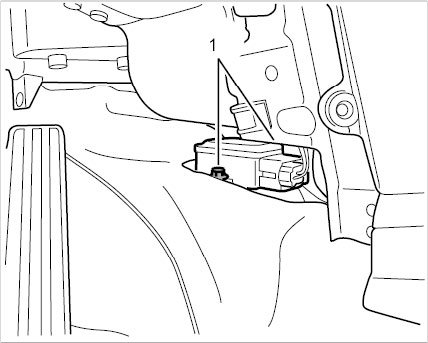

Unscrew screws -1- (the screws -1- can only be accessed using a 1/4-inch tool). Pull off plug connection and take out rotation-rate sensor.





Rotation-rate sensor

Installing rotation-rate sensor

1. Install in reverse order.





Rotation-rate sensor

Subsequent work

1. After installing the rotation-rate sensor, read out the PSM fault memory with the PIWIS Tester (diagnostic tester) and erase it. Carry out a static test. Then start the engine. The PSM-related lights in the instrument cluster must go out when the engine is running. Read out the PSM fault memory again. There must not be any stored faults.

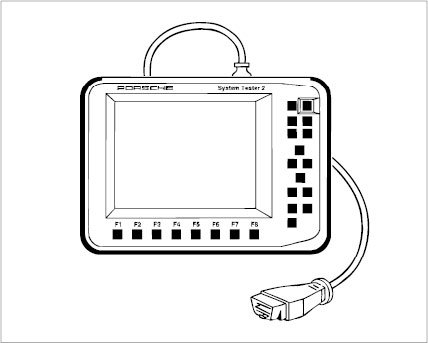

Diagnostic tester
