Removing and Installing Cover



Removing And Installing Cover

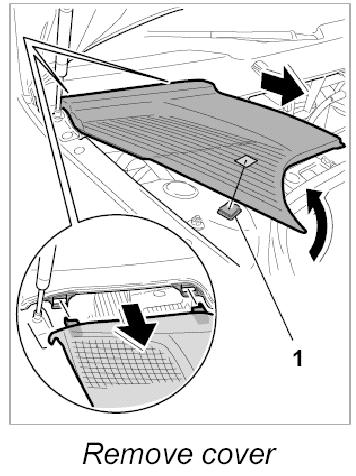

Removing cover

Installing cover












1. Lift rubber lip of luggage compartment seal to one side, lift up the cover and disengage it from cowl panel cover.
2. Check condition of Velcro strip -1- on the body and on the cover; replace if necessary.

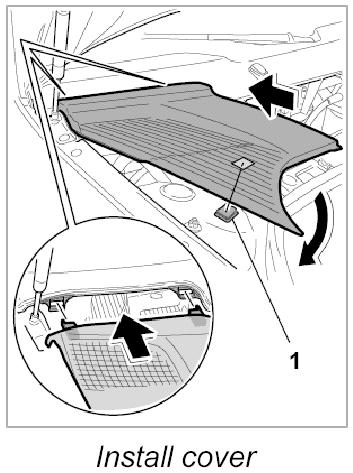

Installing cover







1. Check condition of Velcro strip -1- on the body and on the cover; replace if necessary.
2. Engage cover in cowl panel cover, lift rubber lip of luggage compartment seal to one side and press the cover onto the Velcro strip -1-.
