Outside Temperature Display Sensor: Service and Repair

WM 916819 Removing and installing outside temperature sensor

Removing outside temperature sensor

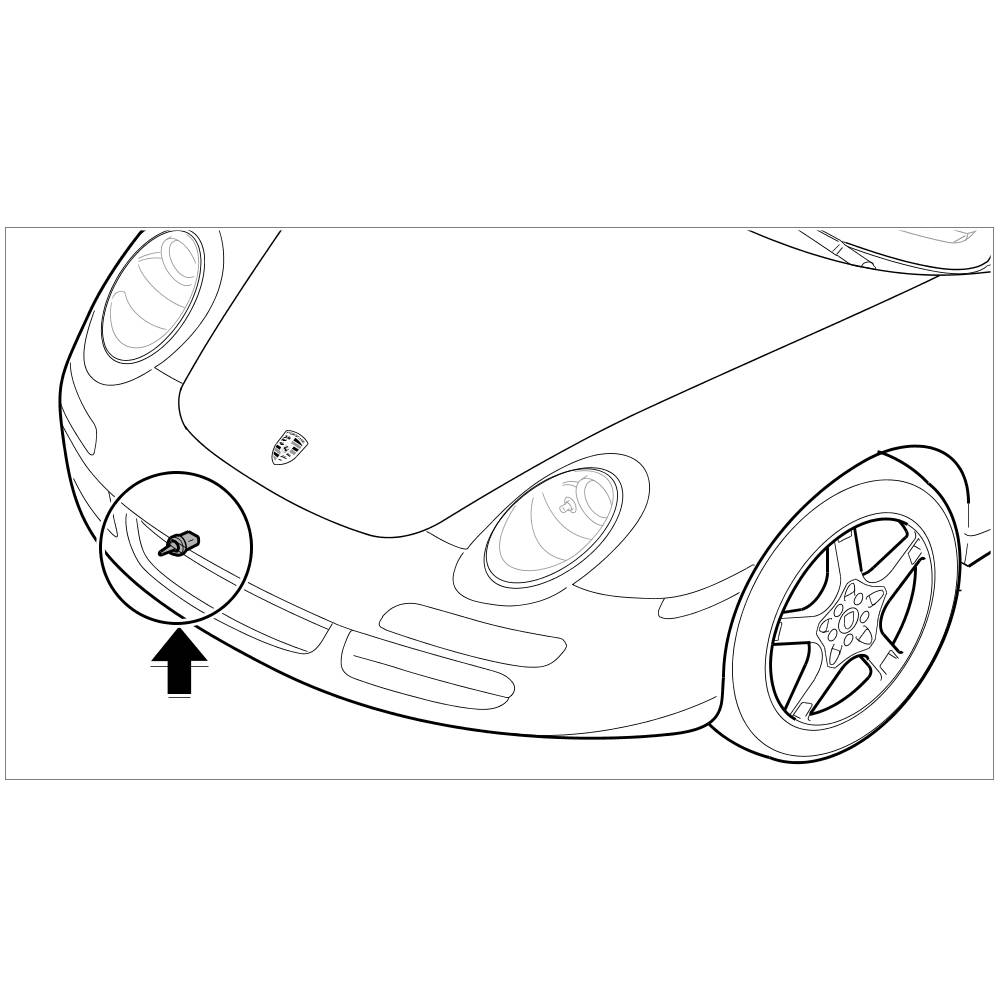

Installation position shown on the 911

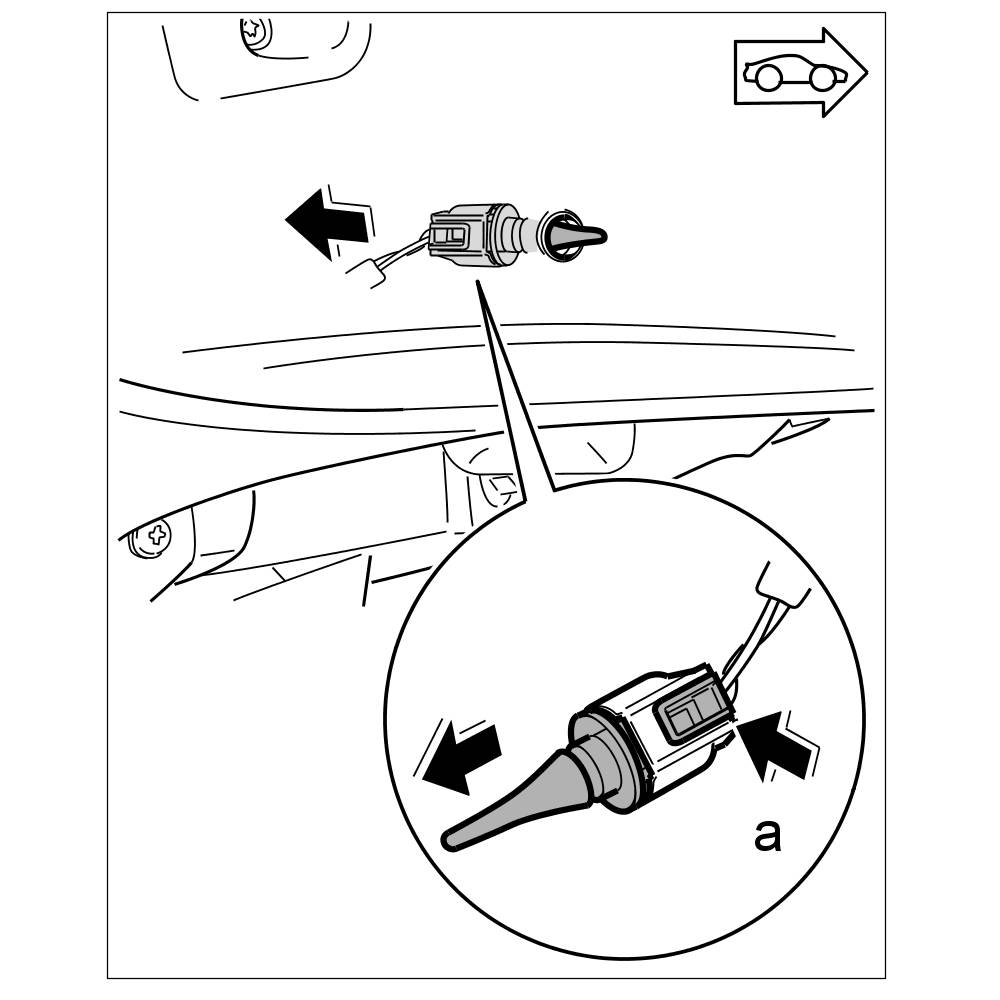

1. Pull the outside temperature sensor out of the holder and out through the opening in the floor.





Outside temperature sensor

2. Release and unplug electric connector -a-.

Installing outside temperature sensor

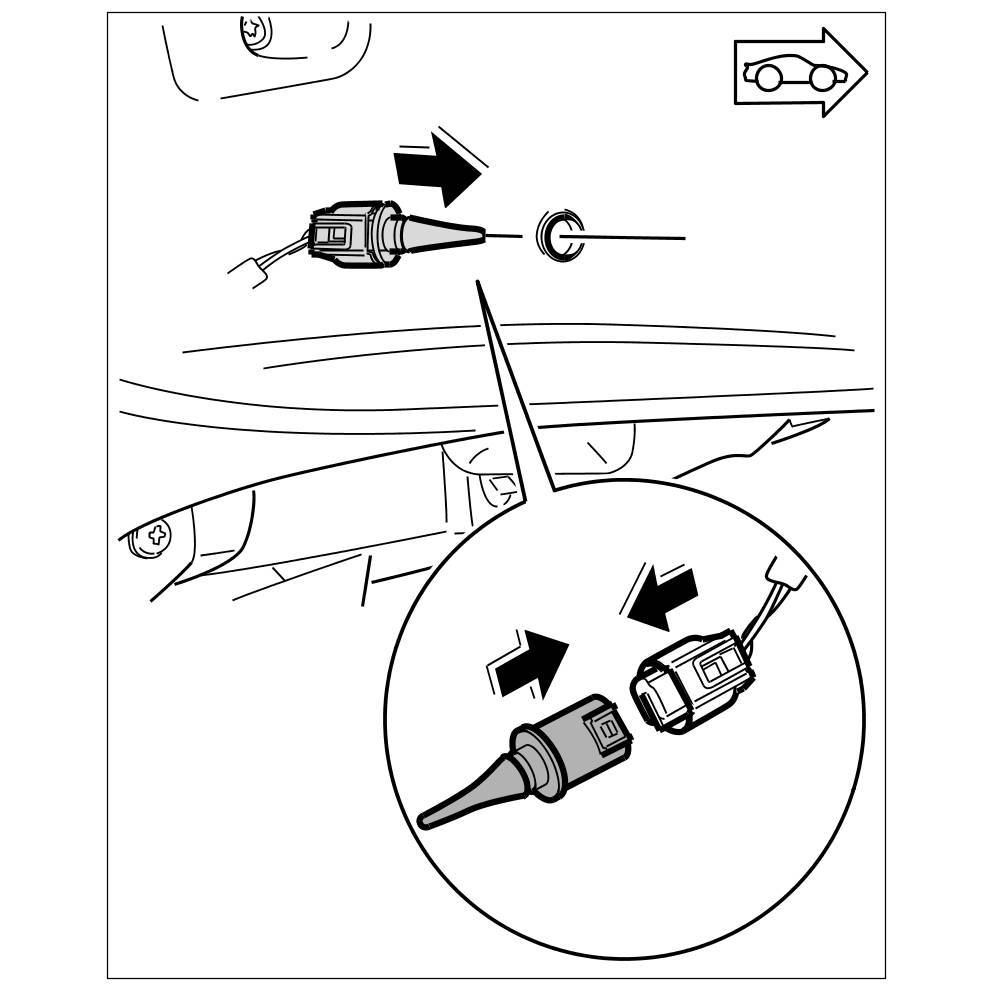

1. Push electrical connector onto outside temperature sensor until it is felt to engage.





Outside temperature sensor

2. Insert outside temperature sensor into its holder. Ensure that the temperature sensor is fitted securely.
