Fusible Link: Service and Repair

Replacing Fuse Element

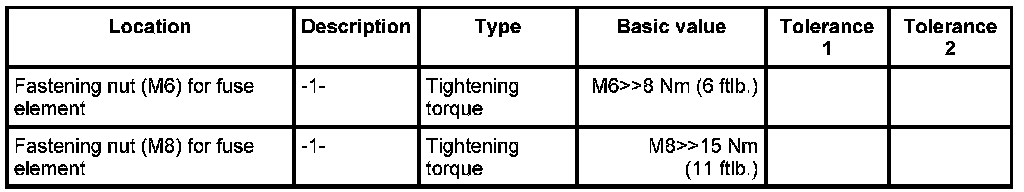

Technical values







Preliminary work

Preliminary work for fuse element
Remove and open power distributor.

Replacing fuse element

INFORMATION: If a fuse element needs to be replaced, you must also fit a new cover for the fuse elements (blue) and a new seal label (red). The spare parts are grouped together as one package in the PET.

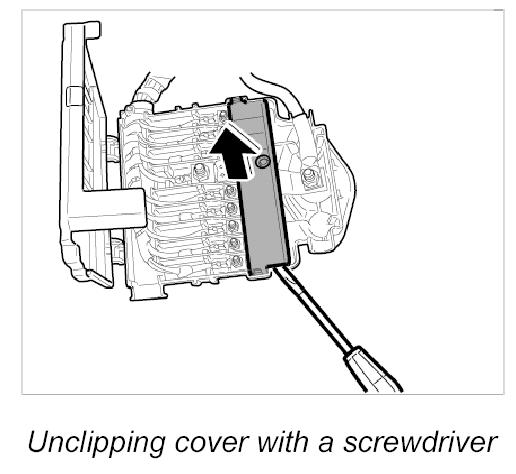

1. Unclip the cover for the fuse elements with a screwdriver.







2. Unscrew the fastening nuts on the faulty fuse element -1-, remove the washer -2- and take out the fuse element -3-.

INFORMATION: If a fuse element needs to be replaced, you must also fit a new cover for the fuse elements (blue) and a new seal label (red). The spare parts are grouped together as one package in the PET.







3. Place the fuse element -3- into position, fit the washer -2- and secure with the fastening nuts -1-.
Tightening torque: M6>>8 Nm (6 ftlb.)
Tightening torque: M8>>15 Nm (11 ftlb.)

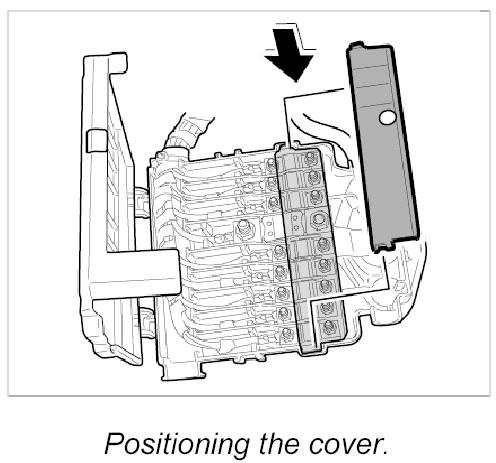

4. Insert the blue cover in power distributor and clip in place.

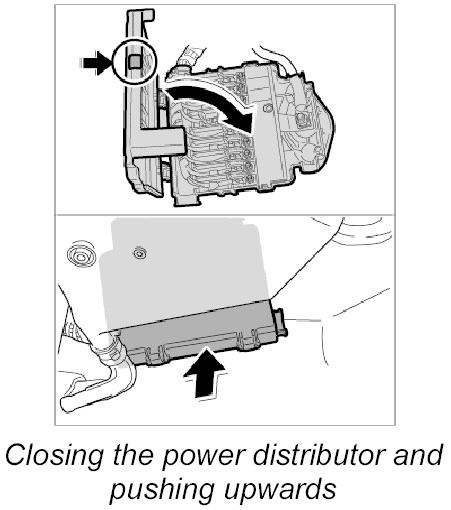

5. Close the power distributor until the lid is felt to engage and seal with the red seal label.

Subsequent work

Subsequent work for fuse element
Install power distributor.
