System Specifications

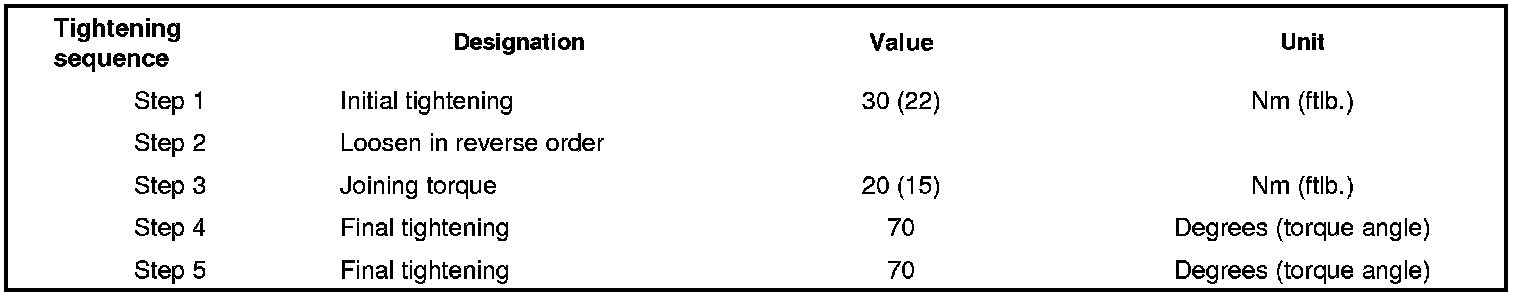

Cylinder HeadTightening sequence for cylinder-head screws
Camshaft Bearing CapTighten housing screws M6 -1 and 2-
Tightening torque:
10 Nm (7.5 ftlb.)
Tighten fastening screw M8 -3- for adjusting gauge -4-
Tightening torque:
23 Nm (17 ftlb.)
Intake Manifold SpecificationsExhaust Manifold SpecificationsCamshaft Gear/Sprocket Specifications
