Shift Linkage: Service and Repair


WM 376019 Removing and installing deflection lever

Removing deflection lever

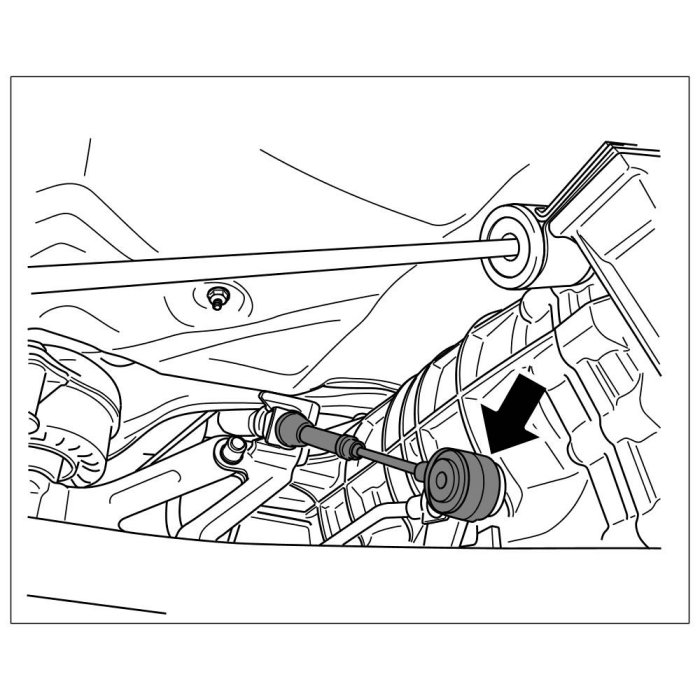

1. Lever selector cable off ball pin.





Levering off selector cable

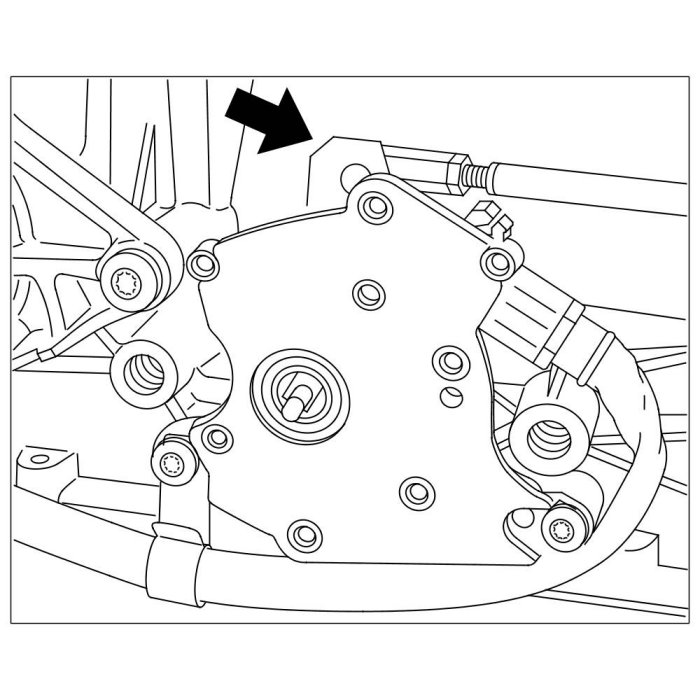

2. Unclip push rod on transmission lever.





Push rod

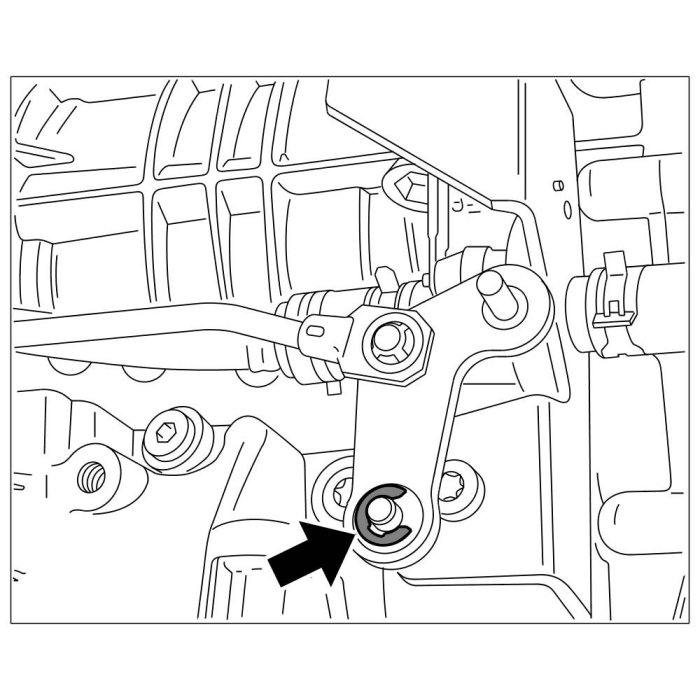

3. Remove circlip for deflection lever and remove deflection lever with push rod.





Circlip

Installing deflection lever

1. Grease deflection lever axle and bushings with Optimol TA.
2. Install deflection level and fit circlip.





Circlip

3. Clip in push rod on transmission lever.





Push rod

4. Press off selector cable on ball pin.





Levering off selector cable
