Turn Signals: Service and Repair

Removing and installing side direction indicator light

Removing side direction indicator light

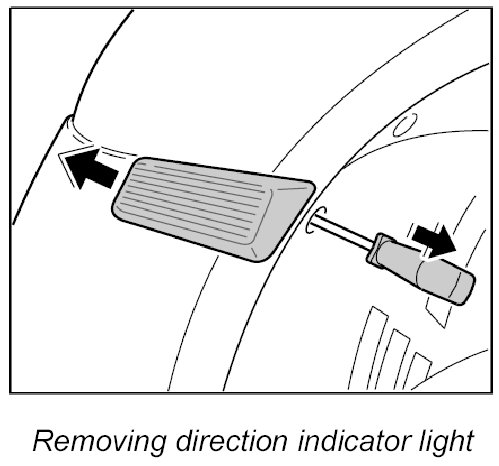

1. Insert a screwdriver through the opening in the wheel housing liner, press on the spring clamp at the direction indicator light and remove the direction indicator light.

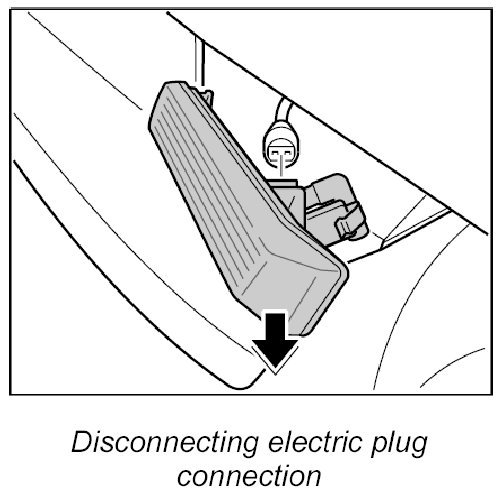

2. Release the electric plug connection and disconnect it from the direction indicator light.
3. Remove the direction indicator light.

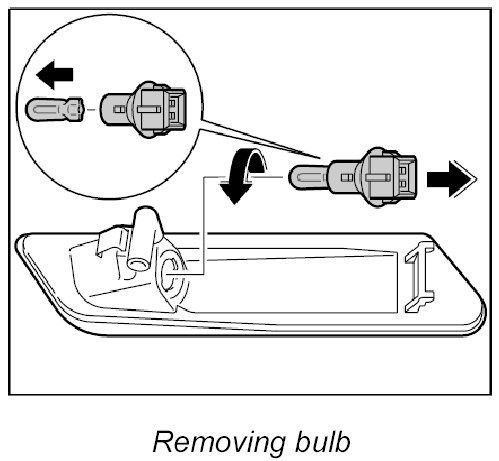

4. Unscrew the bulb holder.
5. Remove the bulb from the holder.

Installing side direction indicator light
Observe instructions in Bulb table and installation instructions.

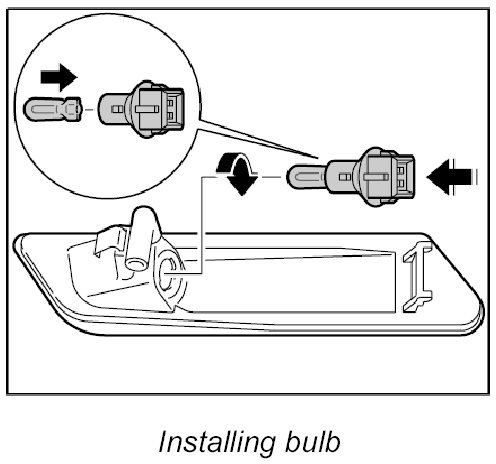

1. Insert the new bulb into the holder.
2. Screw the holder with the bulb into the direction indicator light.

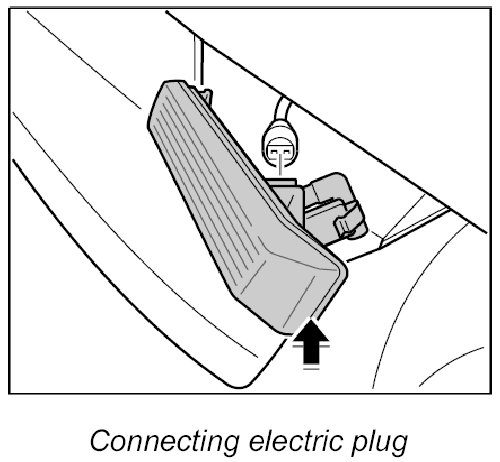

3. Insert the electric plug connection into the direction indicator light until the connector can be felt to engage.

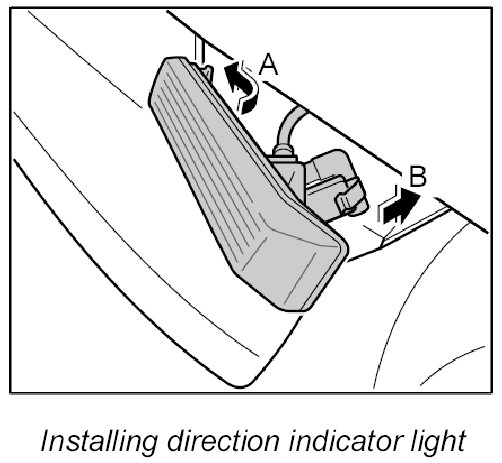

4. Engage the direction indicator light in the front apron -A- and clip it in -B-.
5. Check operation of direction indicator light.
