System Specifications
Checking clutch plate for wearThe wear dimension -X- measures 0.3 mm. If a smaller value is measured, the clutch drive plate must be replaced. When new the measured value is more than 1 mm.
Sectional view

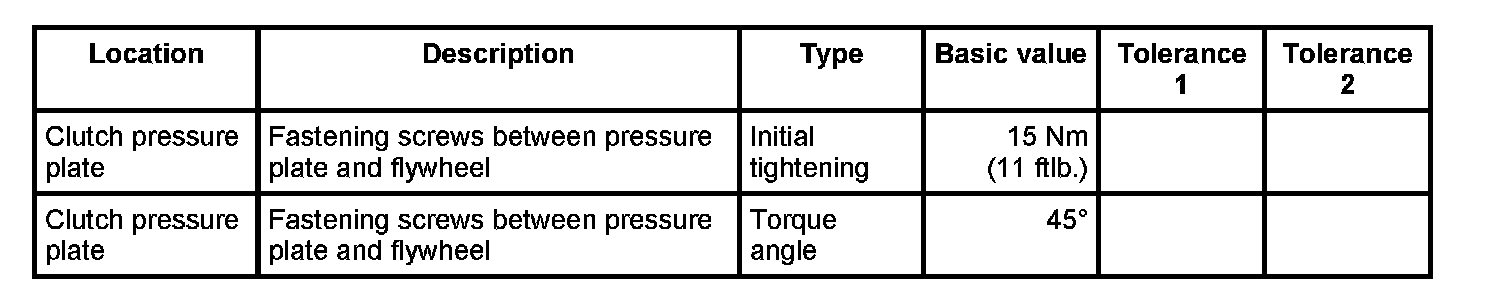

Pressure Plate Torque and Sequence
Information: To avoid deforming the clutch pressure plate, tighten fastening screws in at least 5 steps and in diametrically opposite sequence.
Always replace fastening screws.
