Entertainment System - Reduced Sound Quality

35/07 ENU 9194

Porsche Rear Seat Entertainment II - Reduced Sound Quality

Aug 13, 2007

Vehicle Type:
Cayenne/Cayenne S/Cayenne Turbo

Model Year:
2008

Equipment:
Porsche Rear Seat Entertainment II (Exclusive Option - I-no. "AEC" or "AEU")

Concerns:
Porsche Rear Seat Entertainment II (referred to here as "PRSE II")

Information:
Reduced sound quality

On the vehicles with PRSE II specified below, the sound in certain film scenes may be distorted, depending on the quality of the DVD you are playing.

To correct this problem, modified hardware has been used as of the specified date of introduction.

If customers complain about distorted sound quality from PRSE II on an affected vehicle, the passenger's seat monitor (master) and driver's seat monitor (slave) for the PRSE II system must be replaced with monitors with modified hardware.

Date of Introduction:
Modified hardware version as of June 11, 2007

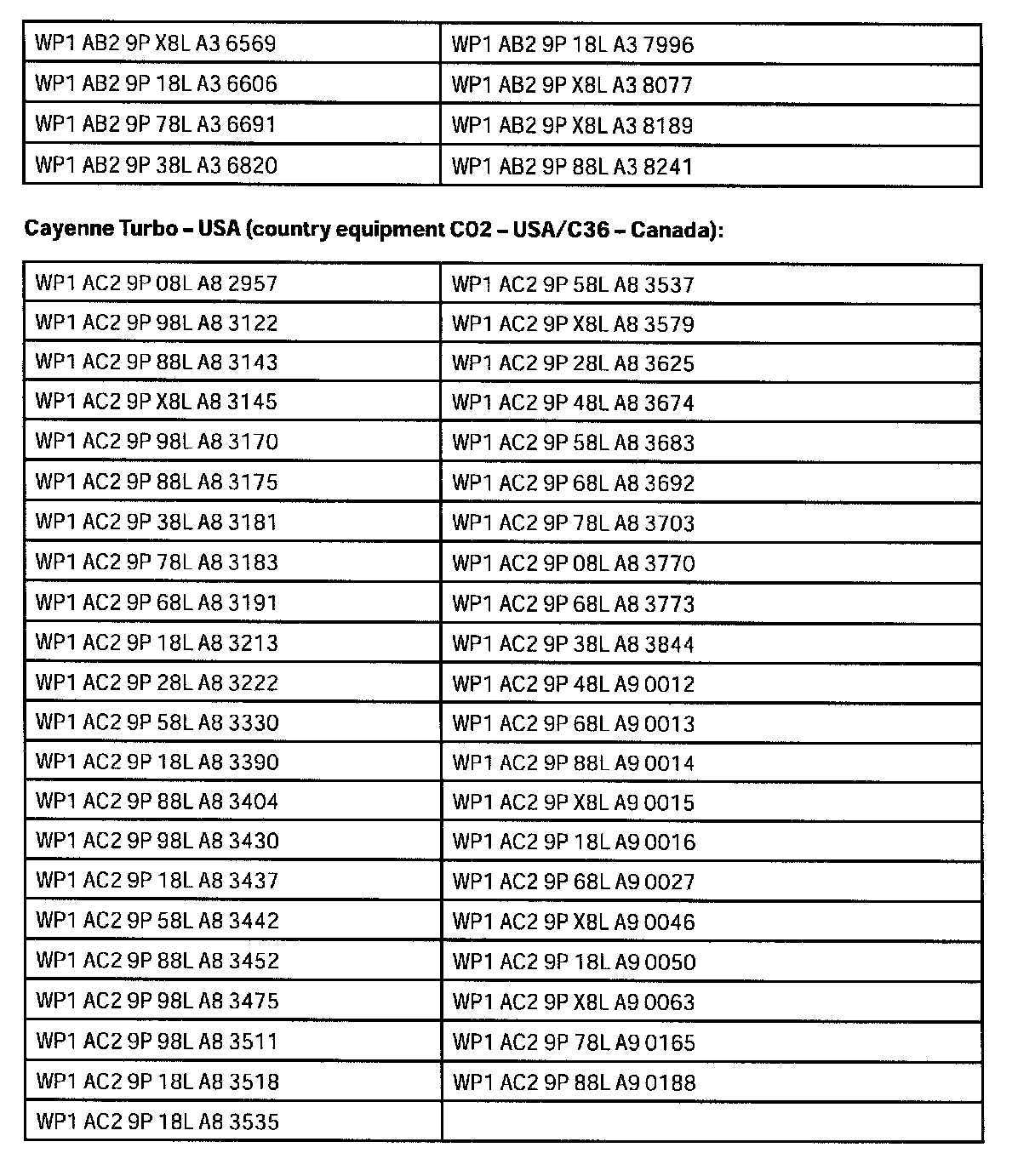

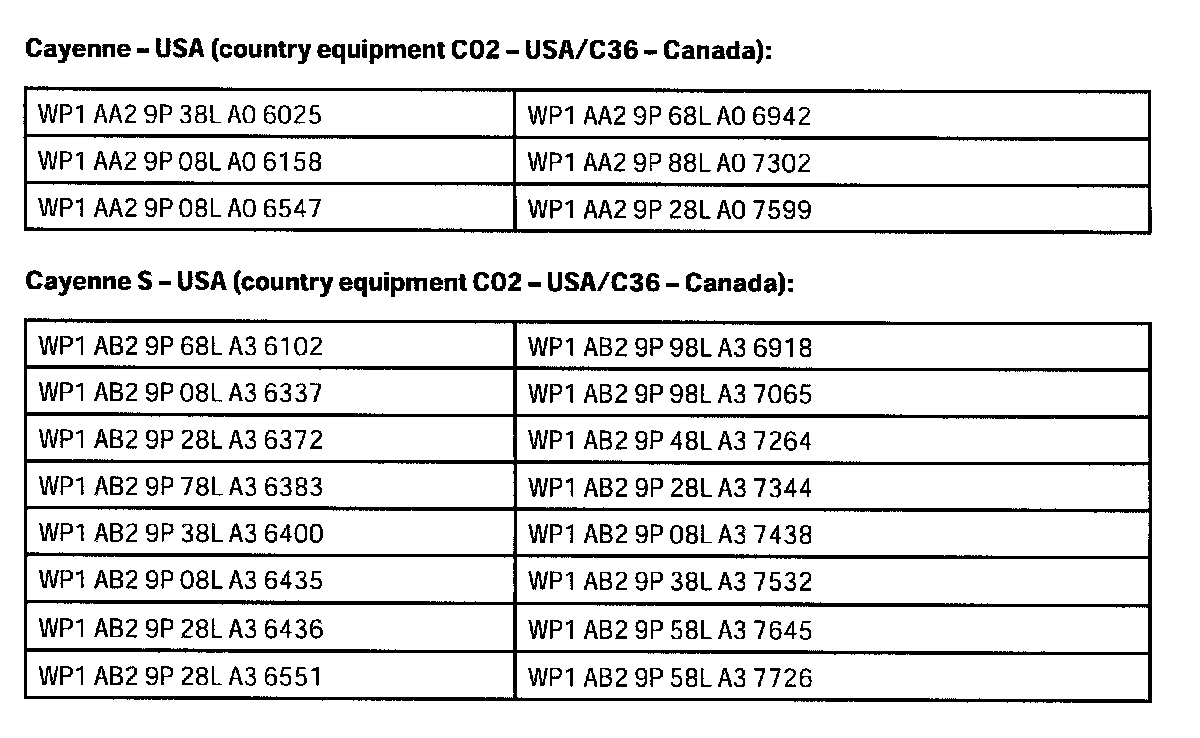

Affected Vehicles:

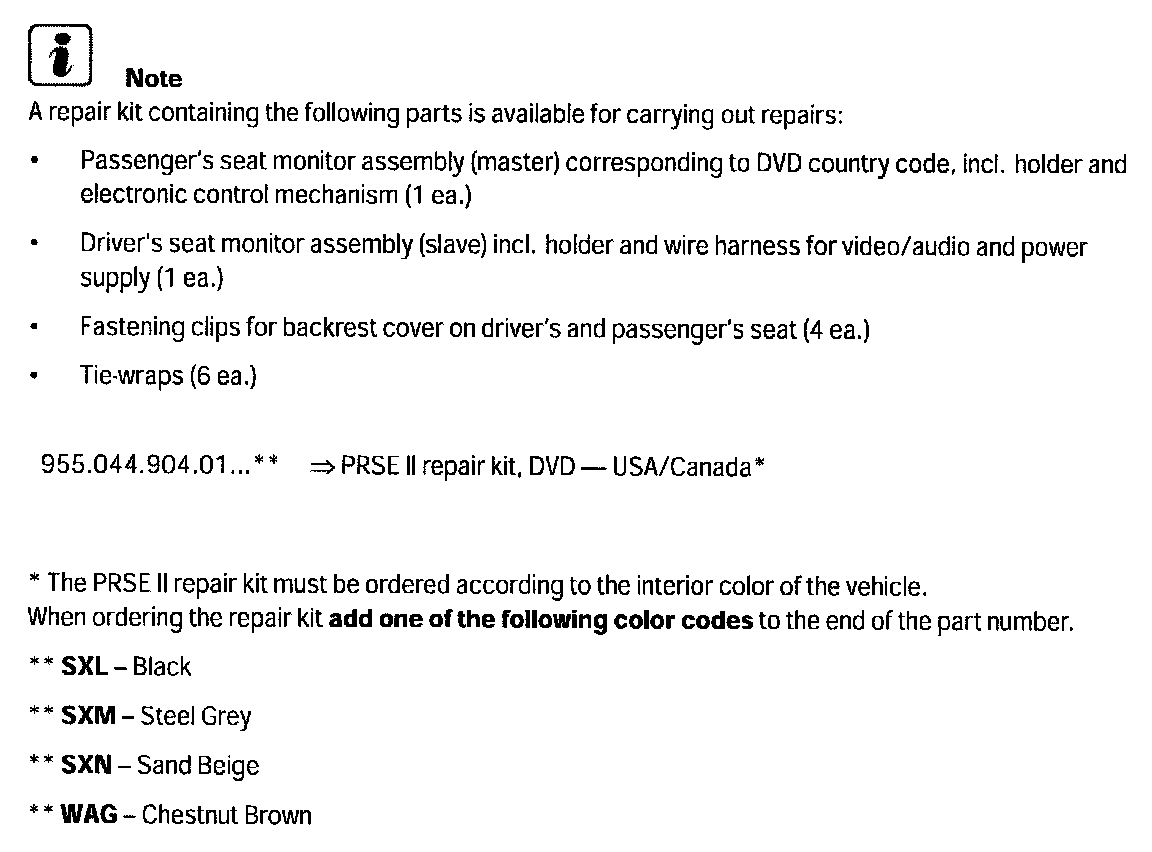

Parts Info:





Tools:

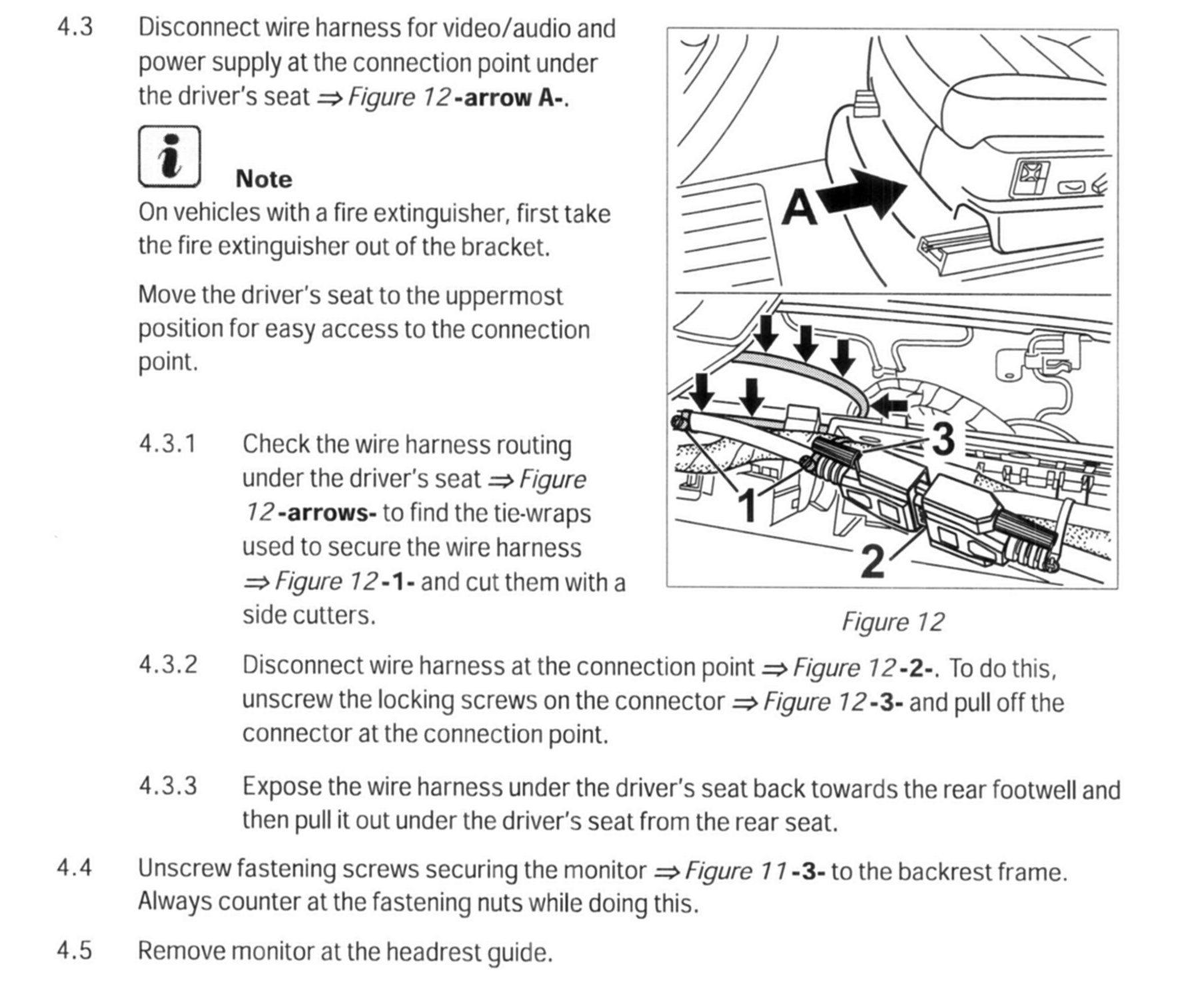

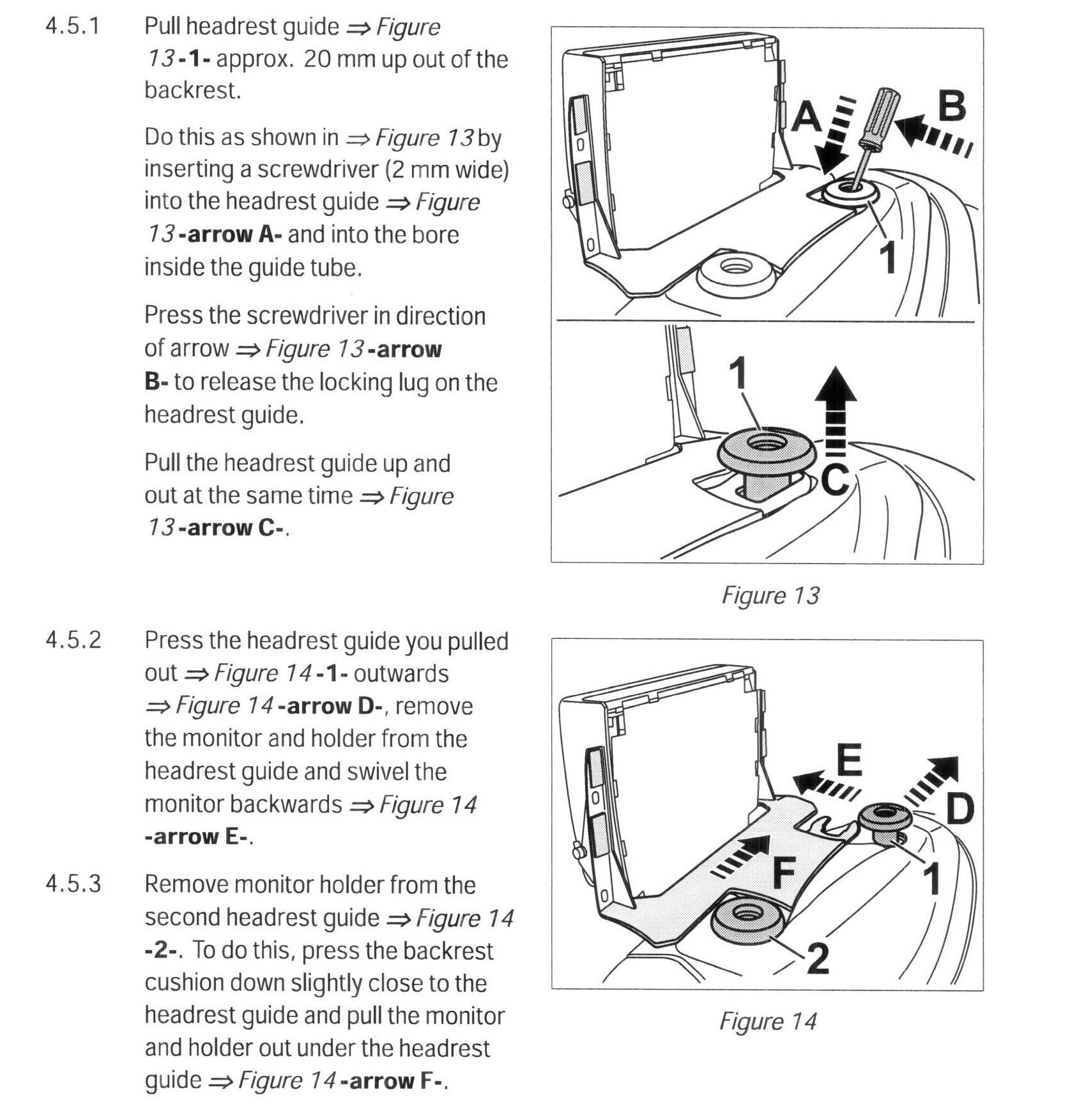

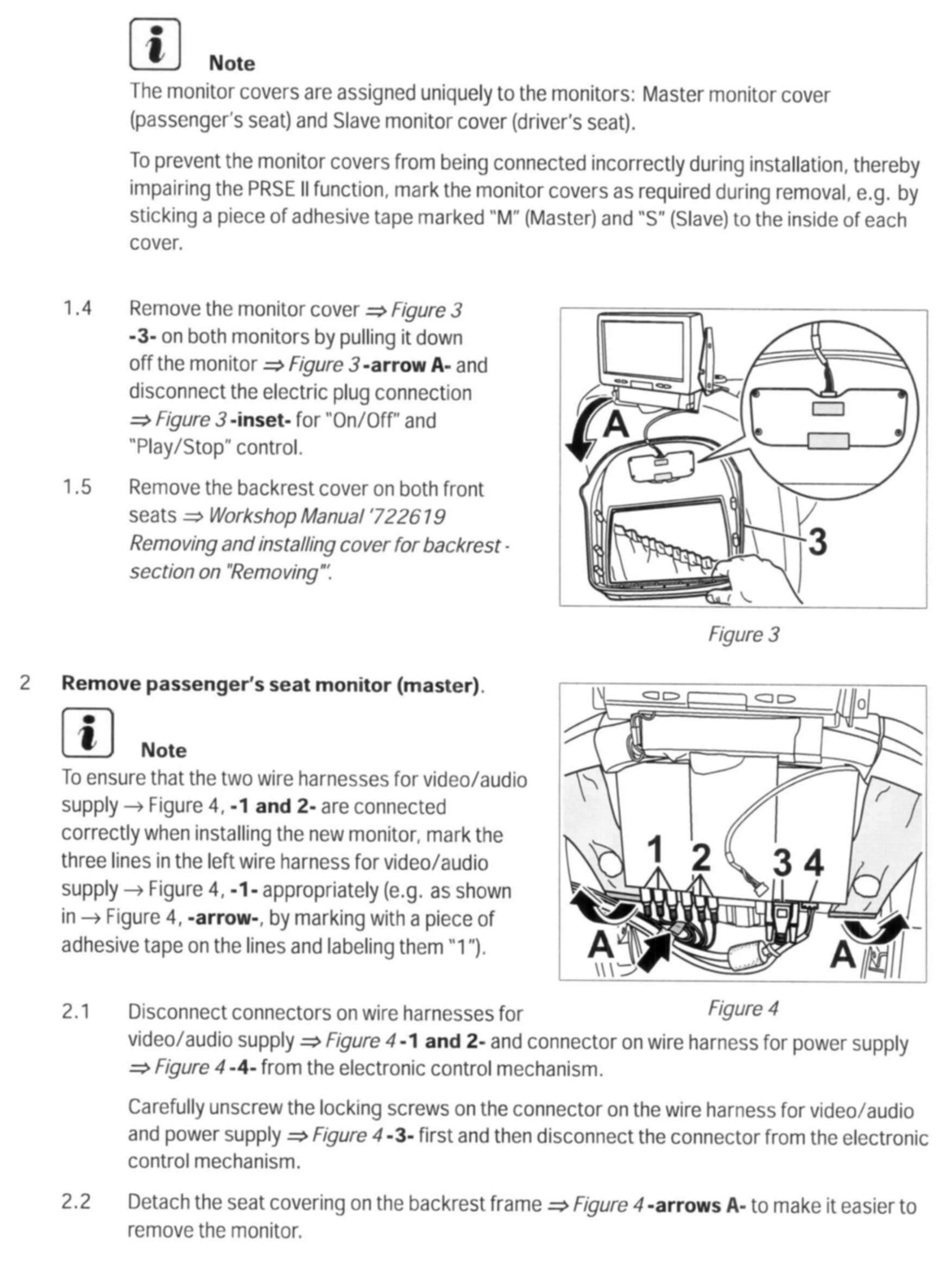

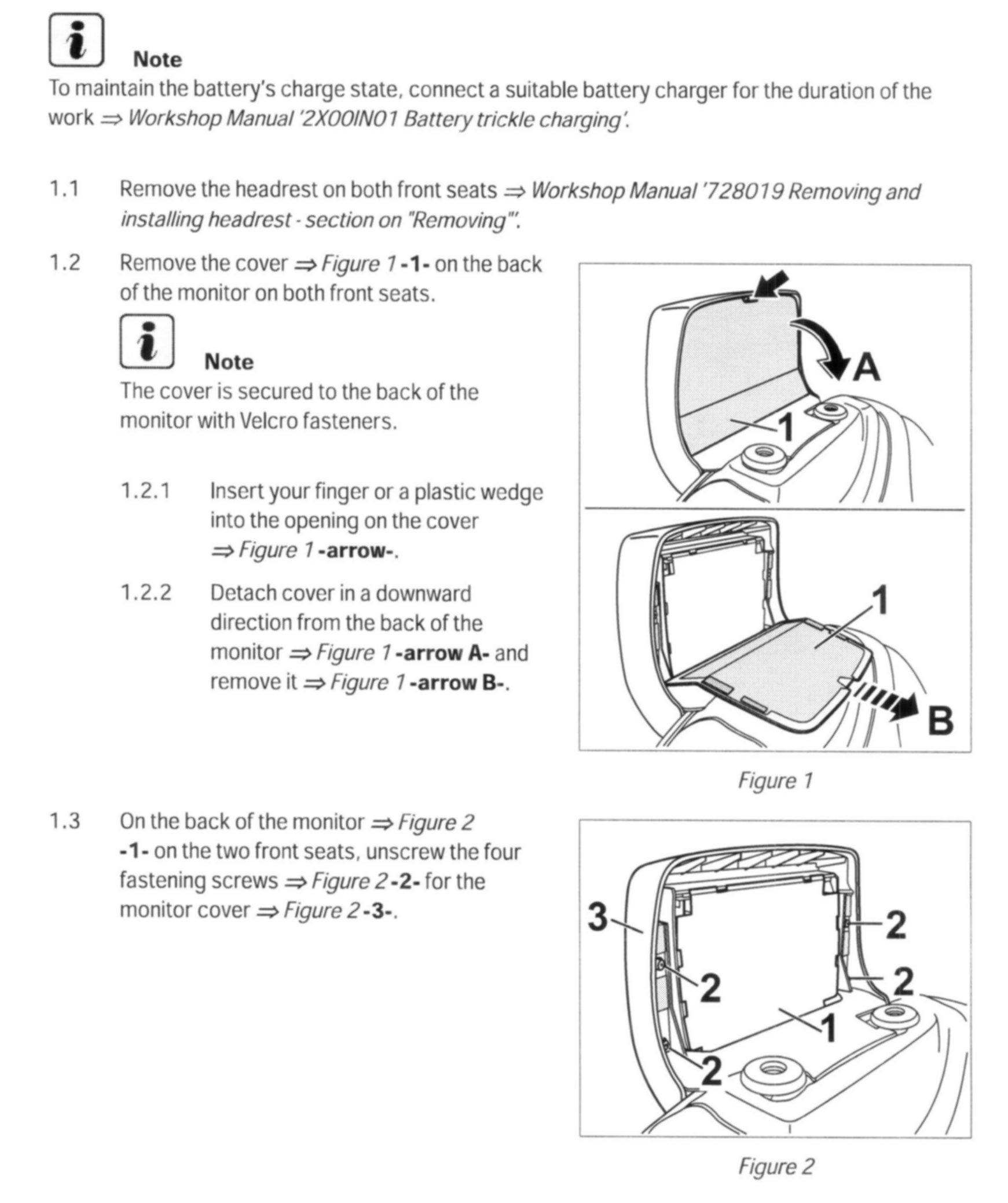

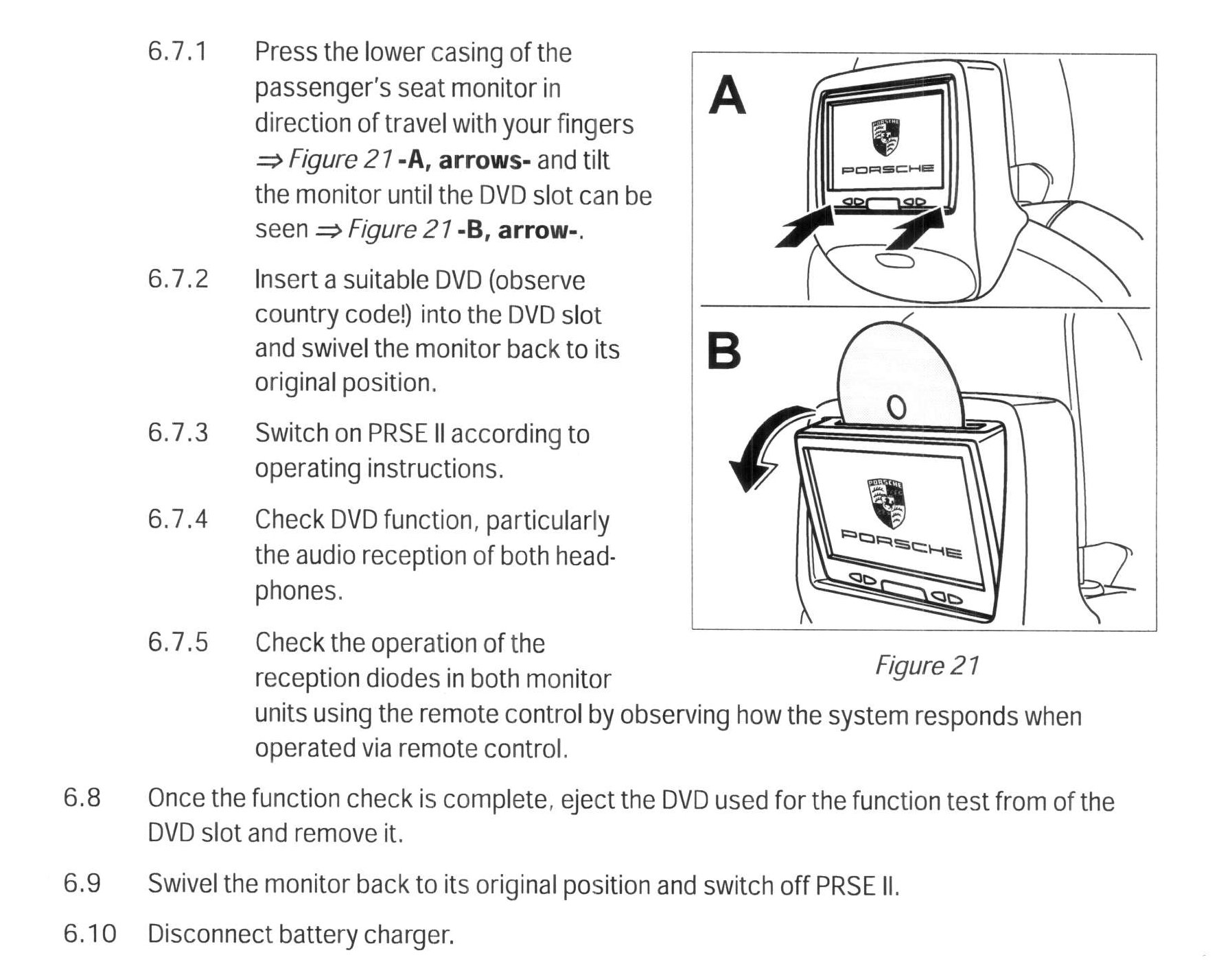

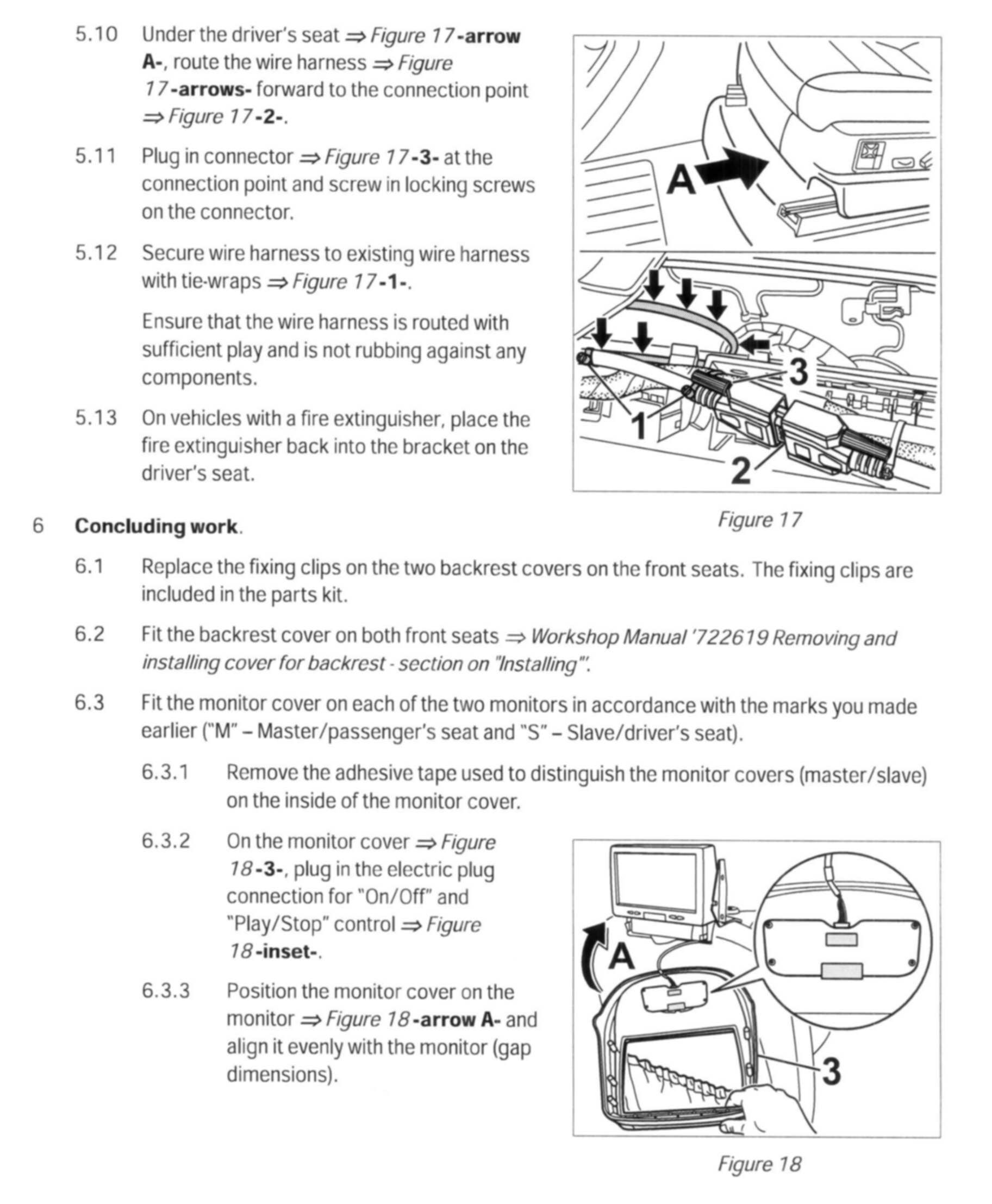

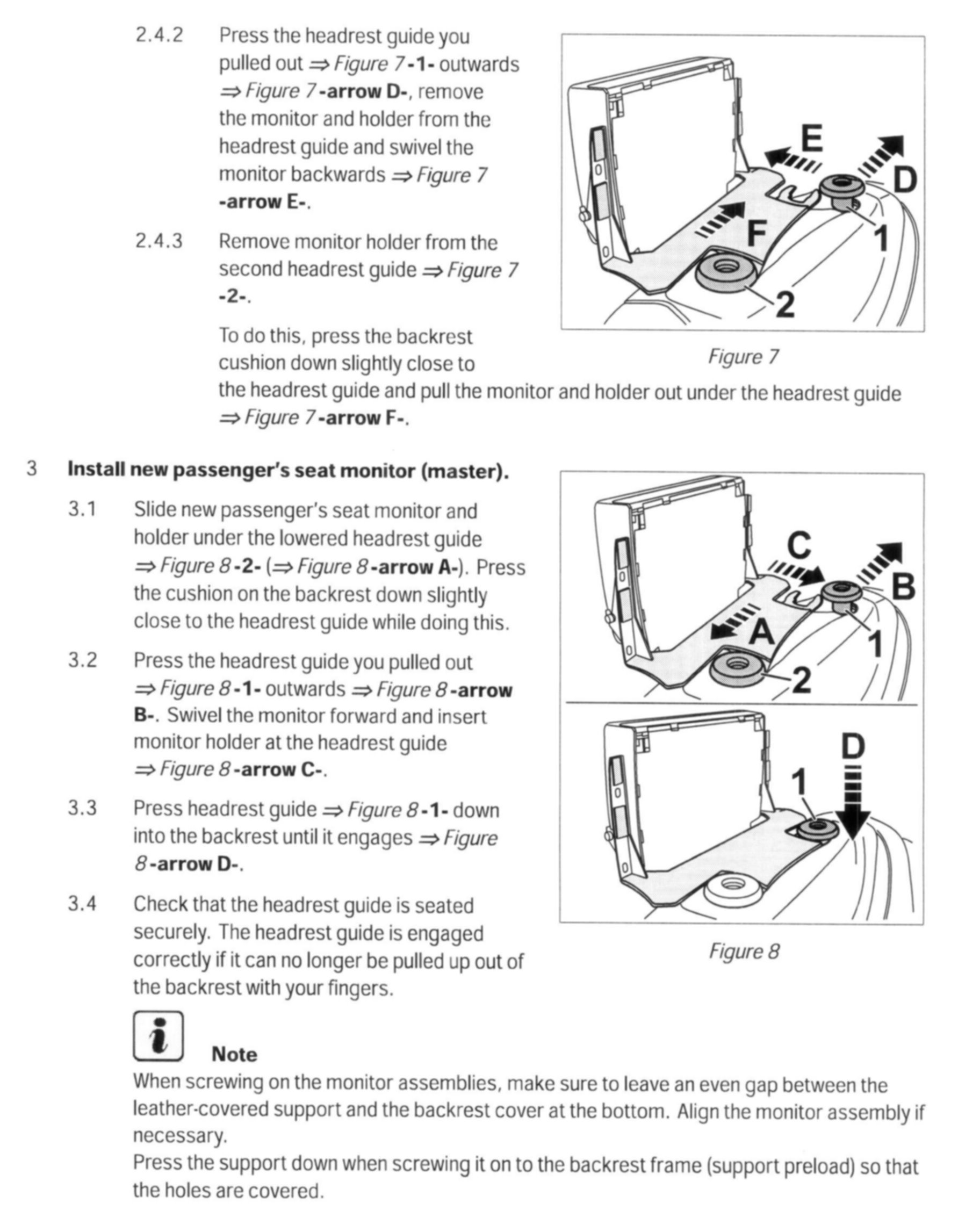

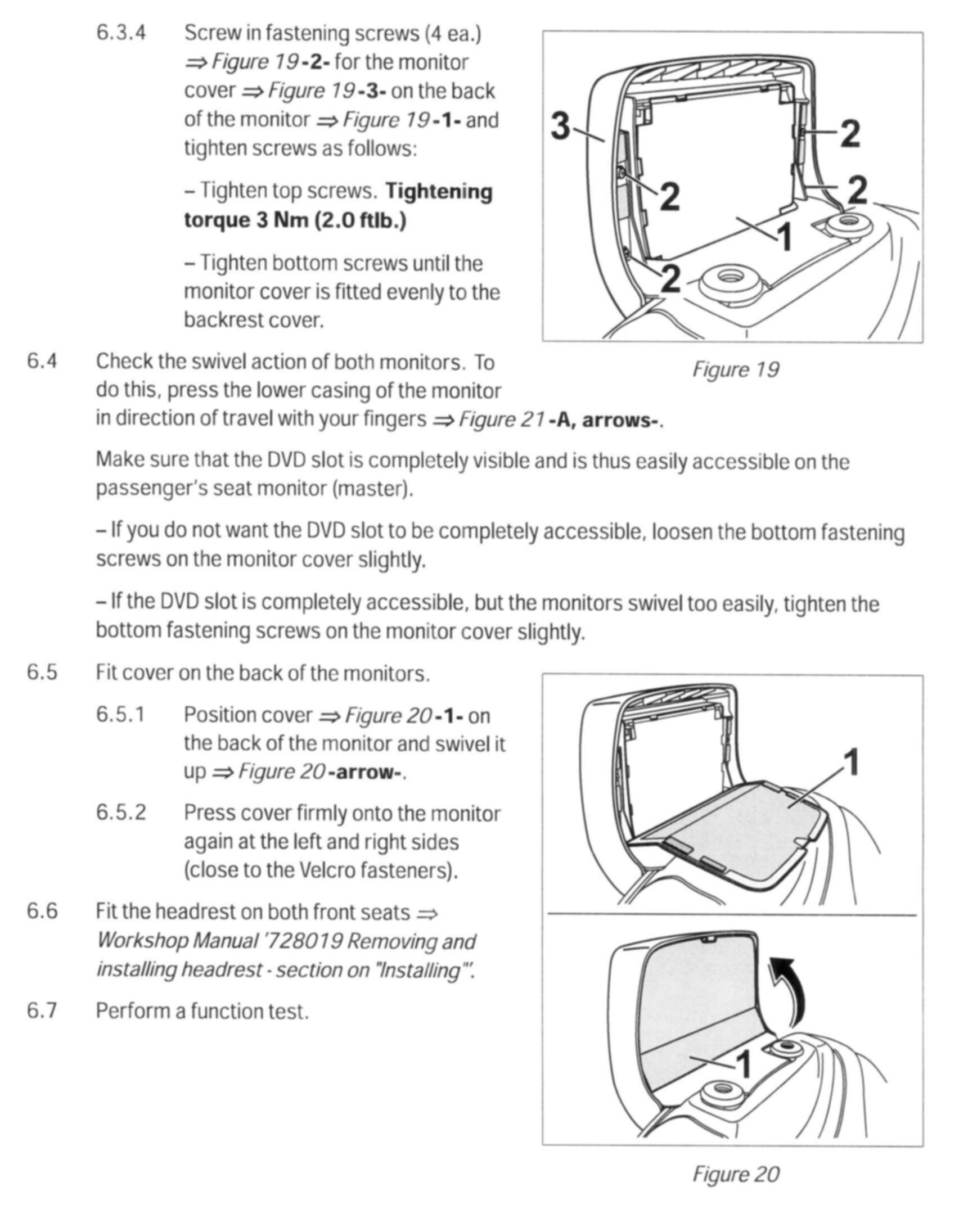

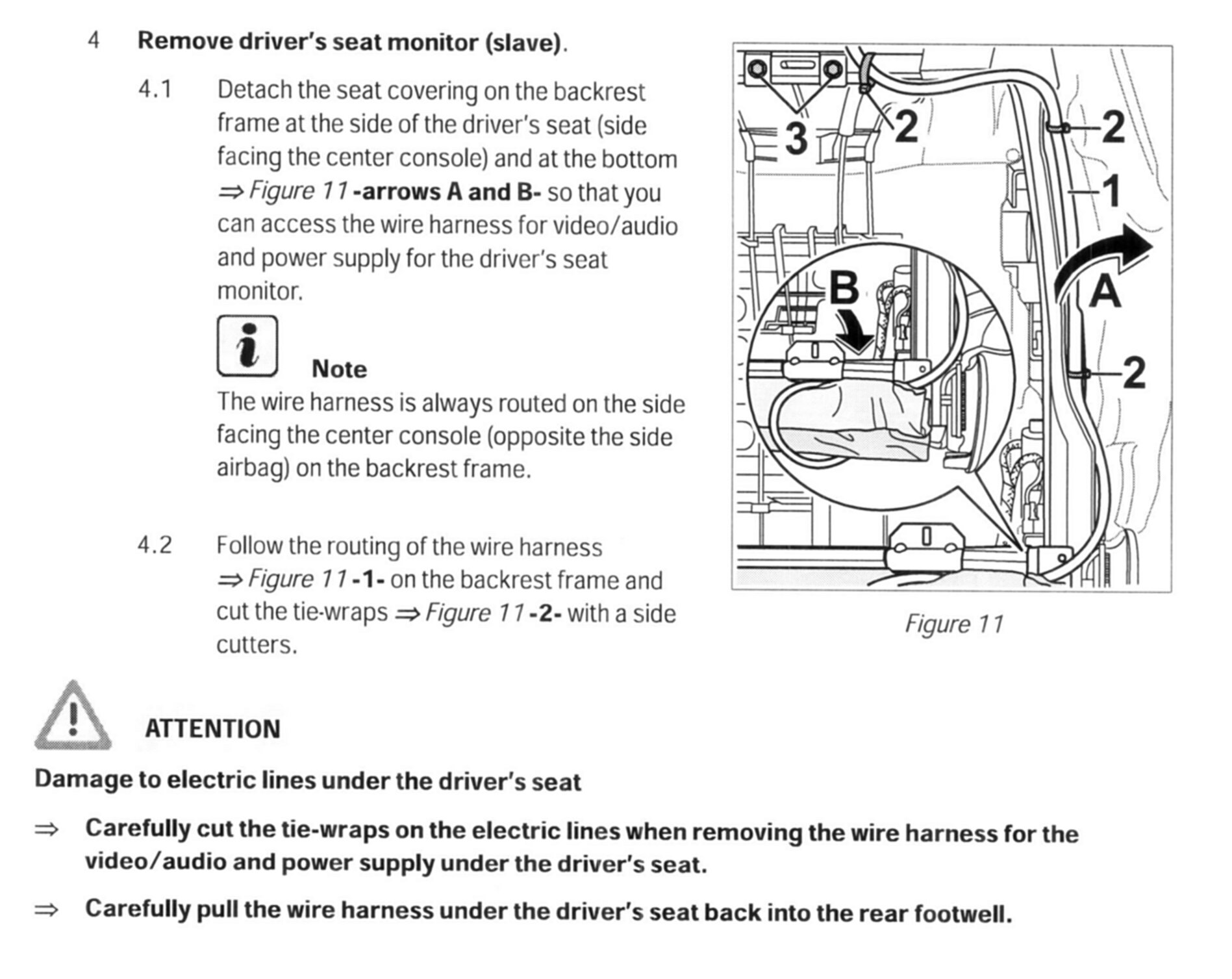

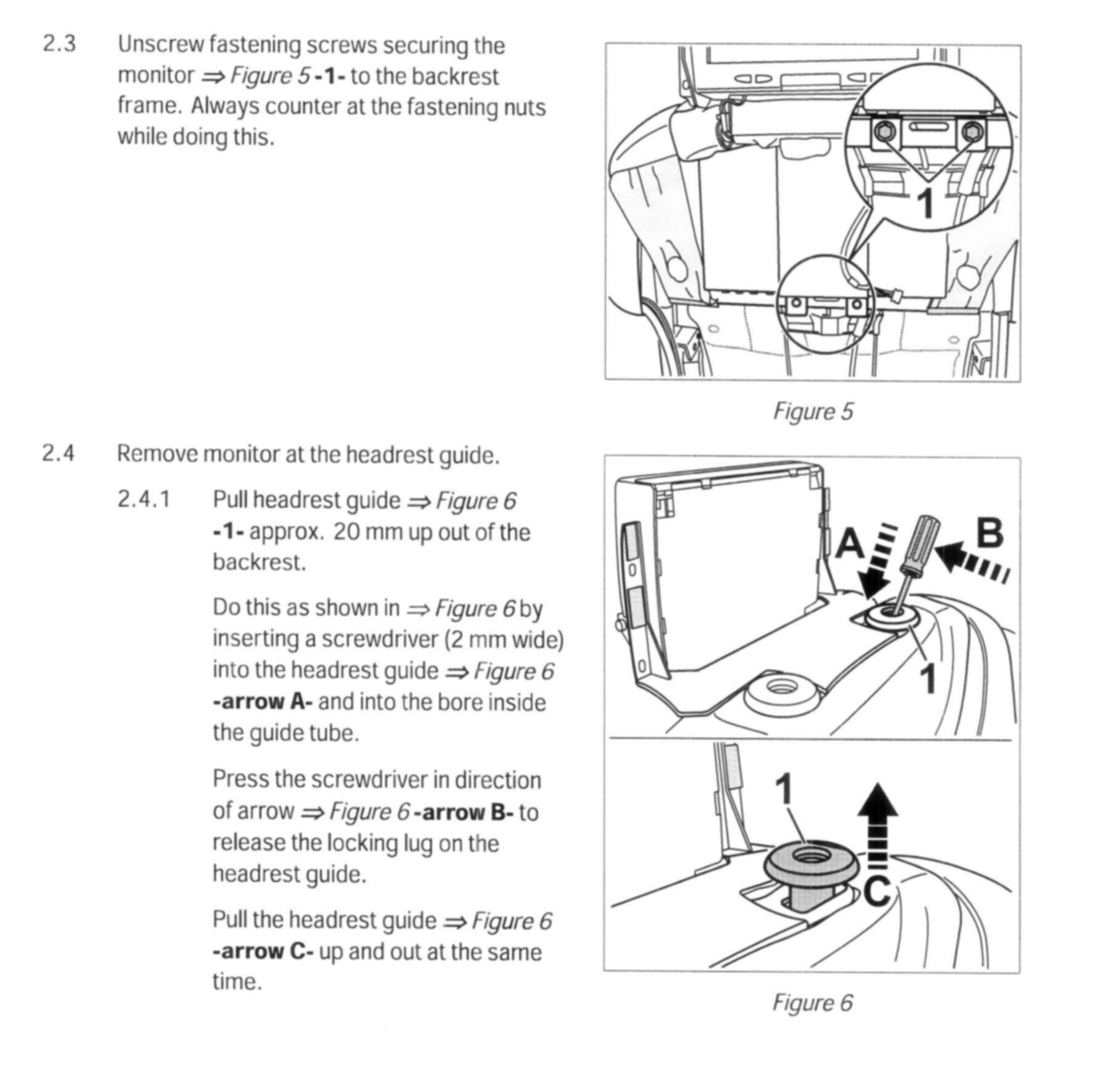

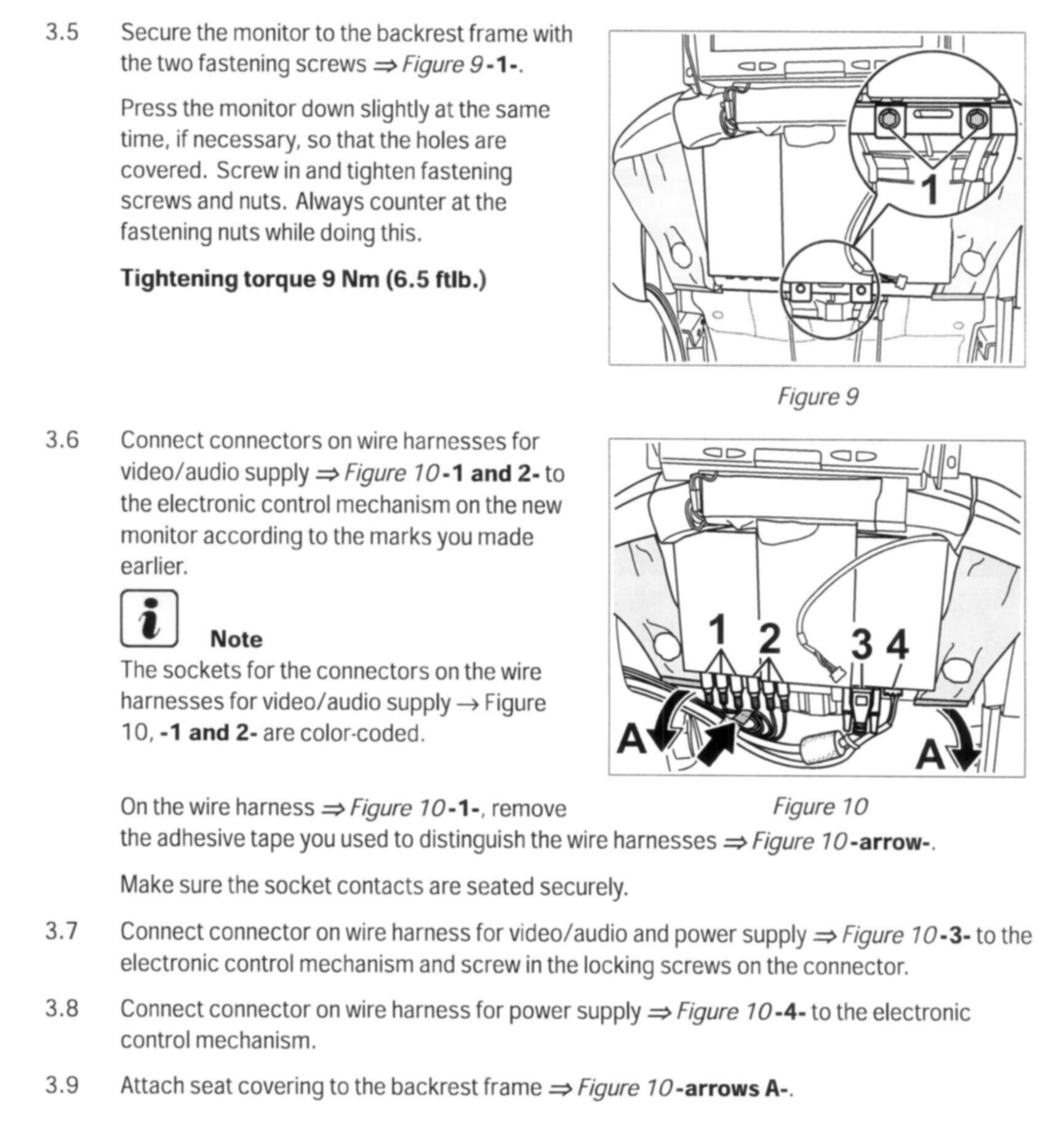

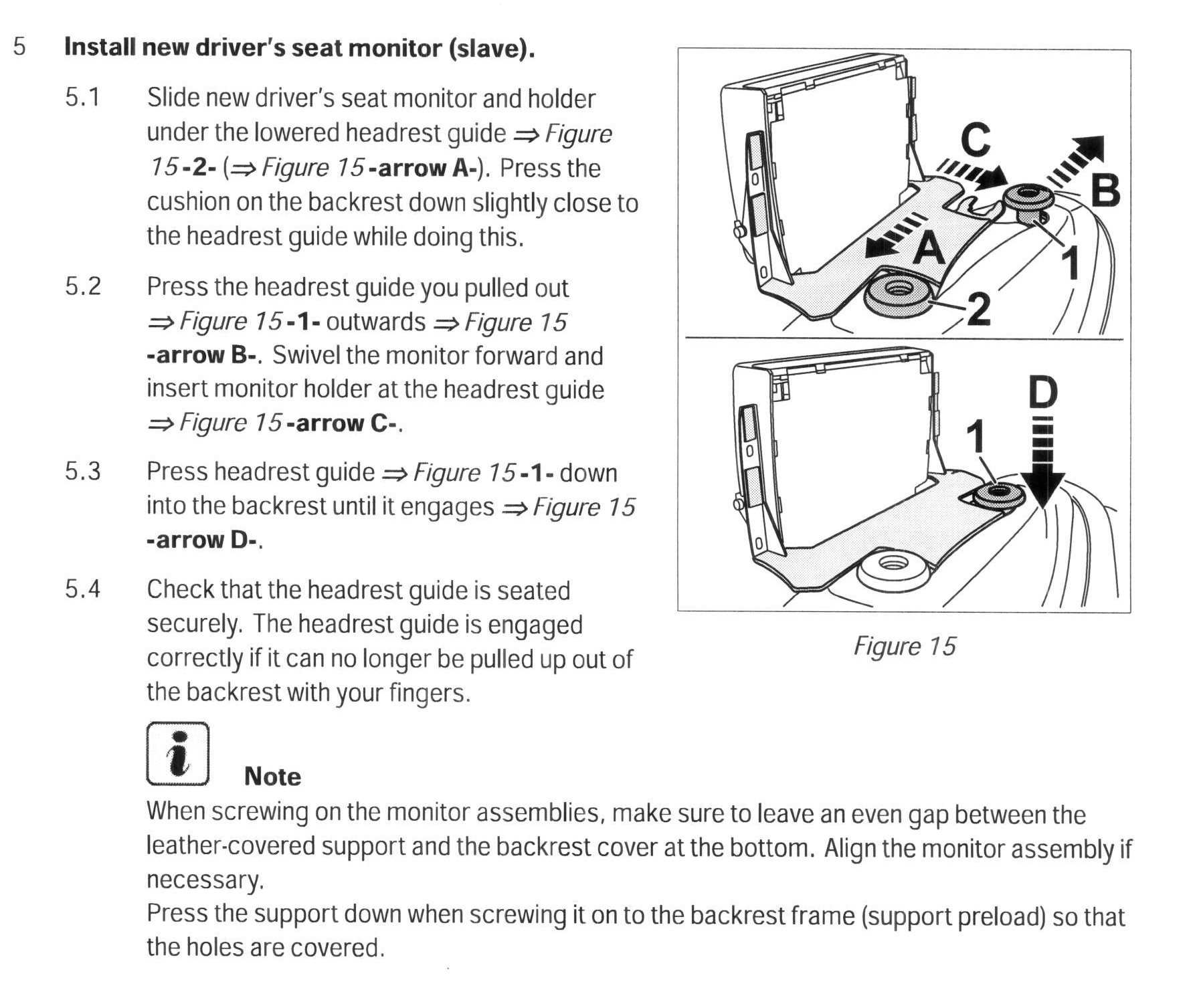

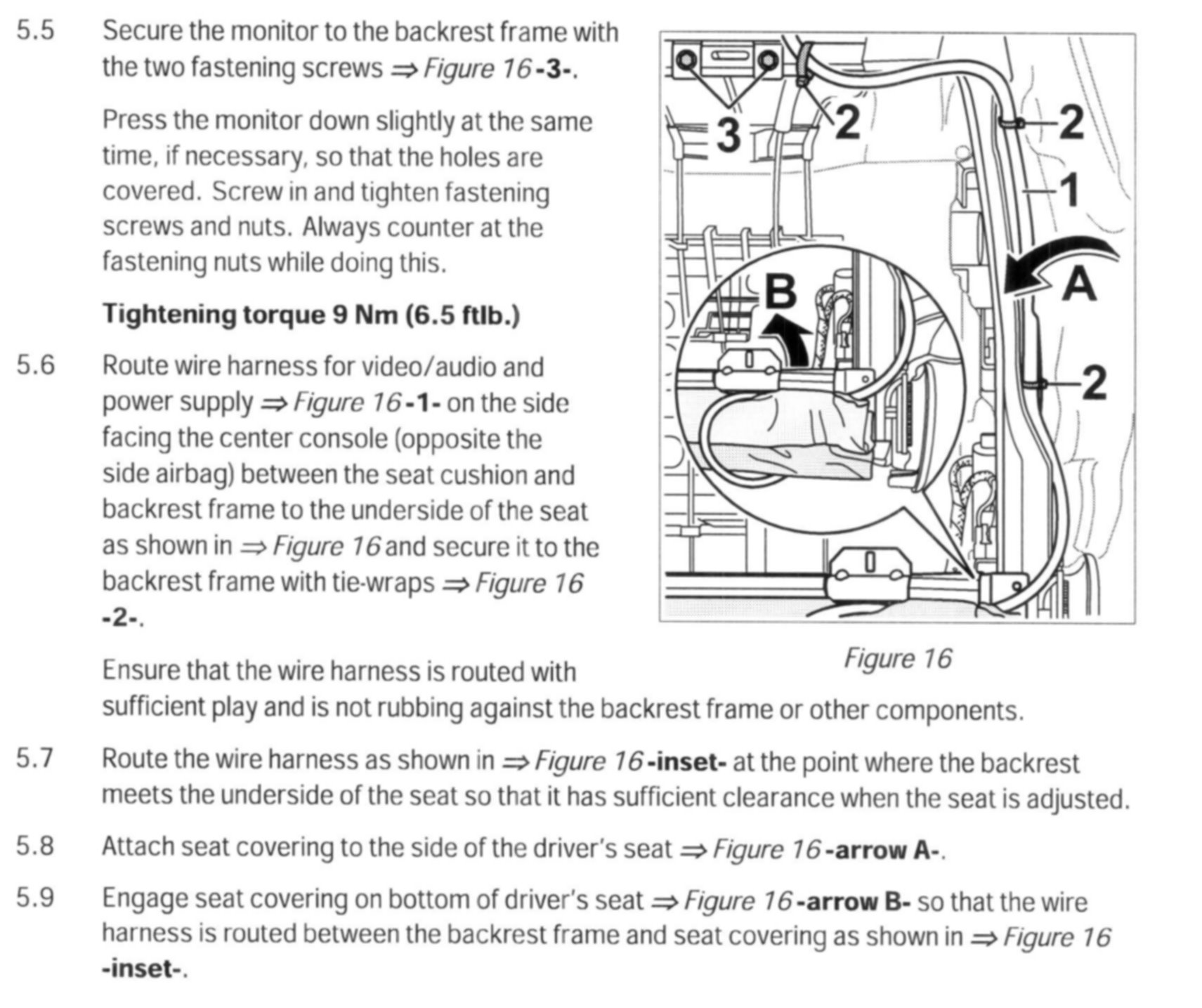

Work Procedure:





Working Time:





References:
