Work Procedure

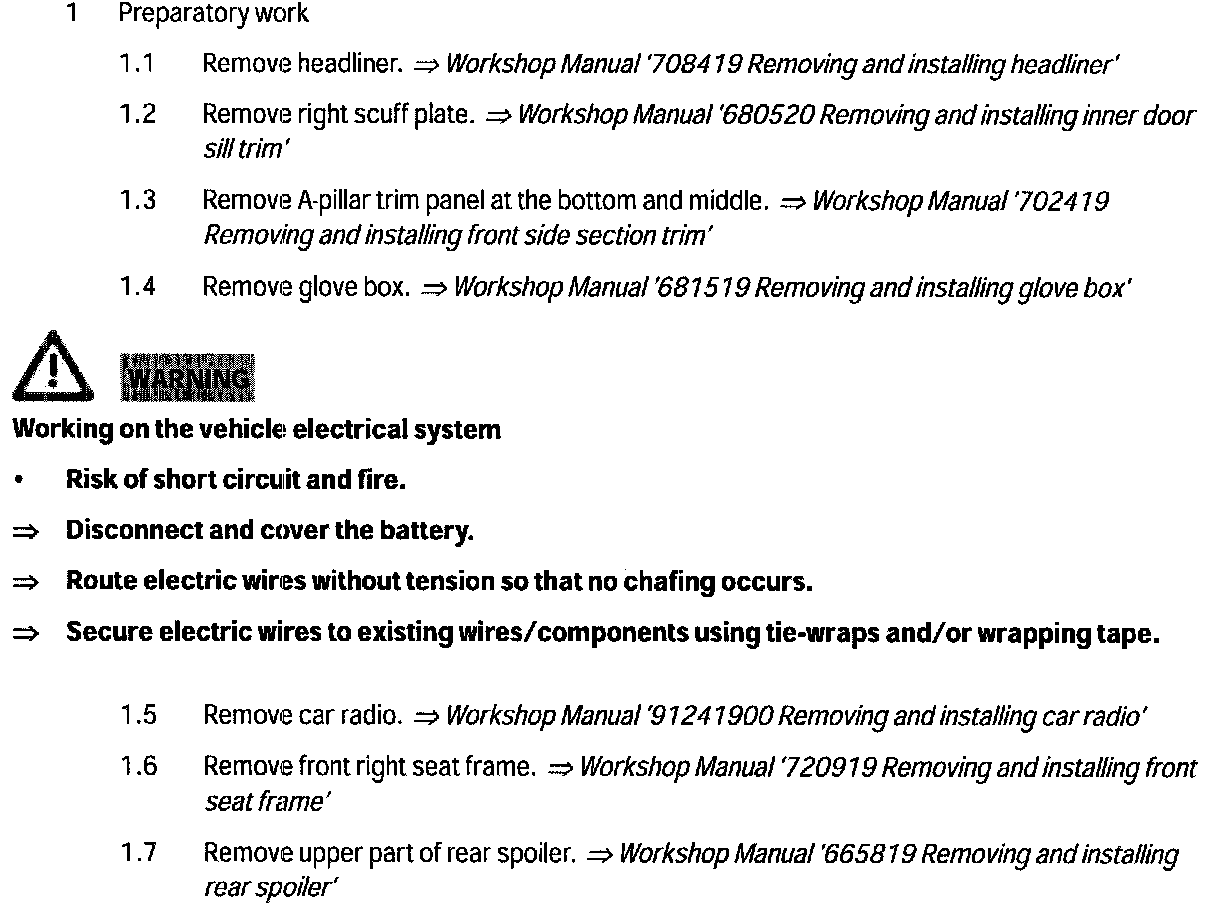

Steps 1 - 1.7

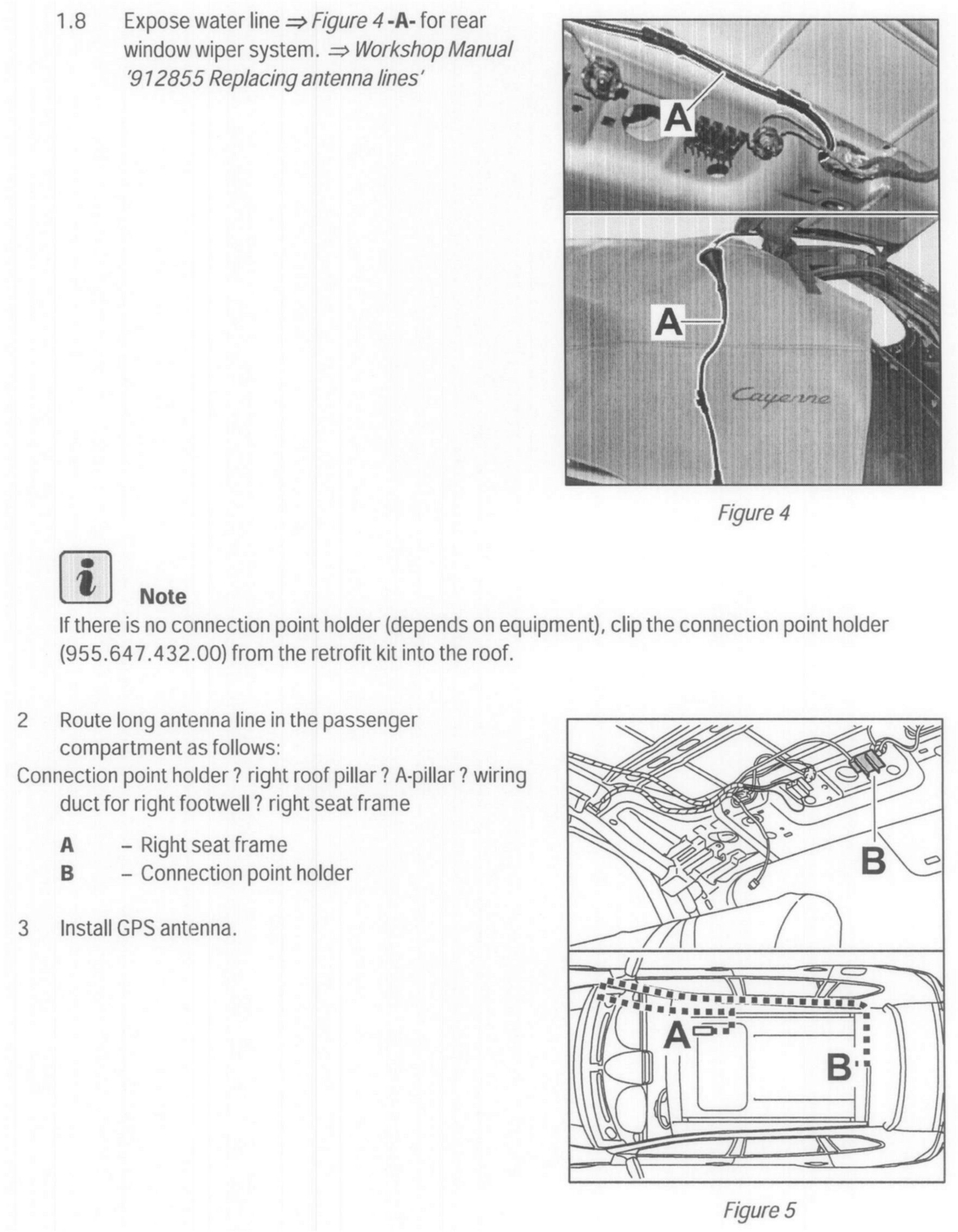

Steps 1.8 - 3

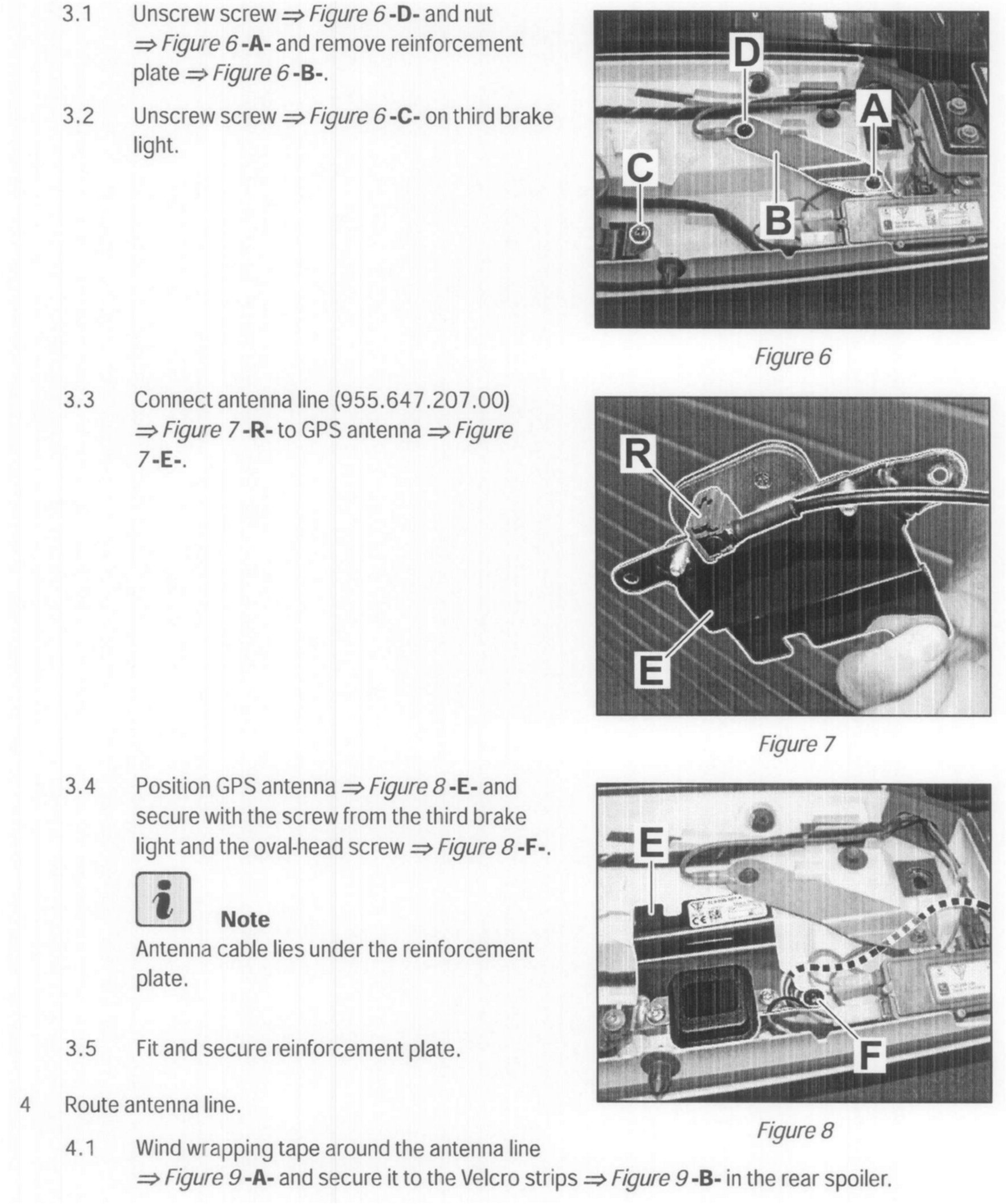

Steps 3.1 - 4.1

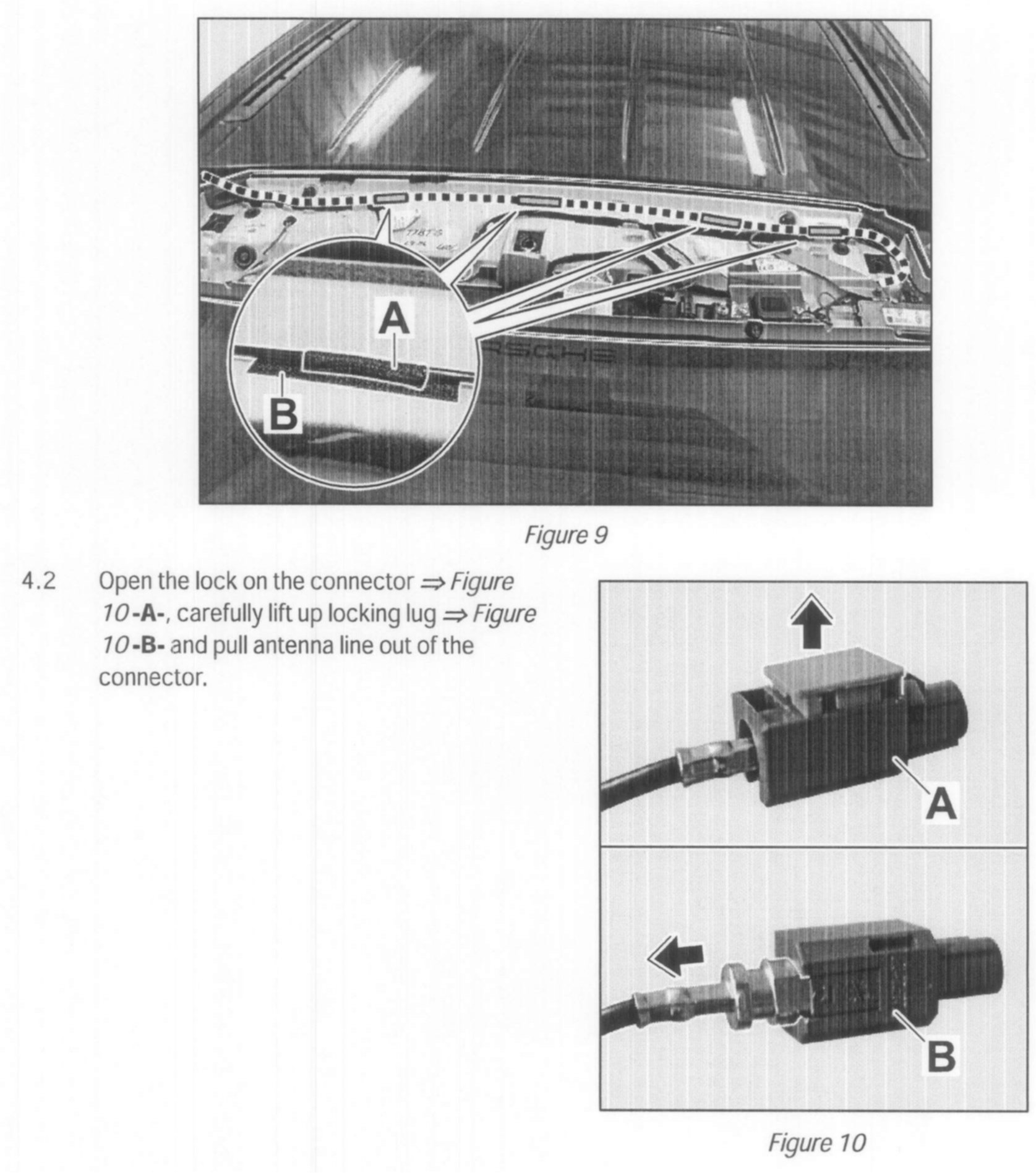

Step 4.2

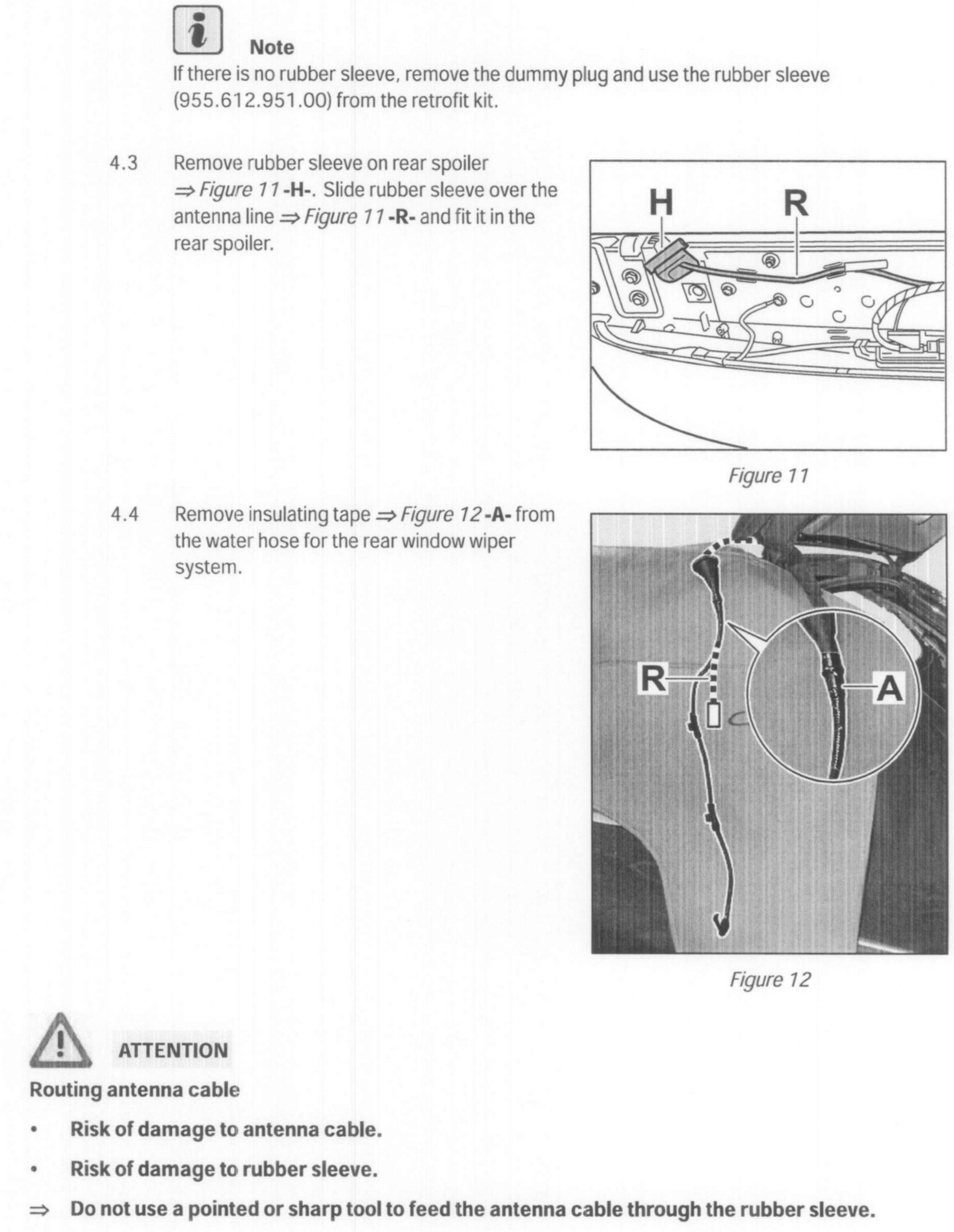

Steps 4.3 - 4.4

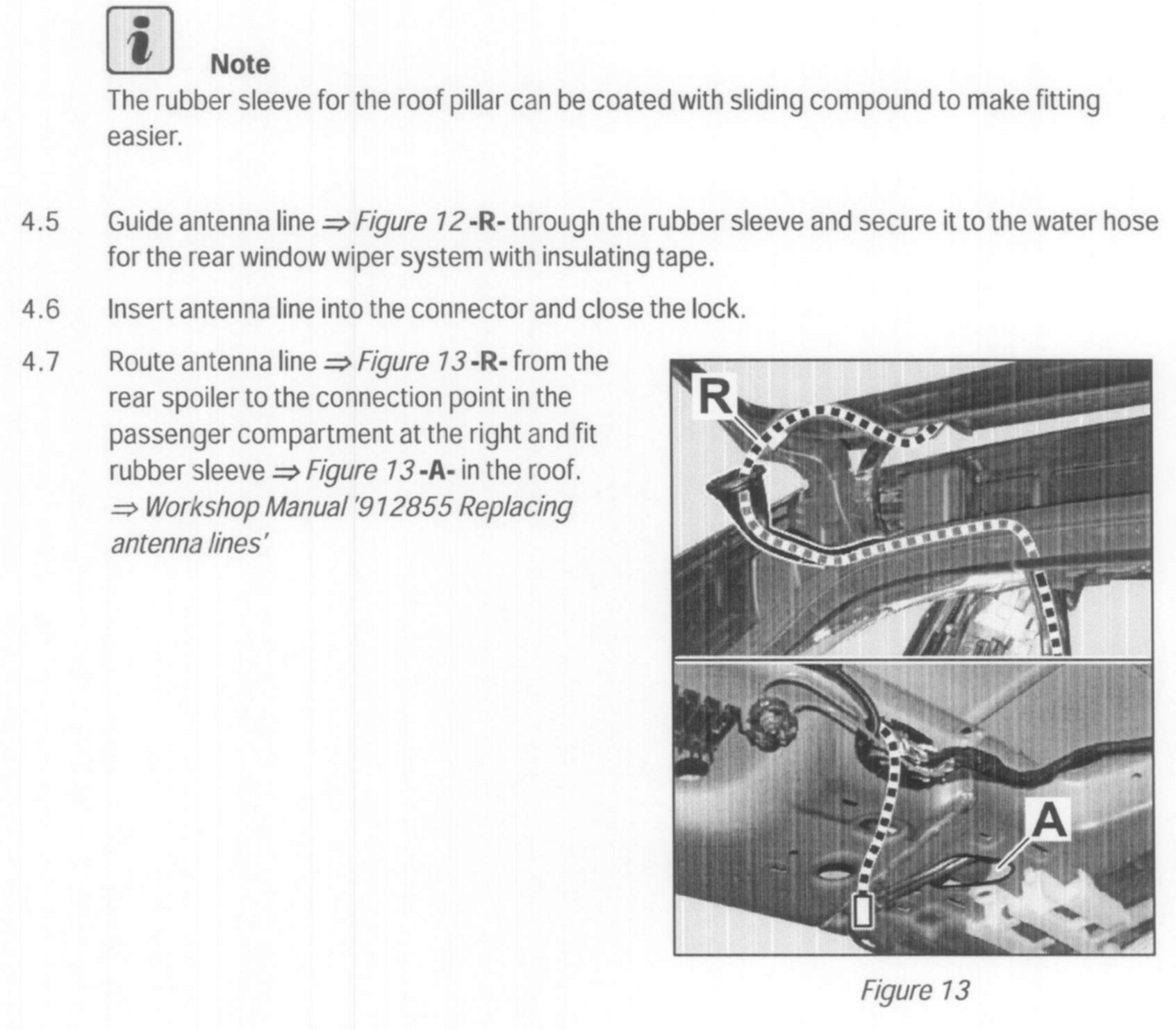

Steps 4.5 - 4.7

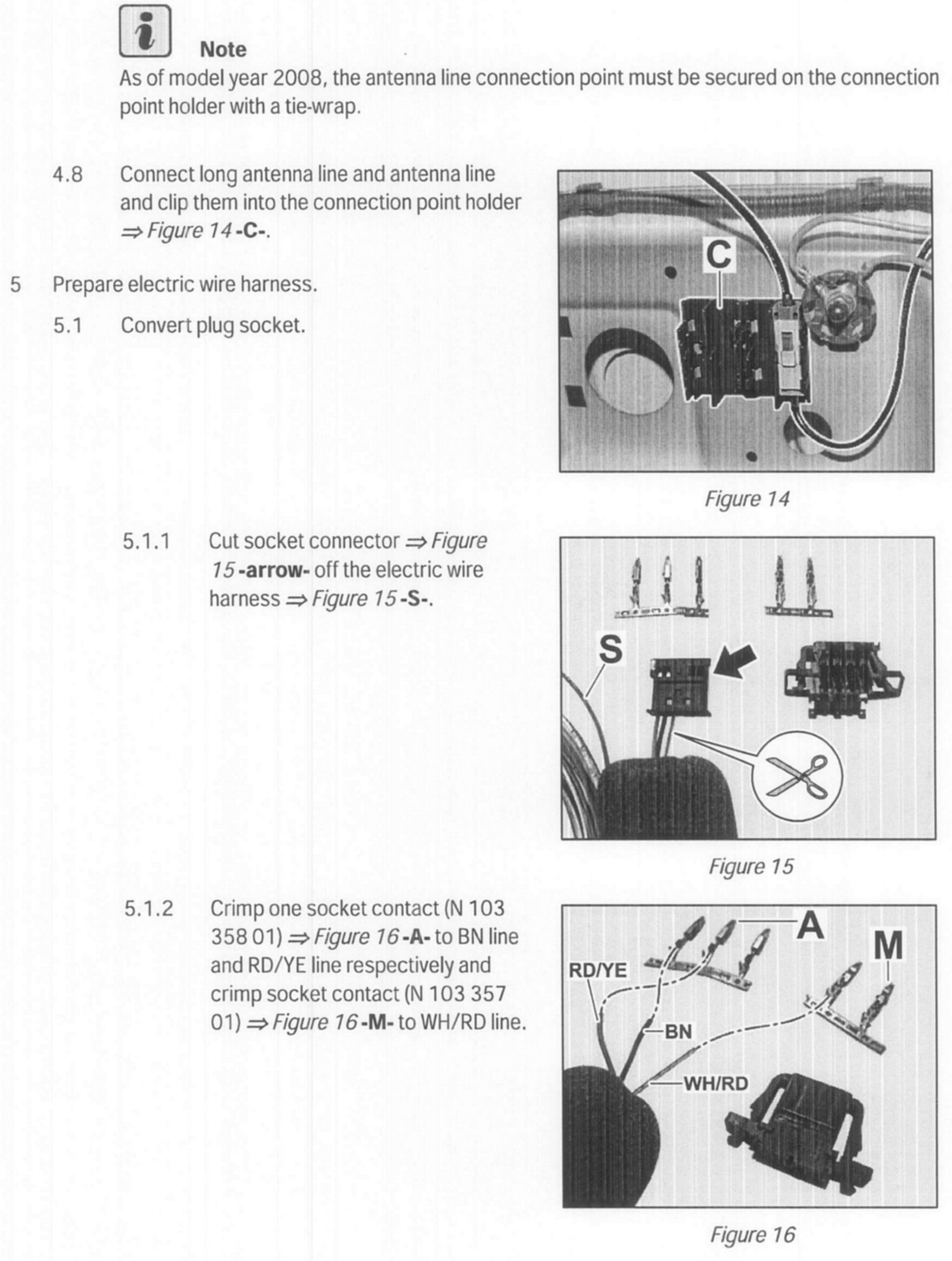

Steps 4.8 - 5.1.2

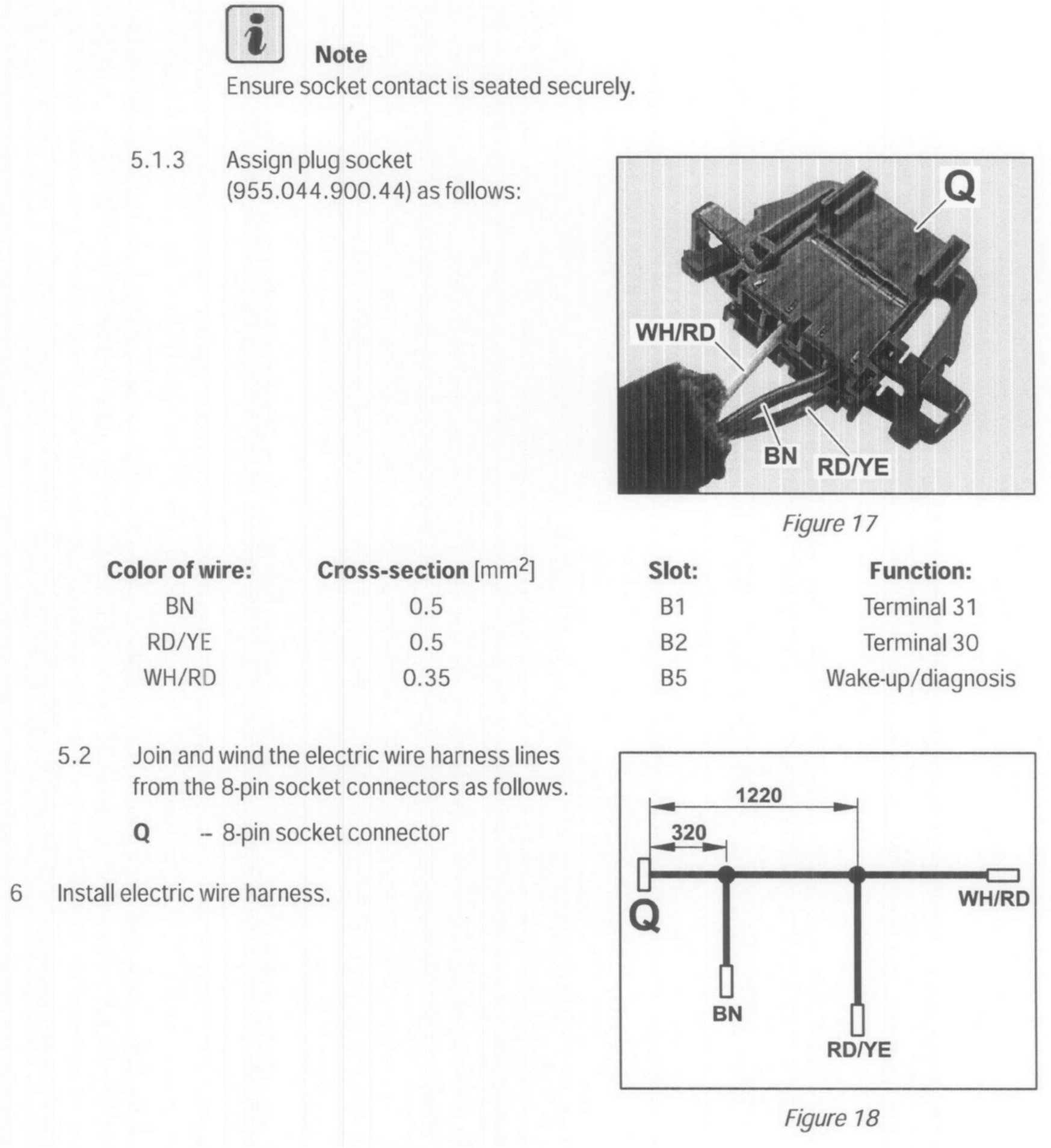

Steps 5.1.3 - 6

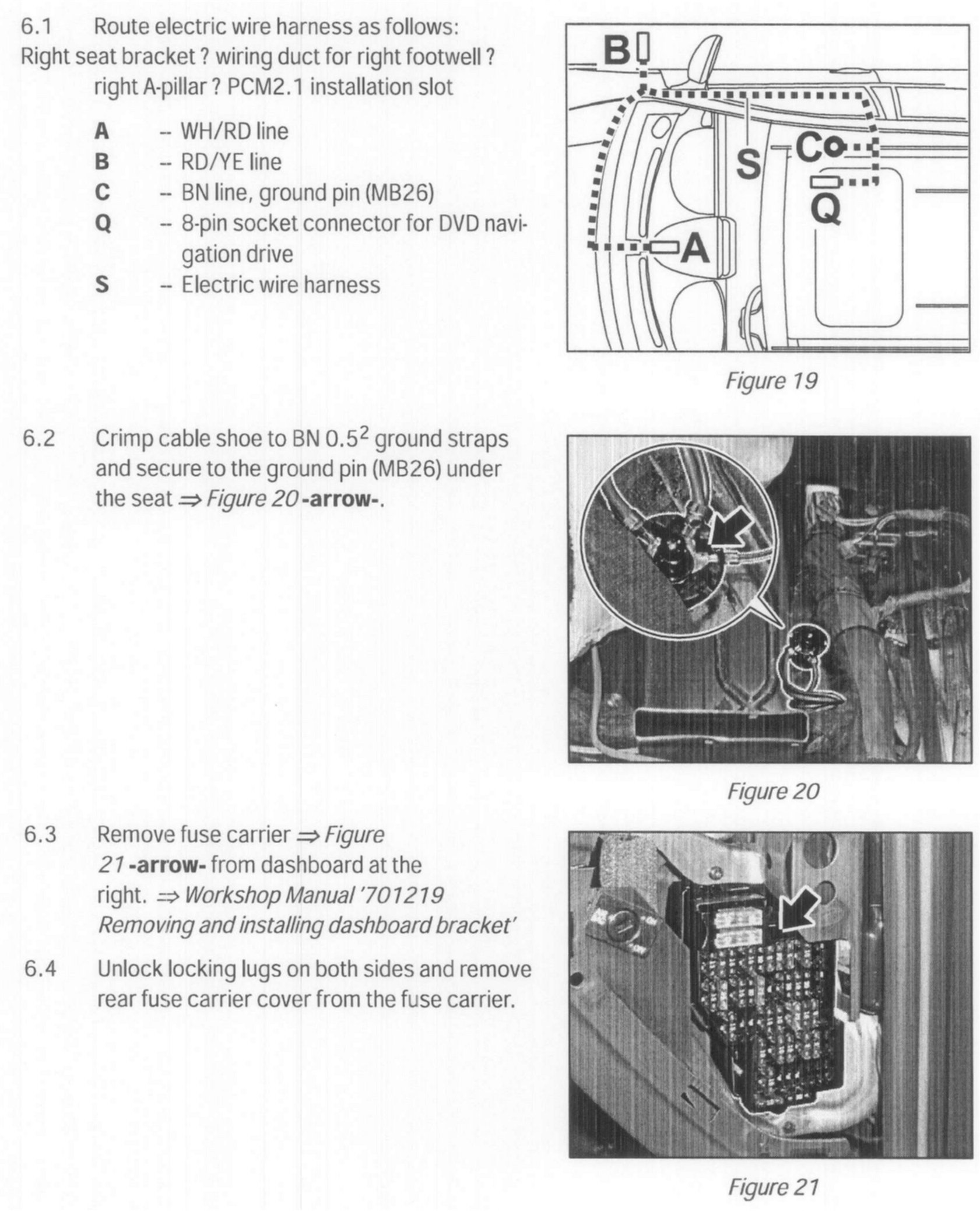

Steps 6.1 - 6.4

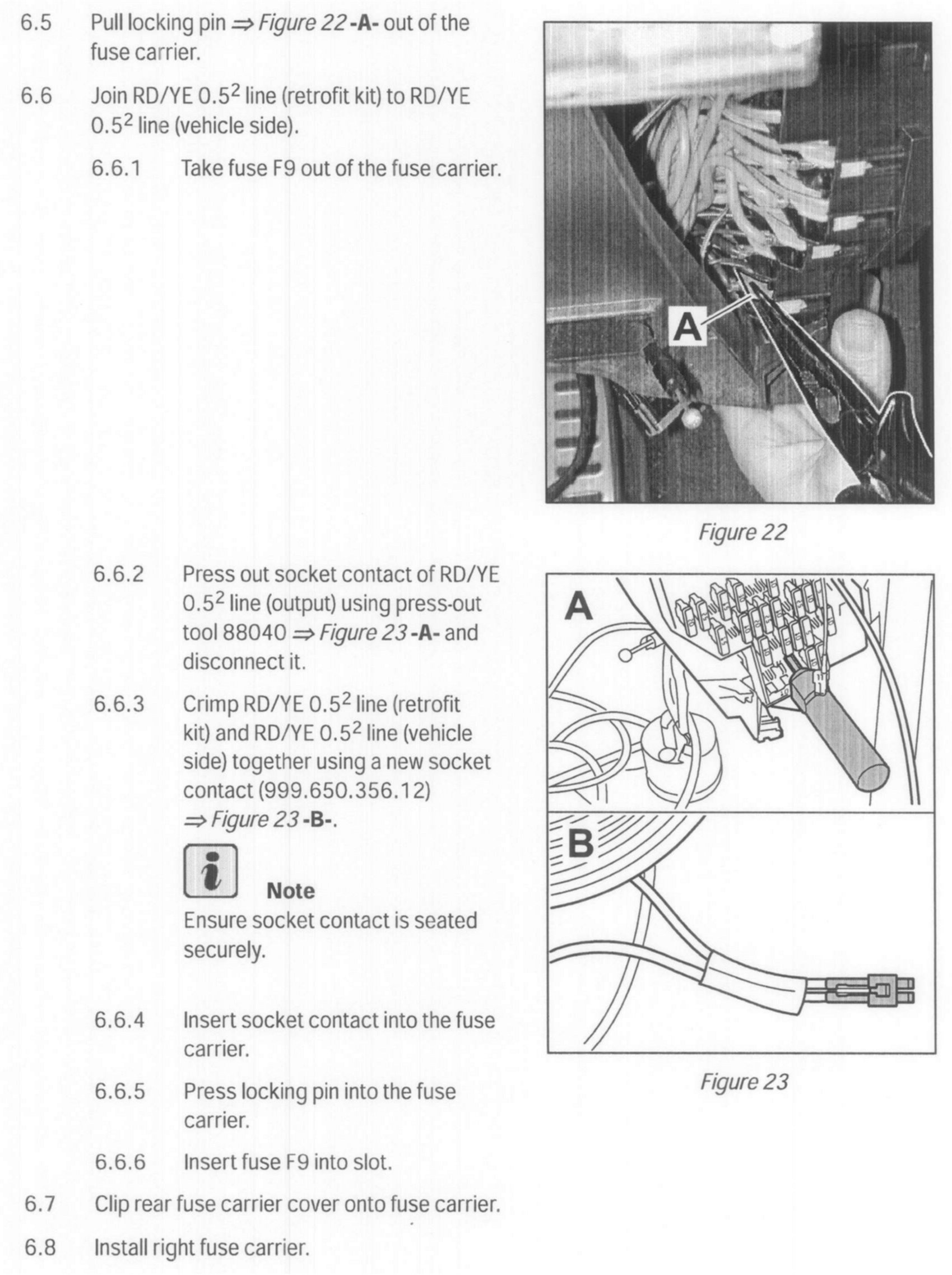

Steps 6.5 - 6.8





Steps 7 - 7.2.2

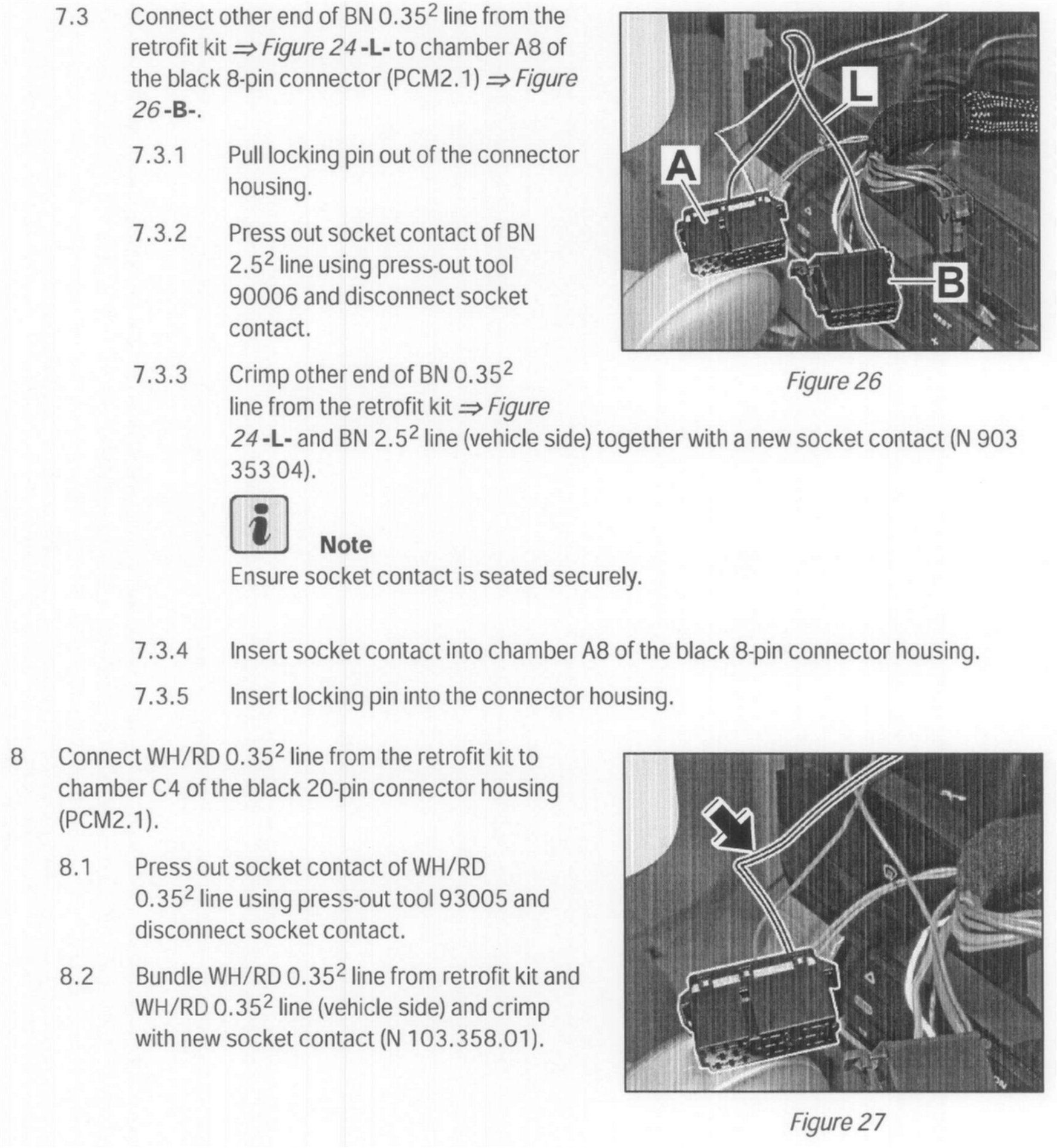

Steps 7.3 - 8.2

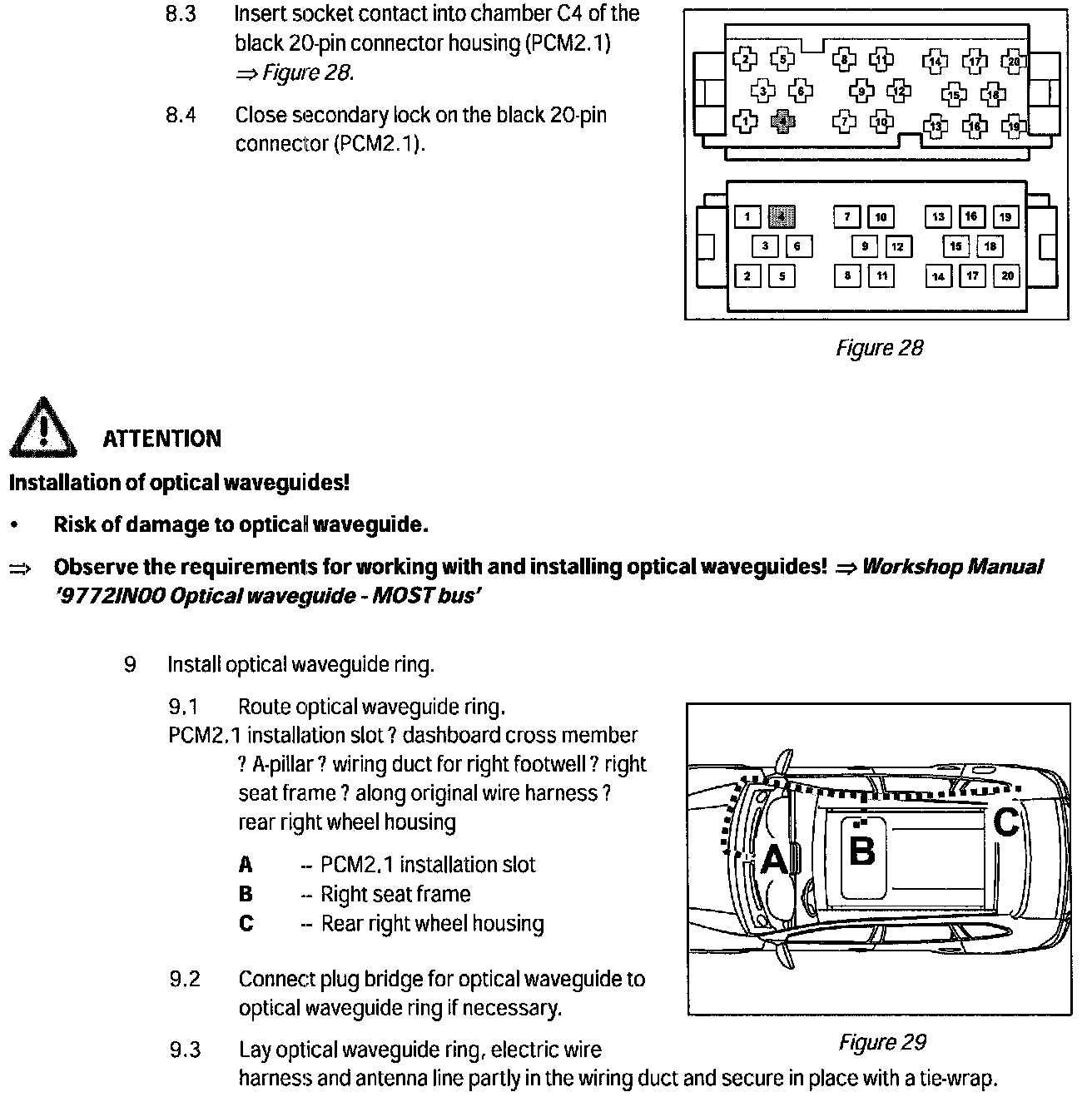

Steps 8.3 - 9.3

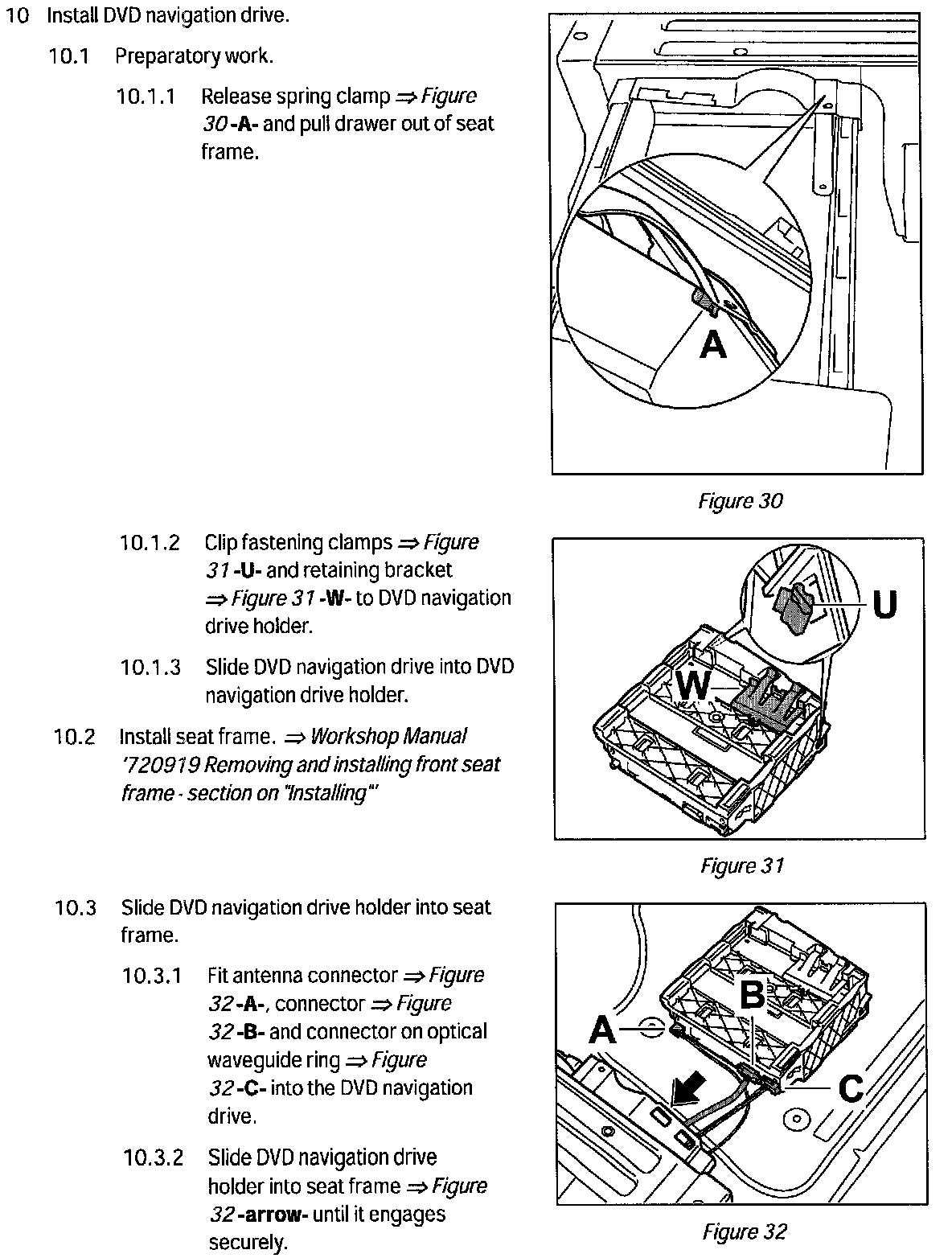

Steps 10 - 10.3.2

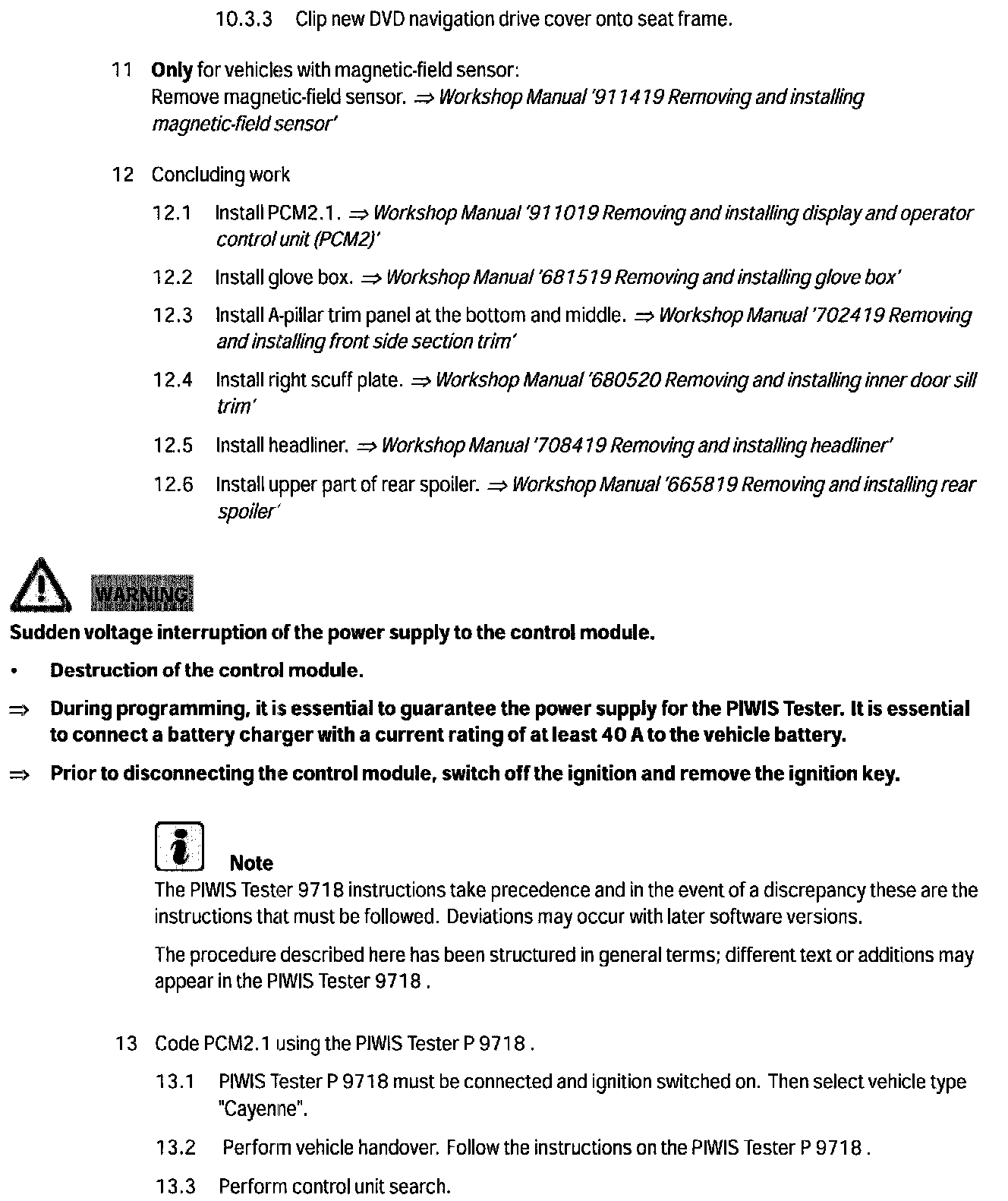

Steps 10.3.3 - 13.3

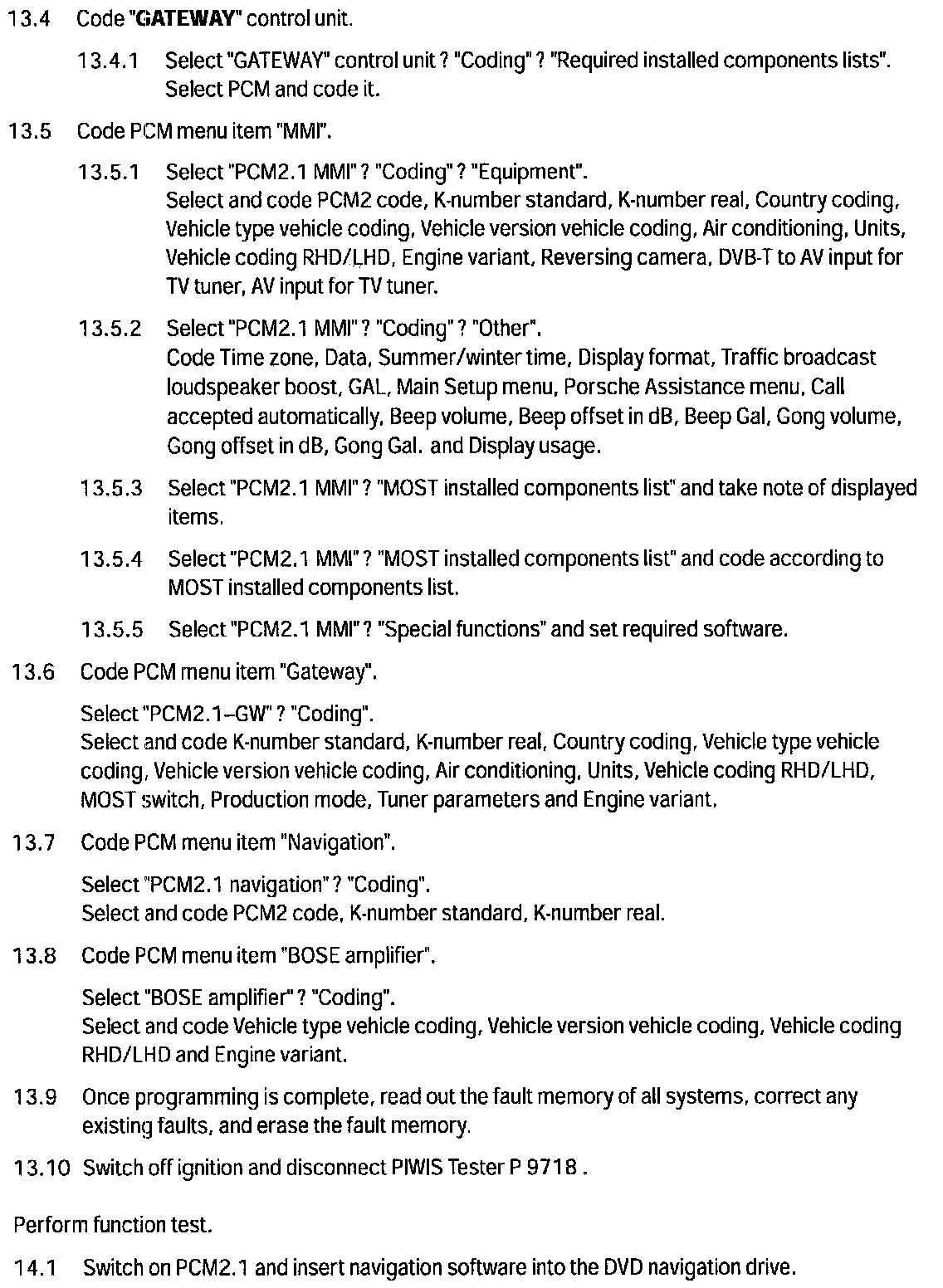

Steps 13.4 - 14.1





Step 14.2
