Fog/Driving Lamp: Service and Repair


WM 946719 Removing and installing bulb for fog light

Preliminary work

Preliminary work for fog-light bulb

Remove auxiliary headlight. -> 947119 Removing and installing auxiliary headlight - section on "Removing" 947119 Removing and installing auxiliary headlight

Removing bulb for fog light

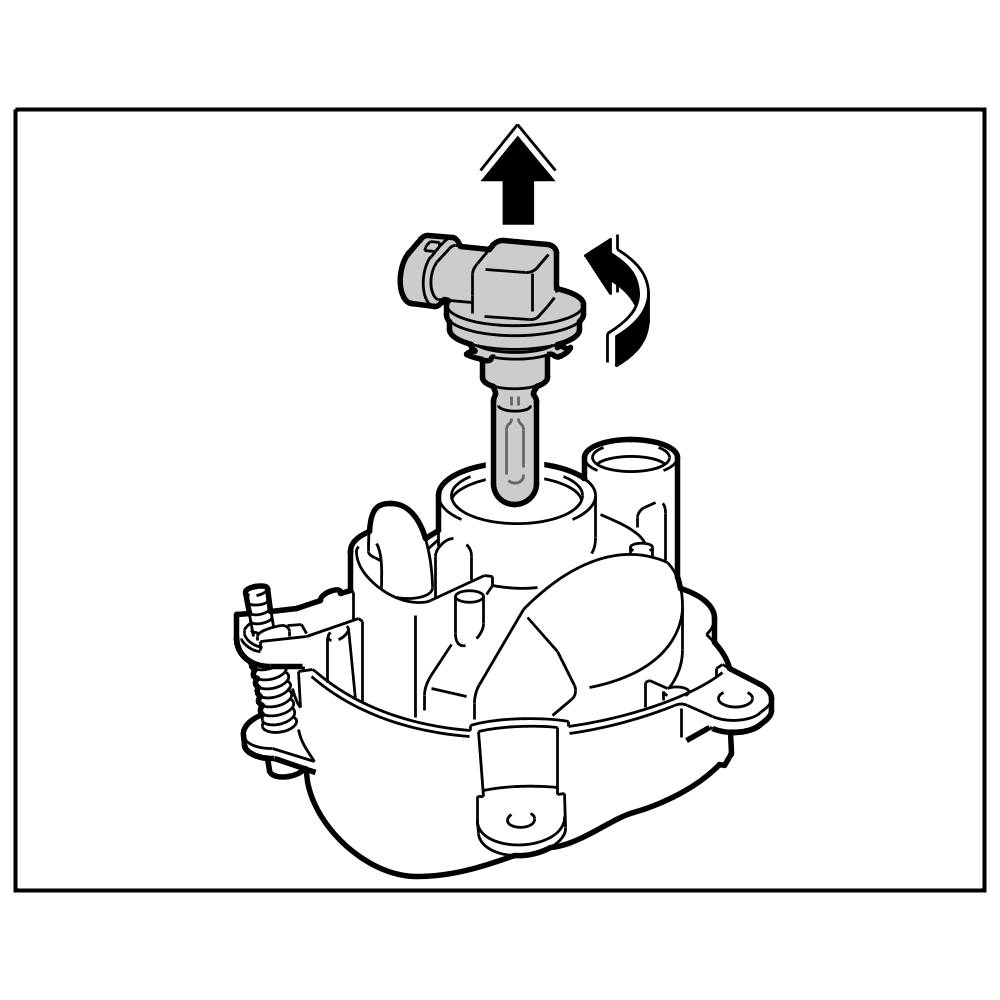

1. Turn fog-light bulb (bayonet lock) and replace.





Releasing bulb

Installing bulb for fog light

1. Observe bulb table and installation instructions. -> 9423IN Bulb table [1][2]Lighting and Horns
2. Insert new bulb in headlight and turn (bayonet lock).





Locking lamp

Subsequent work

Subsequent work for fog-light bulb

Install auxiliary headlight. -> 947119 Removing and installing auxiliary headlight - section on "Installing" 947119 Removing and installing auxiliary headlight
