Cylinder Head Assembly

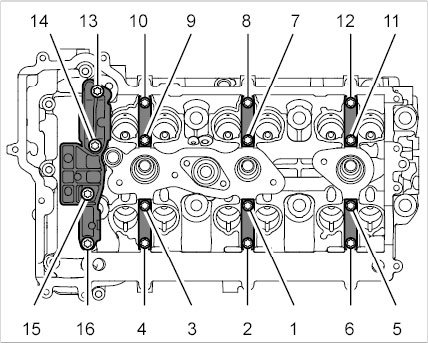

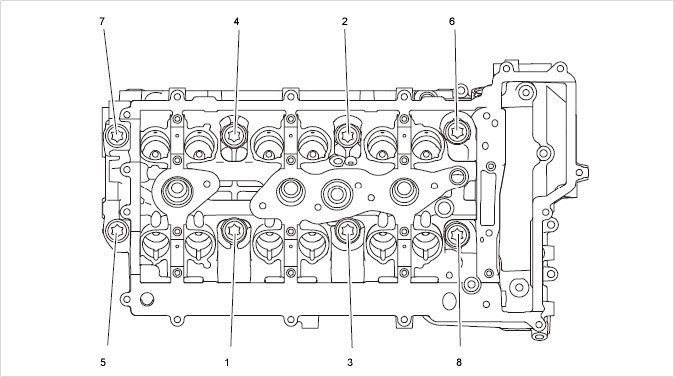

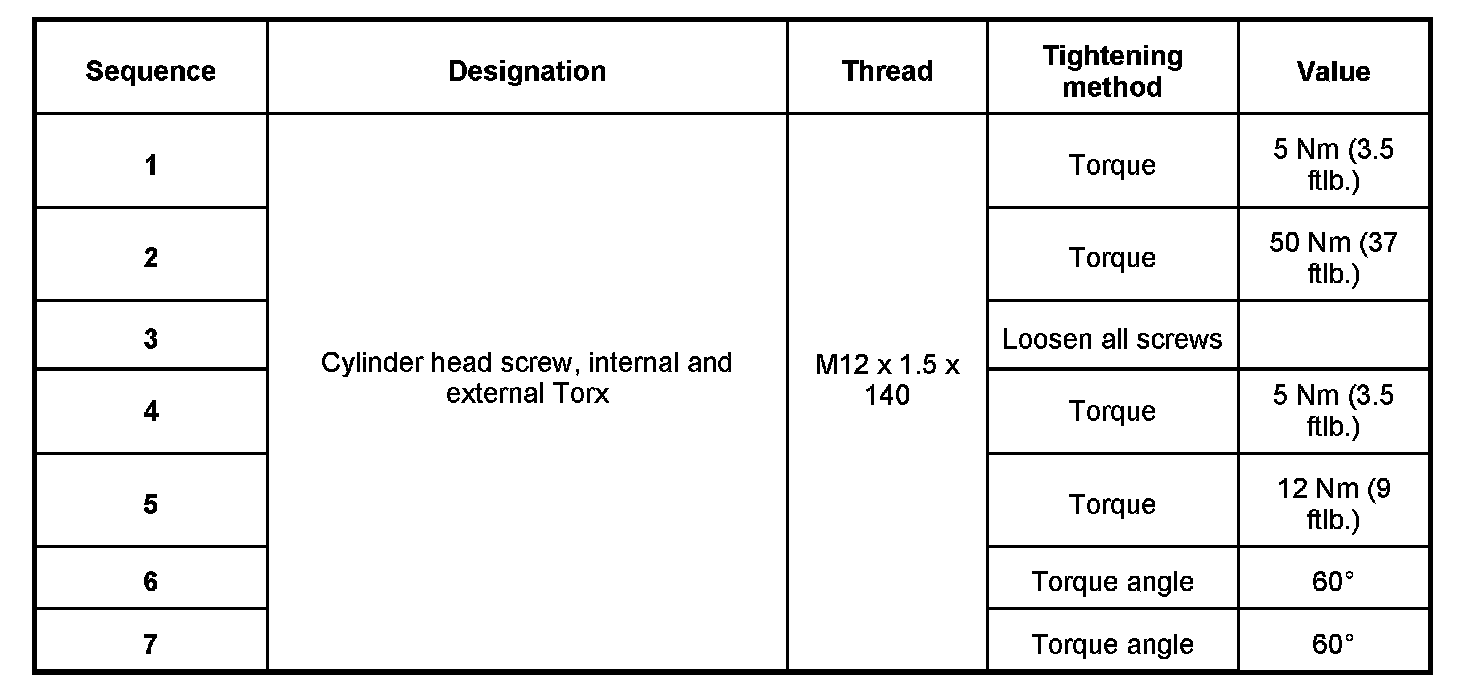

Cylinder Head Tightening sequence for cylinder head screws
Intake-Air Distributor Intake-Air Distributor
13 Nm (9.5 ft lb.)
Camshaft Bearing Covers Initial Tightening
5 Nm (3.5 ft lb.)
Torque Angle
50°
Camshaft Sprocket Initial tightening
30 Nm (22 ft lb.)
Torque angle
60°
Camshaft Controller Initial tightening
35 Nm (26 ft lb.)
Torque angle
120°
Exhaust Manifold Exhaust Manifold 23 Nm (17 ft lb)
