Mirrors: Service and Repair

Removing And Installing Interior Rear-View Mirror

Removing interior rear-view mirror

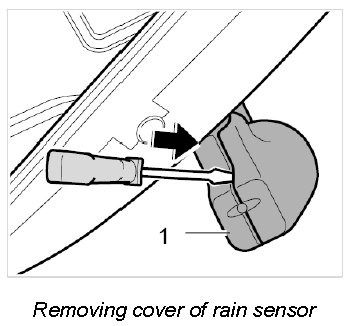

1. Carefully disconnect both covers -1- from below with a narrow screwdriver.

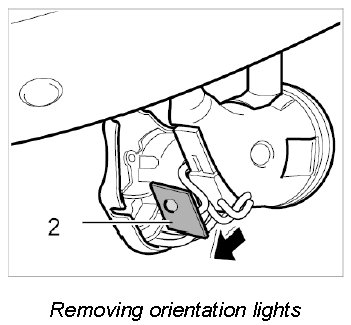

2. Removing orientation lights -2-.







INFORMATION: Only in vehicles with automatic anti-dazzle interior and exterior mirrors.

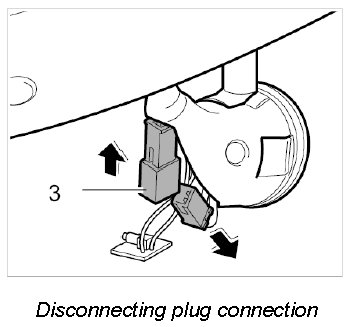

3. Carefully remove plug connection -3- from the mirror base and pull it apart.

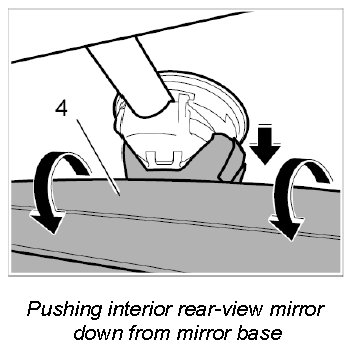

4. Fold interior rear-view mirror -4- downward and push it down from the mirror base.







Installing interior rear-view mirror

INFORMATION:
- To ensure that the rain sensor will function correctly, the retainer plate for the interior rear-view mirror is affixed ex-works at a precisely defined position on the windscreen.
- If the retainer plate has become detached from the windscreen, the retainer plate must not be re-affixed to the windscreen.
- The windscreen must be replaced to ensure that the rain sensor functions correctly.

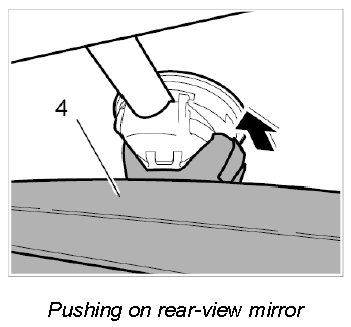

1. Push interior rear-view mirror -4- onto the mirror base from below.







INFORMATION: Only in vehicles with automatic anti-dazzle interior and exterior mirrors.

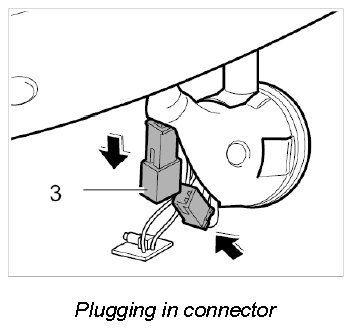

2. Join the plug connection -3- and insert it into the mirror base.

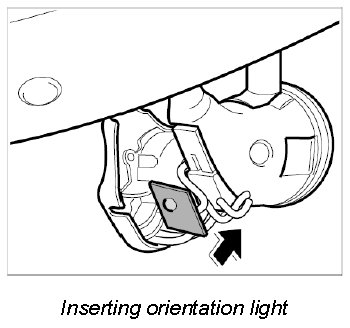

3. Insert orientation light into the cover.







INFORMATION: Make sure that the orientation light is correctly positioned.

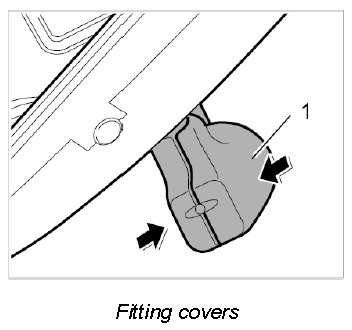

4. Fit both covers -1-.
