Cylinder Head Assembly
Tightening torques for engine - cylinder head, valve drive
Information

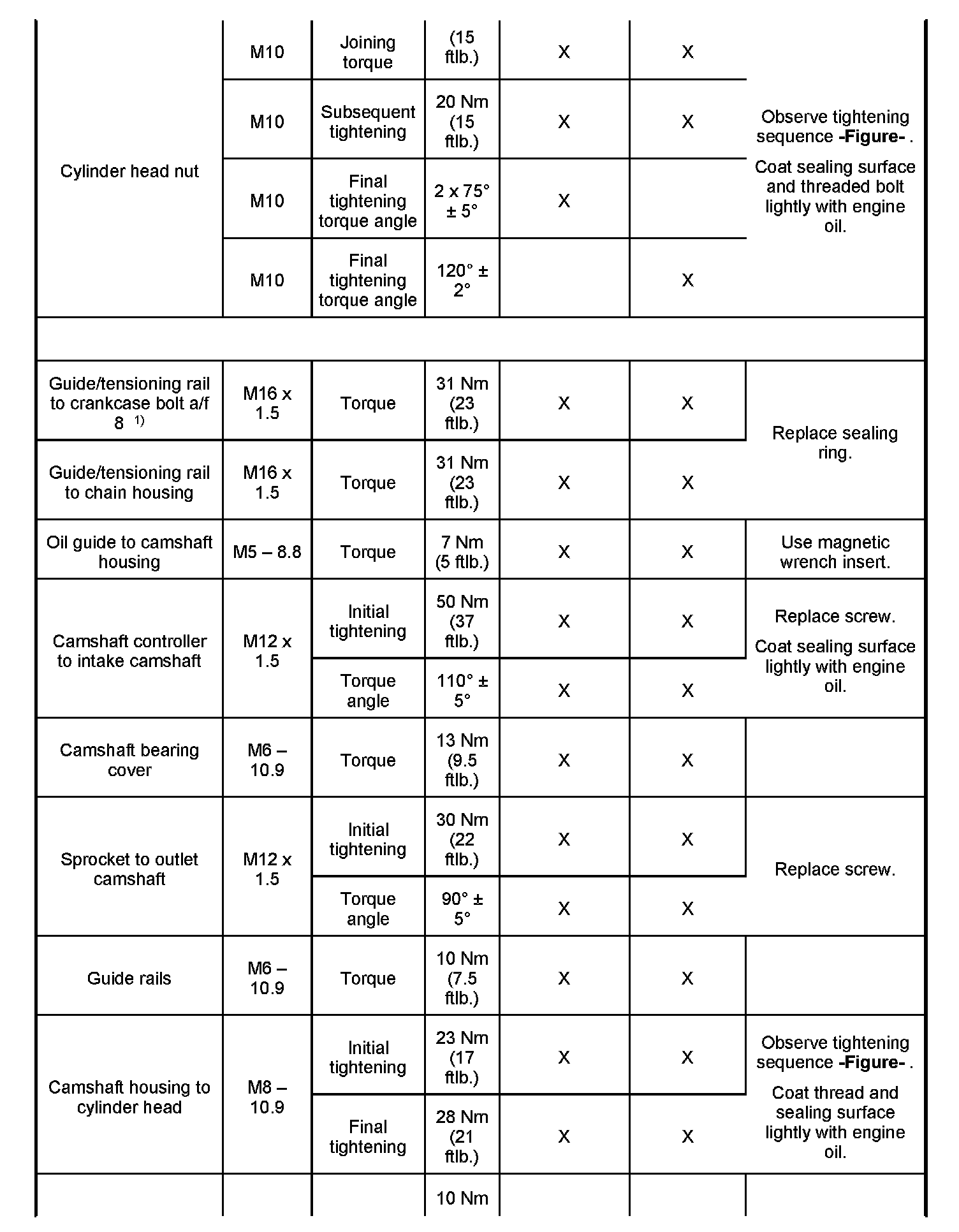

Tightening torques for cylinder head, valve drive
Cylinder head

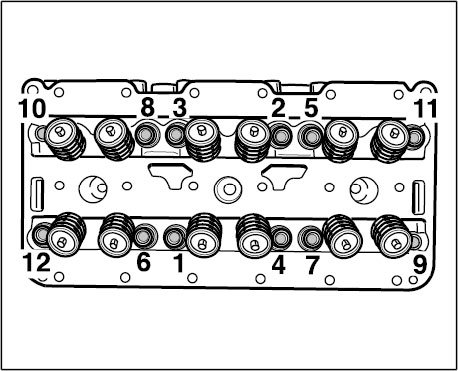

Tightening sequence for cylinder head nuts
Camshaft housing

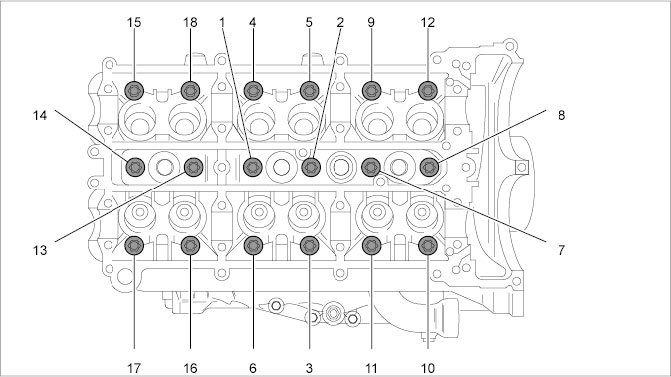

Tightening sequence for camshaft housing
Mounting saddles and camshaft thrust bearings M6 x 30
Tightening torque 13 Nm (9.5 ftlb.)
Sprocket to outlet camshaft M16 x 43
Initial tightening 30 Nm (22 ftlb.)
Sprocket to outlet camshaft M16 x 43
Torque angle 90° +/-5°
