Changing Transmission Oil

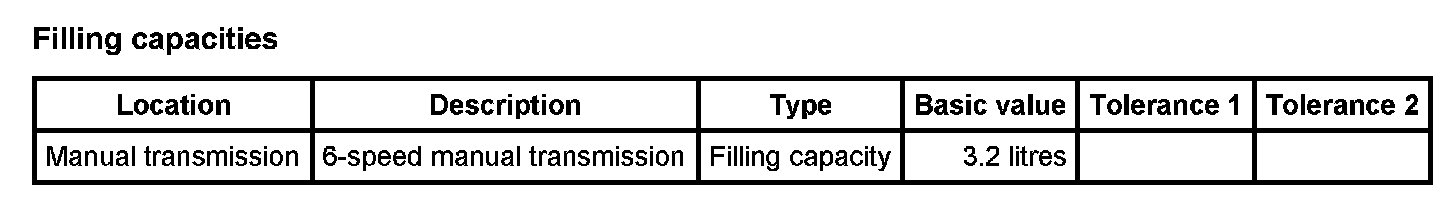

WM 340155 Changing transmission oilInformationNotes Information: Fill only with oil approved by Porsche. See Spare Parts Catalogue.
Technical valuesPreliminary workPreliminary work 1.
Raise the vehicle at the prescribed jacking points.
2.
Remove support plate.
3.
Place oil collection pan under the transmission.
Subsequent workSubsequent work 1.
Fit support plate.
2.
Lower the vehicle.
