Trailer Hitch Control Switch: Service and Repair


WM 666219 Removing and installing switch for trailer hitch

Preliminary work

Pull out fuse F 19 from fuse carrier at right of dashboard. -> 97 Circuit diagram for '03 model Cayenne (9PA)

Removing switch for trailer hitch

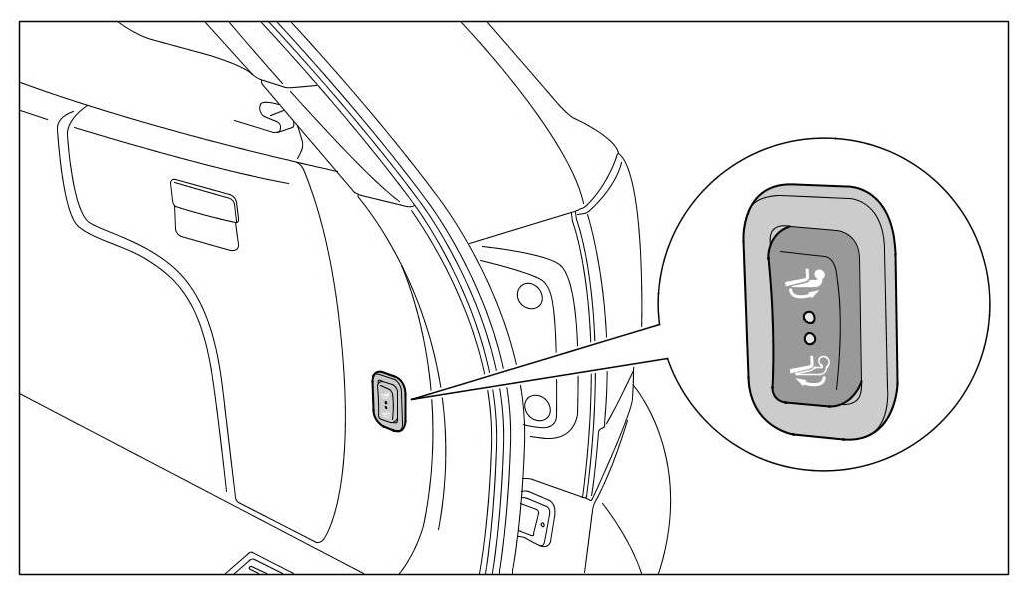

Overview of switch for trailer hitch

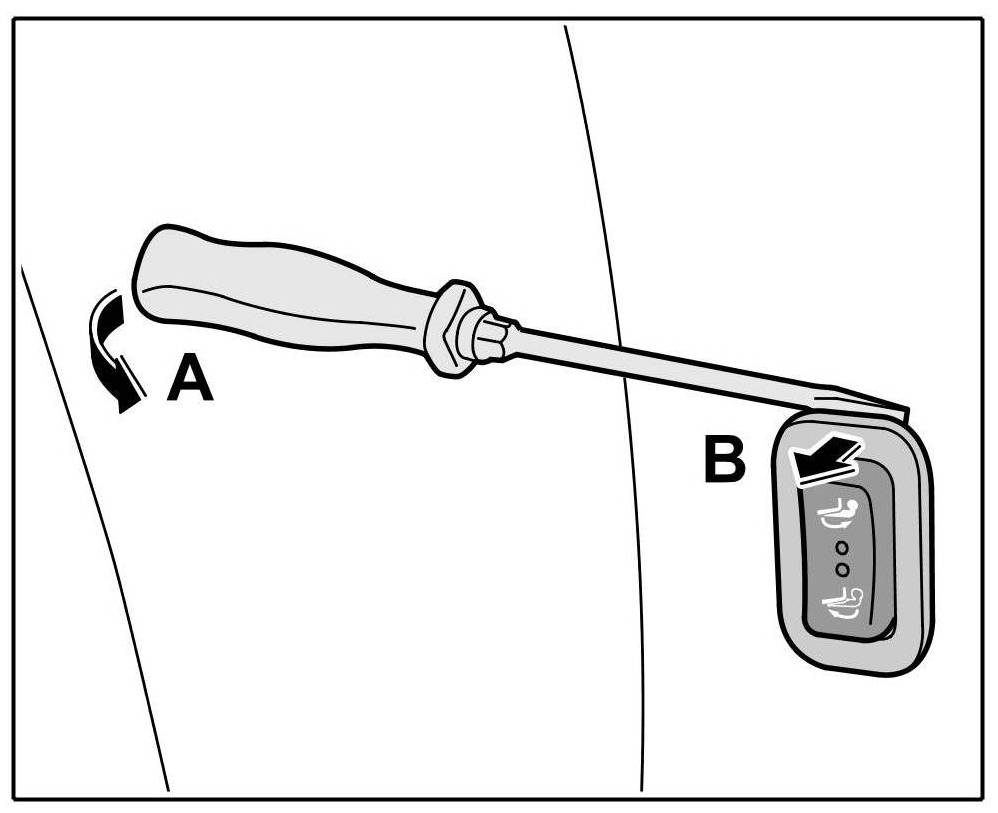

1. Lever switch out of trim panel using a standard screwdriver -arrow A- and remove it -arrow B-.





Levering out switch

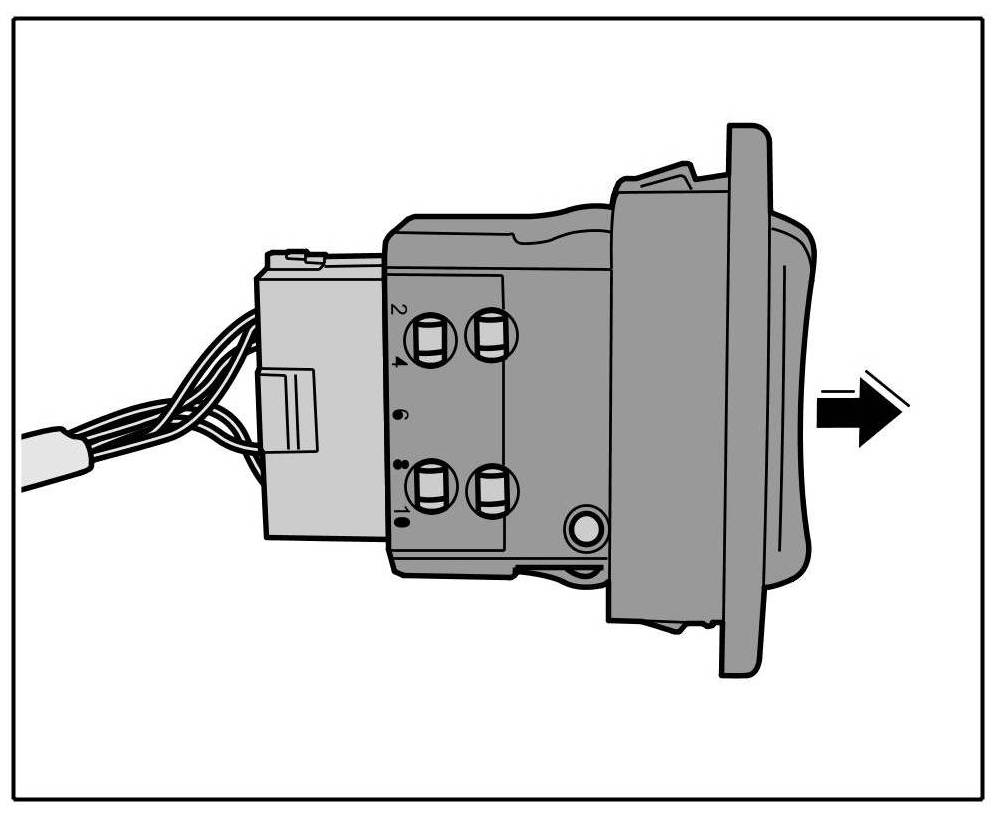

2. Pull switch off the connector -arrow-.





Pulling switch off connector

Installing switch for trailer hitch

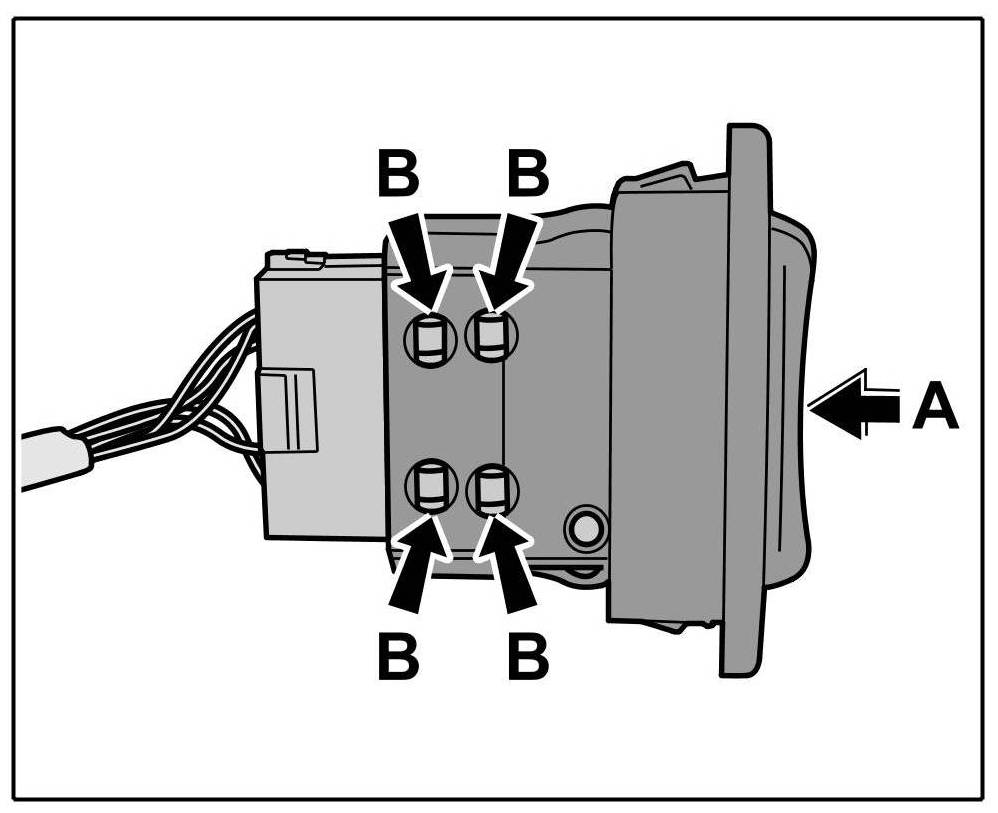

1. Push switch onto the connector -arrow A- until the locking tabs -arrows B- are felt to engage.





Pushing switch onto connector

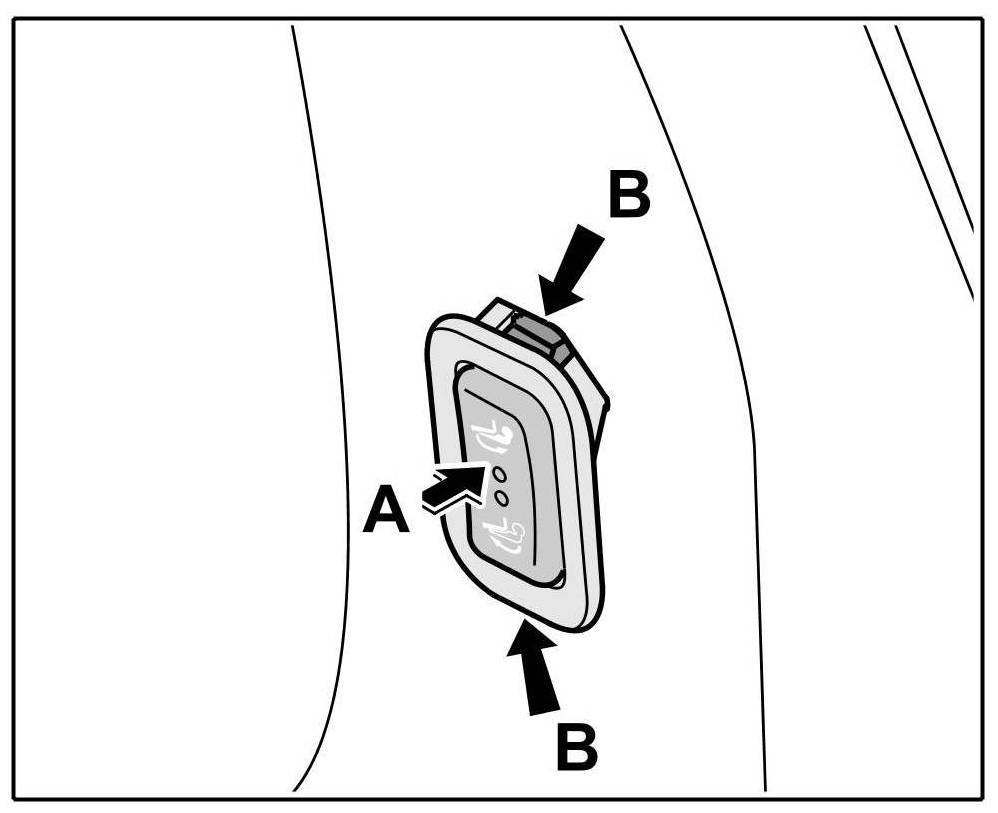

2. Position the switch parallel to the trim panel and -arrow A- until the locking tabs -arrows B- are felt to engage.






Subsequent work

Insert fuse F 19 in fuse carrier at right of dashboard. -> 97 Circuit diagram for '03 model Cayenne (9PA)
