Engine Mounting



Removing and installing engine mounting (hydraulic mount) on V6 DFI engines





Preliminary work

1. Remove engine carrier.

Removing engine mounting

1. Remove engine mounting (hydraulic mount).

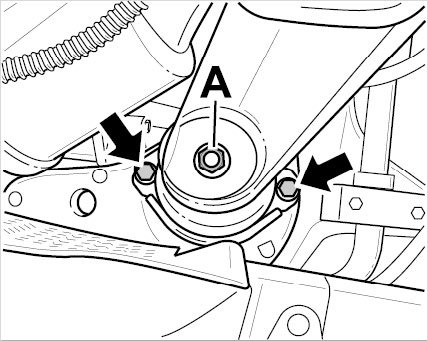

1.1. Loosen the hexagon nut -A-.





Engine mounting

Installing engine mounting

Information:
^ The engine mounts must be aligned using the engine carrier.
^ The engine mounts differ (left/right) and must not be interchanged.

1. Install engine mounting.





Engine mounting

1.1. The dowel pin of the engine mounting must sit correctly into the cut-out on the engine carrier.
1.2. Fit fastening screws -arrows- but do not tighten yet.
1.3. Always replace the hexagon nut and tighten to -> Tightening torque: 75 Nm (56 ftlb.). Fit the engine carrier to prevent the bearing from turning.

Subsequent work

1. Install engine carrier.
